Mains cable Europe CEE 7/7 to C5, 0.75mm², VDE, black, length 5.00m
Mains cable Europe CEE 7/7 to C5, 0.75mm², VDE, black, length 5.00m

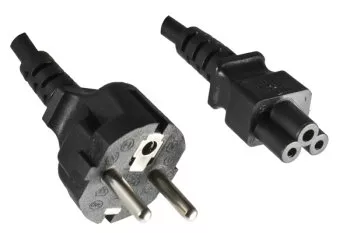

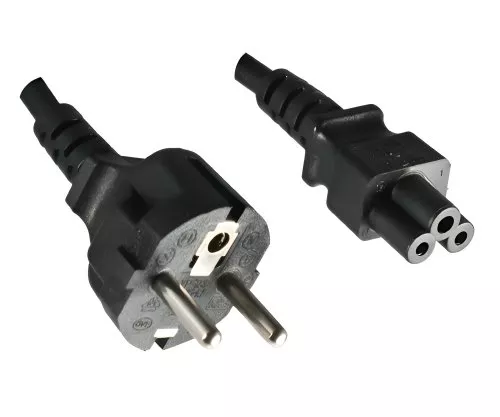

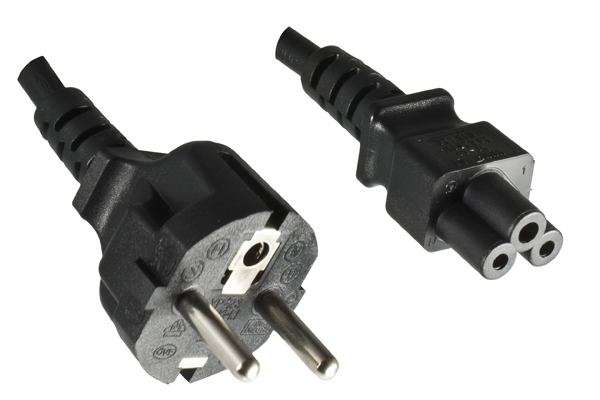

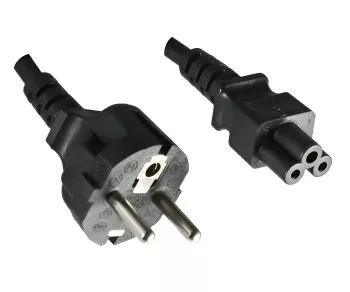

Mains cable Europe CEE 7/7 (90°) to IEC 60320 C5 - 3G0.75 mm², black, 5.0 m (DINIC CB-3-5M)
Earthing contact mains cable with angled CEE 7/7 plug for tight installation situations, C5 appliance coupler ("cloverleaf").
Technical highlights
- Plug connector: CEE 7/7 earthing contact plug (type E/F) angled 90° to IEC 60320 C5 (cloverleaf)
- Conductor construction: 3G0.75 mm² (3 × 0.75 mm²), flexible copper conductor
- Cable type/sheath: H05VV-F PVC hose cable - robust for indoor installation and operation
- Length: 5.0 m - range for rack/workstation and device cabling
- Colour: black - unobtrusive integration in IT and media technology environments
- Electrical rating: 250 V AC, current carrying capacity up to 2.5 A (limited by IEC 60320 C5)
- Packaging: Bulk (without individual packaging) - suitable for project business and warehousing
- Test marks/approvals (cable/plug side): VDE, NF, DEMKO, FI, KEMA, CEBEC, OVE, IMQ, SEV, SAA
Description
This mains cable connects a European socket outlet with earthing contact (CEE 7/7, type E/F) to appliances or power supply units with IEC 60320 C6 appliance couplers via an IEC 60320 C5 coupling ("cloverleaf"). The conductor cross-section 3G0.75 mm² and the H05VV-F PVC cable support a reliable power supply in professional installations.
The 90° angled plug on the mains side reduces the installation depth behind devices and furniture and minimises kinks in confined spaces, e.g. in server cabinets, media racks or when installed close to walls. Note: The illustration of the plug is decisive, as the designation left/right/top/bottom angled depends on the respective point of view.
The black version and bulk packaging enable economical stocking and standardised cabling in rollout and service scenarios.
Fields of application
- System integration, IT service, rollouts (notebook/docking and power supply cabling)
- Media technology (projectors, presentation systems), conference and training rooms
- Data centre/server room (power supply to devices with C6 input, space-saving behind racks)
- Building technology and office IT, workplace cabling
- Indoor industrial applications (power supply units, measuring and peripheral devices with C6 input)
Technical data
| Product | Mains cable Europe CEE 7/7 (90°) to IEC 60320 C5 |
| MAG art. no. | CB-3-5M (YP-23/YC-14) |
| EAN | 4032528012636 |

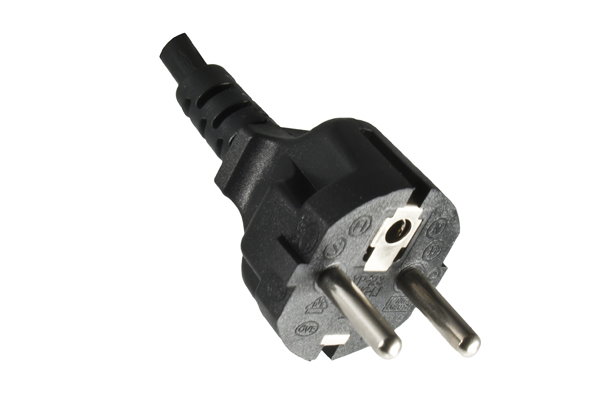

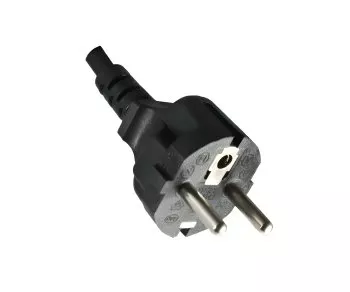

| Plug (mains side) | CEE 7/7 earthing contact (type E/F), 90° angled |

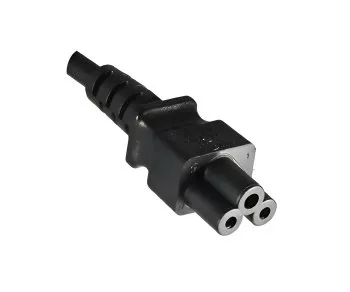

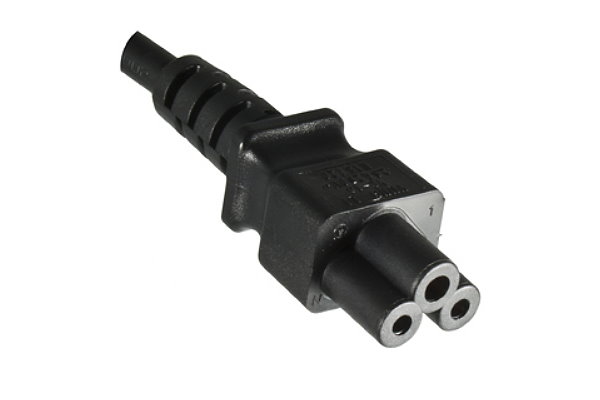

| Coupling (appliance side) | IEC 60320 C5 (cloverleaf) |
| Number of conductors / cross-section | 3 cores incl. protective conductor / 3 × 0.75 mm² (3G0.75) |
| Cable type | H05VV-F (PVC) |
| Rated voltage | 250 V AC (system-dependent) |
| Current carrying capacity | up to 2.5 A (limited by IEC 60320 C5) |
| Temperature range (operation) | typ. -10 °C to +60 °C |
| colour | Black colour |
| Cable length | 5,00 m |
| Packaging | Bulk (without individual packaging) |
| Weight | approx. 0.41 kg/piece |
Compatibility
- For appliances/power supply units with IEC 60320 C6 appliance inlet plug (suitable for IEC 60320 C5 coupling)
- Compatible on the mains side with type E/F (CEE 7/7) safety sockets
- Typical device classes: Notebook/workstation power supply units, docking stations, projectors, peripherals with C6 input
Scope of delivery
1 × CEE 7/7 (90°) to IEC 60320 C5 power cable, black, 5.00 m (bulk)
DINIC is a brand of MAG GmbH - developed for professional cable and connection solutions.
