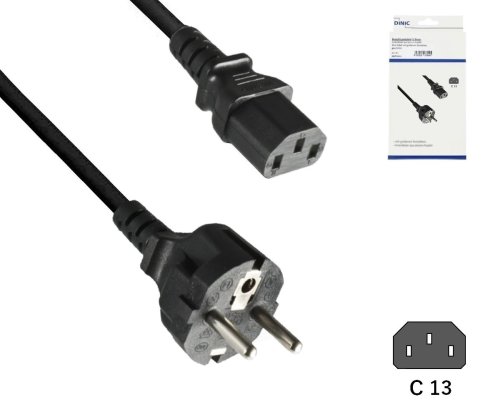

Power cable Europe - CEE 7/7 E+F to C13, black, 1.00m
MAG item no.: CB-N-1-KB (YP-23/YC-12)
- Plug: CEE 7/7 grounding plug E+F to C13
- Color: black
- Length: 1.00m
- Cross section: 3 x 1mm²
- Material: H05VV-F
- Approval: VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: DINIC box
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the grounding plug is commonly used.

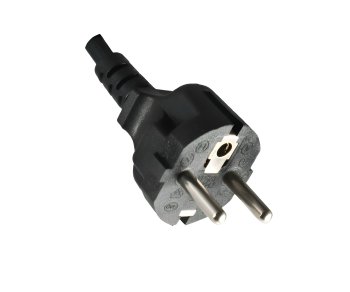

Plug type E+F CEE-7/7 system (YP-23)
In the grounding type plug, two protection systems were combined in one plug, so that the grounding is done through the contact surfaces or the grounding prong (French system).
C13 plug (YC-12)
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
