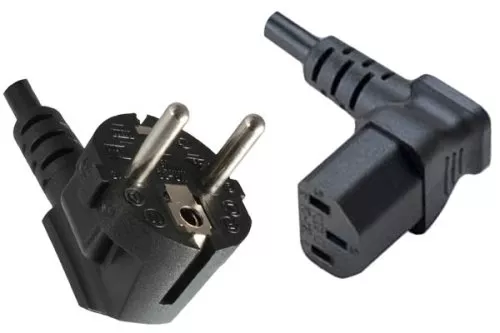

Power cable Europe - CEE 7/7 E+F to C13, black, 1.80m
MAG item no.: CB-N-90D (YP-22/YC-12L-3)
- Plug: CEE 7/7 safety plug E+F 90° angled to C13 90° angled
- Color: black
- Length: 1,80m
- cross section: 3 x 0,75mm²
- Material: H05VV-F
- Approval: VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the grounding plug is commonly used.

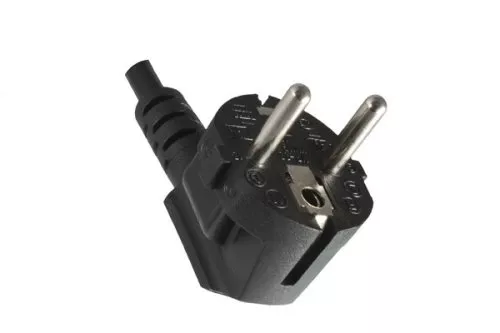

Plug type E+F CEE-7/7 system - YP-22
In the grounding type plug, two protective systems were combined in one plug, so that the grounding takes place through the contact surfaces or the grounding prong (French system).

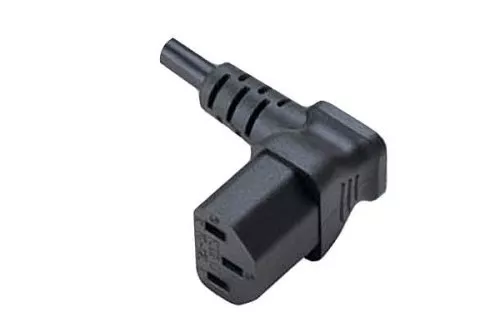

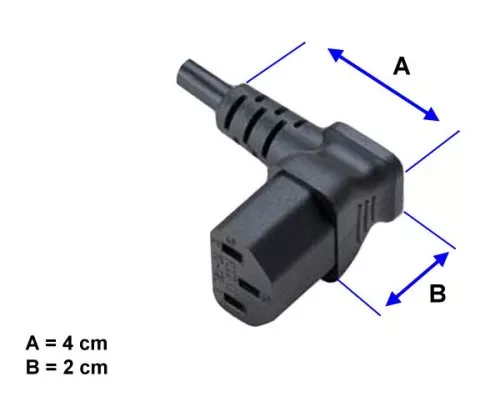

Plug C13 90° angled - YC-12L-3
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
