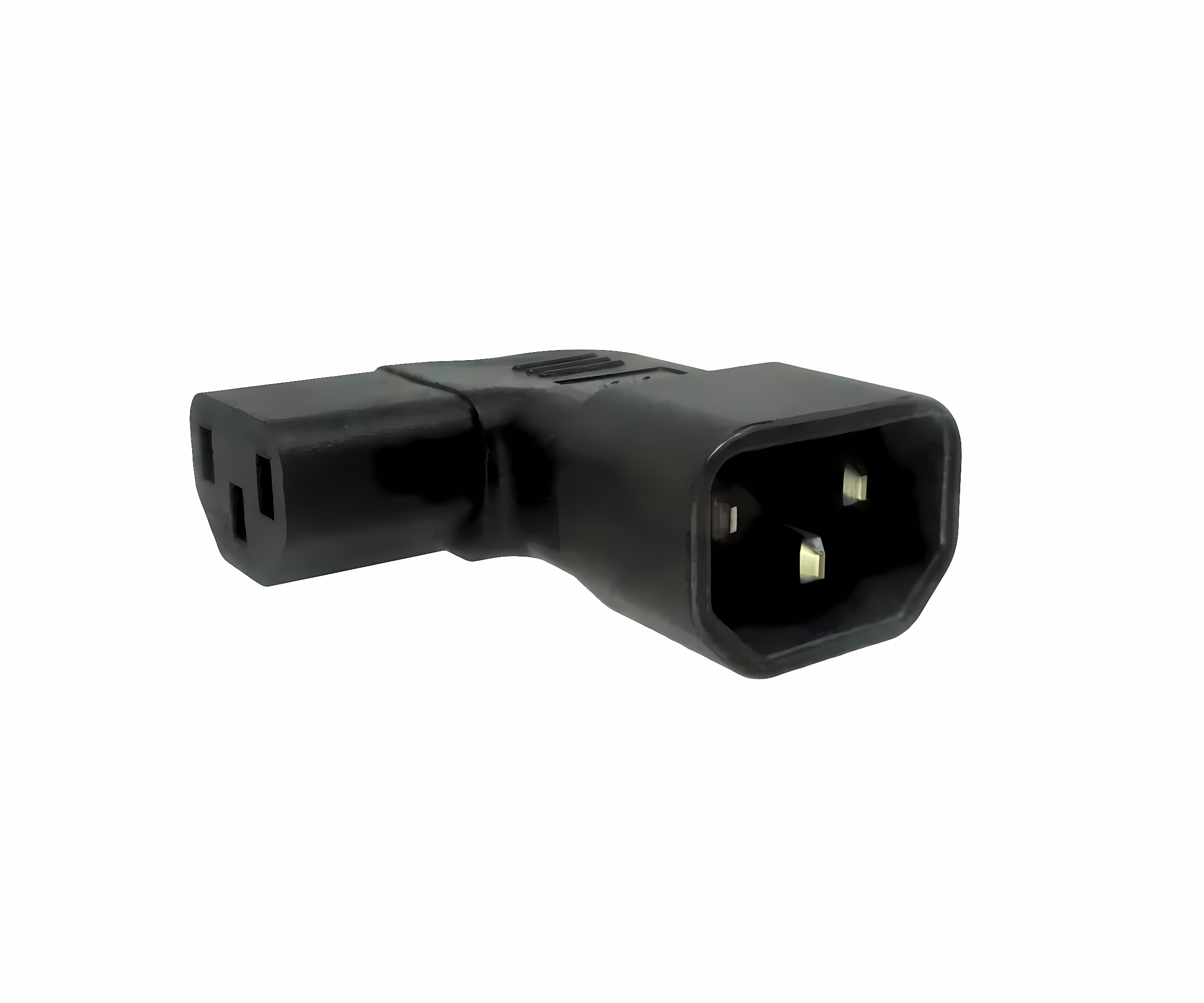

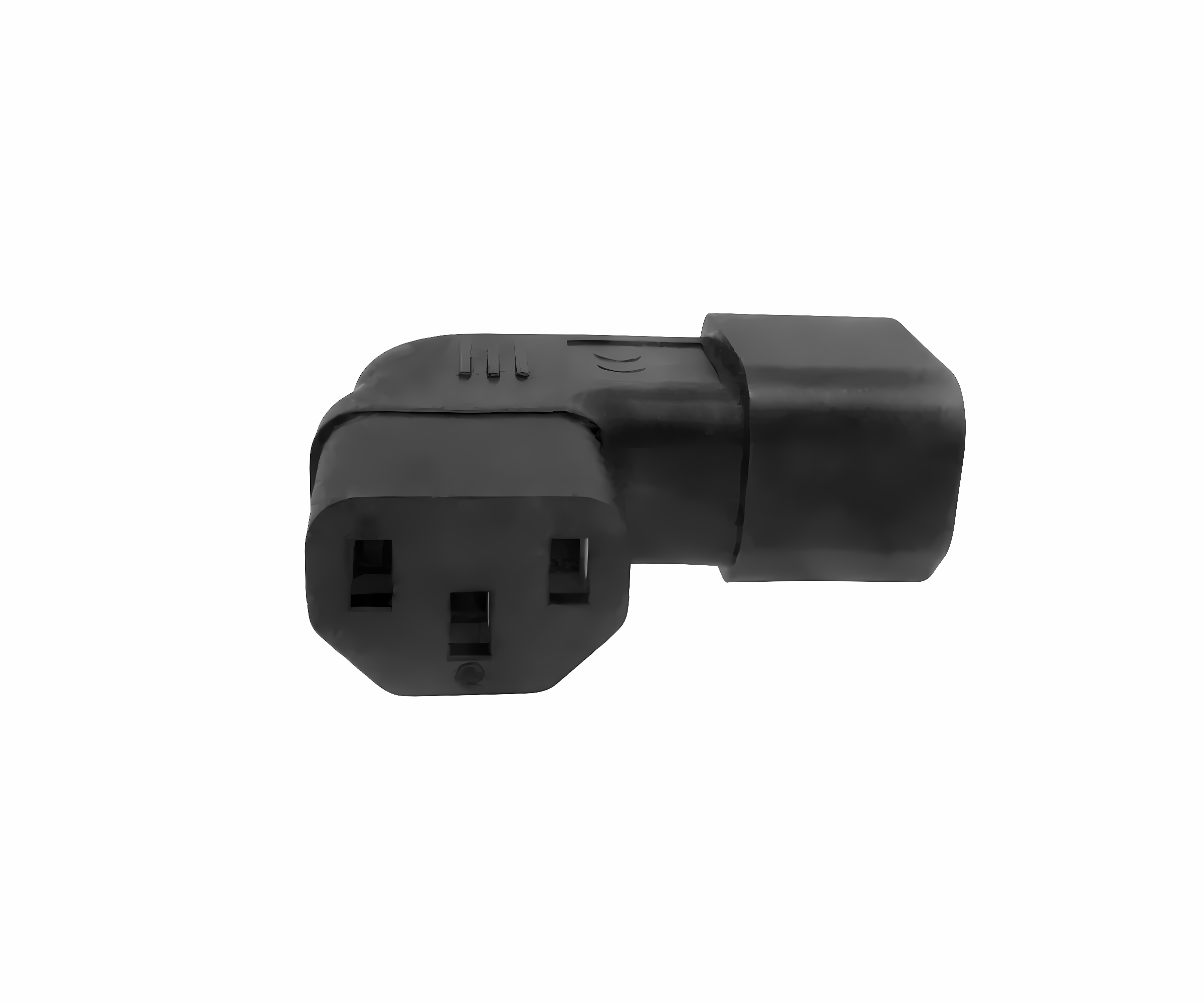

Mains adapter C13 to C14 angled horizontally 90° to the right, DINIC

• Plug connection: IEC 60320 C13 coupling (female) to IEC 60320 C14 plug (male)
• Angled design: 90° sideways to the right (see illustration) - optimised for tight installation spaces
• Direct adapter without connecting cable: compact design for short transitions
• Colour: black - neutral integration in rack and device configurations
• Typical use: cable routing/outlet to the side instead of to the rear, reduces kinking and tensile stress on the connection
• Packaging: Bulk (without individual packaging) - suitable for rollout, project business and stockpiling
• Article reference: YL-3212L-1

This mains adapter provides an IEC 60320 connection from C14 (male) to C13 (female) and is suitable for installations where the cable outlet is to be routed to the side. The 90° angle shape minimises the space required behind devices and PDUs and supports clean, low-voltage cable routing.

The sideways angled design is particularly advantageous in 19" enclosures, with densely populated PDUs and where there is limited space between the device and the rear panel/side panel. The adapter can be used as a compact transition between the PDU output and the device input if a pluggable solution without additional cable length is required.

The illustration of the plug is decisive, as the left/right/top/bottom angled designation depends on the respective point of view.

• Data centre & server rack: space-saving outlets on PDUs
• Network/telecommunications cabinets: optimised cable routing with high port density
• UPS environments: pluggable transitions for cramped connection fields
• System integration & rollout: standardised adapter solution in bulk packaging
• Industrial IT / control cabinet proximity: side outlet to reduce bending radii at the connection

• C14 plug: suitable for IEC 60320 C13 sockets/outputs (e.g. PDU, UPS, rack power distribution)
• C13 coupling: suitable for IEC 60320 C14 device inlets (e.g. server, switch, storage, industrial IT power supply units)
