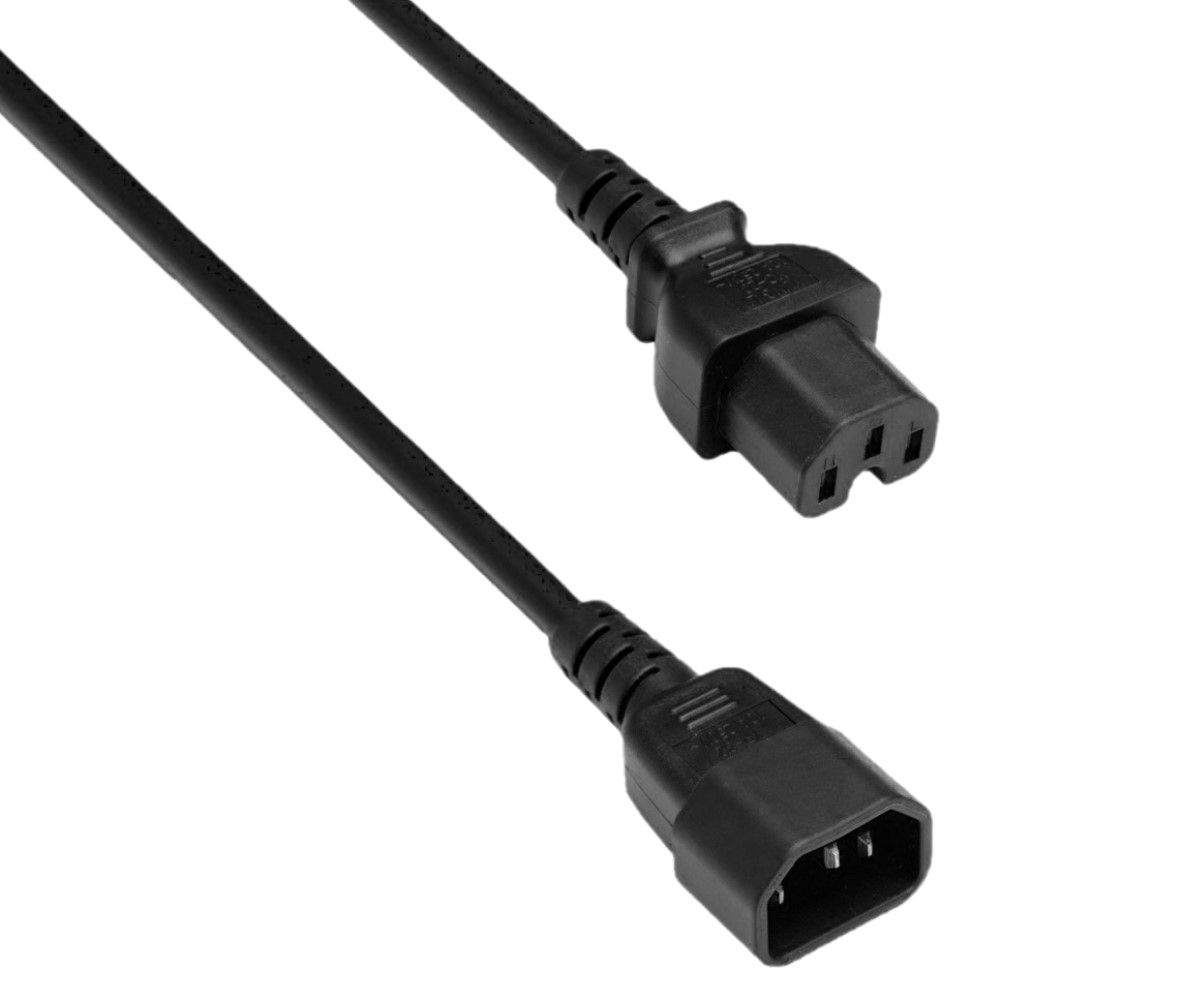

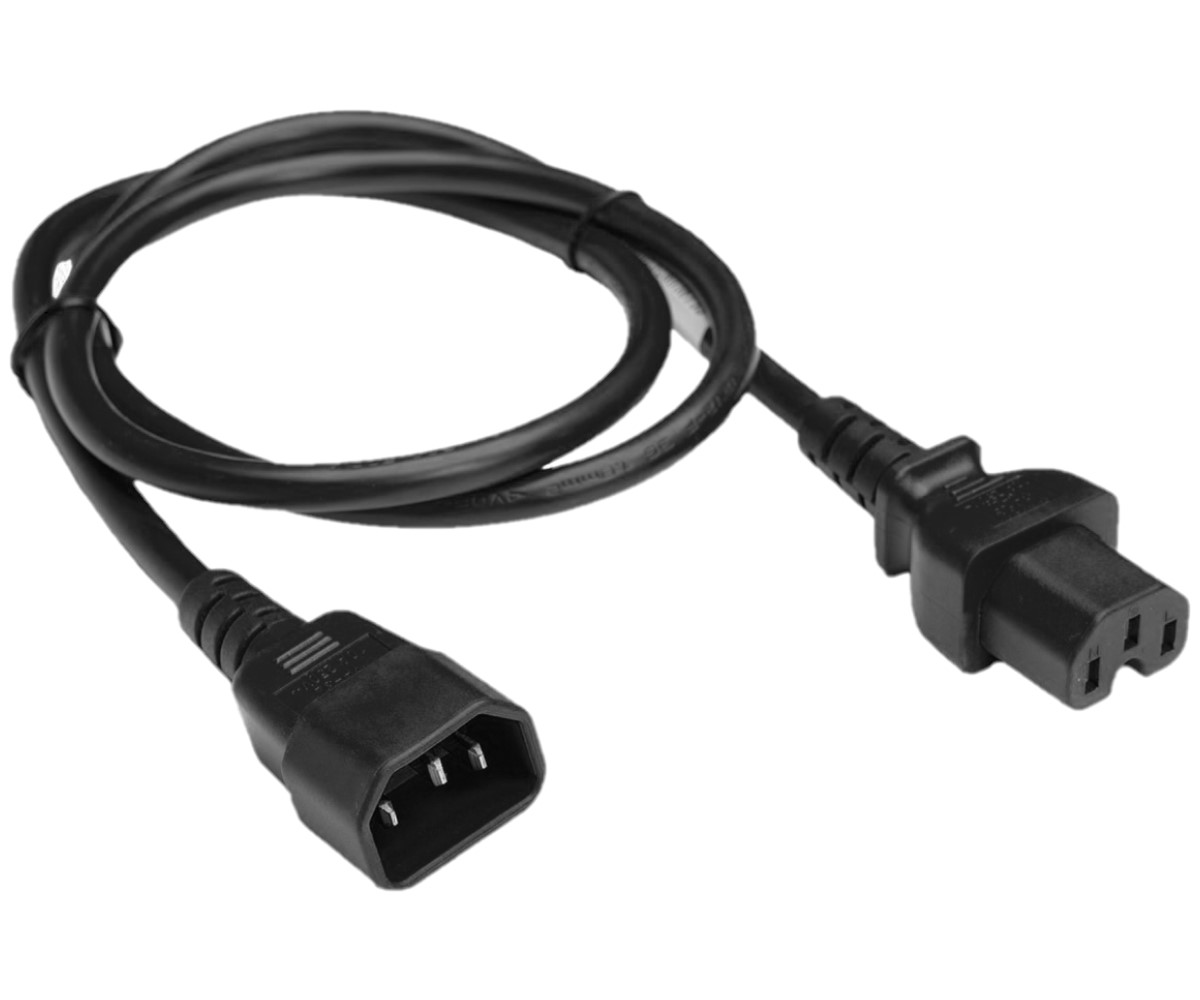

Warm device cable C14 to C15, 1mm², extension, VDE, black, length 3.00m

Power cable warm device extension C14/C15, black, 3.00m

MAG item no.: CB-K-15-3M (YP-32/YC-20)

• Plug: C14 to C15
• color: black
• length: 3m
• Cross section: 3 x 1mm²
• Material: H05V2V2-F
• Approval: VDE
• RoHS compliant
• Packing: Bulk

Plug C14 (YP-32)
IEC 60320-C 13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10 A. Cold appliance plugs do not fit into warm or hot appliance sockets.

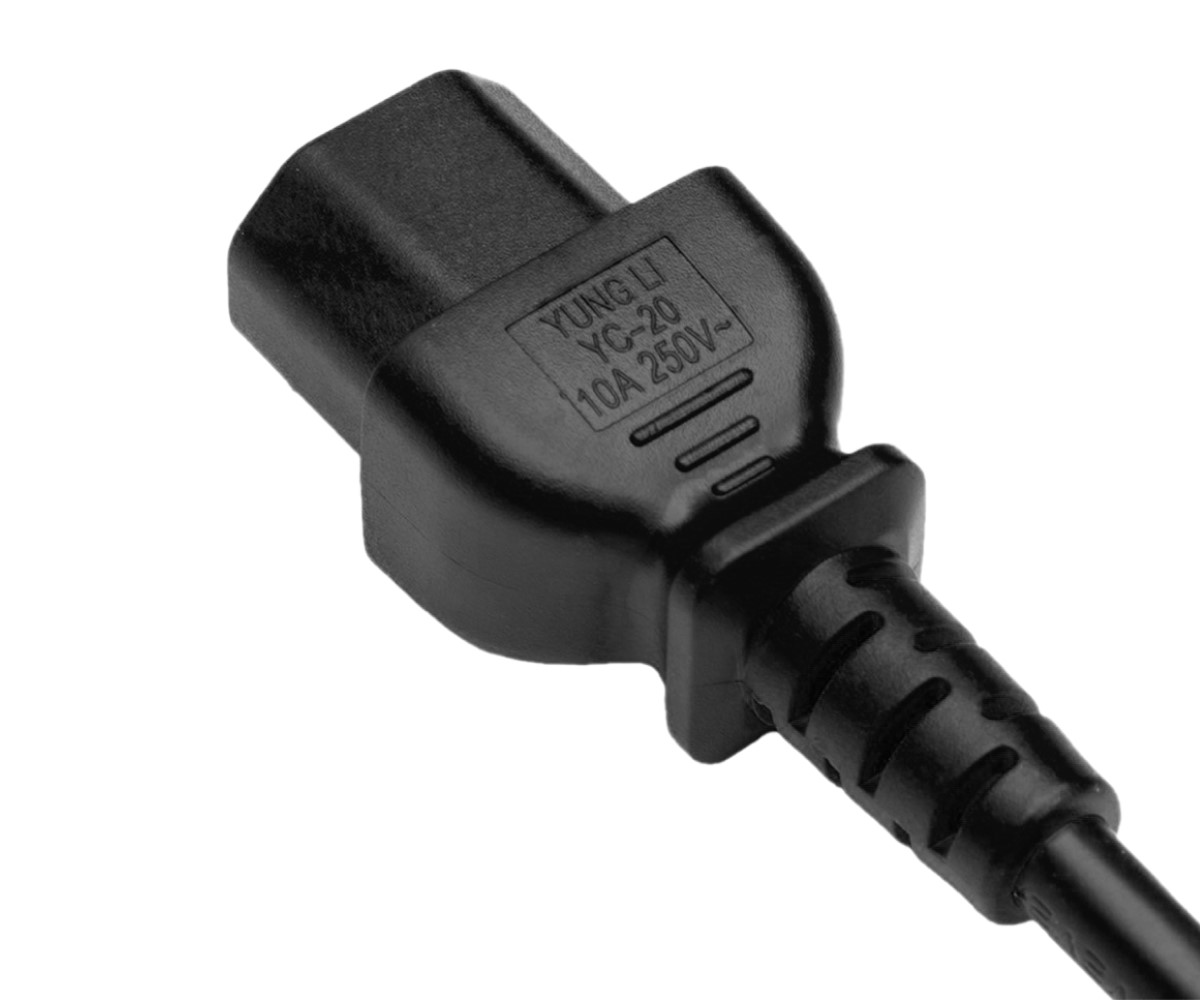

C15 plug (YC-20)
Hot appliance plugs are used for heat-generating appliances, such as mobile hot plates, industrial vacuum cleaners, waffle irons or irons of older design and switches (network distributors) of the latest design, with detachable supply cord.

The C15 and C16 are similar to C 13/14. However, the C16 connector has a lock that prevents the connection of a C 13 connector. The C15 will still fit into the C14 appliance inlet. Consequently, a hot appliance cable can be connected to a computer, for example, but a cold appliance cable cannot be connected to a hot plate.
