Technical highlights

• LC/APC socket (female) to SC/APC plug (male) for direct adaptation of cable to device/port
• Designed for single-mode applications in simplex version
• APC polish (angled polish) to reduce back reflections on the fibre optic link
• Compact design for patch panels, fibre optic termination boxes and active components with SC/APC socket
• Suitable for high bandwidths and long transmission distances in the single-mode range
• Mechanically robust connector for repeated mating cycles in professional environments
• Simple conversion between LC-cabled cable routes and SC-based ports without rewiring

Description

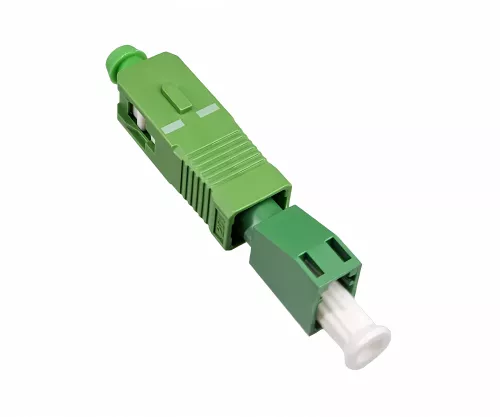

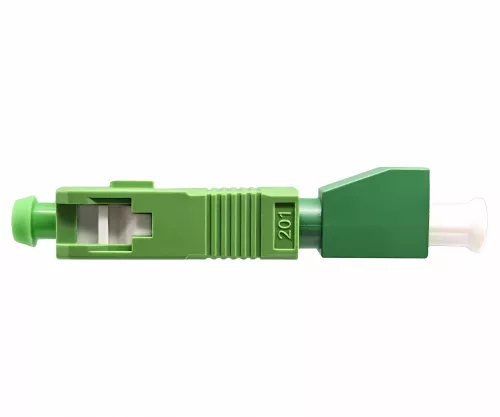

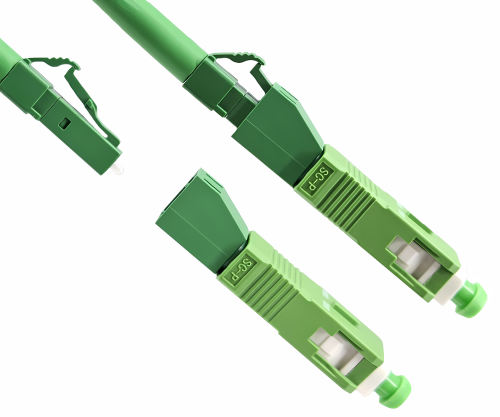

The DINIC fibre optic adapter LC/APC socket to SC/APC plug serves as a compact interface between a single-mode fibre optic cable with LC/APC plug and a port with SC/APC socket. This allows existing LC-based routes to be easily combined with active components or patch panels with SC/APC connection without changing the fibre optic cabling.

The APC polish with bevelled ferrule supports low back reflection and stable attenuation values in the single-mode range. The simplex version is designed for a single fibre and is suitable for typical point-to-point connections in WAN, MAN and campus infrastructures.

Thanks to its compact design, the adapter can be used directly on devices, patch panels or fibre optic termination boxes with SC/APC sockets. This reduces the effort involved in migration, test set-ups or temporary connections and enables a clean, standard-compliant connection of LC/APC patch cables to SC/APC infrastructures.

Areas of application

• Carrier, ISP and telecommunications networks with single-mode fibre optics
• FTTx, access and backbone cabling with mixed LC/SC interfaces
• Data centres, server rooms and colocation environments
• Building cabling, patch panels and fibre optic termination boxes with SC/APC ports
• Laboratory, test and measurement set-ups with LC and SC/APC components

Technical data

Compatibility

Designed for single-mode patch cables with LC/APC connectors on the cable side and for devices, patch panels, couplers or modules with SC/APC sockets on the opposite side. Typical remote stations are media converters, fibre optic CPE, active transmission technology, OLT/ONT, SC/APC patch panels and fibre optic termination boxes.

Scope of delivery

• 1× DINIC fibre optic adapter LC/APC female to SC/APC male, singlemode / simplex
