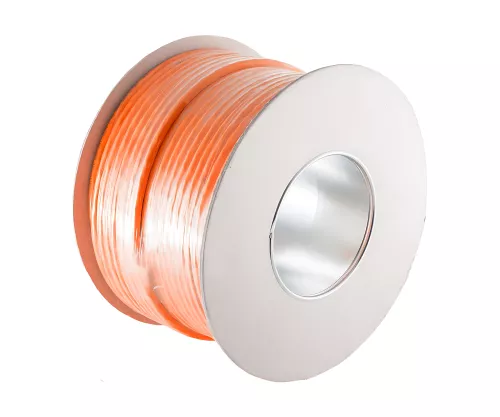

.webp "Cat.7 duplex installation cable, S/FTP, PiMF, 10GB, AWG 23, 1000 MHz, orange, LSZH, length 100m")
.webp "Preview: Cat.7 duplex installation cable, S/FTP, PiMF, 10GB, AWG 23, 1000 MHz, orange, LSZH, length 100m")
Cat.7 duplex installation cable, S/FTP, PiMF, 10GB, AWG 23, 1000 MHz, orange, LSZH, length 100m

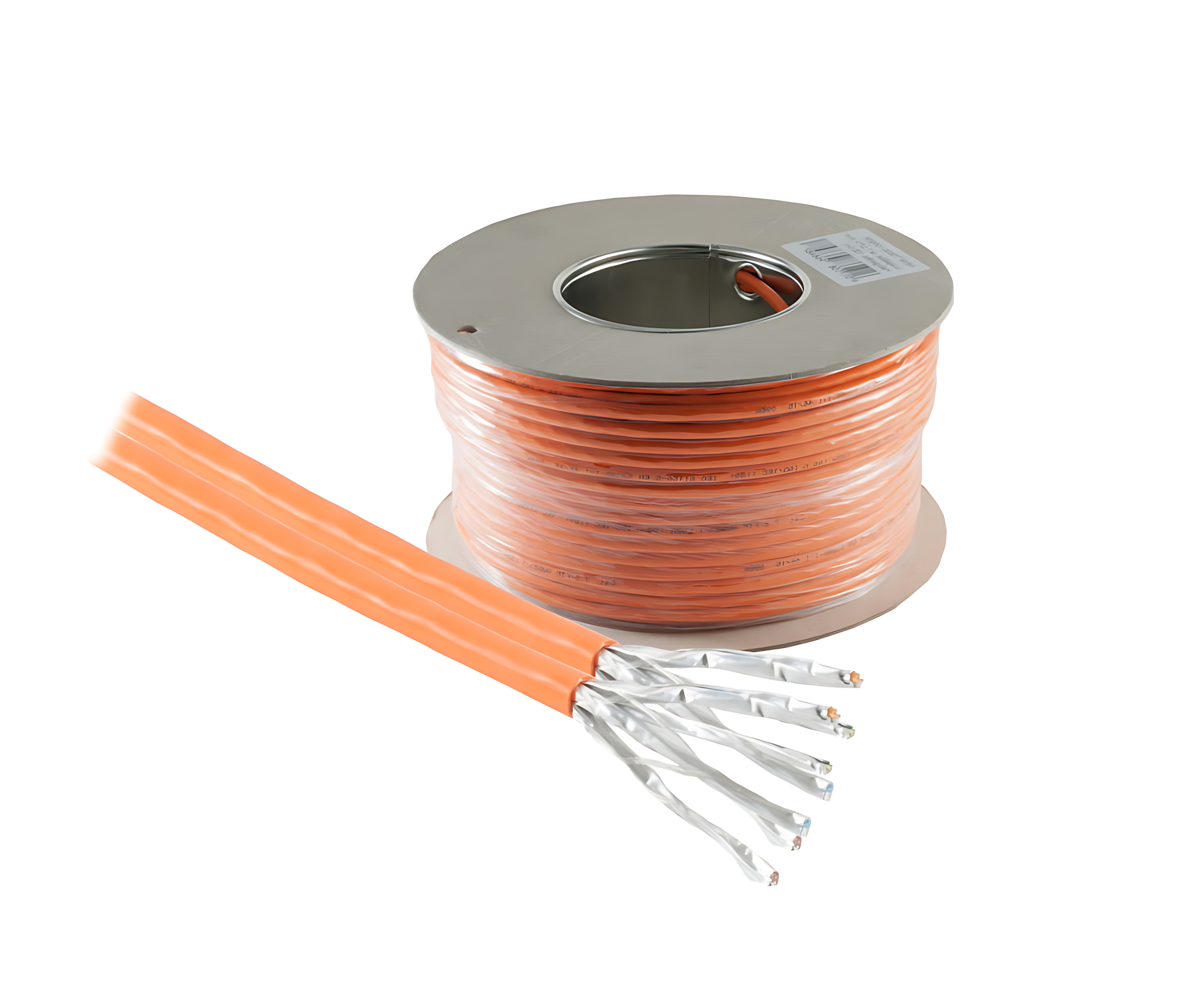

.png "Cat.7 duplex installation cable, S/FTP, PiMF, 10GB, AWG 23, 1000 MHz, orange, LSZH, length 100m")
Cat.7 Duplex installation cable S/FTP (PiMF) - 100 m, AWG 23/1, 1000 MHz, LSZH, orange
Duplex version for two structured data links with single installation - suitable for 10G applications.
Technical highlights
- Cat.7 duplex installation cable: 2 separate cable strands in one sheath package (ideal for dual junction boxes)
- S/FTP shielding (2-fold): PiMF in pairs (laminated ALU foil, 100% tight) + overall shield as ALU braiding
- Transmission frequency up to 1000 MHz, bandwidth up to 10 Gbit/s
- Conductor construction AWG 23/1, copper, solid conductor (rigid) - for fixed installation
- Number of cores: 2 × 8 cores (2 × 4 × 2 twisted pair) for two independent links
- LSZH cable sheath (halogen-free) - reduces smoke development and corrosive gases in the event of fire
- External dimensions approx. 7.4 mm × 14.8 mm (duplex form), orange colour for cable identification
- BauPVO Euroclass: Cca
Description: Cca
The Cat.7 duplex installation cable is designed for structured indoor building cabling and provides two separate data links without having to lay two individual cables. This simplifies the installation of dual junction boxes, double ports in the workplace area and redundant network paths.
The conductor construction with AWG 23/1 solid copper conductors supports stable attenuation and NEXT performance for high-frequency transmission up to 1000 MHz. The S/FTP shielding combines PiMF foil in pairs with an additional overall shielding braid and reduces interference and radiation - advantageous in EMC-critical environments, cable trays and technical rooms.
The LSZH sheath is designed for professional installations in buildings and infrastructures with increased requirements for smoke gas behaviour. The duplex geometry supports fast, project-orientated installation with clean separation of the two links.
Areas of application
- Structured building cabling (floor cabling, horizontal cabling)
- System integration, office IT, campus and administration buildings
- Control cabinet construction and industrial automation (network infrastructure within buildings)
- Technical rooms, patch panel/keystone installations, cable trays
- Project business: dual sockets/multiple connections with reduced installation effort
Technical data
| Category | Cat.7 |
| Version | Duplex installation cable (2 data links) |
| Shielding class | S/FTP (2-fold) |
| Shielding (pair) | PiMF: laminated ALU foil (100% tight) |
| Shielding (total) | ALU braiding |
| Transmission frequency | up to 1000 MHz |
| Bandwidth / data rate | up to 10 Gbit/s |
| Conductor construction | AWG 23/1 |
| Conductor material | copper |
| Conductor type | Solid conductor / rigid (solid) |
| Number of cores | 2 × 8 (2 × 4 × 2 twisted pair) |
| Cable type | Round cable (duplex form) |
| Jacket | LSZH (halogen-free) |
| Outer dimensions (approx.) | 7.4 mm × 14.8 mm |
| BauPVO Euroclass | Cca |
| Colour | orange colour |
| length | 100 m |
| Winding | paper spool |
| article number | C7-100ID |
| EAN CODE | 4032528038223 |
Compatibility
- For structured copper cabling with Cat.7/Cat.6A components (e.g. patch panels, keystone modules, junction boxes)
- Suitable for 4-pair Ethernet transmissions per data link (two links in the duplex cable)
- Typical termination via LSA/IDC terminals on network sockets and patch panels
Scope of delivery

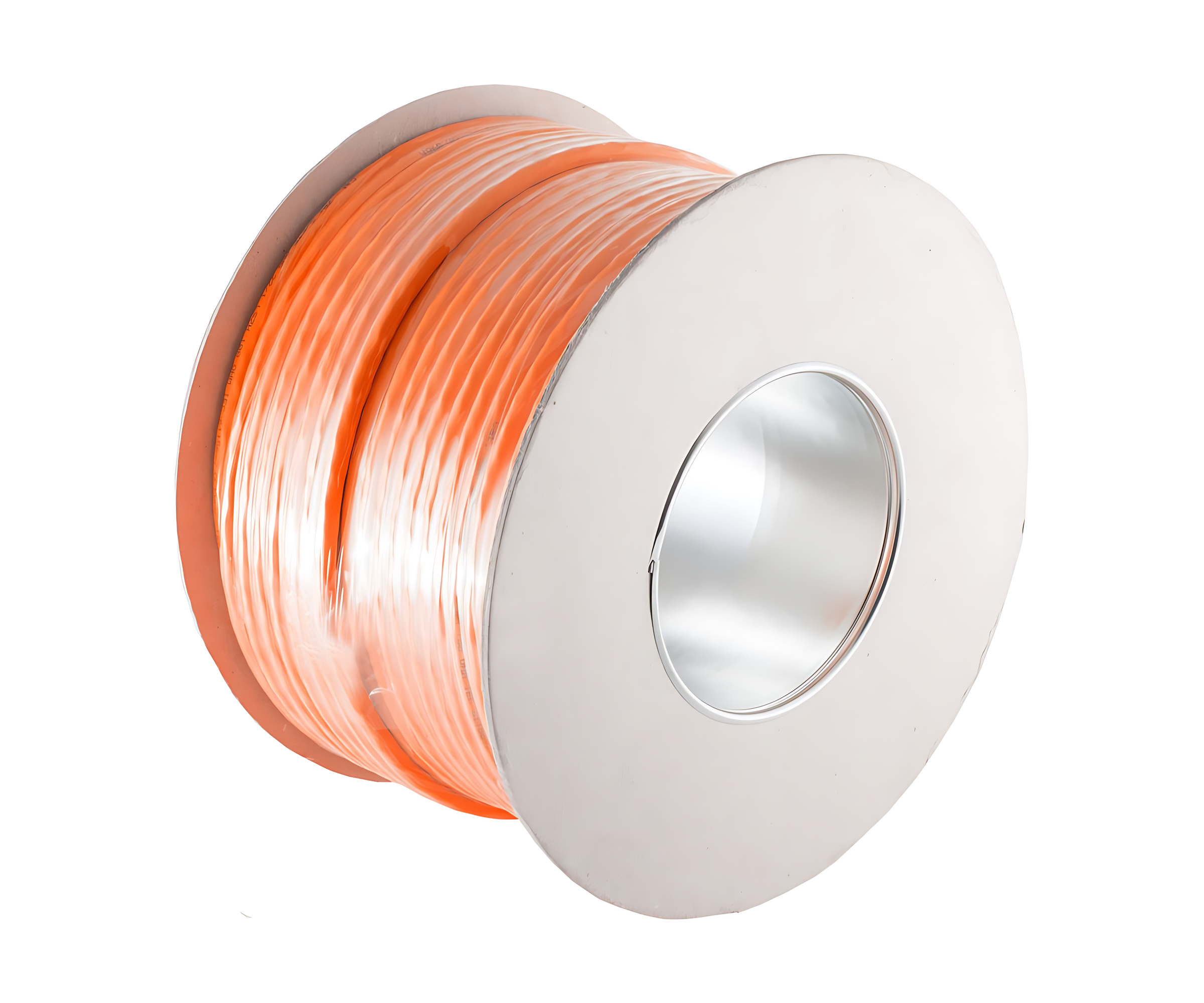

1 × Cat.7 duplex installation cable on paper spool, length 100 m, colour orange.
DINIC is a brand of MAG GmbH - product range for professional cabling and infrastructure projects.
