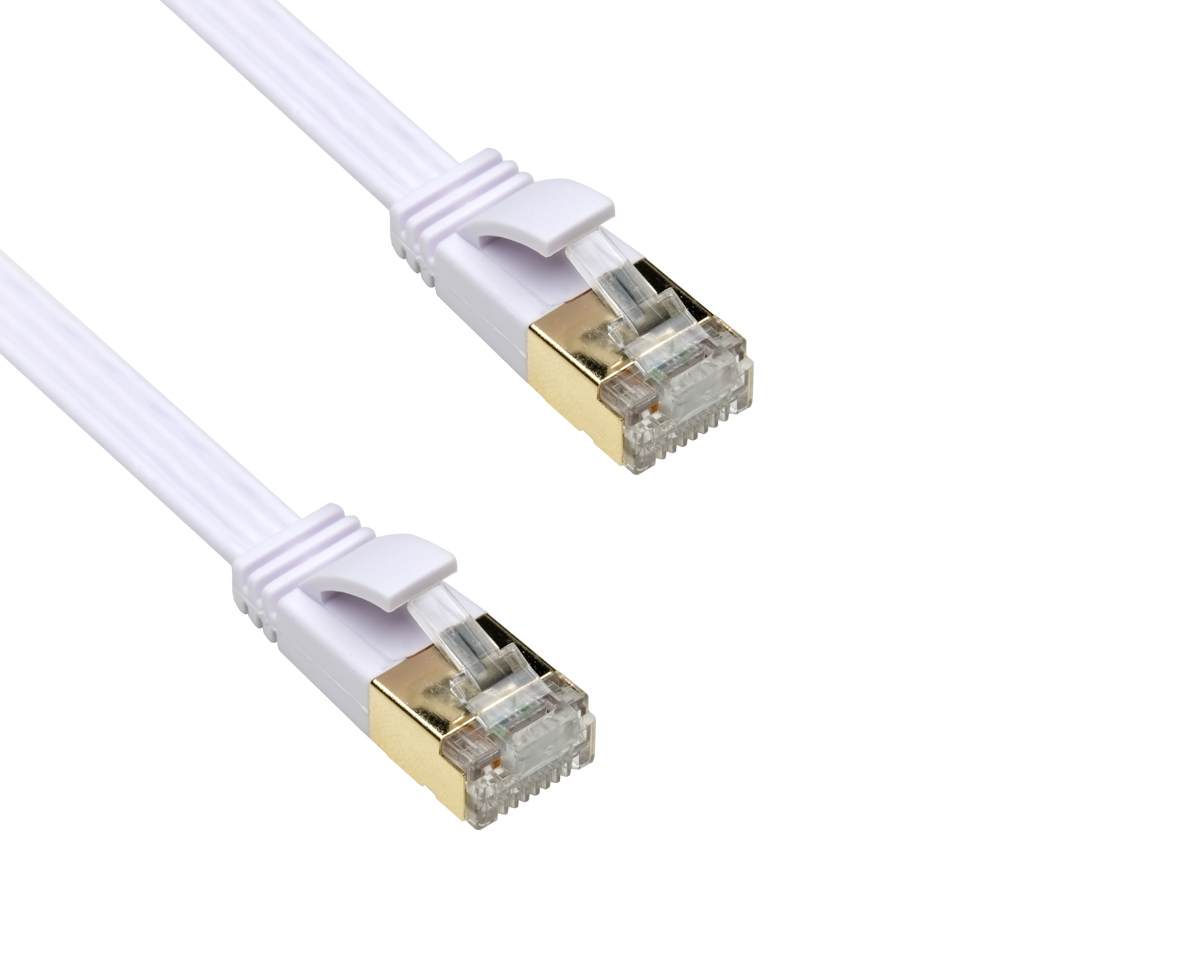

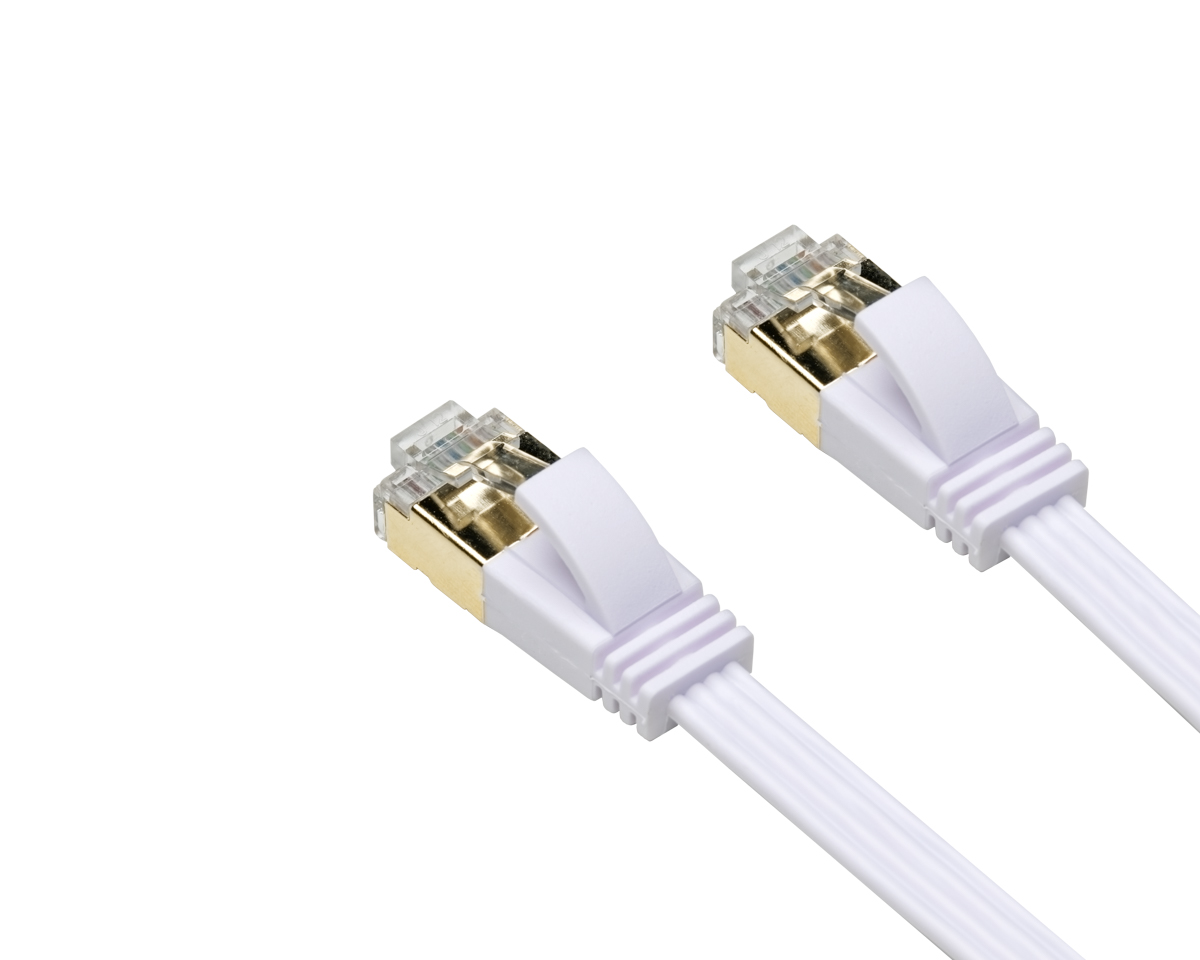

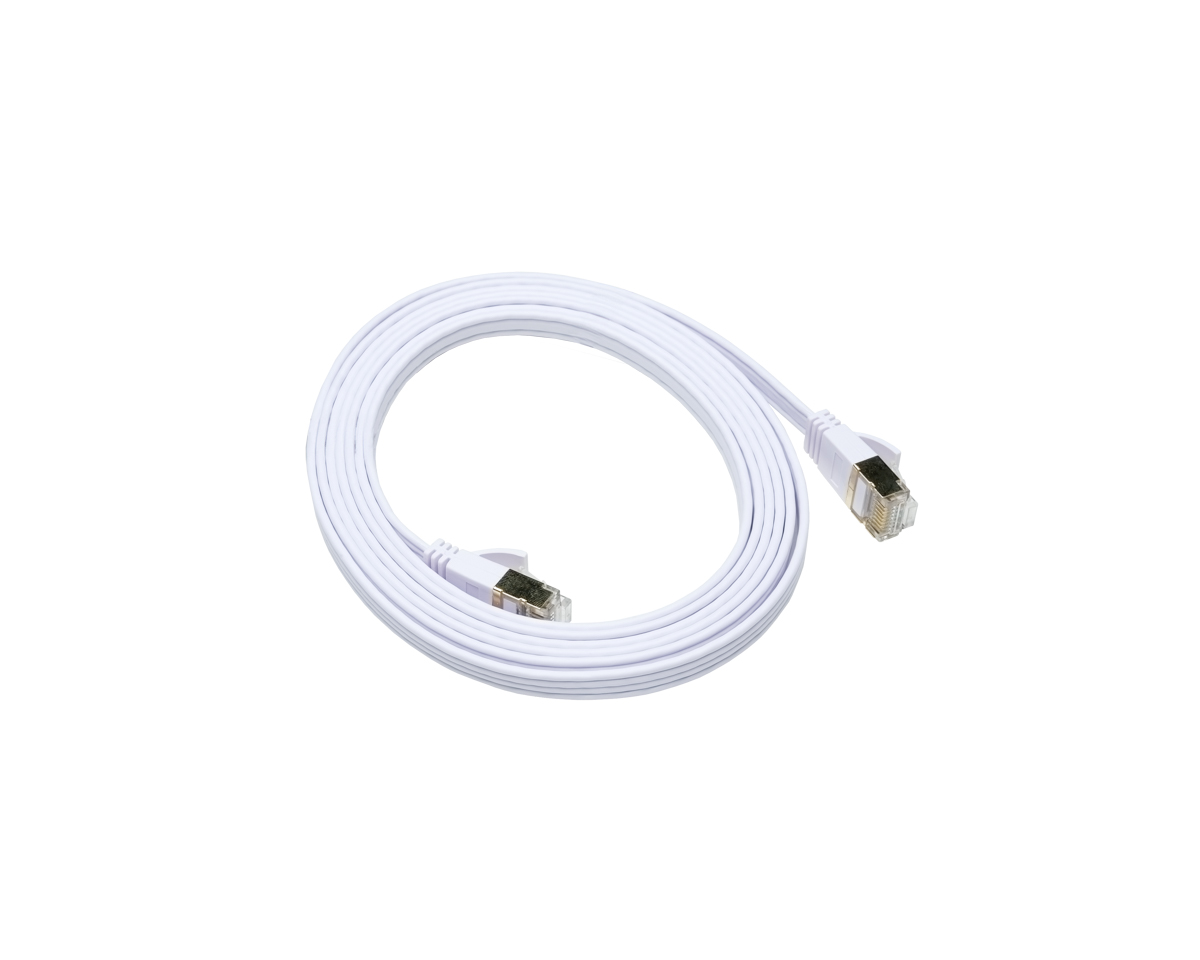

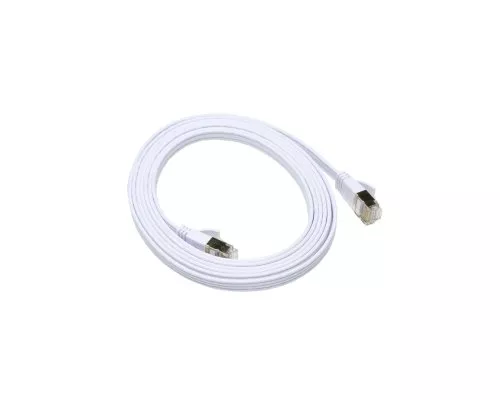

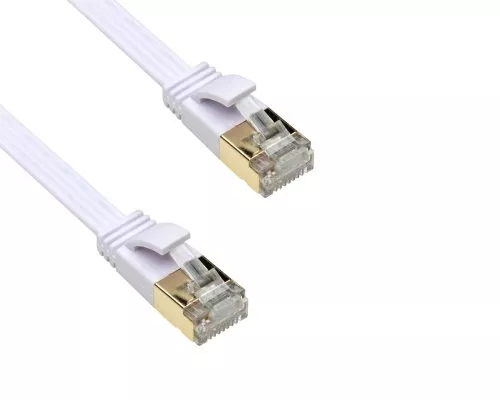

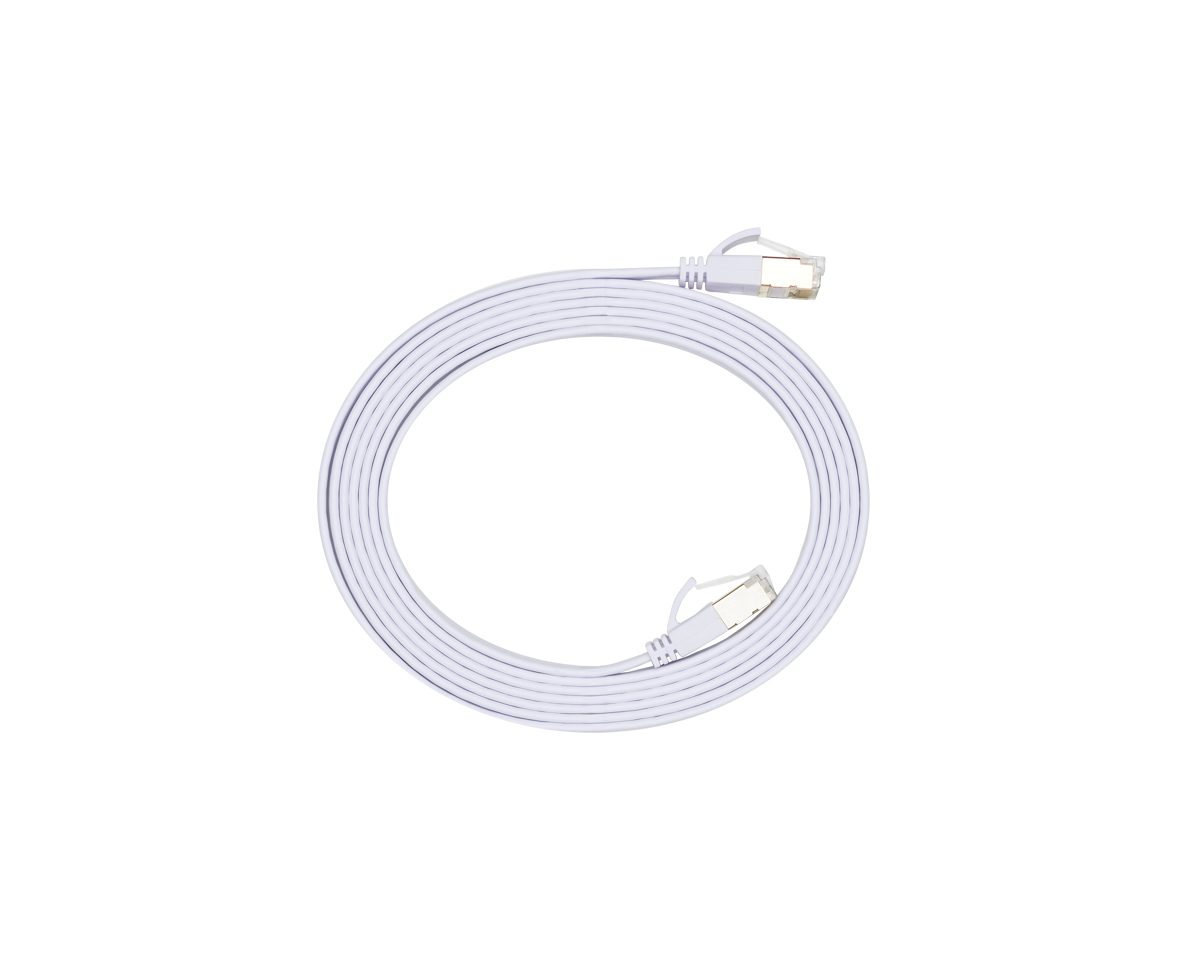

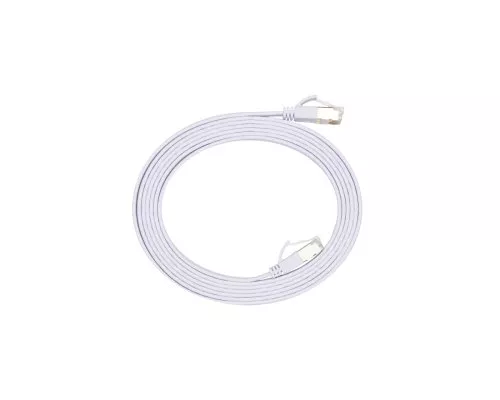

Patch cable Cat.6, flat, PiMF/STP, white, DINIC Polybag, length 3m

• Connector: 2× RJ45 (8P8C) plugs, gold-plated contacts
• Category: Cat.6, max. frequency 250 MHz
• Shielding: PiMF/STP (foil shielded in pairs) to reduce interference
• Conductor cross-section: AWG 36
• Flat profile: External dimensions approx. 1.5 mm × 6.1 mm - ideal behind mouldings, in cable ducts and narrow installation spaces
• Electrical characteristics: Attenuation 23 dB/100 m, NEXT 45 dB
• Application: Gigabit Ethernet up to 1 GBit/s over 100 m; 10GBASE-T up to 55 m (depending on distance)
• Design: moulded bend protection with strain relief; colour white; length 3 m

The DINIC Cat.6 flat patch cable is designed for structured network cabling and flexible patch routes. The flat cable profile supports space-saving routing in confined installation areas, e.g. behind skirting boards, in cable ducts or in server cabinet environments with high packing density.

The PiMF/STP shielding (foil shielding in pairs) improves interference immunity to external influences. Gold-plated RJ45 contacts support stable contacting; the moulded bend protection with strain relief reduces mechanical stress at the plug transitions.

Suitable for Gigabit Ethernet installations up to 100 m and 10 Gigabit Ethernet (10GBASE-T) up to 55 m - depending on the link environment and installation conditions.

• Network patching in office and administration buildings
• Server cabinet, data centre, system integration
• Switch/patch panel cabling, distribution panels
• Building technology and structured cabling (secondary/tertiary area)
• Industrial IT environments with increased interference immunity requirements

• For all devices with RJ45 Ethernet interface (e.g. switch, router, patch panel, firewall, server, NAS, PC, VoIP telephone)
• Can be used in Cat.6 cabling lines (compatible with lower categories within the link design)

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
