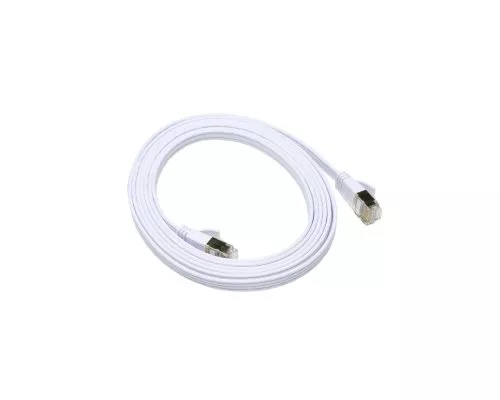

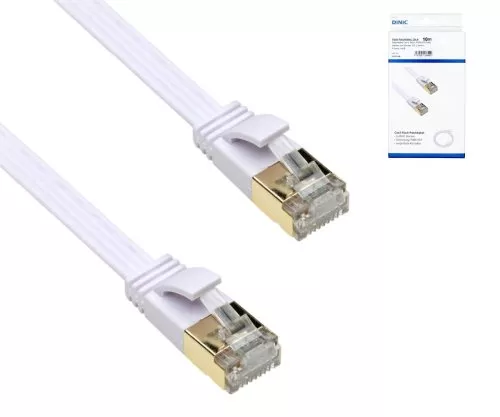

Patch cable Cat.6, flat, PiMF/STP, white, DINIC box with Eurohole, length 10m
.png "Patch cable Cat.6, flat, PiMF/STP, white, DINIC box with Eurohole, length 10m")
DINIC patch cable Cat.6 flat, PiMF/STP, RJ45-RJ45, 10 m, white (OD 1.5 × 6.1 mm)
Shielded flat patch cable for space-critical installation in structured copper networks (Gigabit Ethernet).
Technical highlights
- Connector: 2× RJ45 (8P8C) plug/connector, gold-plated contacts
- Category: Cat.6 (up to 250 MHz) - suitable for 10/100/1000BASE-T; 10GBASE-T on short distances (route-dependent)
- Shielding: PiMF/STP - wire pairs in metal foil (PiMF) plus overall shield to reduce interference
- Flat design: outer dimension (OD) approx. 1.5 mm × 6.1 mm - space-saving behind skirting boards, under floor coverings, in flat ducts
- Conductor cross-section: AWG 36 - flexible for patch and device connections
- Robust, moulded bend protection with strain relief - minimises cable breaks during patch operation
- Colour: white - unobtrusive integration into installations
- Length: 10.0 m - for longer patch and connection distances
Cable description
The DINIC Cat.6 flat patch cable (PiMF/STP) is designed for patch and connection lines in structured copper networks. The shielded design supports stable signal quality in environments close to installations with typical EMC influences (e.g. parallel cables, equipment rooms, rack bundling).
The flat geometry (approx. 1.5 mm × 6.1 mm) enables clean, concealed installation where space is limited - for example behind skirting boards, under carpet edges, in parapet ducts or within furniture and technical routes. The small bending radius facilitates routing along tight radii without unnecessary installation height.
Gold-plated RJ45 contacts and the moulded bend protection with strain relief are designed for permanent patch operation and reduce contact and mechanical failures in professional installations.
Areas of application
- Patch panel switch/rack cabling in 19" cabinets
- Workstation cabling in office, project and training environments
- Building technology: concealed installation in cable ducts, parapets, skirting board areas
- System integration in furniture, kiosk and technology solutions with low installation height
- Industrial IT/OT infrastructure (close to technical rooms), if RJ45 copper cabling is provided
Technical data
| Product type | Flat patch cable (RJ45-RJ45) |
| Category / bandwidth | Cat.6 / up to 250 MHz |
| Supported applications | 10/100/1000BASE-T; 10GBASE-T on short distances (route-dependent) |
| Shielding | PiMF/STP (foil in pairs + overall shield) |
| Connectors | 2× RJ45 (8P8C) plug/connector, gold-plated contacts |
| Conductor cross-section | AWG 36 |
| Outer dimension (OD) | approx. 1.5 mm × 6.1 mm |
| colour | White colour |
| length | 10,0 m |
| Mechanics | Moulded bend protection with strain relief |
| Article number | C6-F10-KB |
| EAN | 4032528038629 |
| Weight (approx.) | 0.18 kg / piece |
| Packaging | DINIC box with Euro hole (cardboard-based, plastic-free) |
Compatibility
For network components with RJ45 interface (8P8C), e.g. switches, routers, patch panels, server NICs, PCs/workstations, VoIP telephones, access points, IP cameras (copper-based).
Scope of delivery
1× DINIC Cat.6 flat patch cable, RJ45-RJ45, 10 m, white (individually packaged).
DINIC is a brand of MAG GmbH - customised connection solutions for professional IT and AV infrastructures.
SEO: Cat.6 flat patch cable PiMF/STP, RJ45 male/male, 10 m, white, AWG36, shielded, DINIC, MAG cable
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
