Cat. 8.1 patch cable 2000Mhz, 40G, copper, LSZH, black, DINIC polybag, length 0.50m
.png "Cat. 8.1 patch cable 2000Mhz, 40G, copper, LSZH, black, DINIC polybag, length 0.50m")
.png "Cat. 8.1 patch cable 2000Mhz, 40G, copper, LSZH, black, DINIC polybag, length 0.50m")

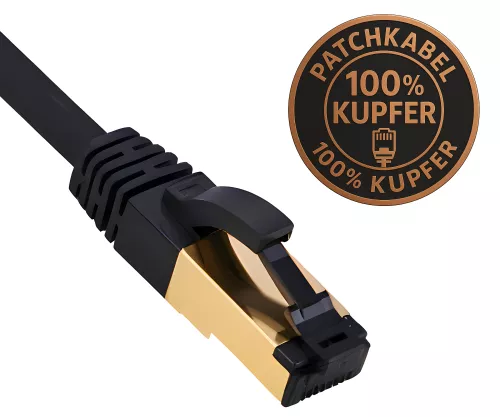

DINIC Cat.8.1 patch cable RJ45/RJ45 - 2000 MHz, up to 40 Gbit/s, LSZH, black, 0.50 m
S/FTP (PIMF + braiding), 100% copper conductor AWG26, gold-plated contact surfaces - for structured copper cabling in professional environments.
Technical highlights
- Cat.8.1 patch cable, tested up to 2000 MHz - designed for transmission rates up to 40 Gbit/s
- Shielding: S/FTP - wire pairs in metal foil (PIMF) plus overall shielding as a braid to reduce interference
- Conductor: 100% copper (CU), AWG 26 - stable electrical properties for professional cabling
- Connectors: 2× RJ45, contact surfaces 50 µ gold-plated - low corrosion and contact stability with frequent mating
- LSZH sheath (halogen-free) - reduces fume emission, suitable for demanding installation environments
- Latching lug protection & slimline kink protection - mechanical protection, optimised for tight patch panels
- Pairing sequence: EIA/TIA-568B - compatible with common network components
- Support: PoE+ in accordance with IEEE 802.3at; backwards compatible with 10/100/1000BASE-T
Product description
The DINIC Cat.8.1 twisted pair patch cable is designed for structured copper cabling with high bandwidth requirements. The double shielding (S/FTP) combines paired foil shielding (PIMF) with an overall shielding braid and thus reduces near and far crosstalk as well as external interference - especially in EMC-loaded environments and with high port density.
The solid copper inner conductor (100% CU) in AWG 26 offers reproducible electrical properties. Gold-plated RJ45 contact surfaces support a durable, contact-stable connection with repeated mating cycles. The LSZH cable sheath is suitable for installation areas where halogen-free materials are required.
The slimline anti-kink sleeve facilitates cable routing in tight installation spaces (e.g. patch panels/switch cabinets); the length is indicated on the anti-kink sleeve.
Areas of application
- Data centre, server/switch cabling, top-of-rack connections
- Patch panel and patch panel cabling with high port density
- Control cabinet construction and industrial automation (EMC-relevant environments)
- Building technology, structured network cabling in office and commercial properties
- System integration and professional IT infrastructure
Technical data
| Category / Frequency | Cat. 8.1, tested up to 2000 MHz |
| Data rate | up to 40 Gbit/s (40,000 Mbit/s) |
| Plug connector | 2× RJ45 |
| Contact surface | 50 µ gold-plated |
| Cable construction / shielding | S/FTP (PIMF + braiding) |
| Conductor material | 100% copper (CU) |
| Conductor cross-section | AWG 26 |
| Assignment | EIA/TIA-568B |
| Sheath material | LSZH (halogen-free) |
| colour | Black colour |
| Cable length | 0,50 m |
| PoE support | PoE+ according to IEEE 802.3at |
| Backwards compatibility | 10/100/1000BASE-T |
| Design | Latching lug protection, slimline kink protection |
Compatibility
Suitable for active and passive network components with RJ45 interface, e.g. switches, routers, server NICs, patch panels, data outlets and structured copper cabling systems.
Scope of delivery
1× DINIC Cat.8.1 patch cable RJ45/RJ45, 0.50 m, black
DINIC is a brand of MAG GmbH - designed for professional use in IT and network infrastructures.
SEO: DINIC Cat.8.1 patch cable RJ45 0,50m S/FTP PIMF LSZH 2000MHz 40G AWG26 copper gold-plated black
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
