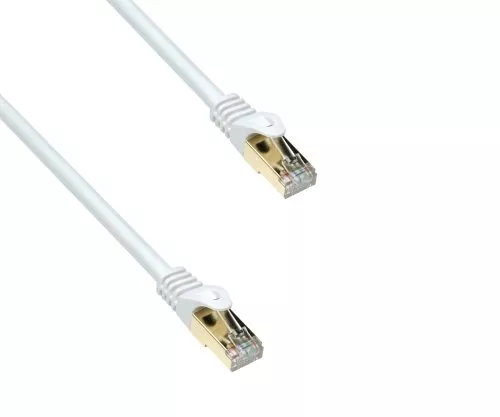

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 0.30m

• Cat.7 patch cable, tested up to 600 MHz; suitable for 10 Gbit Ethernet (10GBASE-T) and downward-compatible networks
• S/FTP construction: pairs in metal foil (PIMF) plus overall shielding (braiding) for high interference immunity in dense installations
• 2× RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces and latching nose protection
• 100% copper conductor (CU), AWG 26 - low attenuation, stable link performance
• PoE+ suitable (IEEE 802.3at) for supplying compatible end devices via the data network
• LSZH sheath (Low Smoke Zero Halogen) - halogen-free, reduced smoke development for increased safety requirements
• Slimline anti-kink sleeve with printed length specification - quick identification in the patch panel/rack
• Colour white, length 0.30 m; assembled in DINIC polybag with Euro hole

The DINIC Cat.7 Premium patch cable (0.30 m) is designed for professional network environments where stable transmission rates and high shielding reserves are required. The S/FTP construction with paired shielded wire pairs (PIMF) and additional overall braided shielding reduces crosstalk and electromagnetic interference - especially in densely occupied 19" racks, patch panels and trays.

100 % copper conductors (AWG 26) support reliable signal transmission and are suitable for PoE+ applications in accordance with IEEE 802.3at. The RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces and latching nose protection are designed for continuous operation in patch environments; the slimline anti-kink sleeve improves handling with high port density.

The halogen-free LSZH jacket is suitable for installations with increased fire and personal protection requirements. The printed length labelling supports quick assignment of mixed cable lengths in existing installations.

• Patch cabling in network cabinets, 19" racks and data centres
• Connection of switches, routers, firewalls, gateways and servers
• Patch panel-to-socket and switch-to-patch panel connections
• Building and floor cabling in office, administration and technical areas
• System integration, IT/telecommunications infrastructure and industrial IT sub-networks

For active and passive network components with RJ45 Ethernet socket, e.g. switches, routers, firewalls, servers, IP telephony/telecommunications systems, media converters, patch panels and data sockets. Can be used in existing Cat.5e/Cat.6 infrastructures (downwards compatible).

1× DINIC Cat.7 Premium patch cable, S/FTP, LSZH, 2× RJ45, 0.30 m, white, in DINIC polybag with Euro hole.
