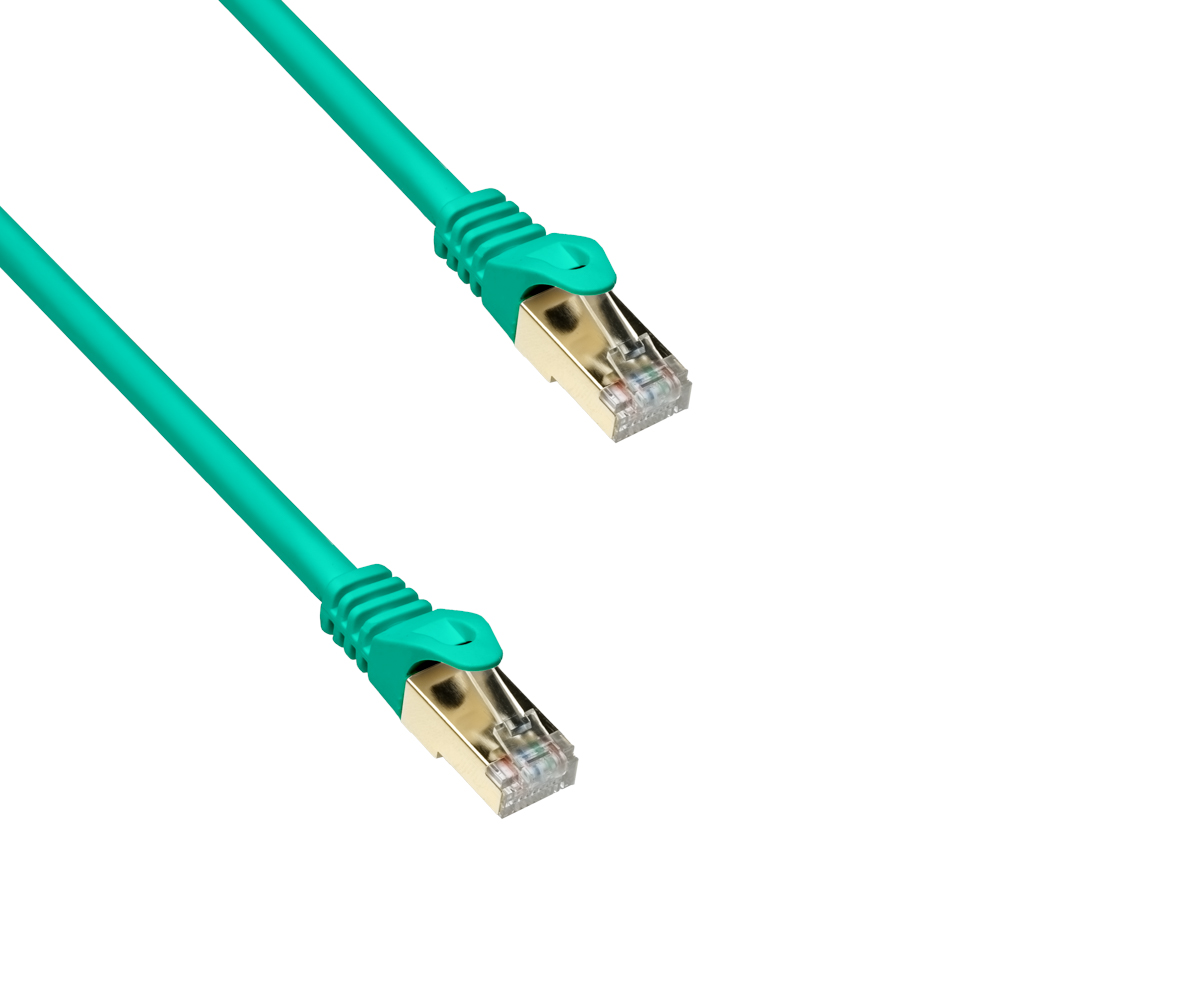

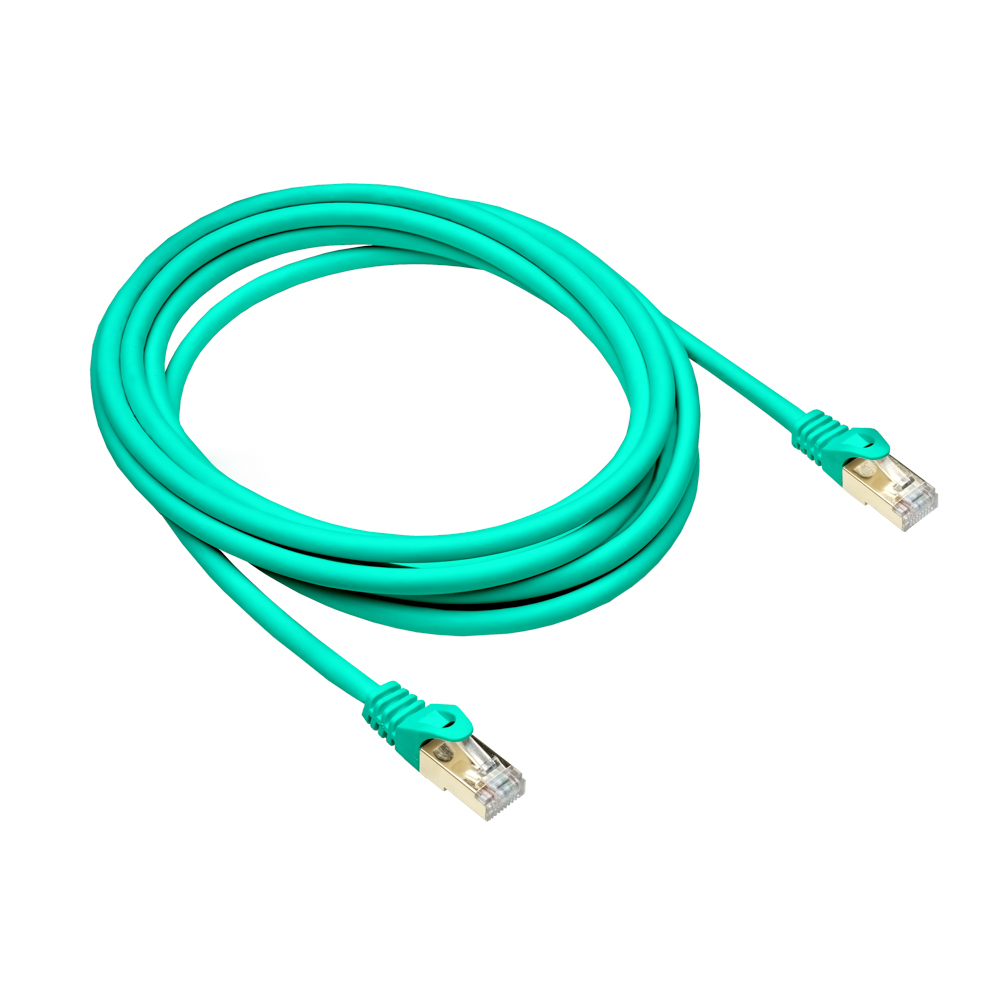

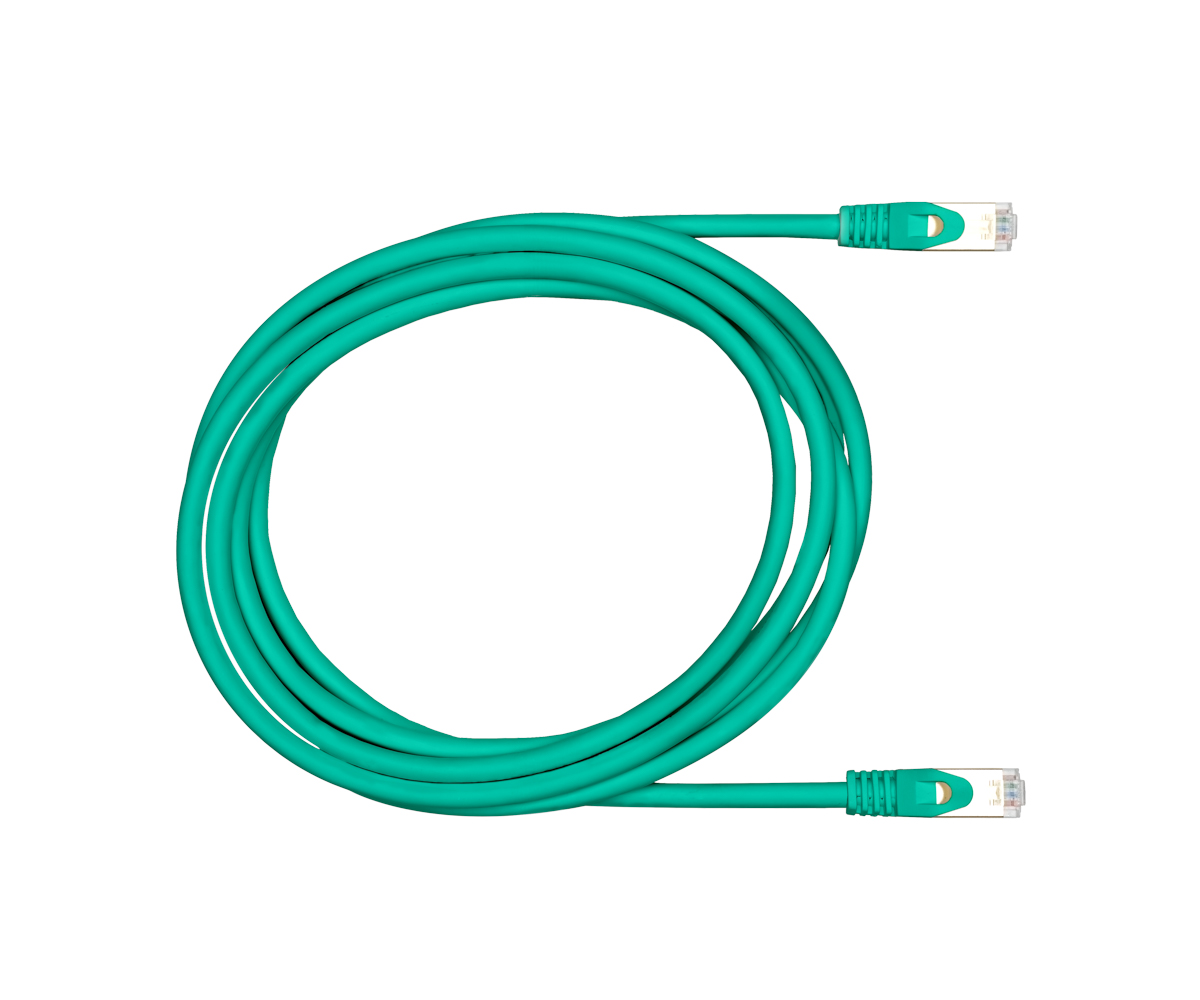

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, green, 3.00m

• Cat.7 patch cable (raw cable) - tested up to 600 MHz for high-performance data links
• Suitable for 10 Gigabit Ethernet; downwards compatible with 10/100/1000 BASE-T
• 2x RJ45 (8P8C) plugs, Cat.6A; contact surfaces with 50µ gold plating (PINs)
• Shielding: PiMF wire pair shielding + overall braided shielding (S/FTP) to reduce interference
• Conductor: high-quality copper inner conductor (CU), AWG 26
• LSZH sheath: halogen-free, reduces smoke gas development in the event of fire
• PoE+ suitable (IEEE 802.3at) for data and power transmission via one cable
• Practical details: Latching lug protection, length specification on slimline anti-kink sleeve, pair sequence in accordance with EIA/TIA 568B

The DINIC Cat.7 Premium patch cable is designed for structured cabling and professional network installations. The combination of individually shielded wire pairs (PiMF) and additional overall shielding (S/FTP) supports low-interference transmission even in environments with electromagnetic influences, e.g. in technical rooms and in switch cabinet environments.

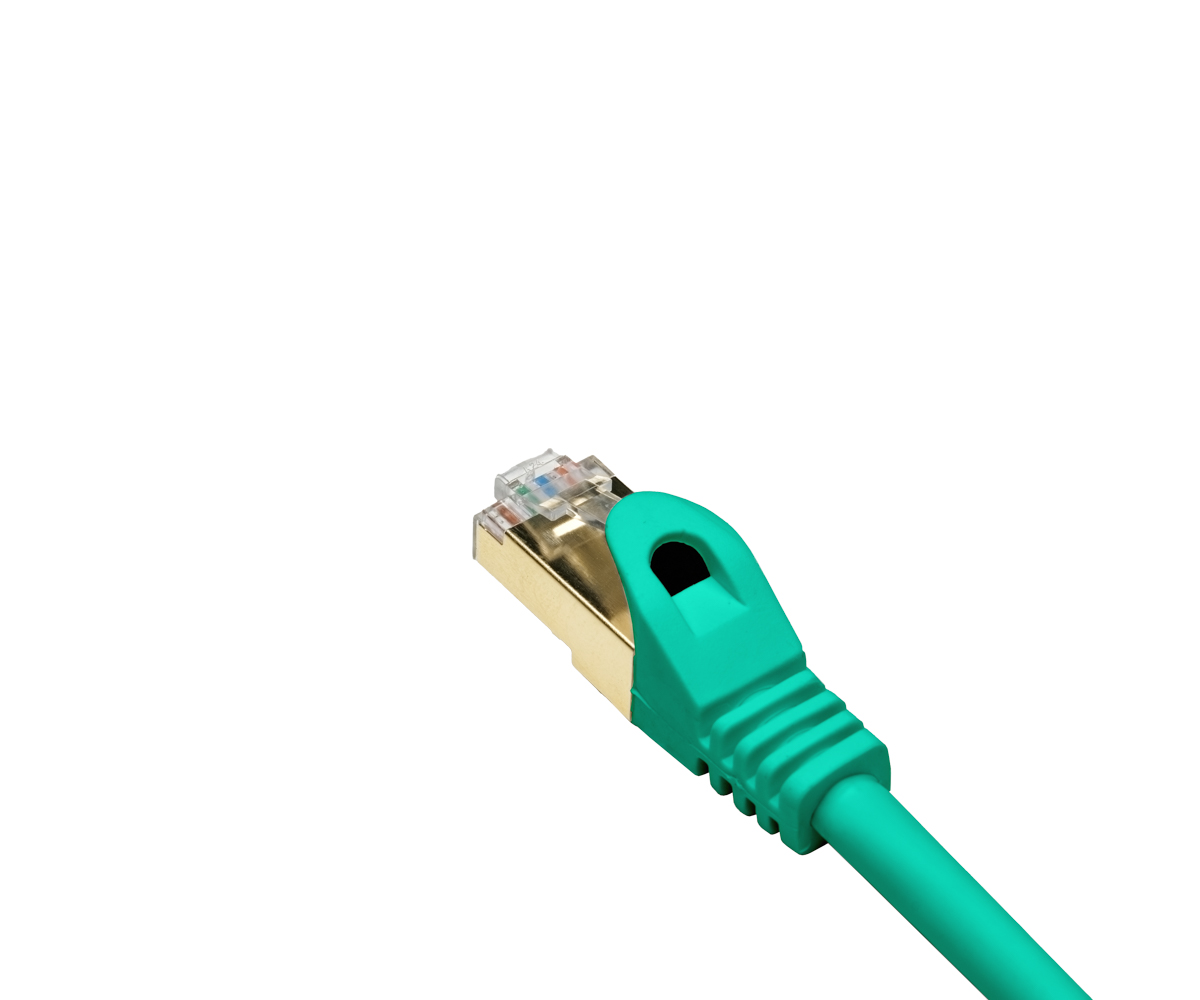

The Cat.6A RJ45 plugs with 50µ gold-plated contacts are designed for frequent mating and stable contacting. The integrated latching lug protection reduces the risk of mechanical damage when plugging and unplugging and during cable routing. The length labelling on the slimline anti-kink sleeve simplifies assignment in patch panels and distributors.

The LSZH sheath (halogen-free) is suitable for installation environments where reduced smoke gas development and corrosion risks are required in the event of fire. The cable can also be used in PoE+ scenarios (IEEE 802.3at) to supply active components.

• Patch panel switch/router connections in office IT and building technology
• Data centre / server room (top-of-rack, end device connection, service patching)
• Industrial networks and automation (interference-prone environments, control cabinet connections)
• System integration, rollout projects, structured LAN cabling

• For Ethernet end devices and network components with RJ45 interface (e.g. switch, router, patch panel, server, PC, IP telephone, access point)
• Supports 10/100/1000 BASE-T and 10GBase-T in suitable installations
• PoE+-capable installations in accordance with IEEE 802.3at (assuming support on the device side)
