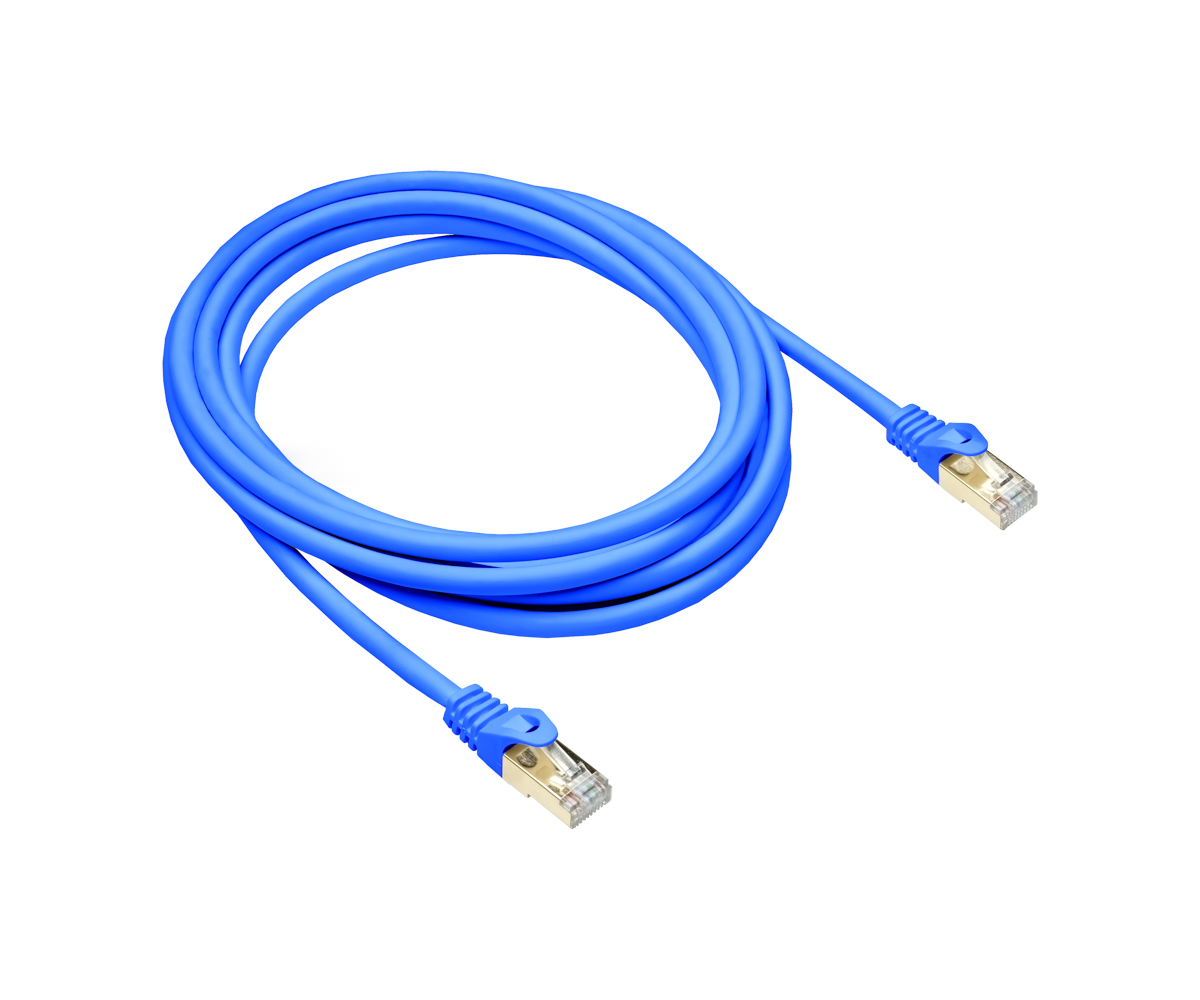

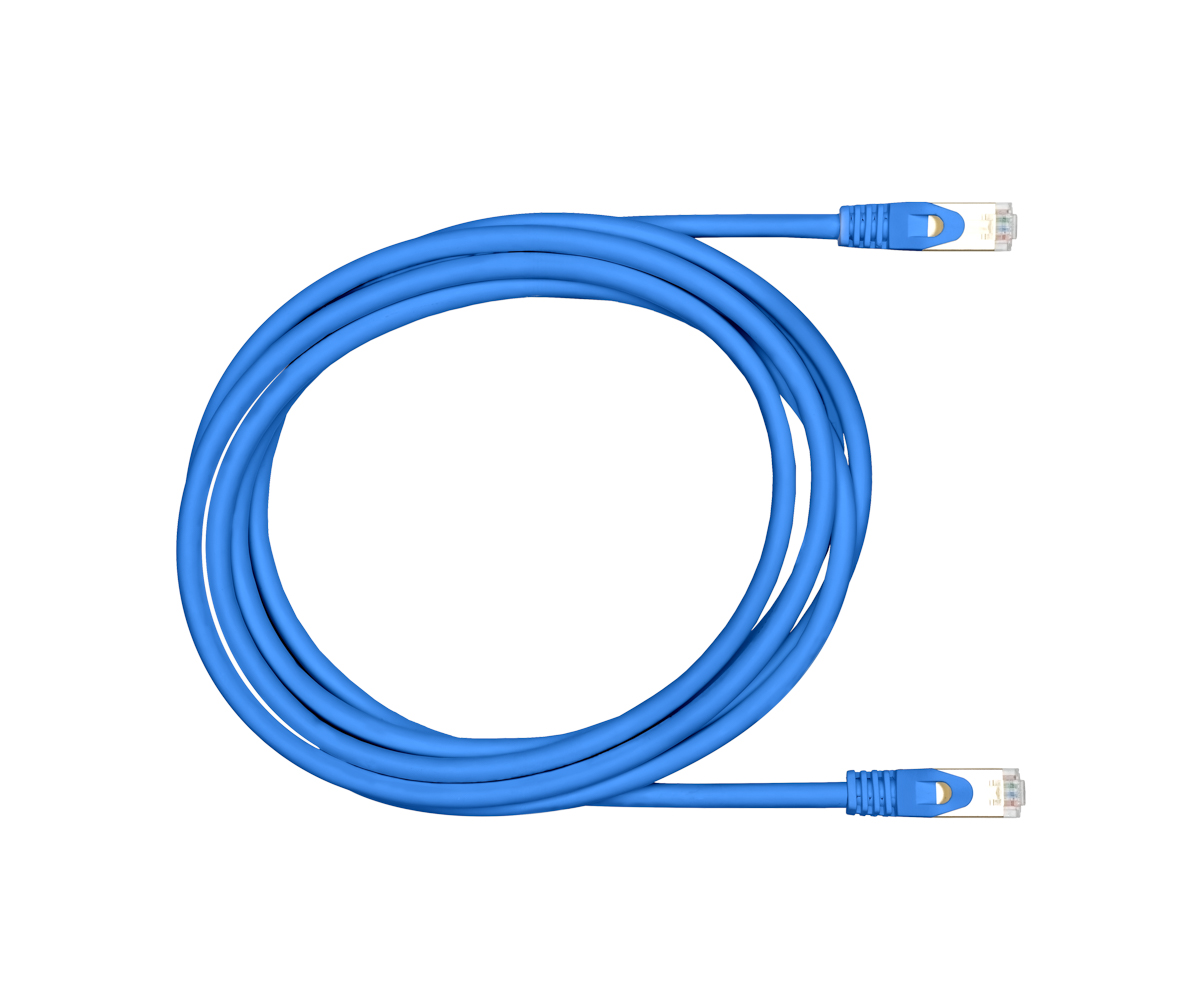

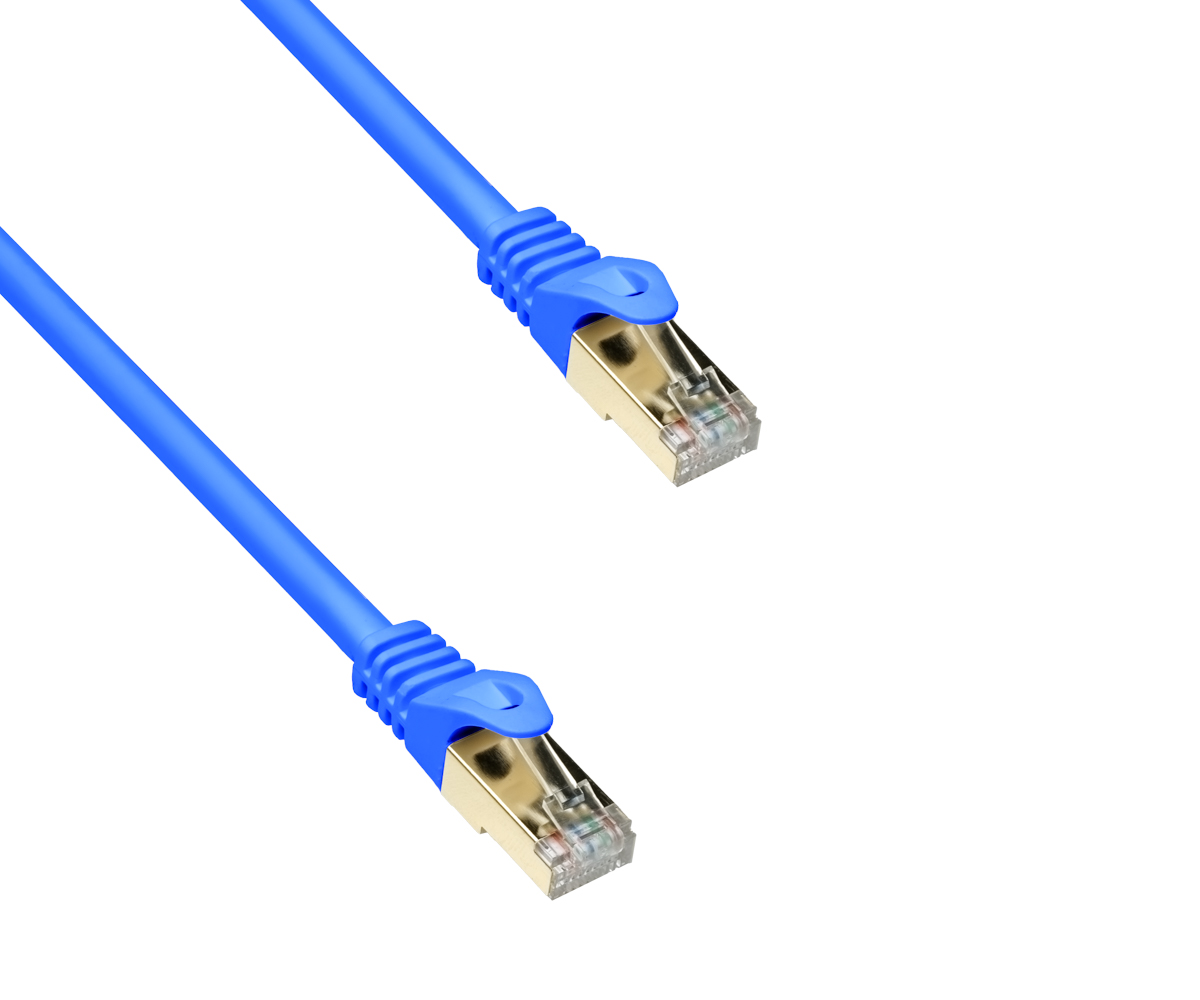

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 3.00m
.png "Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 3.00m")
DINIC Cat.7 Premium patch cable - 3.00 m - blue
S/FTP raw cable quality with LSZH sheath, 2× RJ45 (Cat.6A-compliant), tested up to 600 MHz - for 10GBASE-T.
Technical highlights
- Category Cat.7, tested up to 600 MHz; suitable for 10 Gbit Ethernet (10GBASE-T) and downwards compatible with 10/100/1000BASE-T
- S/FTP construction: PIMF wire pair shielding (pairs in metal foil) + overall shielding (braiding) for high interference immunity

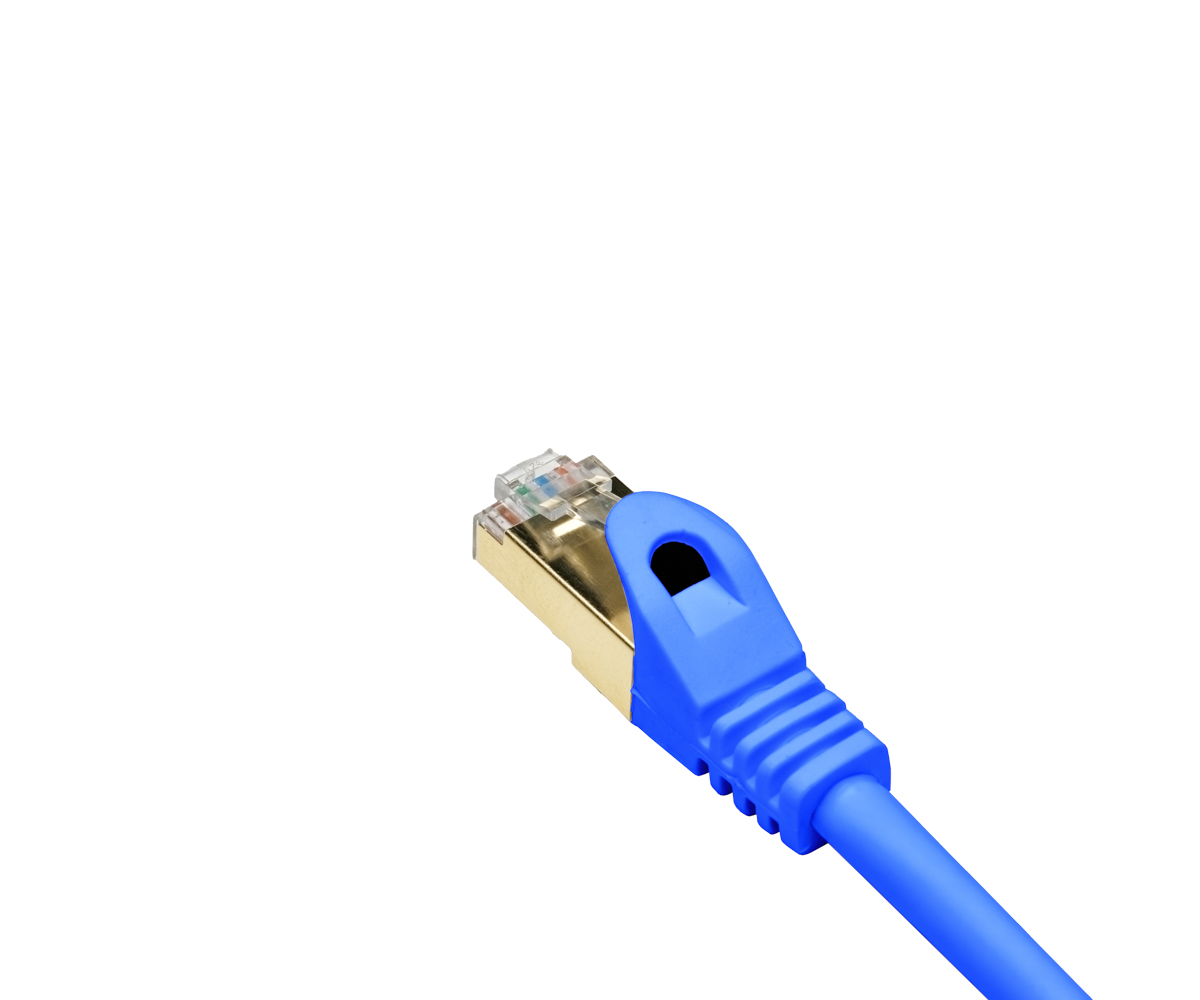

- 2× RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces (PINs)
- Conductor: high-quality copper inner conductor (CU), AWG 26
- PoE+ suitable (IEEE 802.3at) for supplying compatible end devices via the data network
- LSZH sheath (halogen-free, low smoke zero halogen) - reduced exposure to smoke gas/corrosion in safety-relevant installations
- Slimline anti-kink sleeve with printed length specification - quick identification in the patch panel/rack
- Latching nose protection on the plug; pair sequence in accordance with EIA/TIA 568B
Description
The pre-assembled DINIC Cat.7 Premium patch cable is designed for professional copper cabling where stable link performance and high shielding reserves are required. The S/FTP construction (PIMF per pair plus overall braided shield) reduces crosstalk and electromagnetic interference - advantageous in densely occupied patch panels, 19" racks and cable trays.
The RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces support permanently reliable contacting. AWG 26 copper conductors and the halogen-free LSZH sheath are suitable for structured installations with increased requirements for operational reliability and installation quality.
Areas of application
- Network cabling in 19" racks, patch panels and floor distributors
- Server/data centre environments and professional IT infrastructure
- Building technology, system integration, office IT, industrial/automation networks (RJ45 copper cabling)
- PoE/PoE+ lines for IP telephony, access points, cameras (device-dependent)
Technical data
| Item number | C7-3-BL |
| EAN CODE | 4032528034812 |
| Category / Test | Cat.7, tested up to 600 MHz |
| Data rate / protocols | up to 10 Gbit Ethernet (10GBASE-T); downward compatible to 10/100/1000BASE-T |
| Shielding / structure | S/FTP - PIMF (wire pairs in metal foil) + overall shield (braiding) |
| Conductor | Copper (CU), AWG 26 |
| Cores / pair sequence | 4 pairs (8 cores), pair sequence according to EIA/TIA 568B |
| Connectors | 2× RJ45 (Cat.6A-compliant), 50 µ gold-plated contact surfaces, latching nose protection, slimline anti-kink sleeve |
| PoE support | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH (halogen-free, low smoke zero halogen) |
| Colour | blue colour |
| Cable length | 3,00 m |
| Packaging | DINIC polybag with Euro hole |
Compatibility
For active and passive network components with RJ45 Ethernet socket, e.g. switches, routers, firewalls, servers, media converters, patch panels and data outlets. Can be used in existing Cat.5e/Cat.6 infrastructures (downwards compatible).
Scope of delivery
1× DINIC Cat.7 Premium patch cable, S/FTP, LSZH, 2× RJ45, 3.00 m, blue, in DINIC polybag with Euro hole.
DINIC is a trademark of MAG GmbH.
SEO: DINIC Cat.7 patch cable 3m blue, S/FTP PIMF, LSZH halogen-free, 2× RJ45 Cat.6A, copper AWG26, 600MHz, 10GBASE-T, PoE+ IEEE 802.3at
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
