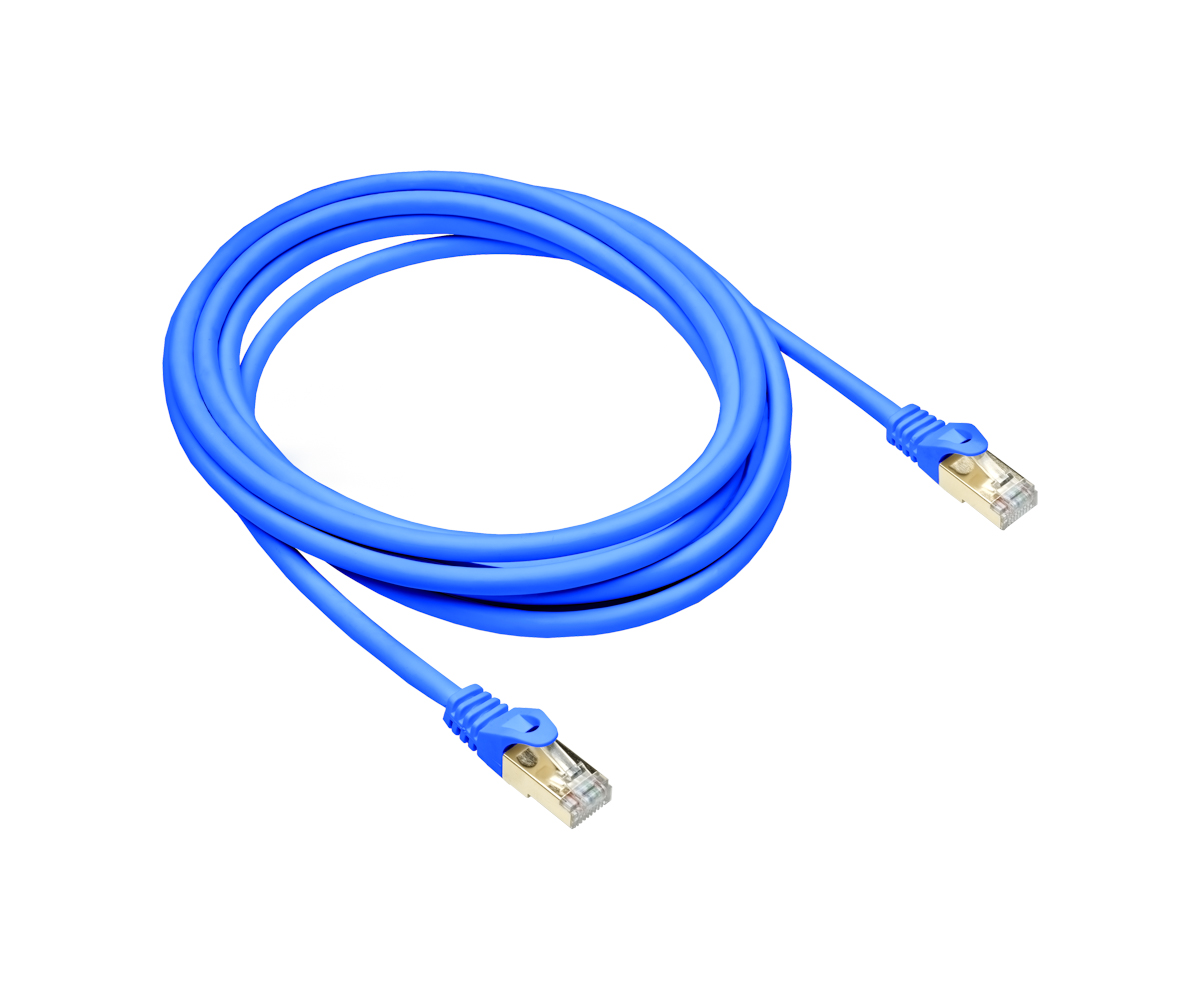

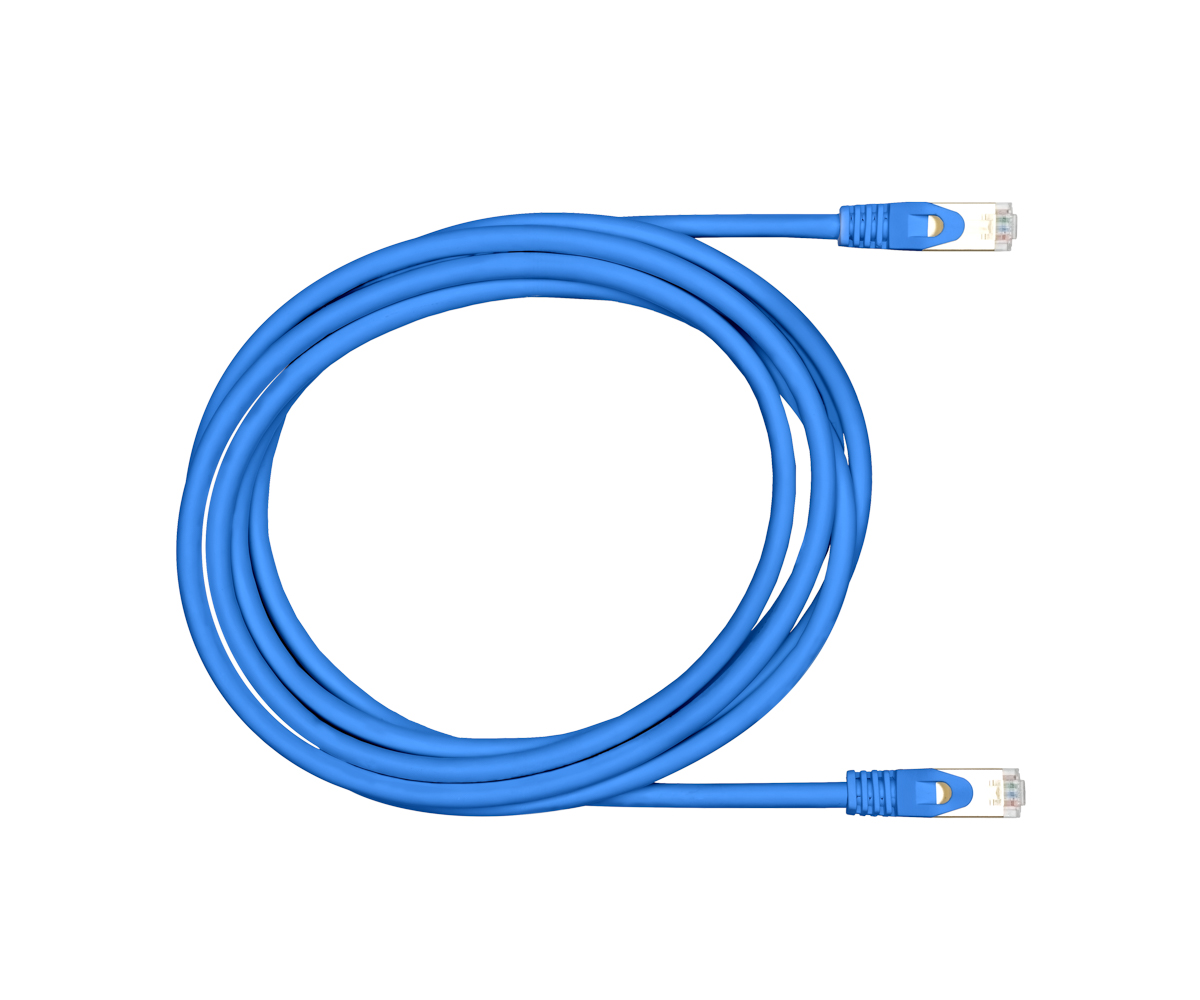

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 2.00m

• Cat.7 cable construction, tested up to 600 MHz; suitable for 10 Gigabit Ethernet (10GBase-T), downwards compatible with 10/100/1000 BASE-T

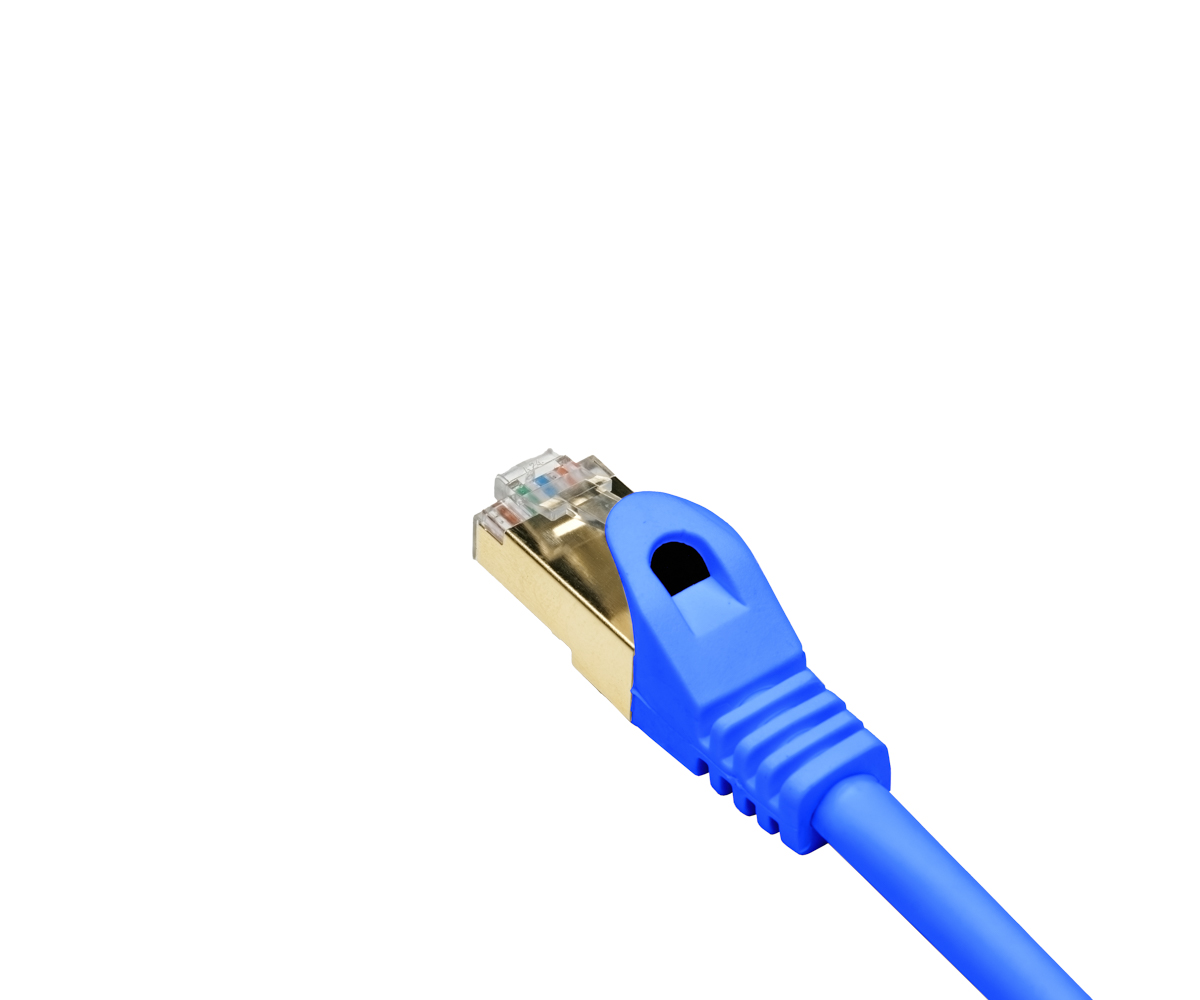

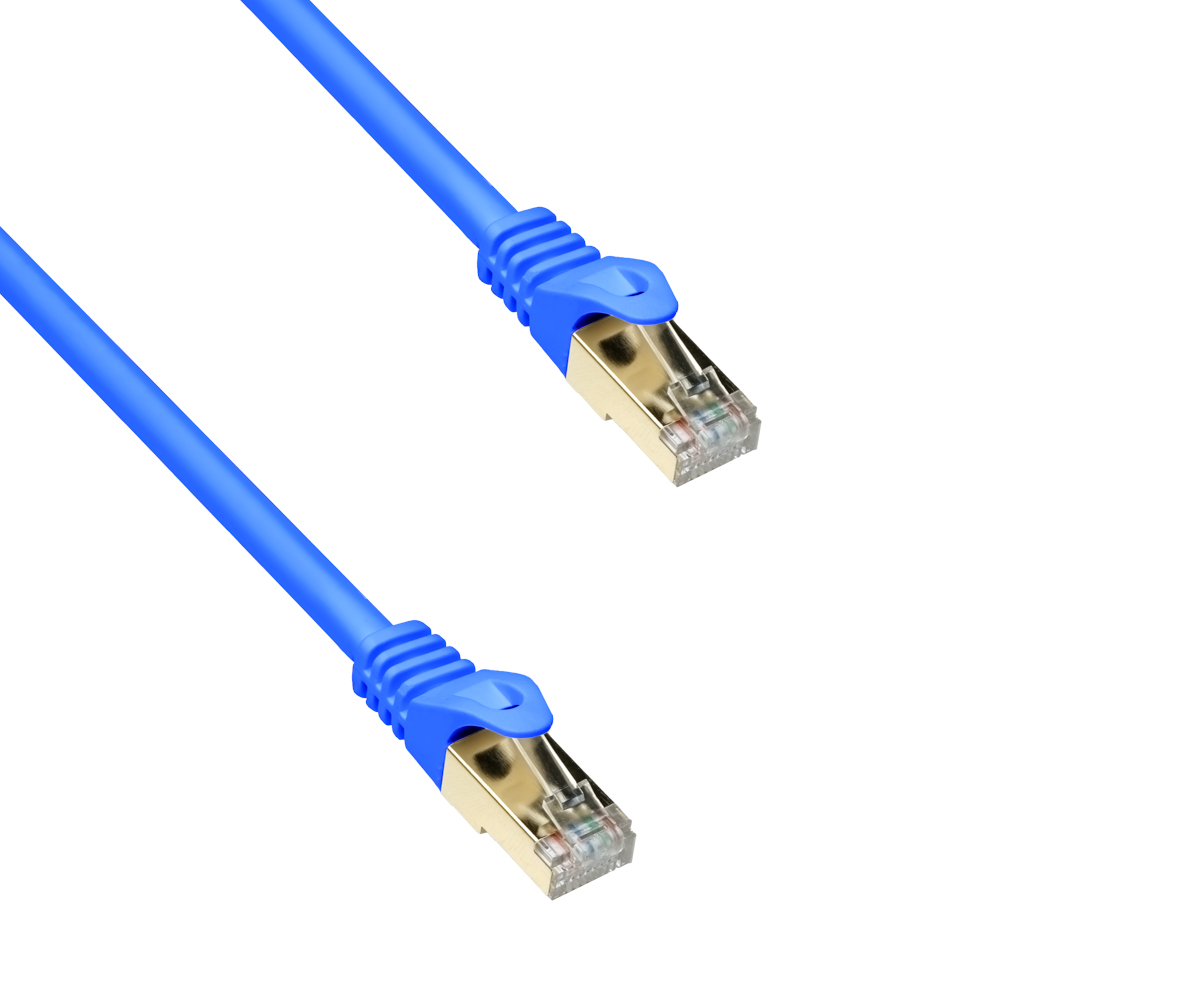

• 2× RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces (PINs) for permanently low contact resistance
• Shielding: wire pairs individually shielded (PiMF - pairs in metal foil) plus overall shield (braiding) - S/FTP
• Conductor: high-quality copper inner conductor (CU), AWG 26
• PoE+ suitable (IEEE 802.3at) for supplying compatible end devices via the data cable
• LSZH sheath (halogen-free) for installations with increased requirements for flue gas/corrosion behaviour
• Slimline anti-kink grommet with length indication for quick identification in the rack/route
• Latching lug protection for mechanical relief of the RJ45 locking mechanism during frequent patching

The DINIC Premium Cat.7 patch cable in 2.00 m is designed for structured copper cabling in professional IT and building networks. The Cat.7 cable construction, tested up to 600 MHz, offers the necessary reserves for 10GBase-T routes and at the same time remains compatible with existing 10/100/1000 BASE-T infrastructures.

The S/FTP construction (PiMF per wire pair + overall shield as braiding) reduces crosstalk and external interference, especially in densely occupied 19" racks, patch panels and cable trays. Copper conductors (AWG 26) support stable link performance even in PoE/PoE+ scenarios.

The RJ45 plugs (Cat.6A-compliant) with 50 µ gold-plated contact surfaces are designed for permanently reliable contacting. Slimline anti-kink sleeves with length labelling facilitate documentation and port assignment, while the locking lug protection protects the locking mechanism during service and rewiring work.

• Control cabinet construction and industrial automation (shielded copper cabling)
• 19" rack and patch panel cabling in server rooms/data centres
• Building technology and structured networks (floor distributors, data outlets, patch panels)
• System integration, rollouts and service cabling in the specialised trade/project business
• PoE/PoE+ applications (e.g. access points, VoIP, IP cameras) in suitable infrastructure

• For active and passive network components with RJ45 Ethernet port (8P8C), e.g. switches, routers, firewalls, servers, patch panels, network outlets, media converters, NICs
• Supports 10/100/1000 BASE-T and 10GBase-T in a suitable cabling/component structure
• Can be used for PoE/PoE+ end devices (e.g. access points, IP cameras, VoIP) in accordance with IEEE 802.3at

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de

Note on custom-made products

Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.

View details about custom-made products
