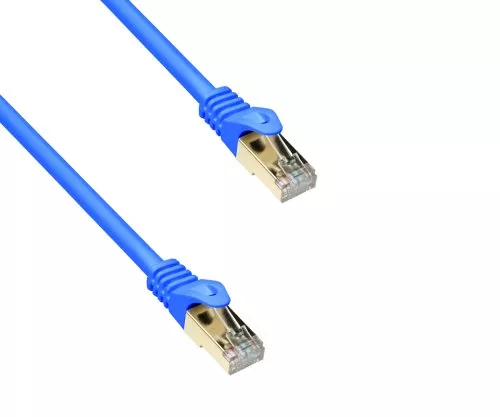

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 1.00m

• Cat.7 tested up to 600 MHz; designed for 10 Gigabit Ethernet
• 2x RJ45 plugs (8P8C), plug category Cat.6A
• Inner conductor: high-quality copper (CU), AWG 26
• Shielding: individual wire pairs in metal foil (PIMF) + overall shielding (braiding), S/FTP
• Contact surfaces (PINs) 50µ gold-plated for stable contacting and reduced contact resistance
• Backwards compatible with 10/100/1000 BASE-T
• Suitable for PoE+ (IEEE 802.3at) in typical installation scenarios
• LSZH jacket (halogen-free) - reduced smoke gas development, suitable for structured building cabling

The DINIC Premium Cat.7 patch cable is designed for high-performance copper networks and supports applications up to 10 Gigabit Ethernet. The S/FTP construction combines paired foil shielding (PIMF) with additional overall braided shielding. This effectively reduces interference in densely occupied cable paths, racks and patch panels.

Gold-plated contact surfaces (50µ) and copper inner conductors ensure reproducible contact quality in professional patch and cross-connect environments. The slimline anti-kink sleeve is provided with a length indication and supports quick identification during operation. A snap-in lug protector protects the RJ45 lug during servicing and increases operational reliability in the event of frequent reconnection.

The assignment is in accordance with EIA/TIA-568B and enables standard-compliant integration into structured cabling systems.

• Patch panel and switch connection in 19" cabinets (data centre, server room, IT distributor)
• Building technology and structured network cabling (floor distributors, office IT, industrial buildings)
• System integration, rollout installations and service/replacement in specialised trade
• Industrial automation and machine connection (EMC-loaded environments, shielded patch routes)

Article number	C7-1-BL
Category / Test	Cat.7 tested up to 600 MHz
Transmission profile	up to 10 Gigabit Ethernet; downward compatible 10/100/1000 BASE-T
Connector	2x RJ45 (8P8C), Cat.6A
Contact surfaces	50µ gold-plated PINs
Conductor	Copper (CU), AWG 26
Shielding	S/FTP: PIMF (pairs in metal foil) + overall shielding (braiding)
Assignment	EIA/TIA-568B
PoE	suitable for PoE+ (IEEE 802.3at)
Jacket	LSZH (halogen-free)
Colour	blue colour
Cable length	1.00 m (length specified on slimline cable grommet)
Packaging	DINIC polybag (with Euro hole)
EAN CODE	4032528034799

For Ethernet interfaces with RJ45 socket (8P8C), e.g. switches, routers, patch panels, network sockets, server/storage ports, IP telephones and industrial Ethernet components (10/100/1000/10GBASE-T depending on port/installation).

• 1x DINIC Premium Cat.7 patch cable, blue, 1.00 m, 2x RJ45
• Individual packaging: DINIC Polybag

DINIC is a brand of MAG GmbH - developed for professional cabling and infrastructure components in the B2B environment.

Keywords: DINIC Cat.7 patch cable 1m blue, S/FTP PIMF, LSZH halogen-free, 2x RJ45 Cat.6A, 600MHz, 10 Gigabit Ethernet, copper AWG26, PoE+ IEEE 802.3at
