Network tester RJ11,12, 45 / BNC / ISDN Shielding, continuity and occupancy test
.png "Network tester RJ11,12, 45 / BNC / ISDN Shielding, continuity and occupancy test")
Network tester RJ11 / RJ12 / RJ45 / BNC / ISDN
Shielding, continuity and assignment test for copper and coax connections incl. remote unit
Technical highlights
- Testing of CAT 5/6/7 network and ISDN connections (continuity, short circuit, swapping, cable defect)
- Integrated sockets: RJ11, RJ12 and RJ45
- Remote unit with LED display for 8 individual wires for convenient cable assignment
- Support for coax connections via BNC (adapter/connector included)
- Power supply via 9 V block battery (not included)
- Supplied in a hard case for protected transport and storage
- Item status: End-of-Life (EOL) - no longer in the regular range
Item description
The network tester is used for quick functional testing of installed cables and patch cables in a professional environment. The integrated RJ11, RJ12 and RJ45 interfaces and the supplied adapters/connectors can be used to test typical data, telephone/ISDN and coaxial lines for continuity, short circuits, wire reversal and line faults.
The remote unit with LED display for 8 individual wires enables clear wire and pair assignment even with spatially separated cable ends (e.g. patch panel ↔ workstation socket, control cabinet ↔ field connection). The supplied hard case supports robust use in service, installation and maintenance.
Note on product status: This article is end-of-life (EOL) and no longer available in the regular range.
Fields of application
- Network installation and acceptance measurement (patch panels, junction boxes, patch panels)
- Service & troubleshooting in IT infrastructure, office and building technology
- Control cabinet construction and industrial automation (copper data links, field cabling)
- System integration and maintenance of communication and coax connections
Technical data
| Article number | RJ-TEST |
| EAN CODE | 4032528006611 |
| Interfaces (device) | RJ11, RJ12, RJ45 |
| Supported tests | Continuity, short-circuit, wire reversal, cable defect, occupancy/shielding (line-dependent) |
| Remote display | LED display for 8 individual wires |
| Power supply | 9 V block battery (not included) |
| Dimensions (W×H×D) | 80 × 57 × 23 mm |
| Weight | 195 g (device) |
| Packaging | hard case |
| Manufacturer: MAG | MAG GmbH |
| Product status | EOL (End-of-Life) |
Compatibility
- For copper data links with RJ45 (e.g. CAT 5/6/7 patch cables, junction boxes, patch panels)
- For telephone/ISDN lines via RJ11/RJ12 (depending on cabling/adapter)
- For coax connections via BNC (via supplied adapters/connectors)

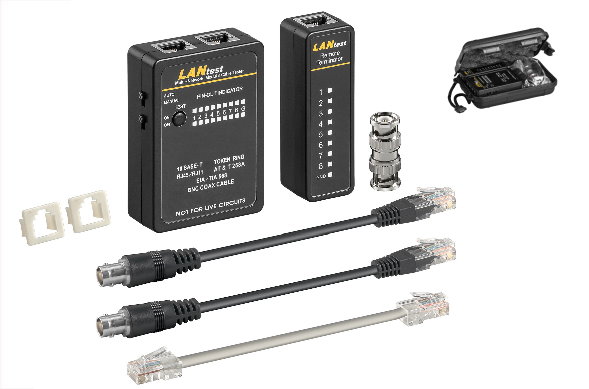

Scope of delivery
- Network tester (main unit) and remote unit
- Adapters/connectors: BNC > RJ45, RJ45 > RJ45 adapter cable, BNC > BNC, RJ45 > RJ11 connector
- Hard case
- 9 V block battery not included
