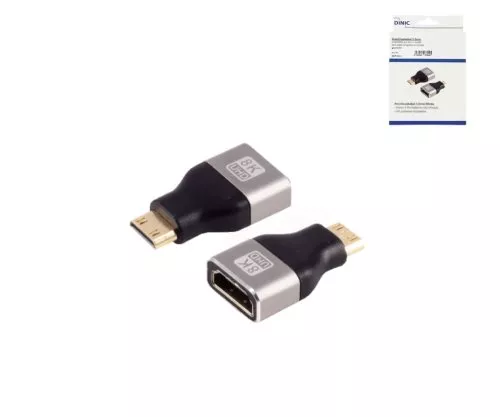

DINIC HDMI-C (mini) adapter, HDMI-A socket, 8K 8K (60Hz), 4K (120Hz), HDMI 2.1, aluminium, DINIC box with Euro hole
DINIC HDMI-C (Mini) adapter to HDMI-A socket - 8K/60Hz, 4K/120Hz, HDMI 2.1
Passive plug-in adapter for adapting HDMI-A cables to devices with mini-HDMI (HDMI-C).
Technical highlights
- Connections: HDMI-C (mini) plug → HDMI-A socket
- Resolution up to 8K (60Hz) and 4K (120Hz)
- HDMI 2.1 / Ultra High Speed with Ethernet, max. bandwidth 48 Gbit/s
- Supports: HDCP 2.3, CEC 2.0, 3D, Dynamic HDR, VRR
- Bidirectional (not directional) use
- Gold-plated contact pins for stable contacting
- Robust housing: PVC + aluminium (black/silver)
- Supplied in DINIC box (counter/stock item, Euro hole)
Product description
The DINIC HDMI-C (Mini) adapter enables the direct adaptation of a standard HDMI-A connector (e.g. from HDMI cables, measurement or service lines) to a mini HDMI (HDMI-C) interface. This allows devices with an HDMI-C socket to be integrated into existing HDMI-A cabling without active electronics or additional signal conditioning.
The compact plug-in adapter design reduces transition lengths and is suitable for professional installations, service applications and temporary setups. The combined PVC/aluminium housing supports robust handling in daily use. Gold-plated pins improve the contact quality with frequent plugging and unplugging.
Practical note: As a passive adapter, the achievable data rate depends on the cable quality, overall length and the connected equipment. For 8K/60Hz or 4K/120Hz, a consistently suitable HDMI link (cable/connector/ports) is required.
Areas of application
- System integration and IT/AV installation (display connection, presentation setups)
- Service, commissioning and maintenance (adapters for test/measurement cables with HDMI-A)
- Media technology in meeting rooms and training environments
- Industrial/embedded environments with mini-HDMI devices (e.g. single-board computers)
- Camera technology/imaging (DSLR/VDSLR/action camcorder/UMPC/tablet PCs with mini-HDMI)
Technical data
| Item number | MHD-HDMI-MF-KB |
| EAN | 4032528040998 |
| Connection 1 | HDMI-C (mini) plug |
| Connection 2 | HDMI-A socket |
| HDMI specification | Ultra High Speed with Ethernet (HDMI 2.1) |
| Max. Bandwidth | 48 Gbit/s |
| Max. Max. resolution | 8K (60Hz), 4K (120Hz) |
| Supported features | HDCP 2.3, CEC 2.0, 3D, Dynamic HDR, VRR |
| Signal direction | Bidirectional (not directional) |
| Contact surface | Gold-plated pins |
| Housing material | PVC + aluminium |
| colour | black / silver |
| Packaging | DINIC box |
Compatibility
- For devices with mini-HDMI interface (HDMI-C socket)
- For use with HDMI-A cables/plugs (standard HDMI) on the opposite side
- Backwards compatible with common HDMI standards (depending on end devices and distance)
Scope of delivery
1× HDMI-C (mini) plug to HDMI-A socket adapter, packed in DINIC box
DINIC is a brand of MAG GmbH - B2B solutions for cables, adapters and connectivity.
Keywords: DINIC HDMI-C Mini Adapter, HDMI-A socket, HDMI 2.1, 48 Gbit/s, 8K 60Hz, 4K 120Hz, Ultra High Speed with Ethernet, Aluminium housing
