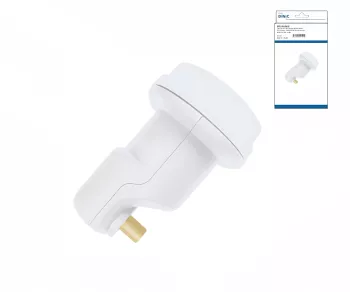

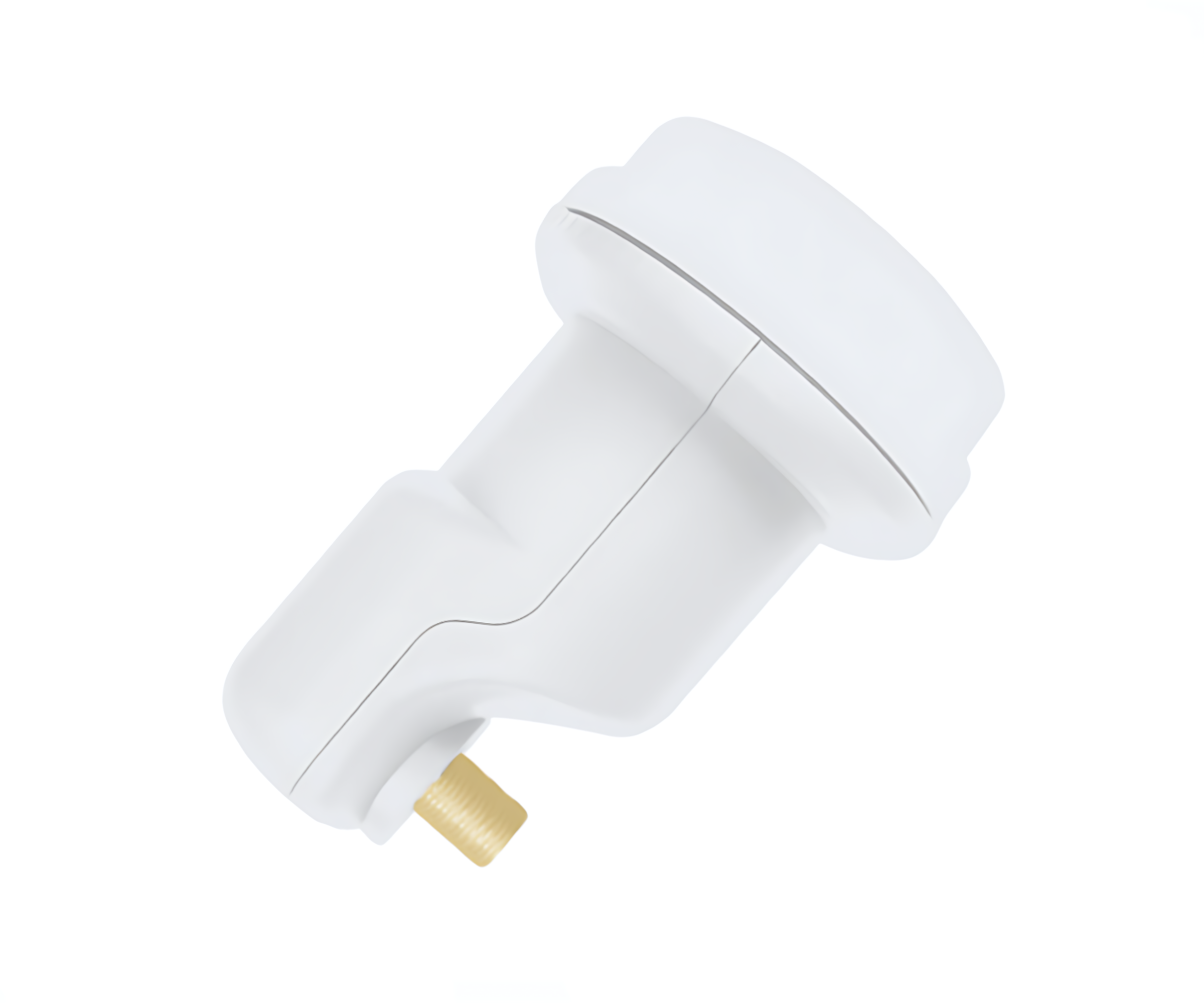

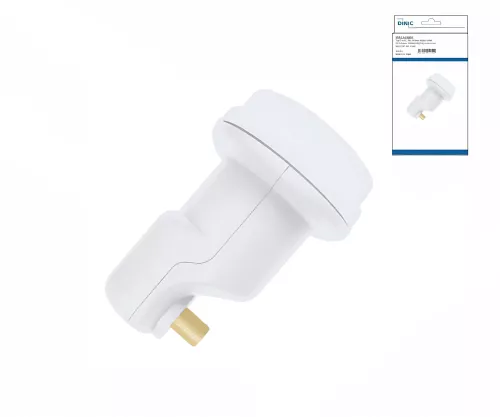

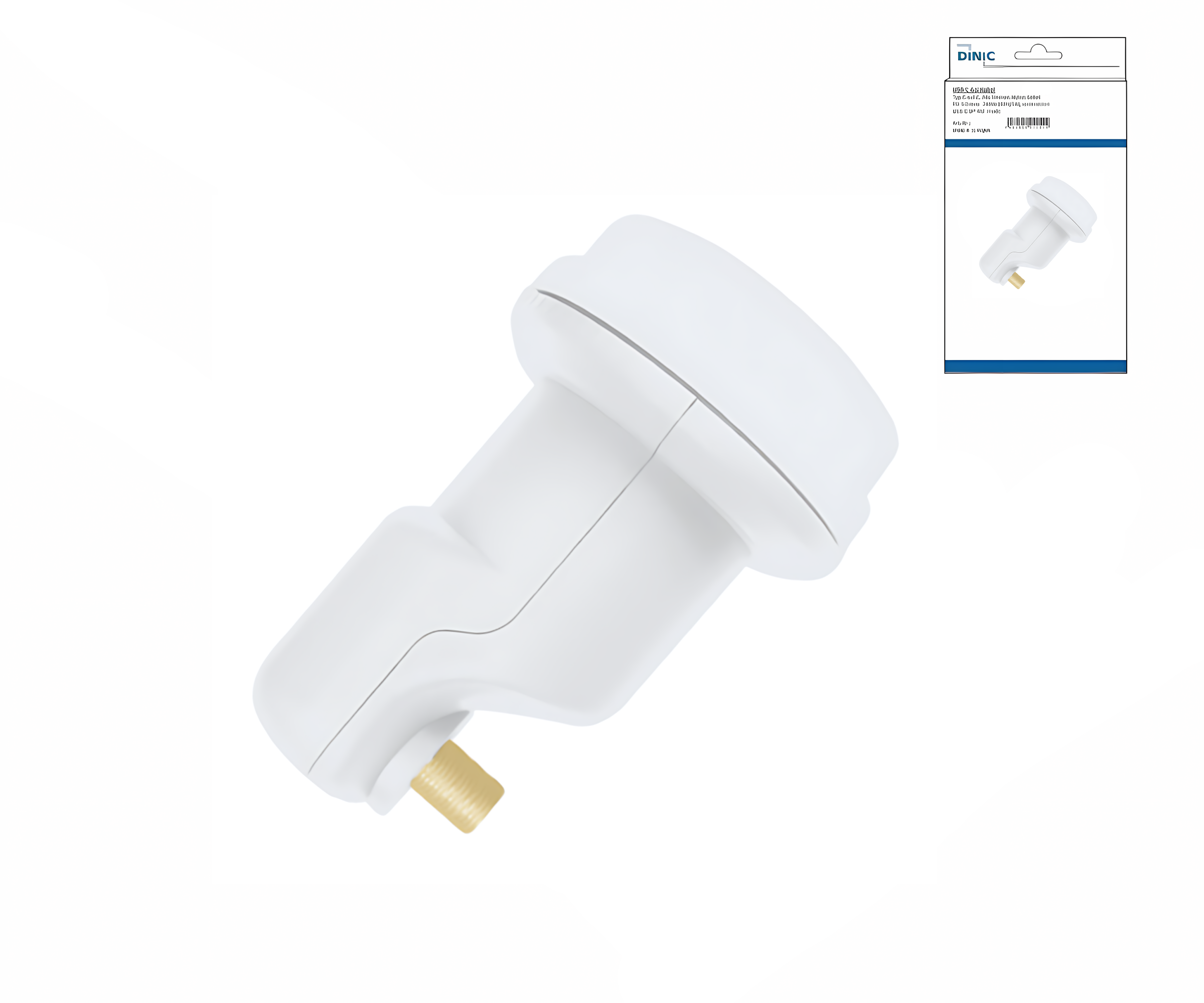

DINIC Universal Single LNB smart TITANIUM, 0.1 dB, 1x F-connector
Single LNB for connecting a satellite receiver, universal version for low and high band, with gold contacts.
Technical highlights
- Universal single LNB for connecting a SAT receiver
- Reception of low- and high-band satellite frequencies
- Noise figure 0.1 dB for high signal quality
- Gold contacts for low-corrosion, durable connection
- F socket as standard SAT connection
- Control voltages: Vertical 11.0-14.2 V / Horizontal 15.5-21 V
- Band switching over 22 kHz (22 ± 4 kHz)
- Current consumption max. 110 mA, conversion gain approx. 50 dB
- Operating temperature -40 °C to +60 °C
- Packed in DINIC box with Euro hole hanger
Description
The DINIC Universal Single LNB smart TITANIUM is a compact LNB for professional SAT single connections. It is designed for operation with a digital SAT receiver or a TV set with integrated DVB-S/S2 tuner and works in the universal range with low and high band.
With a noise figure of 0.1 dB and a conversion gain of approx. 50 dB, the LNB offers high signal quality and is suitable for installations with low reserves or long cable runs. The gold contacts on the F connection improve the contact quality and reduce contact corrosion - a particular advantage in commercial installations with long operating times.
Band switching takes place via a 22 kHz signal, polarisation via defined control voltages. This means that the LNB is compatible with common SAT receivers and can be integrated into standardised SAT distributions without additional components. The extended operating temperature range of -40 °C to +60 °C supports stable operation even when installed outdoors under demanding environmental conditions.
Delivery in a DINIC box with Euro hole hanger facilitates storage, labelling and presentation in specialist shops as well as structured stocking in workshops and logistics.
Areas of application
- Single subscriber SAT systems in offices, surgeries and commercial properties
- Building technology and SAT distributions with one receiver connection
- Retrofitting or replacing LNBs in existing SAT systems
- System integration in small headends and compact distribution structures
- Specialist trade and OEM solutions with standardised universal SAT LNB
Technical specifications
| Product type |
DINIC Universal Single LNB smart TITANIUM |
| Version |
Single LNB, connection for one SAT receiver |
| Reception range |
Universal, low and high band of satellite frequencies |
| Noise figure |
0.1 dB |
| Conversion gain |
approx. 50 dB |
| Control signal vertical (Ca) |
11,0-14,2 V |
| Horizontal control signal (Cb) |
15,5-21 V |
| Control signal band (Cc) |
22 kHz (22 ± 4 kHz) |
| Current consumption |
max. 110 mA |
| Connection |
F-socket |
| Operating temperature |
-40 °C to +60 °C |
| Weight |
approx. 0.103 kg per piece |
| Item number |
LNB-1KB |
| Brand / Manufacturer |
DINIC / MAG GmbH |
| Packaging |
DINIC box with Euro hole hanger |
Compatibility
- For standard satellite dish antennas with universal LNB mount
- For digital SAT receivers with F-connector
- For TV sets with integrated DVB-S/S2 receiver and F socket
- Can be used in single subscriber SAT systems with one receiver
Scope of delivery
- 1× DINIC Universal Single LNB smart TITANIUM, single version, F-connector
- Packaging: DINIC box with Euro hole hanger
