Technical highlights

• Universal 3-hole aerial socket for SAT, TV and radio
• Designed as a stub/end socket, can be used as a feed-through socket by removing the terminating resistor
• Suitable for special channel and return channel (return channel-compatible BK/TV distributions)
• Direct voltage feed-through (DC feed-through) for supplying and switching SAT components
• Universal for flush-mounted and surface-mounted installation, incl. surface-mounted frame and cover
• Neutral white colouring for use in standard switch ranges
• Supplied in a practical DINIC box with Euro hole for storage, trade and service use
• Article number A-DOS-3U-V2-KB, EAN 4032528040172

Product description

The DINIC universal 3-hole aerial socket is designed for combined SAT, TV and radio distribution and is suitable for modern coaxial networks in residential and functional buildings. The socket provides three separate outputs and thus enables clean signal separation for SAT, TV and radio receivers.

The aerial socket is factory-fitted as a spur/end socket and equipped with a terminating resistor. For looped-through installations, the terminating resistor can simply be removed so that the socket can be used as a feed-through socket in series installations. This reduces the number of variants on site and simplifies stock-keeping.

The support of special channel and return channel allows use in return channel-capable BK/cable TV networks, for example when using cable modems or interactive services. The integrated DC feed-through also enables the supply and control of connected SAT components via the coaxial network.

The universal design for flush-mounted and surface-mounted installation, the supplied surface-mounted frame and the cover make the socket suitable for both new installations and retrofits. The neutral design in white can be integrated into standard switch programmes and is designed for professional use in TV/SAT distribution systems.

Areas of application

• TV and SAT distribution systems in apartment blocks and functional buildings
• Building technology, electrical installation and renovation in residential buildings
• BK/cable TV networks with return channel (e.g. for cable modems and interactive services)
• Hotel, boarding house and property installations with centralised signal distribution
• System integration and retrofitting of existing coaxial infrastructures

Technical data

Compatibility

Suitable for TV and radio receivers, SAT receivers, set-top boxes and cable/BK terminal devices in coaxial distribution networks with SAT, TV and radio signal routing. Designed for return channel-capable installations with special channel and return channel support.

Scope of delivery

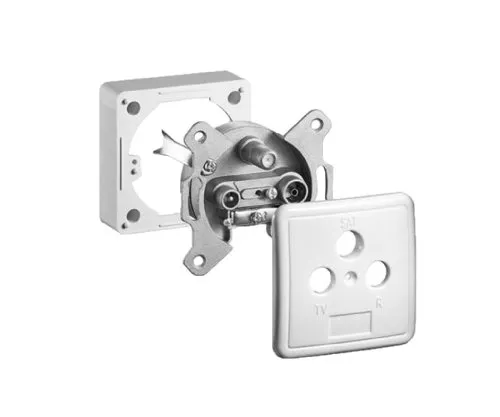

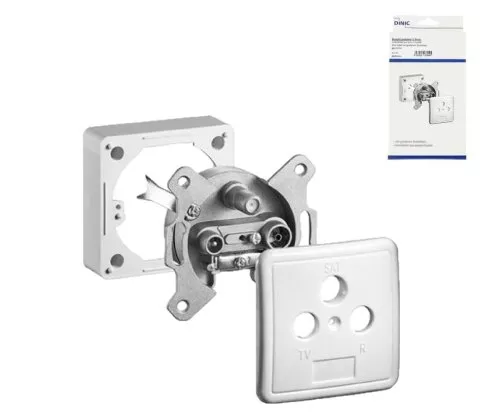

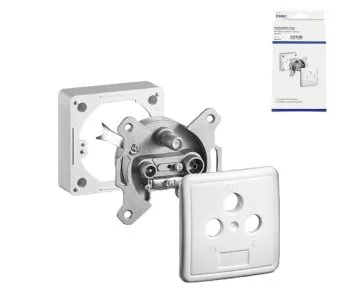

• 1× DINIC antenna socket 3-hole, universal for SAT, TV and radio
• 1× Cover/central disc
• 1× Surface-mounted frame (AP frame)
• 1× Terminating resistor for end socket operation
• Packed in DINIC box with Euro hole
