Technical highlights

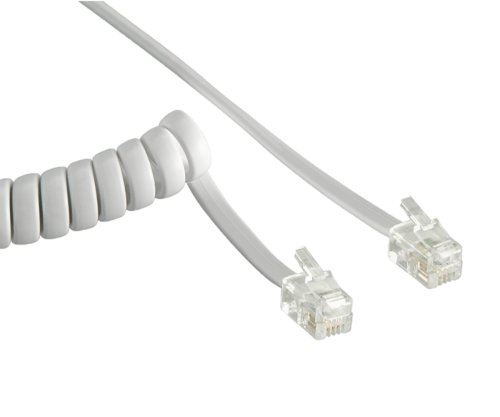

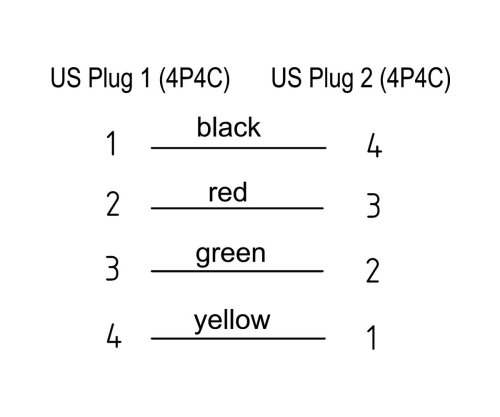

• RJ10 4P4C modular plug to RJ10 4P4C modular plug (male/male)
• Spiral cable design for flexible length routing between handset and telephone set
• Extended cable length of 4.0 m for greater distances at the workplace
• Cable construction: 7 x 0.12 mm, AWG30
• Core material: copper mixture for reliable voice transmission
• Plug material: FeNi, gold-plated contact surface
• Moulded plug bonnets, transparent RJ10 plugs
• Cable colour: white
• Packaging: DINIC box with Euro hole

Cable description

The DINIC telephone handset spiral cable with RJ10 4P4C modular plugs at both ends is designed for connecting telephone handsets to desk telephones, system telephones and PABX systems. The spiral cable design enables a large movement radius of the handset, while excess cable length is automatically pulled back together. This reduces cable clutter, protects the connection socket and keeps the workplace organised.

With a cable length of 4.0 m, the cable is particularly suitable for workstations where the handset is moved frequently or used between different positions, for example in multi-user offices or service points. The fine-stranded construction with 7 x 0.12 mm (AWG30) and mixed copper cores ensures stable voice transmission, even with long-term use.

Encapsulated connector bonnets and transparent RJ10 plugs with gold-plated contact surfaces increase the mechanical strength and minimise contact transition resistance. This makes the spiral cable suitable for professional use in telephony and telecommunications environments where a permanently reliable connection is required.

Areas of application

• Connection of telephone handsets with desk and system telephones
• TC systems in offices, administrations and service companies
• Call centre workstations with an extended range of movement
• Telecommunications and IT infrastructure in companies
• Replacement and spare cables as part of service, maintenance and rollouts

Technical data

Compatibility

Suitable for desk and system telephones as well as telecoms terminals with RJ10 4P4C handset jack. Can be used as a replacement or extension cable in existing installations with standard RJ10 handsets.

Scope of delivery

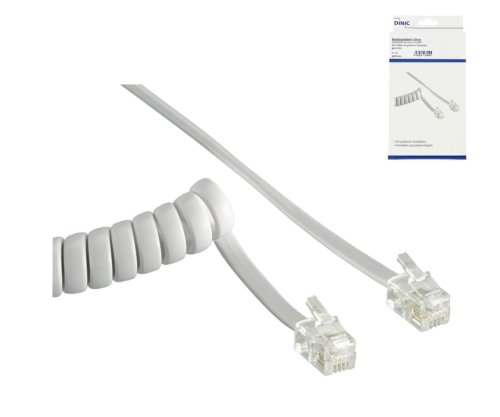

• 1 x DINIC telephone handset spiral cable RJ10 4P4C plug/plug, white, 4.0 m, in DINIC box
