Technical highlights

• Simplex OS2 single-mode fibre (9/125 µm) for point-to-point connections
• Connector combination: LC/APC 8° connector to SC/APC 8° connector (LCA/SCA)
• Length: 50.00 m for very long distances between fibre optic transfer point and router
• LSZH sheath (Low Smoke Zero Halogen) to reduce smoke and halogen development in the event of fire
• Outer diameter approx. 2.0 mm, easy to lay in cable paths, routes and technical cabinets
• Colour coding: white cable for clear identification in the fibre optic and IT environment
• Pre-assembled and factory-tested for reproducible attenuation values in professional use
• Packaging: DINIC box with Euro hole

Cable description

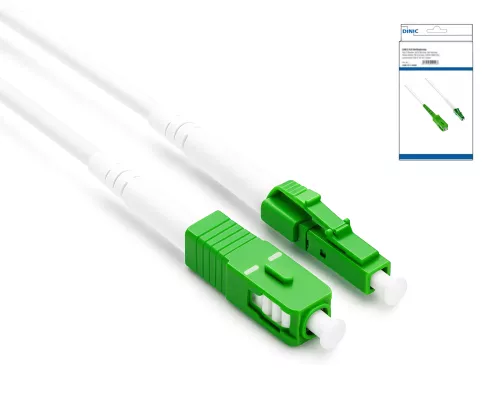

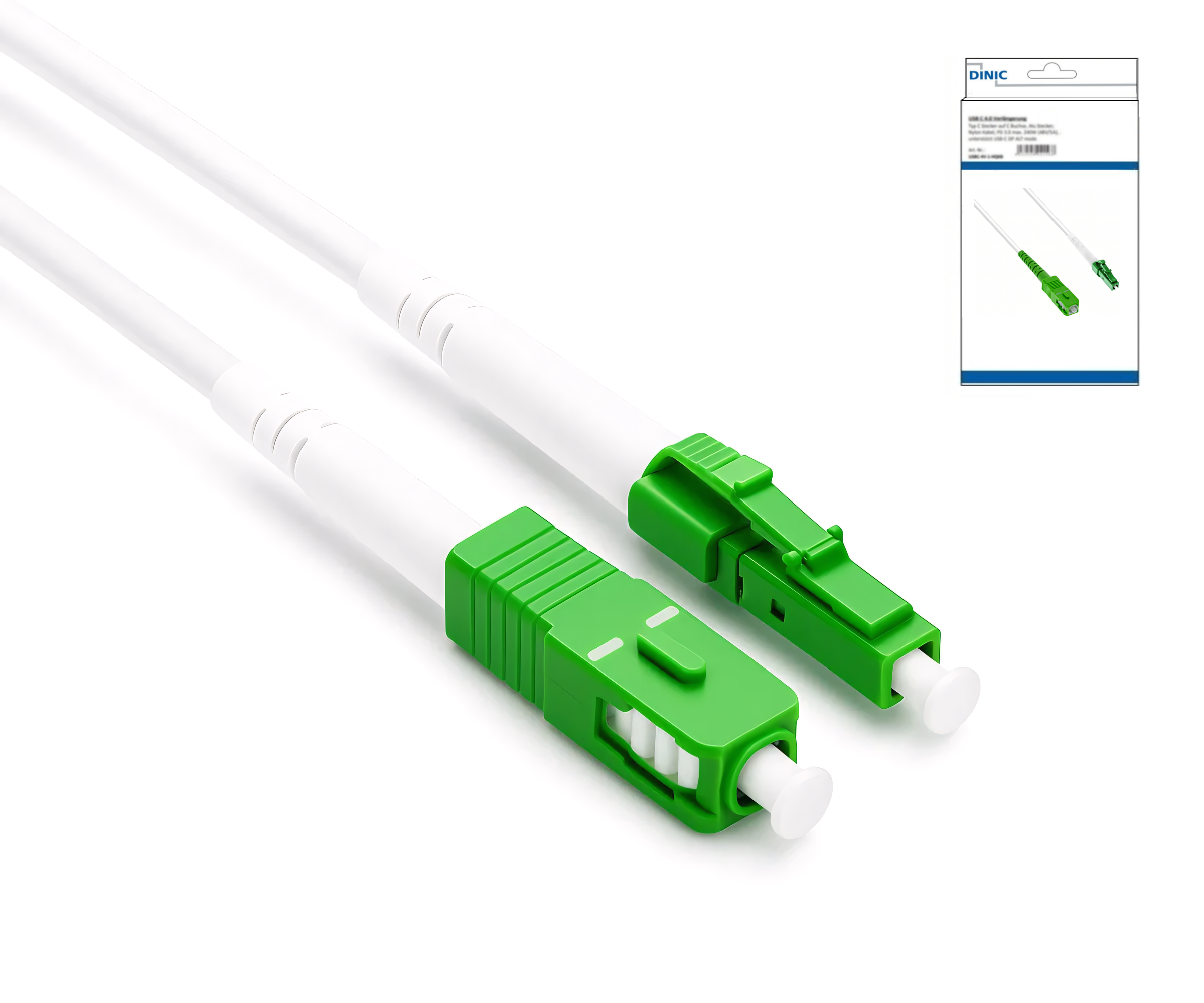

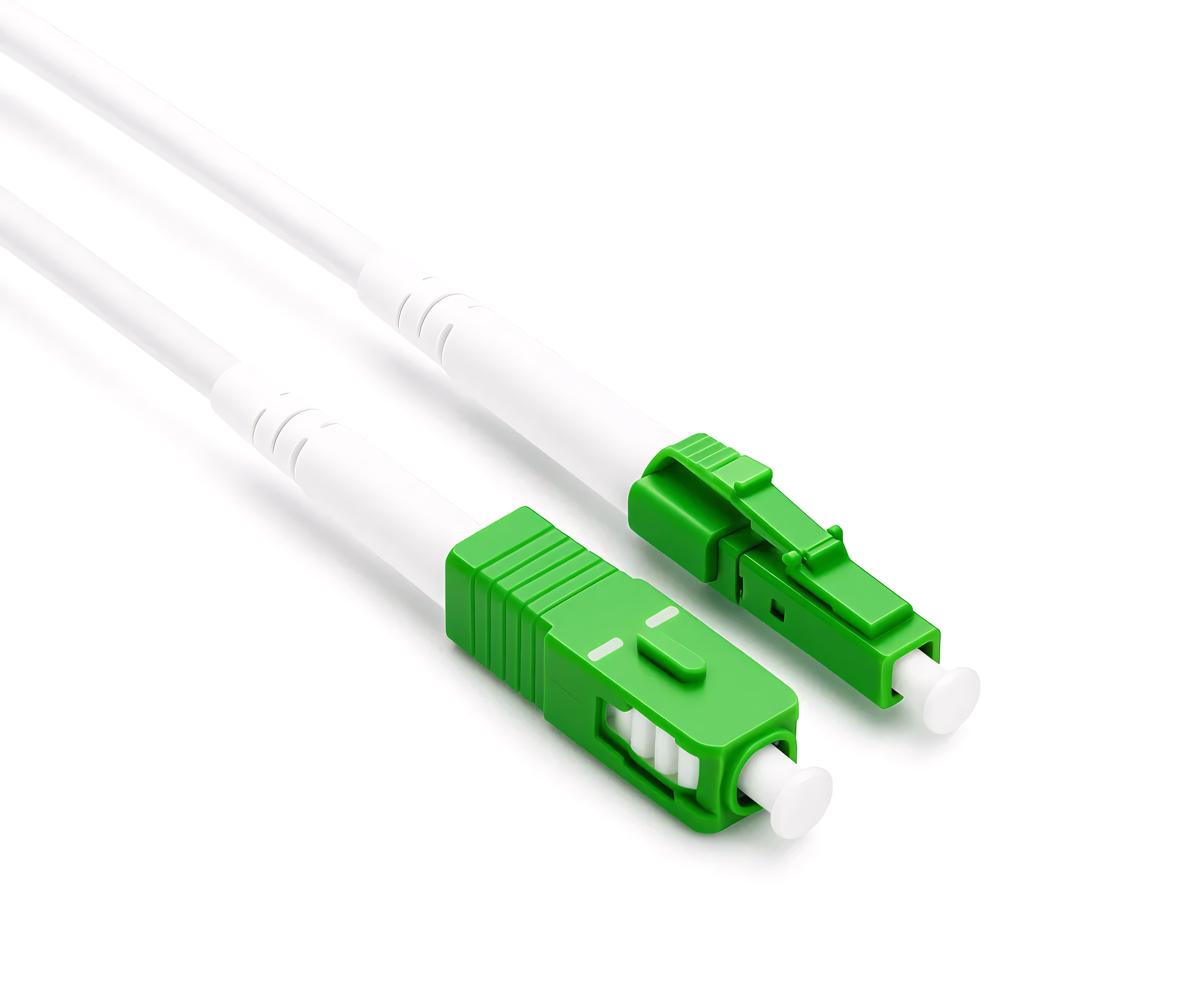

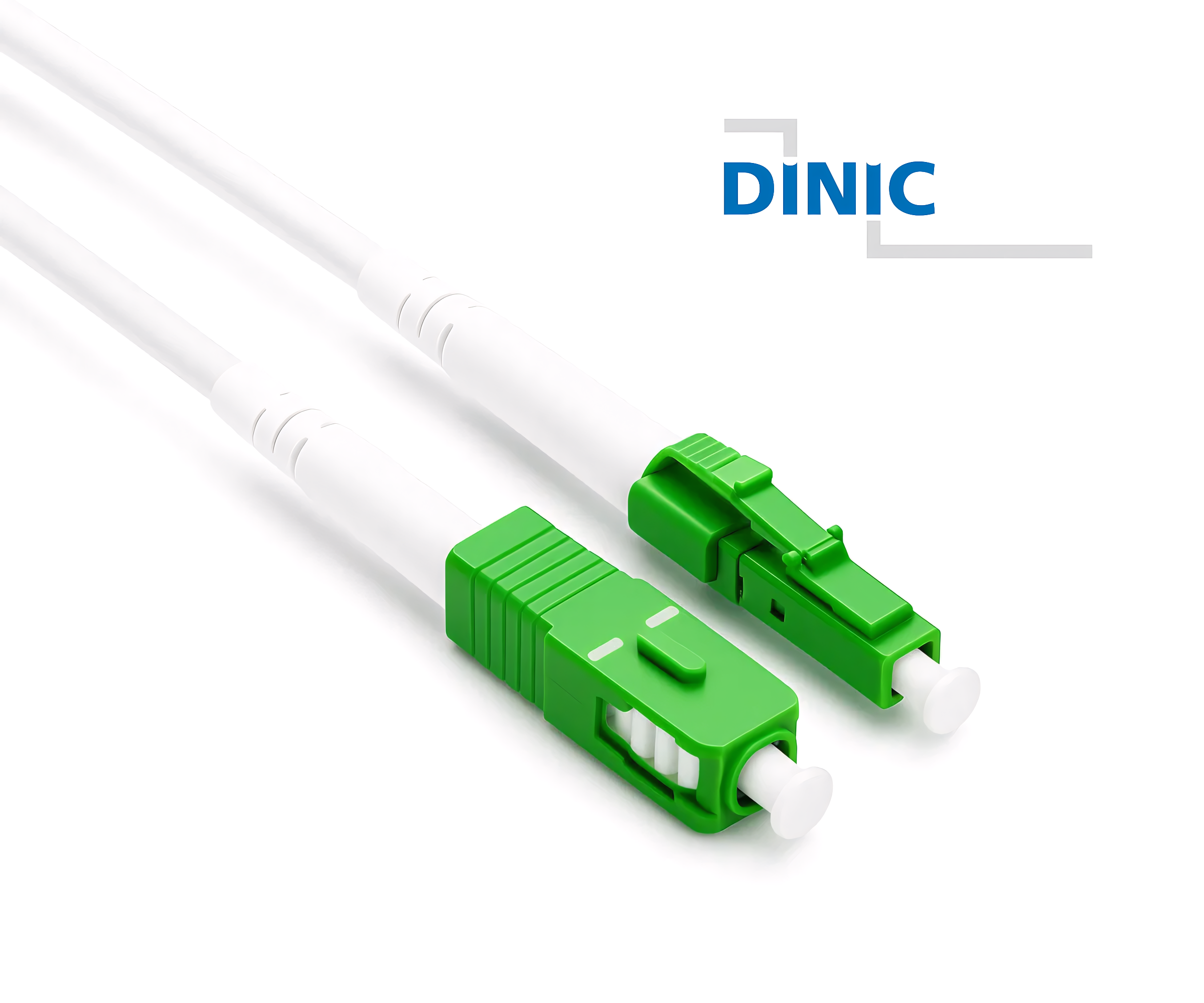

The connection cable connects fibre optic transfer points with router or ONT interfaces in FTTH and WAN installations. It is a pre-assembled simplex OS2 patch cable with LC/APC 8° connector on one end (LCA) and SC/APC 8° connector on the other end (SCA). The APC cut geometry with an 8° angle ensures low return loss and stable data transmission in single-mode networks.

With a length of 50.00 m, the cable is designed for installations with a very large distance between the fibre optic junction box or house transfer point and the router, for example when connecting remote technical rooms, sub-distribution boards or separate IT areas. The length allows the cable to be routed across existing cable trays, riser shafts or several rooms without having to plan for additional couplings or intermediate connections. The outer diameter of approx. 2.0 mm supports space-saving and mechanically flexible installation in cable ducts and racks.

The LSZH sheath (Low Smoke Zero Halogen) is designed for environments with increased safety requirements. In the event of fire, smoke and halogen development is reduced, which supports use in technical rooms, office buildings, data centre environments and publicly accessible areas.

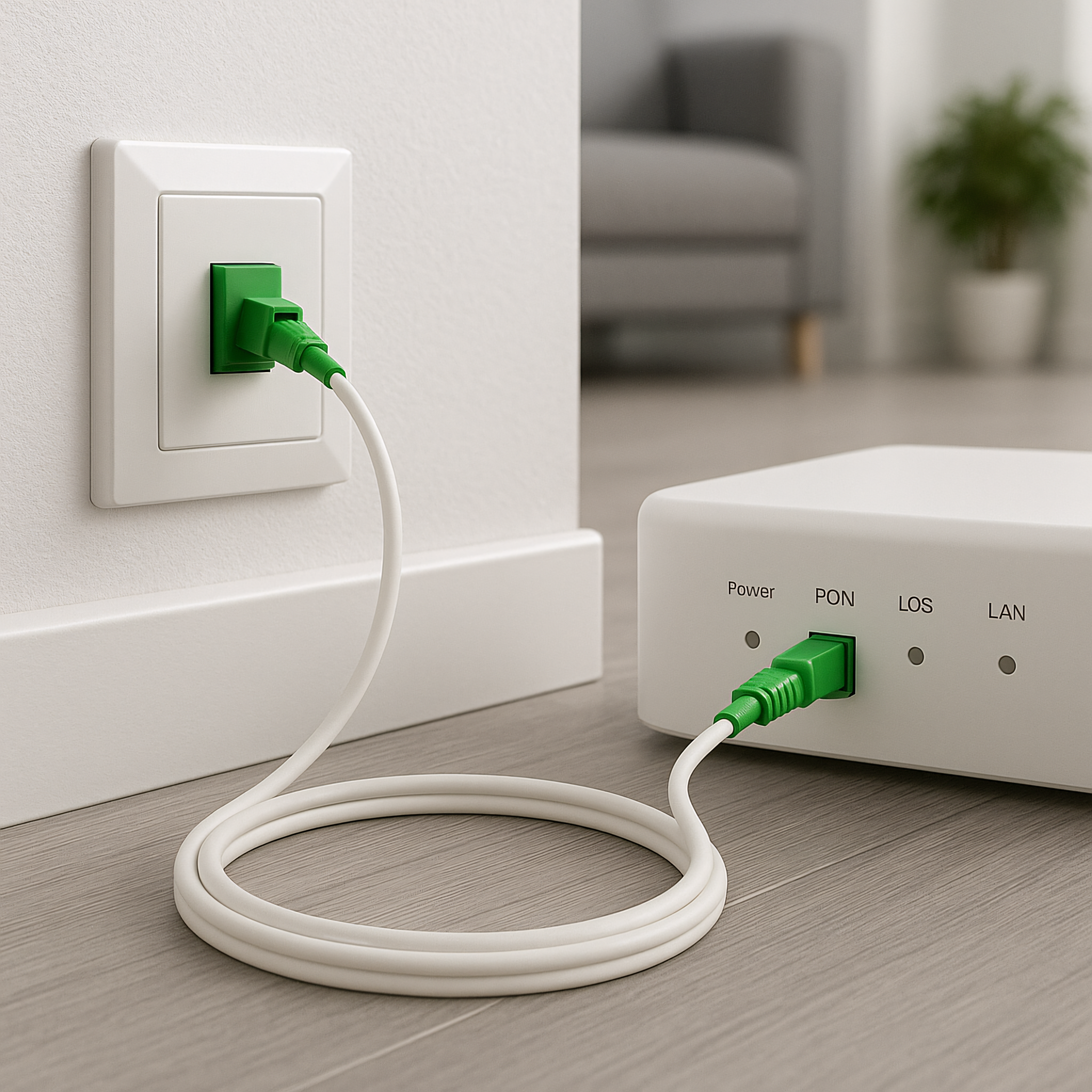

Factory assembly with LC/APC and SC/APC connectors eliminates the need for on-site connector assembly. Fibre optic routers, media converters or ONTs can thus be reproducibly and securely connected to LCA/SCA outlets and fibre optic patch panels.

Areas of application

• FTTH/FTTB connections between fibre optic junction boxes (LCA/SCA) and routers or ONTs over long distances
• Building technology and structured cabling with single-mode fibre optics across several rooms or floors
• Control cabinet and technical room installations with longer OS2 point-to-point connections
• System integration and service deployment for fibre optic router and media converter installations
• Connection of gateways and nodes with LC/APC or SC/APC interface

Technical data

Part number	LWR-LCA-SCA50KB
Product type	Fibre optic connection cable for routers, simplex OS2
Fibre class	Singlemode OS2, 9/125 µm, simplex

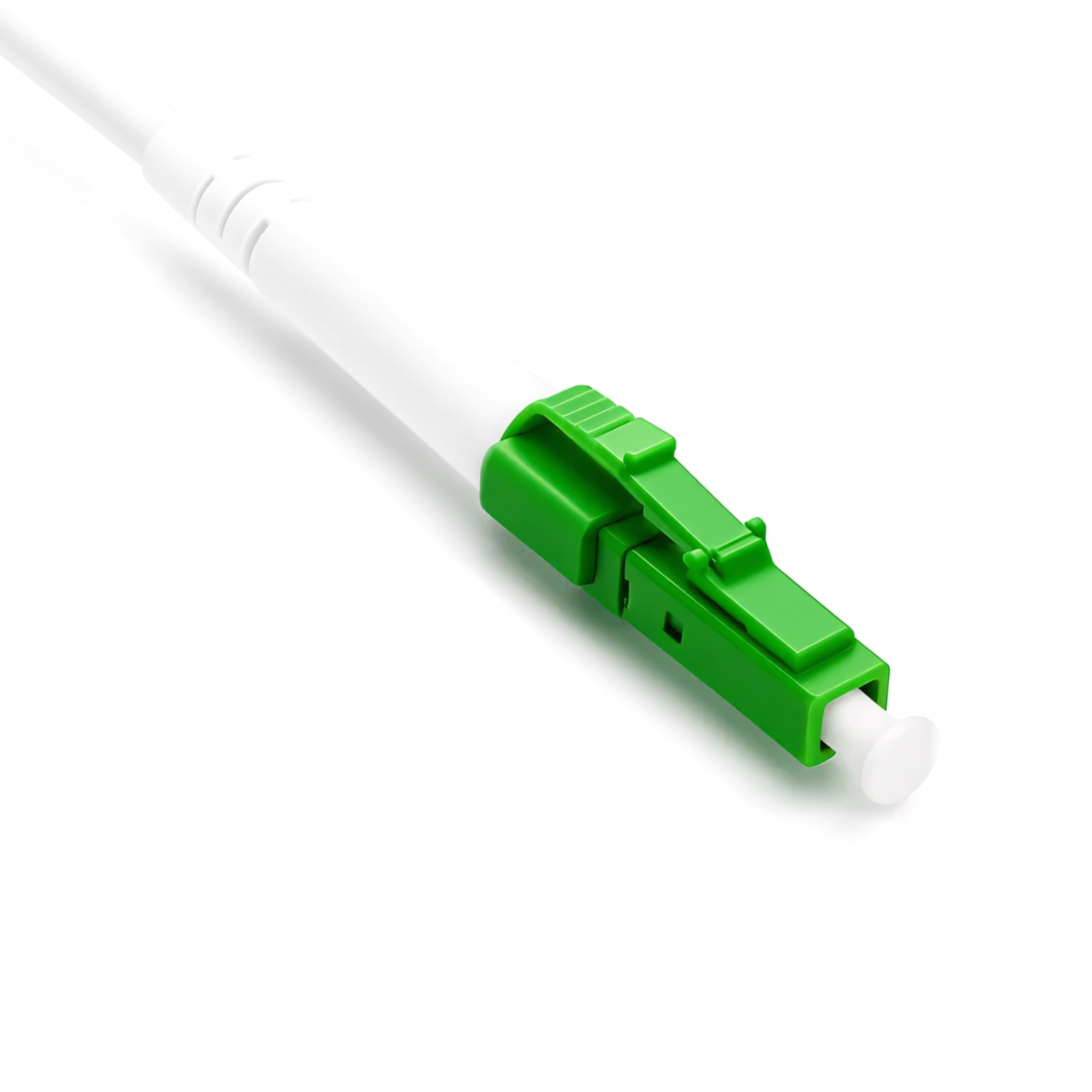

Connector side A	LC/APC 8° connector (LCA)

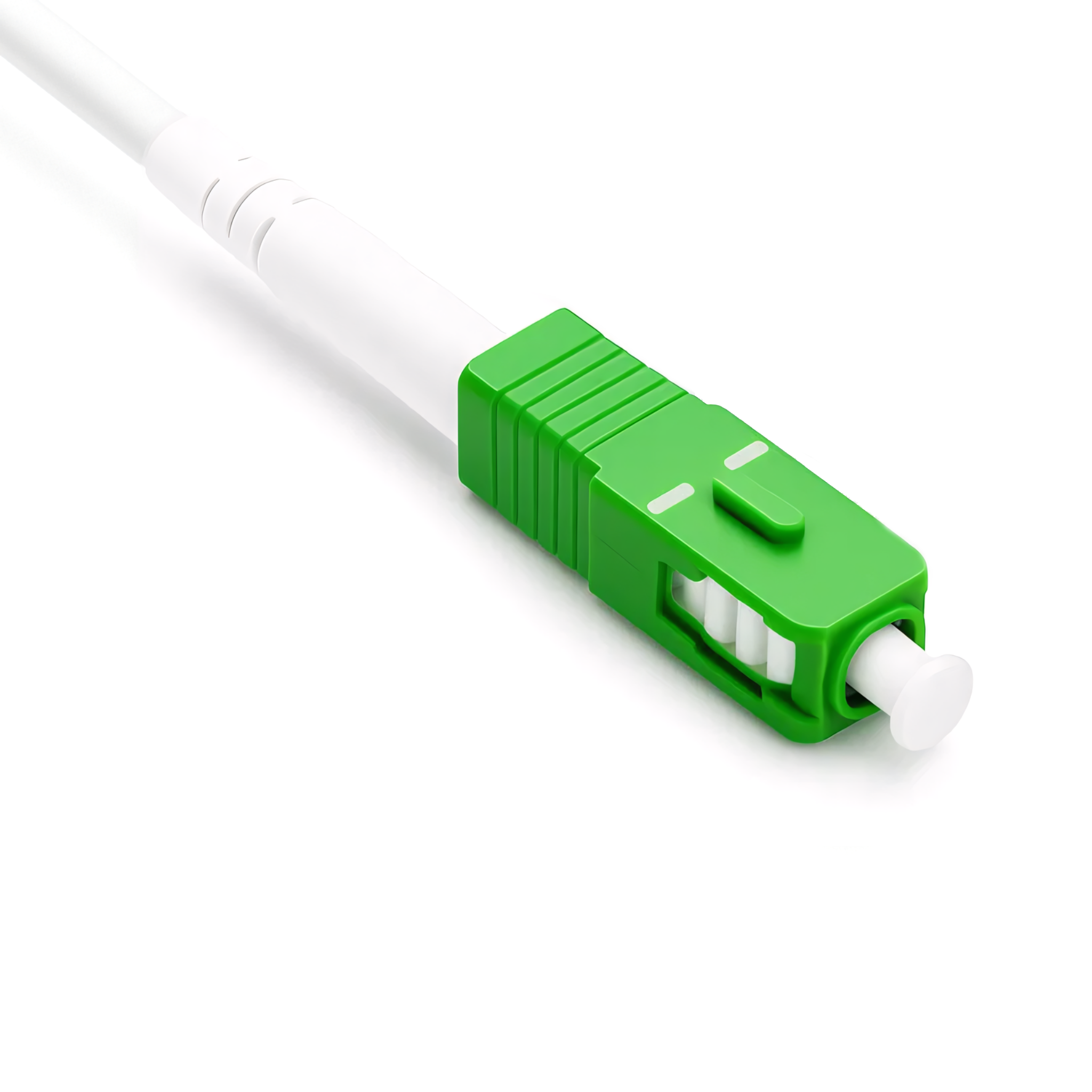

Connector side B	SC/APC 8° connector (SCA)
Cable length	50,00 m
Jacket material	LSZH (Low Smoke Zero Halogen)
Outer diameter	approx. 2.0 mm
colour	white colour
Packaging	DINIC box with Euro hole
Manufacturer: MAG	MAG GmbH

compatibility

• for fibre optic routers, ONT and media converters with LC/APC or SC/APC connection
• for junction boxes and transfer points according to LCA/SCA interface in the FTTH/FTTB area
• Can be used in OS2 single-mode backbones and point-to-point links
• suitable for patch panels and distribution units with LC/SC-APC ports

Notes

Use only under direct adult supervision

Scope of delivery

• 1 x connection cable for fibre optic router, simplex OS2, LC/APC 8° to SC/APC 8°, 50 m, LSZH, in DINIC box with Euro hole

DINIC is a trademark of MAG GmbH.

Keywords: Fibre optic connection cable LC/APC to SC/APC, OS2 simplex 50 m, LCA SCA router cable, LSZH, DINIC

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
