Technical highlights

• Simplex OS2 singlemode connection cable for fibre optic routers and transfer points
• Connector side A: LC/APC 8° - Connector side B: SC/APC 8°
• Length 2 m for flexible installation between router, TA socket and patch panel
• LSZH jacket (Low Smoke Zero Halogen) for increased security in IT and building infrastructure
• Outer diameter approx. 2.0 mm for space-saving installation and clean cable management
• White sheath colour for clear assignment of fibre optic connections
• Typical application in FTTH/CPE installations and fibre optic transfer points

Description

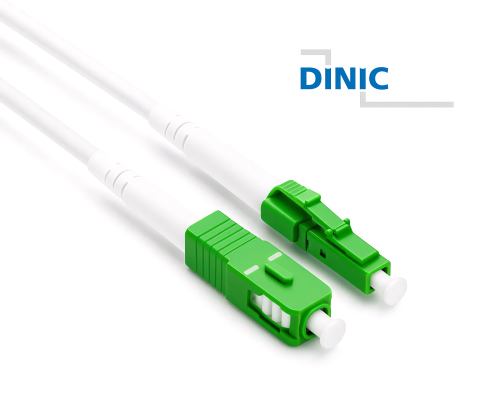

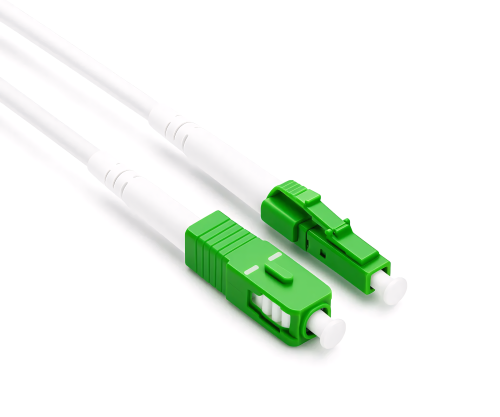

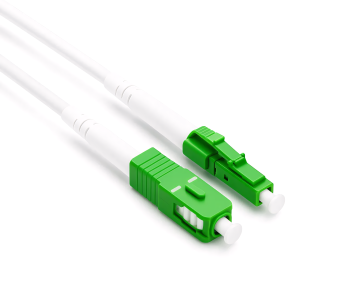

Simplex connection cable OS2 with LC/APC 8° to SC/APC 8° for direct connection of fibre optic routers, ONT devices or CPEs to the fibre optic transfer point. With a length of 2 m, the cable offers sufficient reserve for laying between the subscriber junction box, patch panel or fibre optic modem without impairing the cable management in the rack or technical room.

The double-sided APC connectors with 8° cut reduce back reflections and support stable, low-loss single-mode transmissions in the OS2 range. The combination of LC/APC on the device side and SC/APC on the transfer side corresponds to common FTTH and FTTB scenarios with router or ONT connection.

The LSZH (Low Smoke Zero Halogen) jacket reduces smoke development and the release of corrosive gases in the event of a fire and is therefore suitable for use in technical rooms, office buildings and structured building cabling. The slim outer diameter of approx. 2.0 mm enables space-saving installation in cable ducts, close to walls or directly behind fibre optic routers. The white sheath colour makes it easier to clearly identify fibre optic connections in the distribution panel or rack.

Areas of application

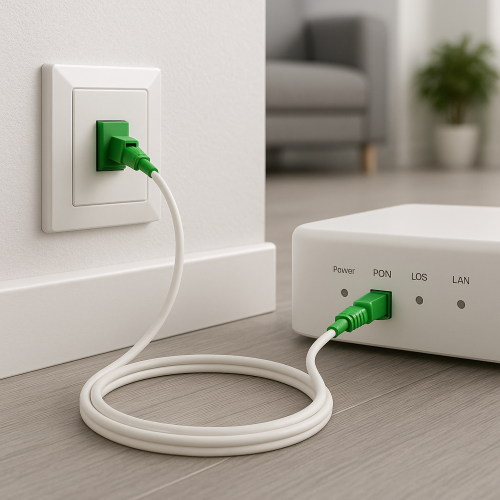

• Connection of fibre optic routers, ONT or CPE devices to SC/APC transfer points
• FTTH and FTTB installations in commercial properties and office buildings
• Connections between fibre optic TA, patch panel and end device in the network cabinet
• Building technology, office IT, system integration and TC distributors

Technical data

Part number	LWR-LCA-SCA-2
EAN CODE	4032528040219
Product type	Simplex fibre optic connection cable / patch cable
Fibre class	Singlemode OS2

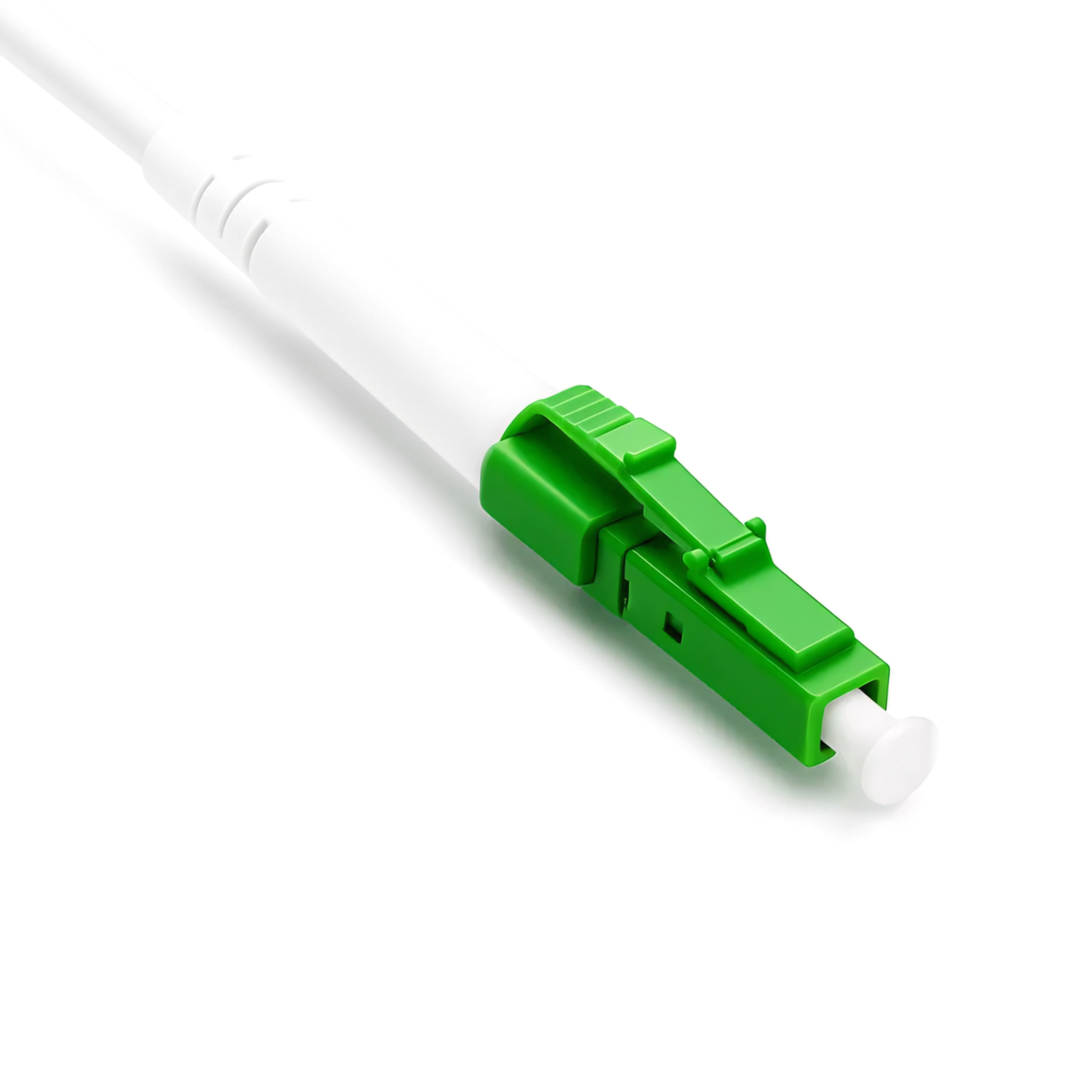

Connector side A	LC/APC 8°

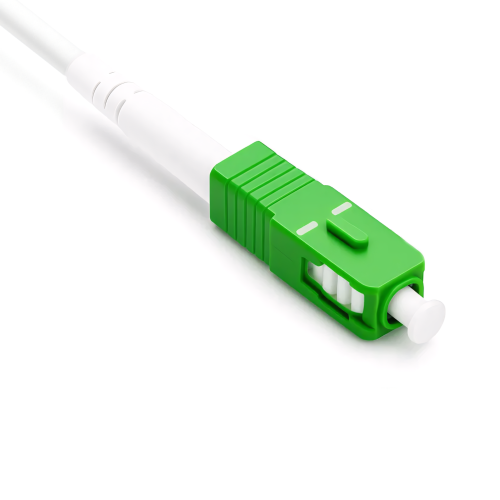

Connector side B	SC/APC 8°
Number of fibres	1 (simplex)
Length	2 m
Cladding material	LSZH (Low Smoke Zero Halogen)
Outer diameter	approx. 2.0 mm
colour	White colour
Weight approx.	approx. 0.016 kg per piece

Compatibility

Suitable for end devices and components with LC/APC socket (e.g. fibre optic router, ONT, CPE) on one side and for fibre optic transfer points, subscriber outlets (TA) or patch panels with SC/APC socket on the other side.

Scope of delivery

1 x Simplex OS2 connection cable, LC/APC 8° to SC/APC 8°, 2 m, LSZH jacket, white.
