Connection cable for fibre optic router, simplex OS2, LC/APC 8° to SC/APC 8°, 1 m, LSZH, white
Simplex fibre optic connection cable OS2 with LC/APC 8° to SC/APC 8°, 2.0 mm LSZH sheath for router and transfer points
Technical highlights
- Simplex OS2 singlemode connection cable for fibre optic routers and transfer points

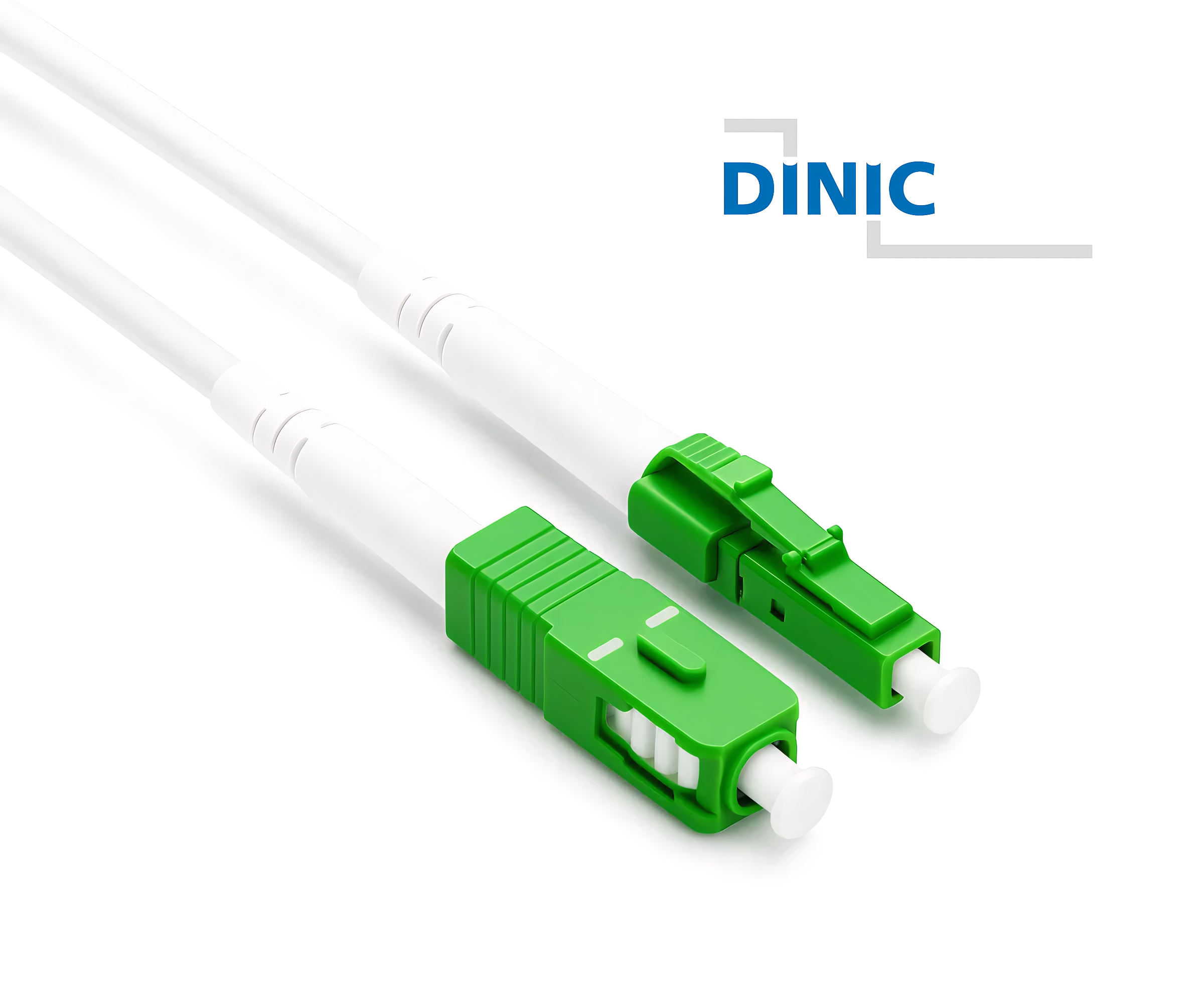

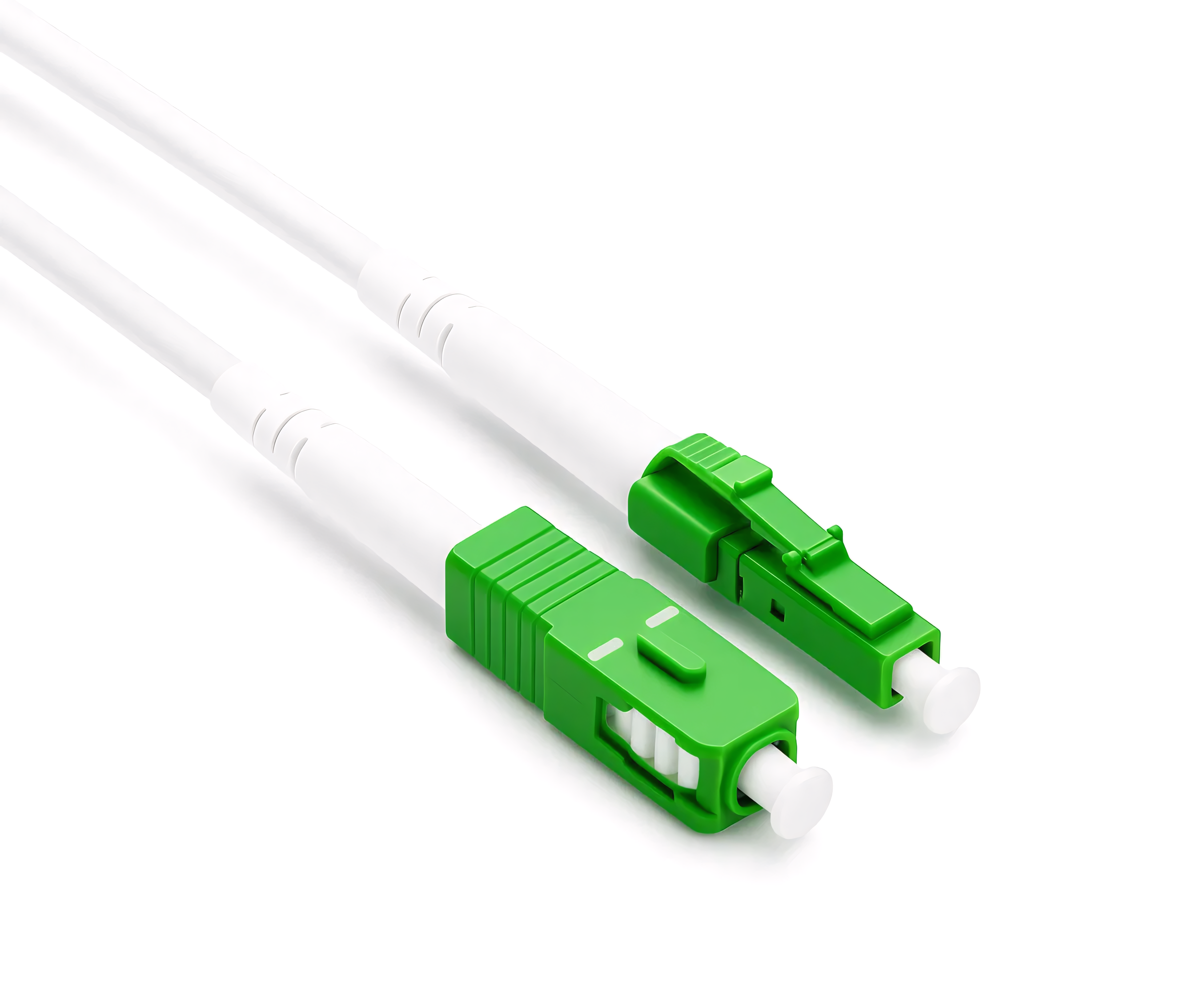

- Connector side A: LC/APC 8° - Connector side B: SC/APC 8°
- Length 1 m for short, clear patch paths
- LSZH jacket (Low Smoke Zero Halogen) for increased security in IT and building infrastructure
- Outer diameter approx. 2.0 mm for space-saving installation
- White jacket colour for clear assignment of fibre optic connections
- Suitable for FTTH/CPE applications and fibre optic transfer points
Description

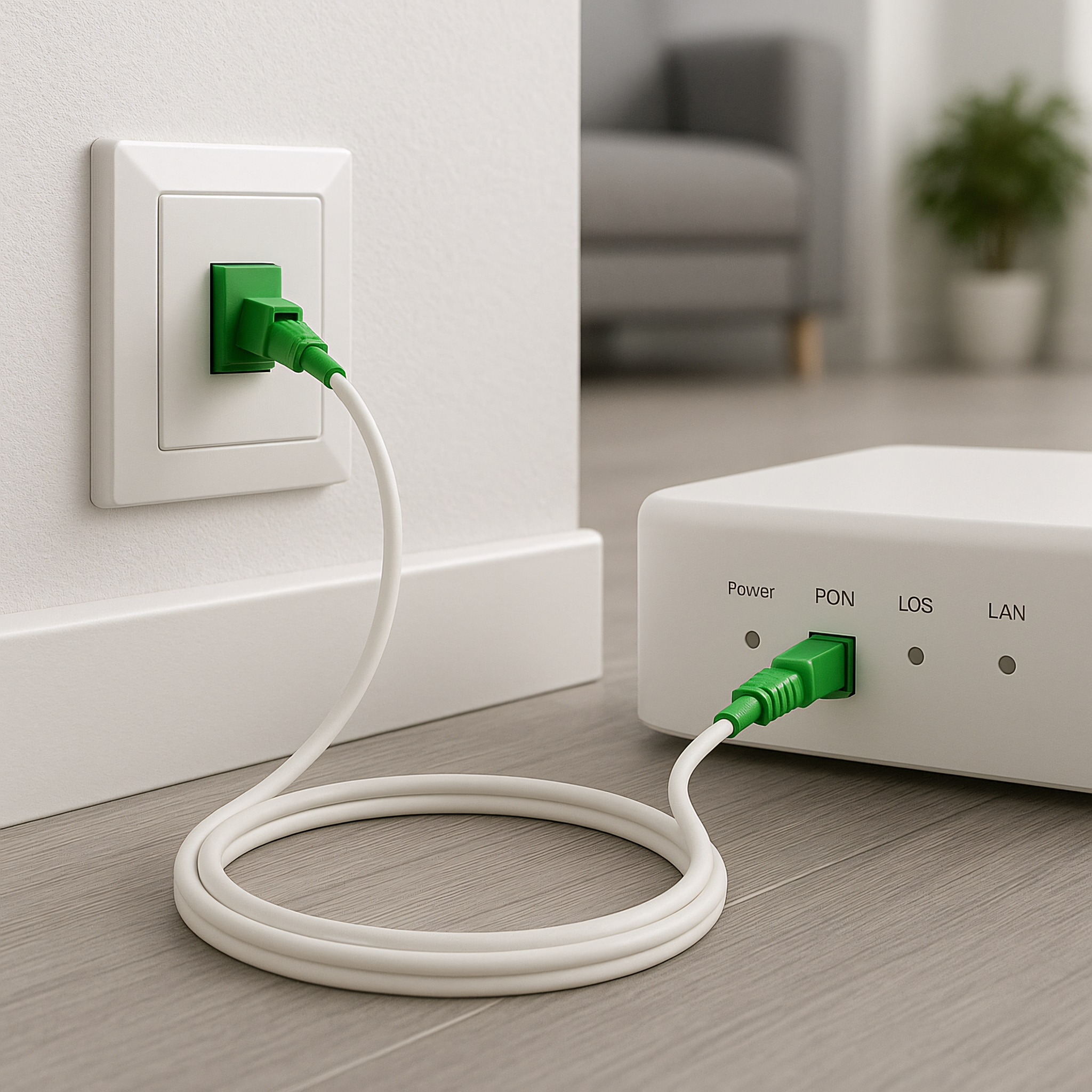

Simplex connection cable OS2 with LC/APC 8° to SC/APC 8° for direct connection of fibre optic routers, ONT devices or CPEs to the fibre optic transfer point. With a length of 1 m, the cable is suitable for short connections between the subscriber junction box, patch panel or fibre optic modem.
The double-sided APC connectors with 8° cut reduce back reflections and support stable, low-loss single-mode transmissions in the OS2 range. The combination of LC/APC on the device side and SC/APC on the transfer side corresponds to typical FTTH installation scenarios.
The LSZH (Low Smoke Zero Halogen) jacket reduces smoke development and the release of corrosive gases in the event of fire and is therefore suitable for use in technical rooms, office buildings and structured building cabling. The slim outer diameter of approx. 2.0 mm facilitates installation in cable ducts, close to walls or in compact router environments. The white jacket colour supports clear identification of fibre optic connections in the distribution panel or rack.
Areas of application
- Connection of fibre optic routers, ONT or CPE devices to SC/APC transfer points
- FTTH and FTTB installations in residential and commercial properties (B2B infrastructure)
- Connections between fibre optic TA and patch panel in the network cabinet
- Building technology, office IT, system integration and TC distributors
Technical data
| Part number |
LWR-LCA-SCA-1 |
| EAN CODE |
4032528040202 |
| Product type |
Simplex fibre optic connection cable / patch cable |
| Fibre class |
Singlemode OS2 |
| Connector side A |

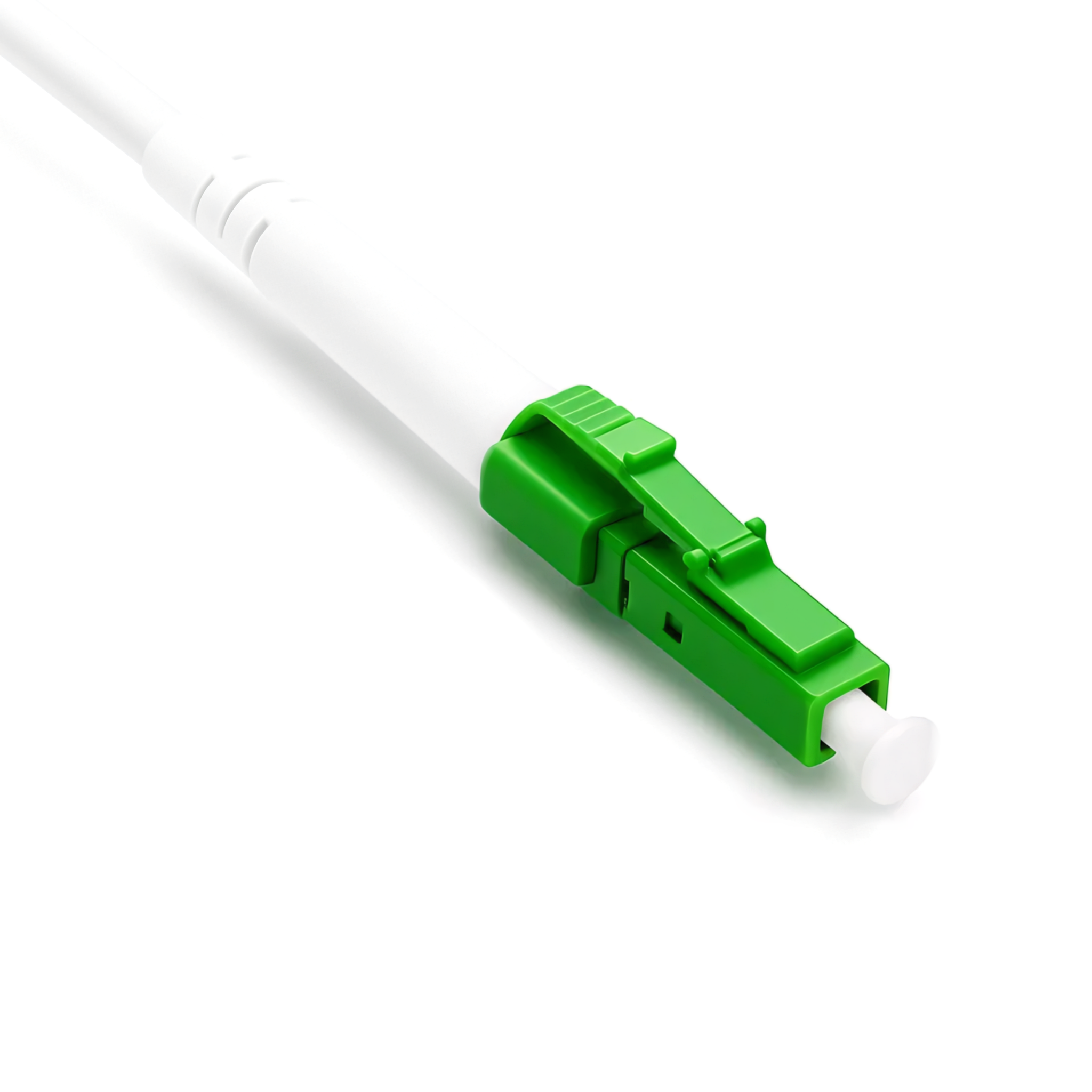

LC/APC 8° |
| Connector side B |

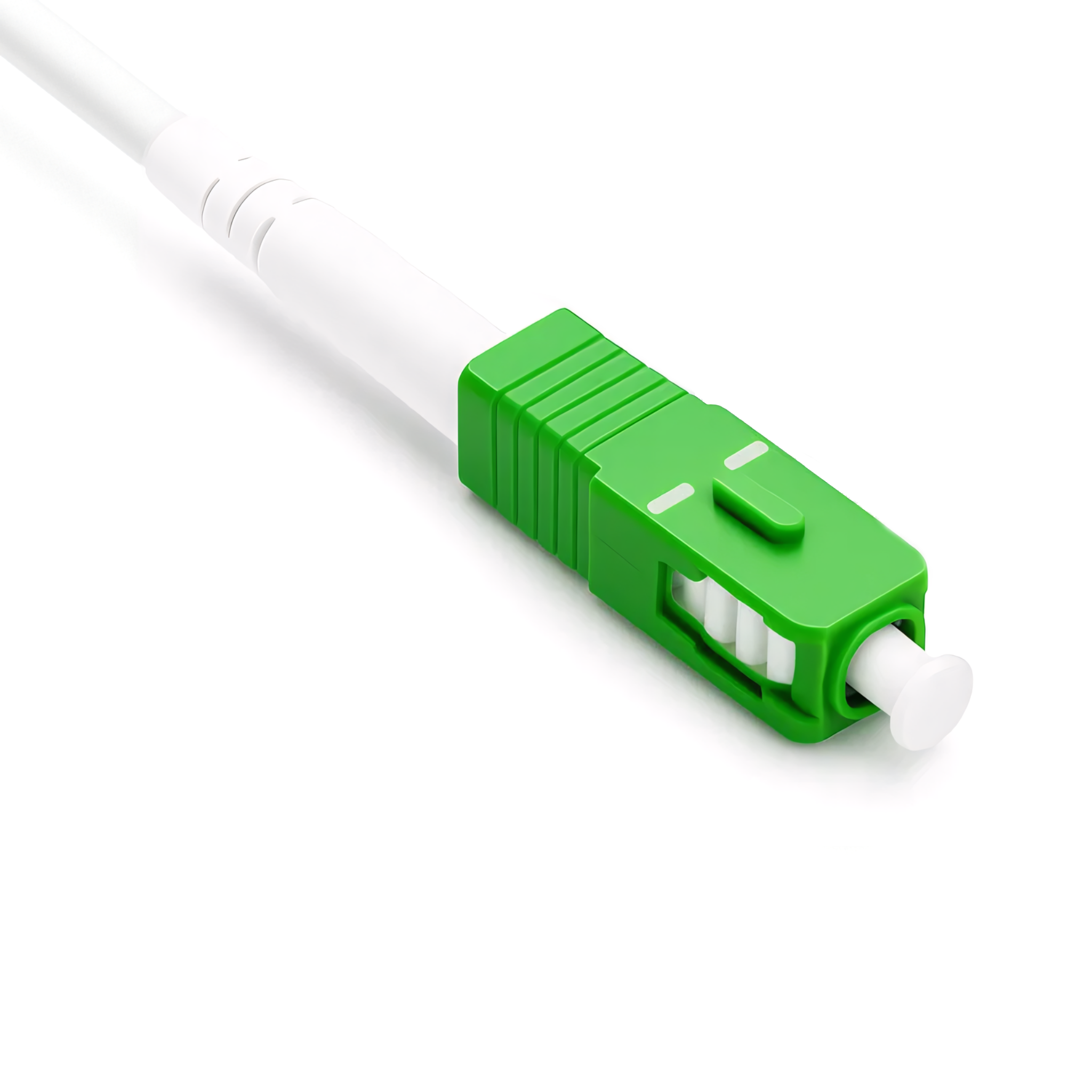

SC/APC 8° |
| Number of fibres |
1 (simplex) |
| Length |
1 m |
| Sheath material |
LSZH (Low Smoke Zero Halogen) |
| Outer diameter |
approx. 2.0 mm |
| colour |
White colour |
Compatibility
Suitable for end devices and components with LC/APC socket (e.g. fibre optic router, ONT, CPE) on one side and for fibre optic transfer points, subscriber outlets (TA) or patch panels with SC/APC socket on the other side.
Scope of delivery
1 x Simplex OS2 connection cable, LC/APC 8° to SC/APC 8°, 1 m, LSZH sheath, white.
