Technical highlights

• 3x TAE socket N/F/F for splitting a TAE line to up to three end devices
• RJ11/RJ14 plug (6P4C) for connection to router, telecommunications system, NTBA or splitter
• Flat cable design, cable length 0.20 m, can be laid to save space
• Black colour for unobtrusive integration into existing installations
• Compact design of the distributor for use in confined spaces
• Packaged in DINIC box with Euro hole

Description of the distributor

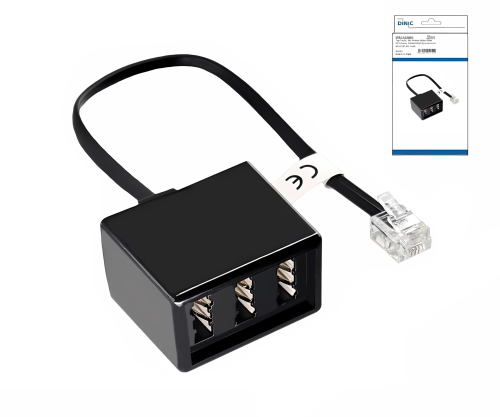

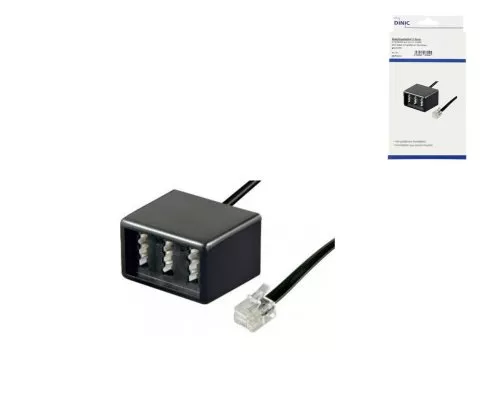

The TAE distributor with 3x TAE N/F/F socket and RJ11/RJ14 plug (6P4C) is used for the clean distribution of a single TAE connection to several analogue terminal devices. Typical applications are the simultaneous connection of telephone, fax or modem to an existing router or TAE connection.

The short 0.20 m flat cable enables flexible yet clear routing from the RJ11/RJ14 port to the distribution block. Thanks to its flat design, the cable can be laid easily in cable ducts or behind furniture without being bulky.

The combination of N- and F-coded TAE sockets allows different terminal device types to be connected in accordance with the standard TAE assignment. The compact design and black colour support a tidy, unobtrusive installation in office and technical environments.

Delivery in the DINIC box with Euro hole simplifies both stock-optimised stocking in specialist shops and presentation in the salesroom or service warehouse.

Areas of application

• Connection of several analogue terminal devices to one TAE or RJ11/RJ14 connection
• Router and modem installations in office and administration buildings
• TC systems and private branch exchanges in commercial environments
• Service and test workstations in the IT and telecommunications sector
• System integration and retrofitting in structured telecommunications installations

Technical data

Part number	T-RJ-NFF-KB
Connection 1	3x TAE N/F/F socket
Connection 2	RJ11/RJ14 plug (6P4C)
Cable type	Flat cable
Cable length	0,20 m
colour	black colour
Version	3-way TAE distributor for analogue applications
Packaging	DINIC box with Euro hole

Compatibility

• For terminal devices with TAE-F plug (e.g. analogue telephone, fax, answering machine)
• For terminal devices with TAE-N plug (e.g. modem, telecoms accessories)
• RJ11/RJ14 telephone port on router, telecommunications system, NTBA or A/DSL splitter
• Mechanically suitable for many RJ45 sockets with central contacts for analogue telephony

Scope of delivery

1x TAE distributor 3x TAE N/F/F socket to RJ11/RJ14 plug (6P4C), 0.20 m, black, packed in DINIC box with Euro hole.
