Technical highlights

• TAE-NFF assignment: 2x F socket for telephone/DSL splitter, 1x N socket for extension unit
• Surface-mounted housing with screw connections for secure wiring
• Housing dimensions approx. 65.0 x 80.0 mm, compact design
• Colour: beige, neutral look for TC installations
• Connection of answering machine, fax, modem or call charge indicator via N connection
• Suitable for analogue exchange lines and classic TAE telephone infrastructure
• Supplied in DINIC box, item-related individual packaging

Product description

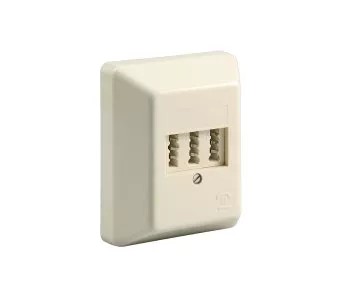

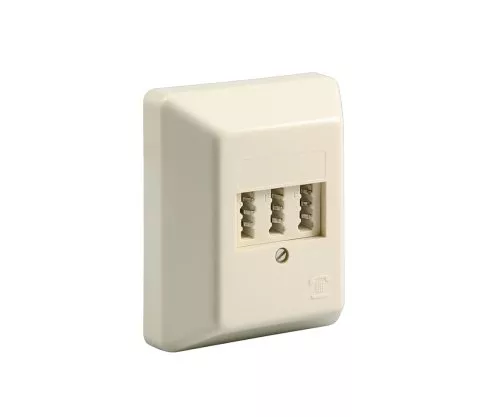

The DINIC surface-mounted telephone socket with TAE-NFF assignment is designed for the connection of two telephones or DSL splitters as well as an extension unit. The exchange lines or terminal devices are connected via two F sockets, while the N socket is intended for classic ancillary devices such as answering machines, fax machines, modems or charge indicators.

The surface-mounted housing enables uncomplicated wall mounting without an inlet box, for example in existing buildings or for subsequent extensions to the telecommunications cabling. The internal wiring is carried out via screw terminals, which ensures permanent and service-friendly contacting of the cables.

The compact design of approx. 65.0 x 80.0 mm and the beige housing ensure unobtrusive integration into typical telecommunications environments such as offices, plant rooms or sub-distribution boards. The clear division into two F connections for terminal devices and one N connection for ancillary devices supports a structured, clearly organised installation.

Areas of application

• Telecommunications connections in office and commercial properties
• Retrofitting or extending analogue TAE connections
• Installation of extensions (answering machine, fax, modem, call charge indicator)
• Surface-mounted installation in technical and service rooms
• Structured TC cabling in small TC distributions and connection boxes

Technical data

Characteristic	Value
Product type	Surface-mounted telephone socket, TAE NFF
Technology / Assignment	TAE NFF (2x F, 1x N)
External connections	2x TAE-F socket, 1x TAE-N socket
Mounting type	Surface mounting
Internal connection type	Screw connection
Housing dimensions	approx. 65.0 x 80.0 mm
Housing colour	Beige colour
Housing material	plastic
Weight approx.	approx. 0.067 kg per piece
Item number	T-DOA-NFF-KB
EAN CODE	4032528040912
Packaging	DINIC box, individual packaging

Compatibility

• For terminal devices with TAE-F plug, e.g. analogue telephones or DSL splitters
• For auxiliary devices with TAE-N plug, e.g. answering machine, fax, modem, call charge indicator
• Can be used in classic TAE telephone installations with analogue exchange line

Notes

Use only under direct adult supervision

Scope of delivery

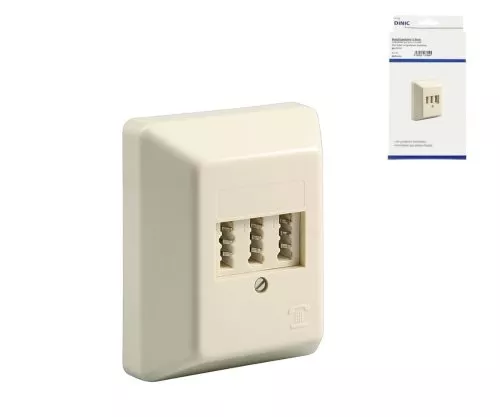

• 1x DINIC surface-mounted telephone box, TAE NFF, beige, in DINIC box

DINIC is a trademark of MAG GmbH.

TAE NFF surface-mounted telephone box for two telephones and one extension, surface-mounted, DINIC, beige.
