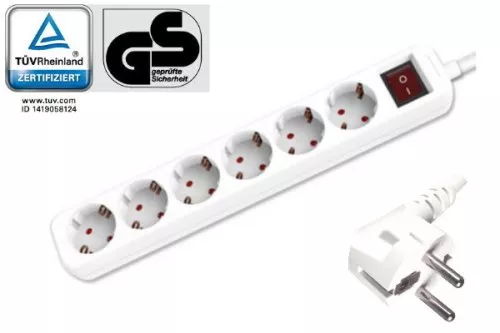

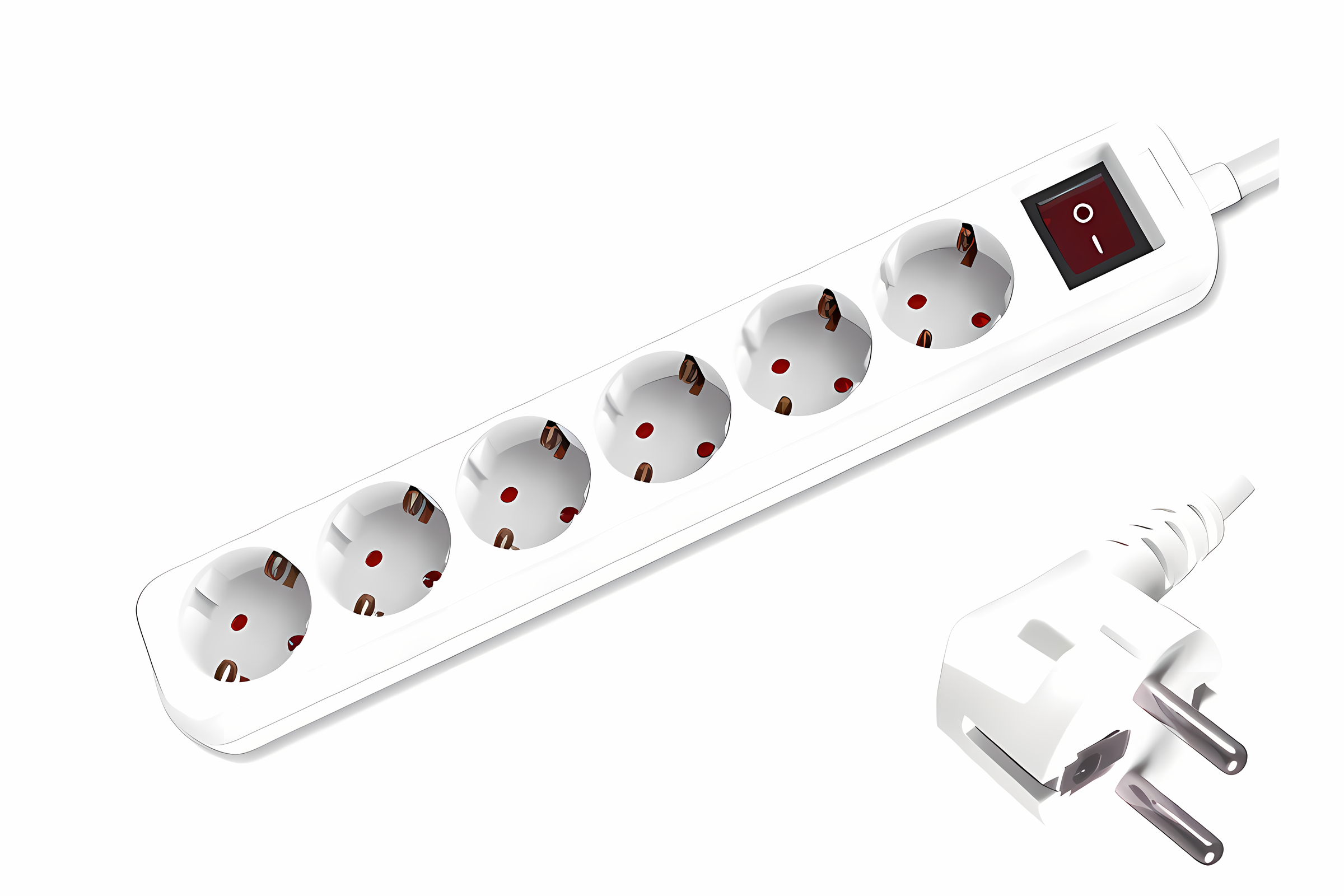

Socket strip, 6-way, with switch, GS, CE, white, cable length 1.30m
.jpg "Socket strip, 6-way, with switch, GS, CE, white, cable length 1.30m")
.jpg "Socket strip, 6-way, with switch, GS, CE, white, cable length 1.30m")
.png "Socket strip, 6-way, with switch, GS, CE, white, cable length 1.30m")
DINIC 6-socket power strip with switch - white, 1.30 m
6× earthing contact socket with touch protection, 45° rotated socket outlets, angled earthing contact plug

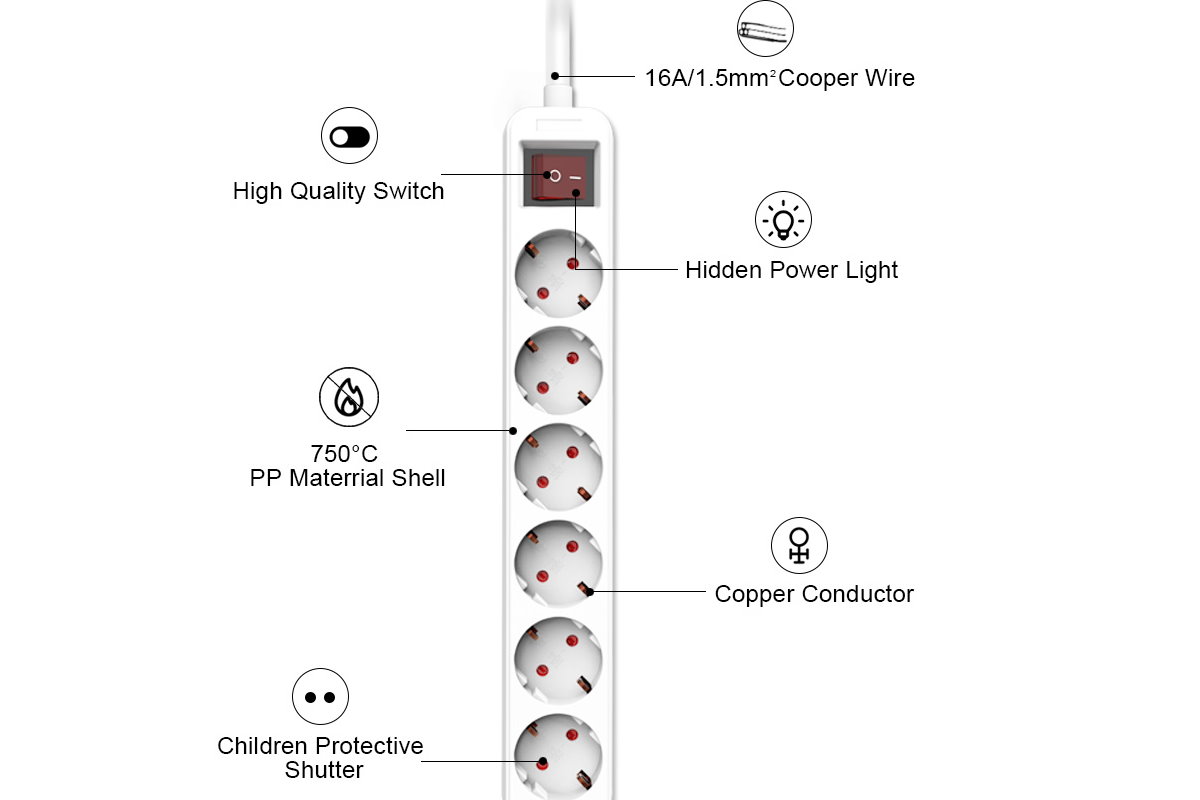

Technical highlights
- 6× socket outlets with earthing contact (type F) with touch protection for professional multi-device operation
- 45° rotated socket outlet positions for better utilisation with wide plug-in power supply units
- Illuminated ON/OFF switch for central load disconnection and clear switching status display
- Angled earthing contact plug: space-saving plug installation in tight installation situations (e.g. behind furniture, trunking)
- Connection cable: 1.30 m, conductor cross-section 3 × 1.5 mm² (3G1.5) for robust supply cable in the installation environment
- Colour: White - neutral integration in office/IT and building technology environments
- Packaging: Shrink-wrap, PU: 48 pieces - suitable for warehouse/project business
Description: white
The DINIC 6-way socket strip is designed for the reliable operation of multiple consumers on one power feed. The illuminated switch enables centralised, fast load disconnection, e.g. for workplace and system installations.
The 45° rotated socket outlets improve the occupancy of bulky power supply units and reduce mutual blockages. The integrated touch protection supports safe use in technical and working environments.
The angled earthing contact plug is optimised for space-critical installation situations and reduces the bending radius directly at the socket outlet. Note on angled plugs: The illustration of the plug is decisive, as the designation left/right/top/bottom angled depends on the respective point of view.
Areas of application
- Office IT, system integration, workplace cabling
- Specialist retail/project business (multiple delivery, VPE handling)
- Building technology, trunking and installation environment
- Workshop/service centres, test and test set-ups
Technical data
| The product | 6-socket power strip with switch |
| Sockets | 6× earthing contact (type F), touch protection, rotated 45° |
| Feed plug | Earthing contact plug, angled |
| Switch | ON/OFF, illuminated |
| Connection cable | 1,30 m |
| Conductor cross-section | 3 × 1.5 mm² |
| colour | White colour |
| Article number | SST-6W-MS |
| EAN CODE | 4032528030166 |
| weight | approx. 0.42 kg / piece |
| Packaging | Shrink film |
| PU | 48 pieces |
Compatibility
Suitable for electrical loads with earthing contact plug (type F) - e.g. IT peripherals, power supply units, measuring/testing technology, office and system components. Feed via earthing contact socket (type F).
Scope of delivery
1× DINIC 6-socket power strip, white, with illuminated switch, connecting cable 1.30 m (shrink-wrap).
DINIC is a brand of MAG GmbH (Lengede) - product range solutions for power and connection technology for professional use.
SEO: DINIC socket strip 6-way, earthing contact type F, illuminated switch, angled plug, 45° rotated sockets, 1.30m, 3x1.5mm², white
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
