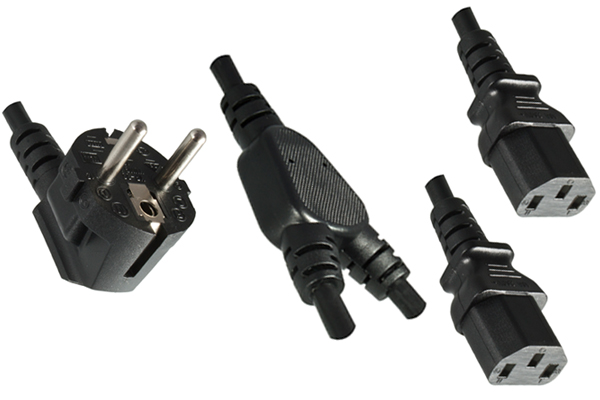

Y power cable Europe CEE 7/7 to 2x C13, black, 2.00m
MAG item no.: CB-N-Y-2M (YP-22/2xYC-12)
- Plug: CEE 7/7 safety plug E+F 90° angled to 2 x C13
- Color: black
- Length: 2m (1,20m + 2 x 0,80m)
- Cross section: 3 x 1mm²
- Material: H05VV-F
- Approval: VDE, NF, DEMKO, FINKO, KEMA, CEBEC, OVE, IMQ, SEV, SAA
- RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia Ukraine.
In Syria and Turkey there is no official standard, but the CEE 7/7 grounding plug is commonly used.
Plug type E+F 90° angled CEE-7/7 system - YP-22
In the grounding type plug, two protection systems were combined in one plug, so that the grounding is done through the contact surfaces or the grounding prong (French system).
Plug C13 - YC-12
IEC 60320-C13 plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
