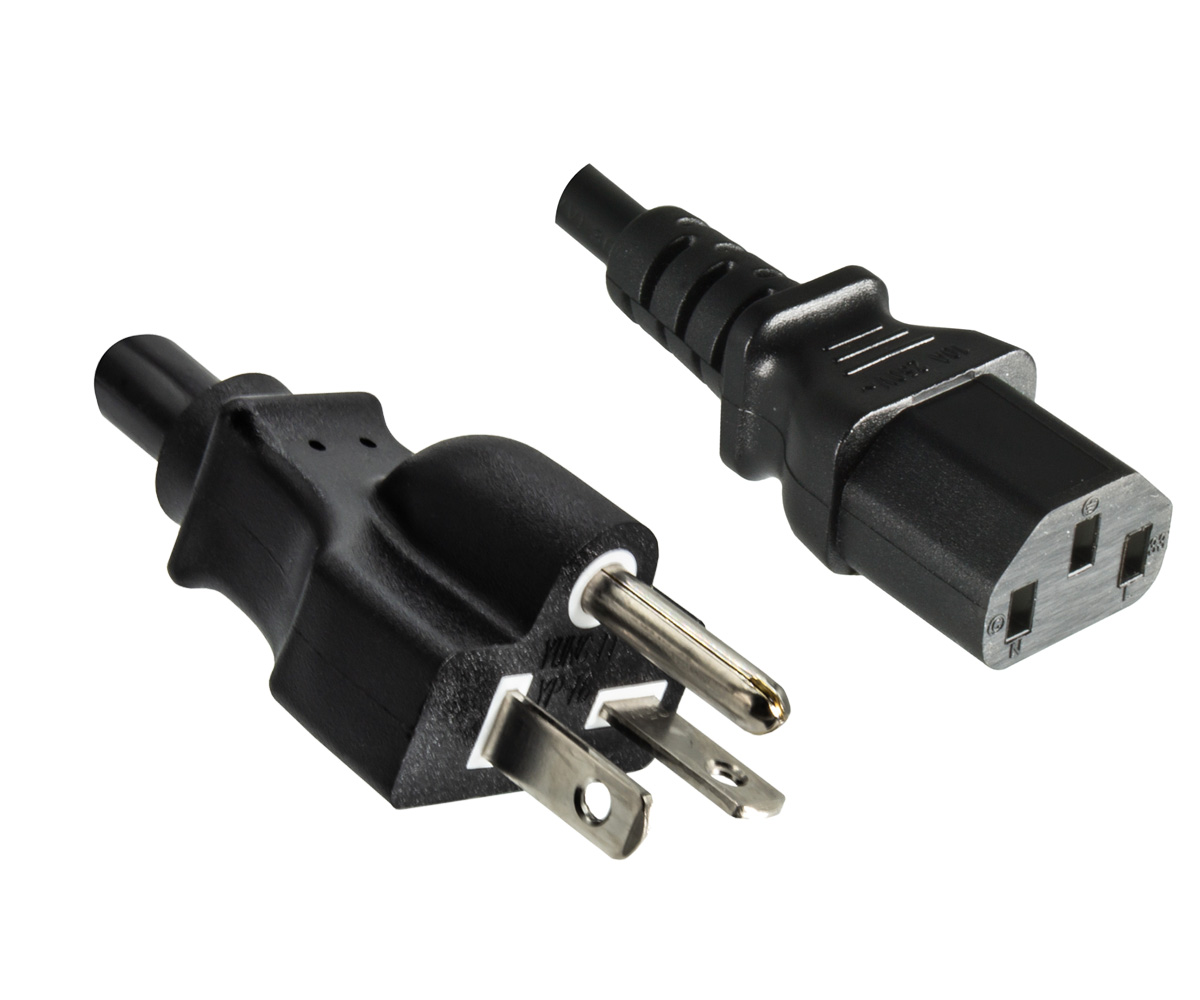

Power cable America (USA) - type NEMA 6-20P to C13, black, 2.00m
MAG part no.: CB-N-US-620-2M (YP-16/YC-12)
- Connector: Type NEMA 6-20P to C13 / 3-pin
- Color: black
- Length: 2m
- Cross section: AWG 14 x 3
- Maximum 15A
- Approval: UL/CSA
- RoHs compliant
- Packaging: Bulk
- Material: SJT
S = Service Grade (also means extra hard service when not followed by J, V or P)
J = Junior Severe Service
T = Thermoplastic
Countries:
Canada, Mexico, Taiwan, USA

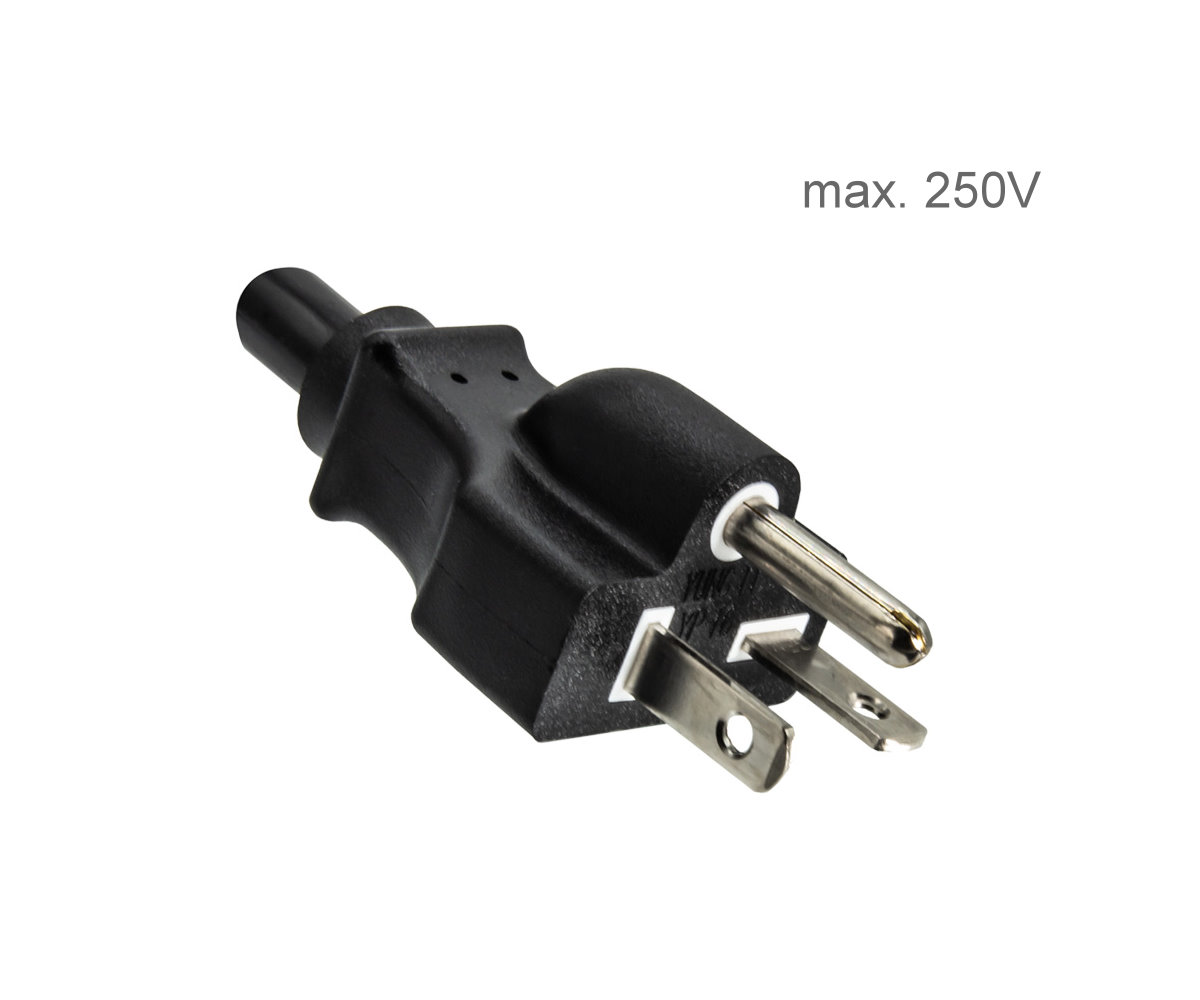

Plug Type NEMA 6-20 (YP-16)
All NEMA 6 devices are three-wire grounding (current-current-ground) devices used for 208 and 240 V circuits and rated for 250 V maximum. The NEMA-6-20P plug has a blade (flat pin) rotated 90° to prevent accidental insertion into an outlet with incorrect voltage.

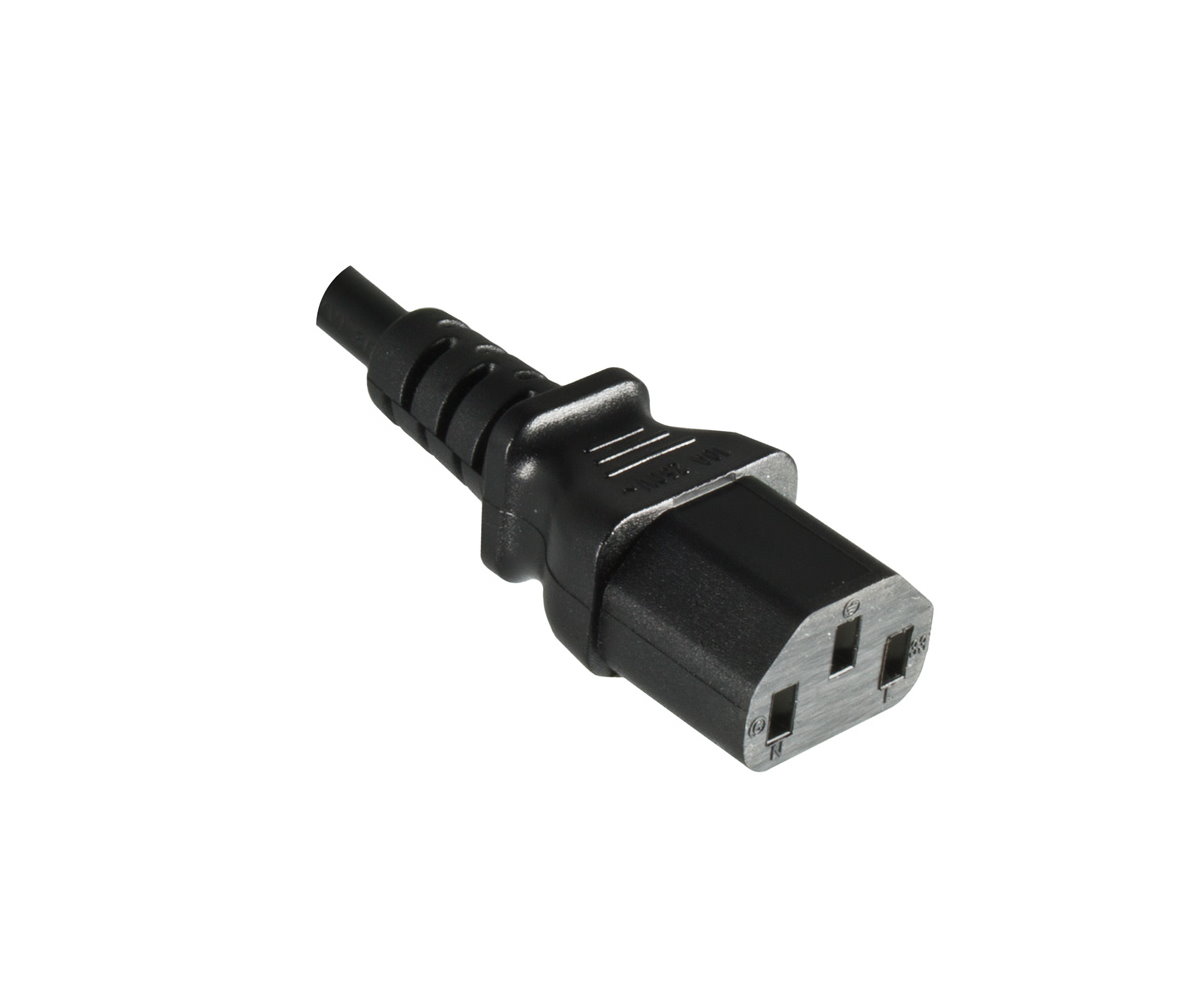

Plug C13 (YC-12)
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow in this case is set to 15A. Cold appliance plugs do not fit into warm or hot appliance sockets.
