.webp "Power adapter America NEMA 1-15P plug to Europlug EN50075 socket, YL-1122")
.webp "Preview: Power adapter America NEMA 1-15P plug to Europlug EN50075 socket, YL-1122")

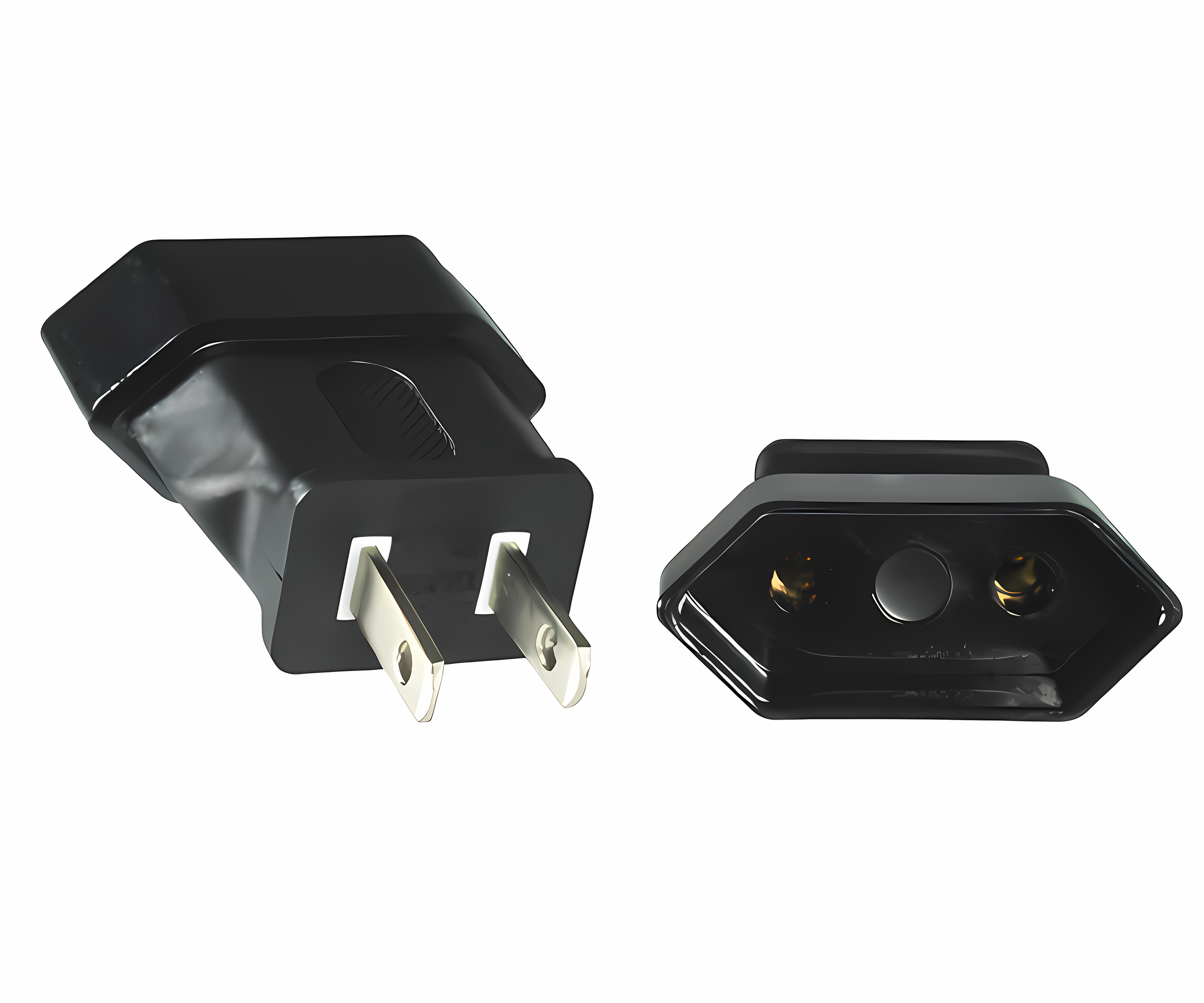

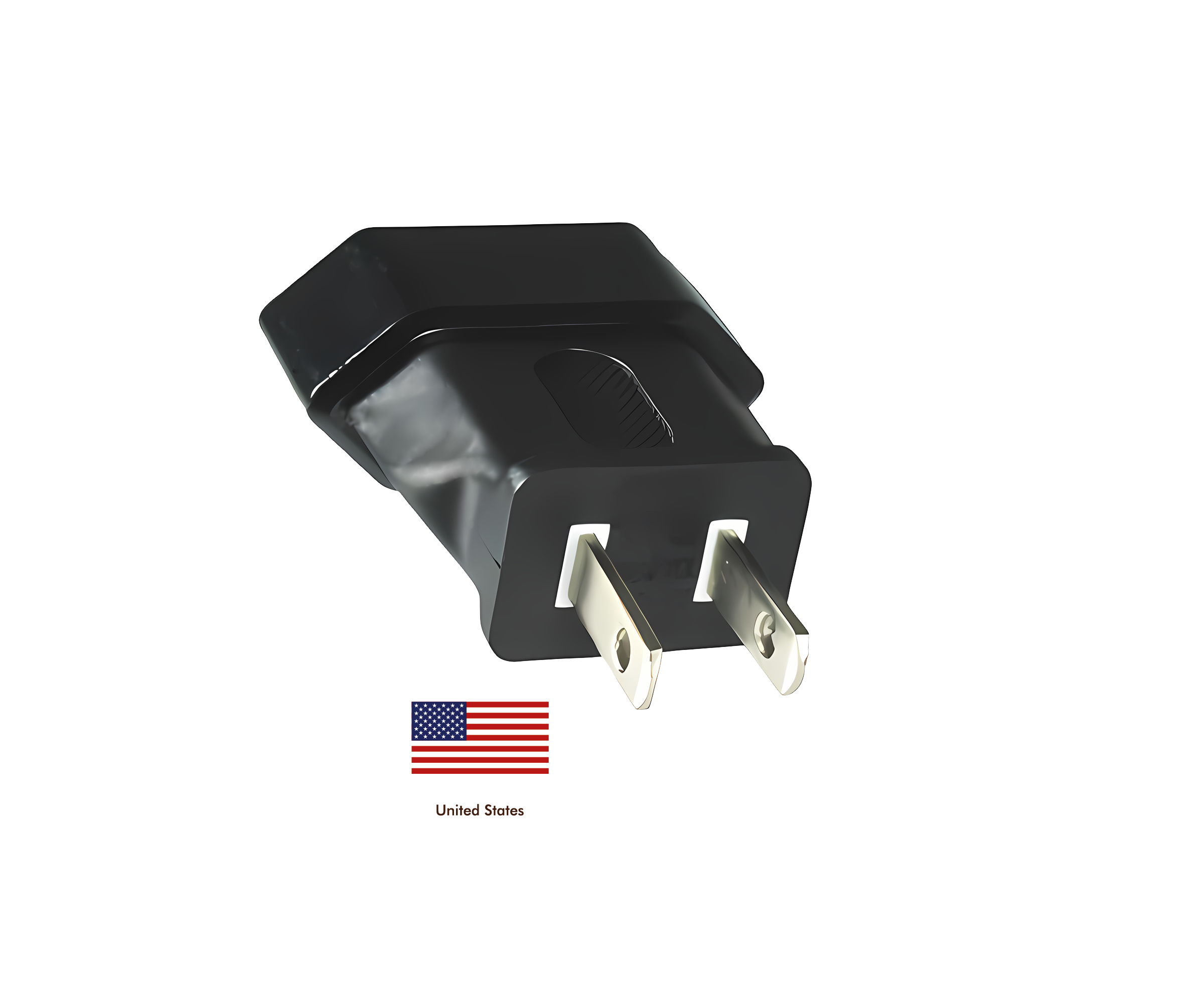

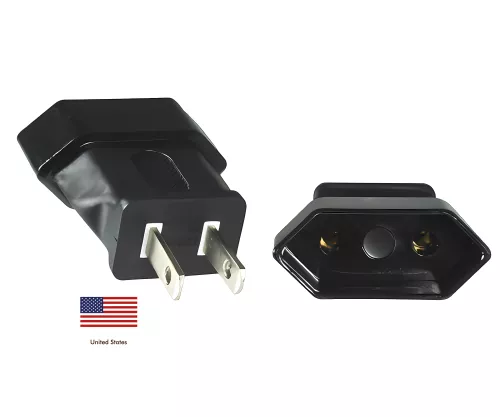

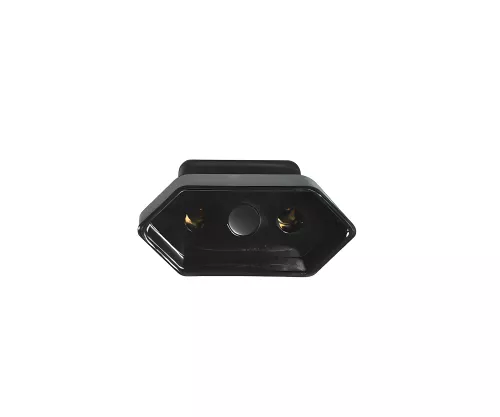

Power adapter America NEMA 1-15P plug to Europlug EN50075 socket, YL-1122
.png "Power adapter America NEMA 1-15P plug to Europlug EN50075 socket, YL-1122")
Power adapter America/USA/Japan - NEMA 1-15P plug to Europlug EN 50075 socket (YL-1122)
2-pole mains adapter for mechanical plug-in system adaptation (without protective earth conductor).
Technical highlights
- Adapter type: US/Japan NEMA 1-15P (plug) to Europlug EN 50075 (socket)
- 2-pole version (without earthing contact) - suitable for devices with Europlug (CEE 7/16)
- Compact design for tight installation situations (e.g. power strips, service cases, IT racks)
- Robust plastic housing for daily use in installation, service and system integration
- Typical target countries/regions: USA, Japan and other countries with NEMA 1-15 connector system (e.g. Canada, Mexico, Taiwan, parts of South America)
- Design/colour: Black
- Item/identity data: Item no. CB-A-8US-FM, EAN 4032528013374
Product description
The DINIC mains adapter YL-1122 enables the connection of end devices with Europlug plugs (EN 50075 / CEE 7/16) to sockets in the US/Japanese plug system (NEMA 1-15). The adapter is used to mechanically adapt the plug connection and is designed for 2-pole applications without a protective earth conductor.
Thanks to its compact design, the adapter is particularly suitable for service and rollout scenarios, temporary installations and equipping technician and system cases in which different plug systems need to be bridged safely and in a space-saving manner.
Areas of application
- System integration & IT rollouts (e.g. notebook/peripheral connection in international environments)
- Service, maintenance, commissioning of devices/tools with Europlug power supply unit
- Technical and trade fair construction, temporary installations
- Specialist trade/distribution: supplementary items for international power adapter ranges
Technical data
| Product type | Power adapter / mains adapter (mechanical plug-in system adapter) |
| Input (plug side) | NEMA 1-15P, 2-pin (plug) |
| Output (device side) | Europlug EN 50075, 2-pin (socket) |
| Number of poles | 2 (without protective conductor/earthing contact) |
| Housing material | Plastic, robust |
| Colour: Black | Black colour |
| Article number | CB-A-8US-FM |
| EAN CODE | 4032528013374 |
| weight | approx. 0.03 kg / piece |
| packaging | Bulk (without) |
Compatibility
- On the device side for power supply units/end devices with Europlug plug to EN 50075 (CEE 7/16)
- On the mains side for sockets to NEMA 1-15 (typically USA/Japan etc.)
- Note on design: 2-pole without earthing contact - not designed for protective conductor applications
Scope of delivery
1× NEMA 1-15P power adapter (plug) to Europlug EN 50075 (socket), black
DINIC is a brand of MAG GmbH - product line for professional cable and adapter solutions in the B2B environment.
