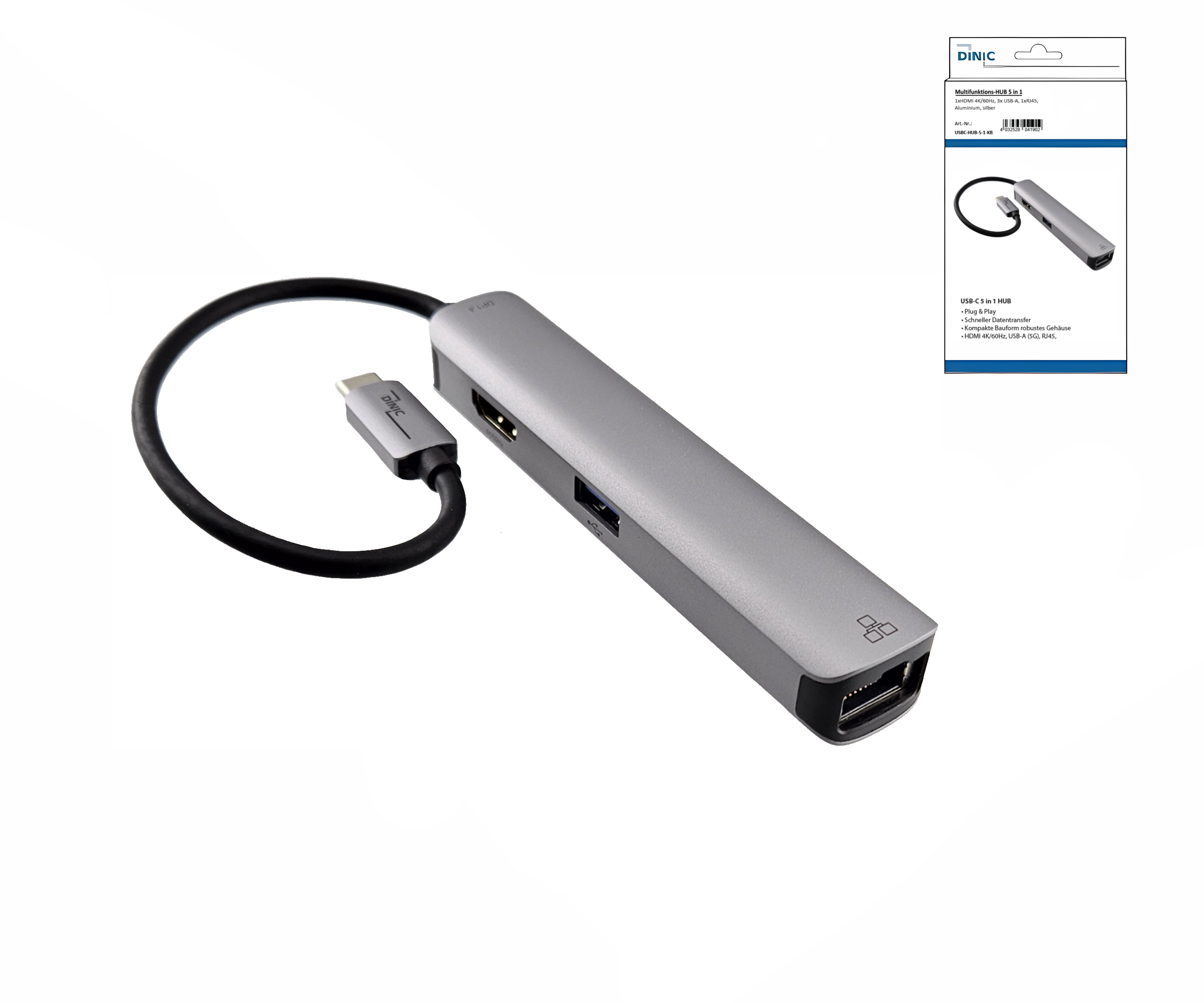

USB-C 5-in-1 adapter, HDMI 4K/60Hz, RJ45 3x USB-A (5G), aluminium, silver, DINIC box with Euro hole

• Connection on the host side: USB-C (Type-C) - suitable for DP Alt Mode supported USB-C and Thunderbolt interfaces
• Video: HDMI output up to 4K (3840×2160) at 60 Hz, supports HDR10
• DP Alt Mode: supports DP 1.4 Alt Mode and HBR3 for high bandwidth
• USB data: 3× USB-A (USB 3.2 Gen1) with up to 5 Gbps data transfer
• Network: RJ45 Gigabit Ethernet for stable wired connection
• HDCP support: HDCP 2.2 & 1.4 (depending on source/display)
• Robust aluminium housing in silver - good heat dissipation and mechanical stability
• Compact design for mobile workstations and tight installation environments

The DINIC USB-C 5-in-1 adapter bundles central interfaces for professional IT and AV environments. HDMI video output, Gigabit Ethernet and three USB-A ports for peripherals and data transfer are available via the USB-C/Thunderbolt host connection (DP Alt Mode required).

The aluminium housing increases the mechanical robustness and supports heat dissipation during continuous operation. The compact housing length facilitates use at docking workstations, in service cases or for system integration when adapters are to remain permanently on the end device.

Support for DisplayPort Alt Mode (DP 1.4/HBR3) on the host and the corresponding display/cable infrastructure is required for 4K/60Hz output.

• System integration: Expansion of modern USB-C notebooks with HDMI, LAN and USB-A
• Conference and presentation technology: 4K/60Hz HDMI output to displays/projectors
• Office IT & helpdesk: fast connection of keyboard, mouse, data storage devices and LAN
• Data centre/service technology: mobile peripheral and network connection at the rack/client
• Building technology & industrial environment: stable Ethernet connection for changing workstations

• For devices with USB-C/Thunderbolt connection that support DisplayPort Alt Mode (e.g. notebooks, mini PCs, tablets, selected smartphones)
• HDMI displays/projectors up to 4K/60Hz (range of functions depends on host and display)
• USB-A peripherals: mass storage devices, input devices, adapters, interface converters
• Network components with RJ45 (10/100/1000Base-T, depending on infrastructure)

• USB-C 5-in-1 adapter (main device) × 1
• User manual × 1
