DINIC USB4 Type-C cable – 90° angled plug, 40 Gbit/s, PD 240W, 8K/60 Hz, box with Euro hole, 0.50 m

• USB4 / USB-C 4.0: Data rates up to 40 Gbps (device dependent)
• Power Delivery 3.0 up to 240 W (48 V / 5 A) for powerful charging profiles (EPR-enabled components required)
• Video transmission up to 8K / 60 Hz (alt mode/support on end device required)

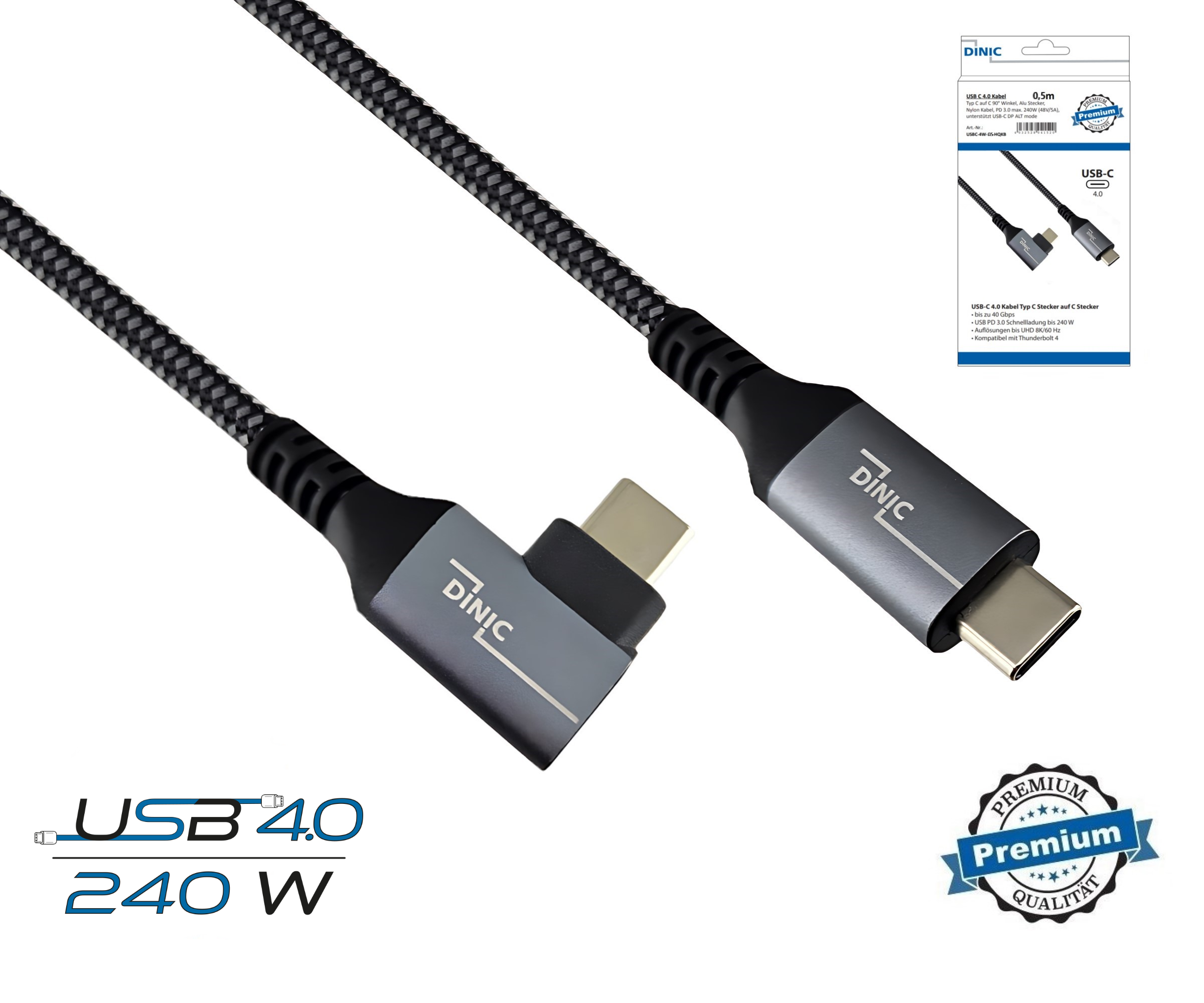

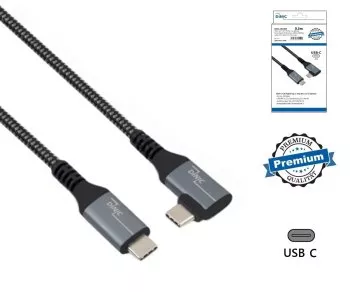

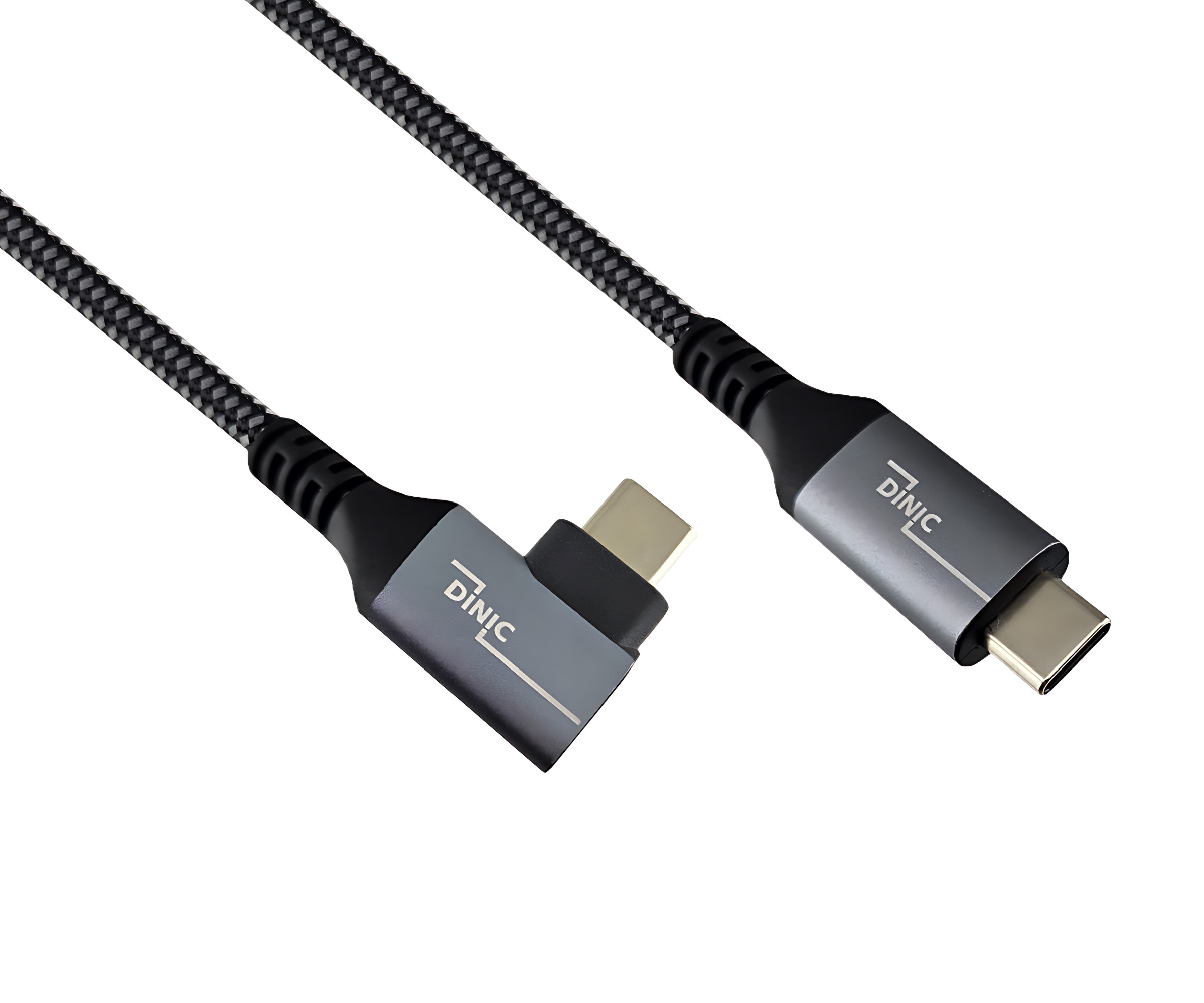

• Connector side 1: straight USB-C connector; connector side 2: 90° angled USB-C connector – space-saving cable routing

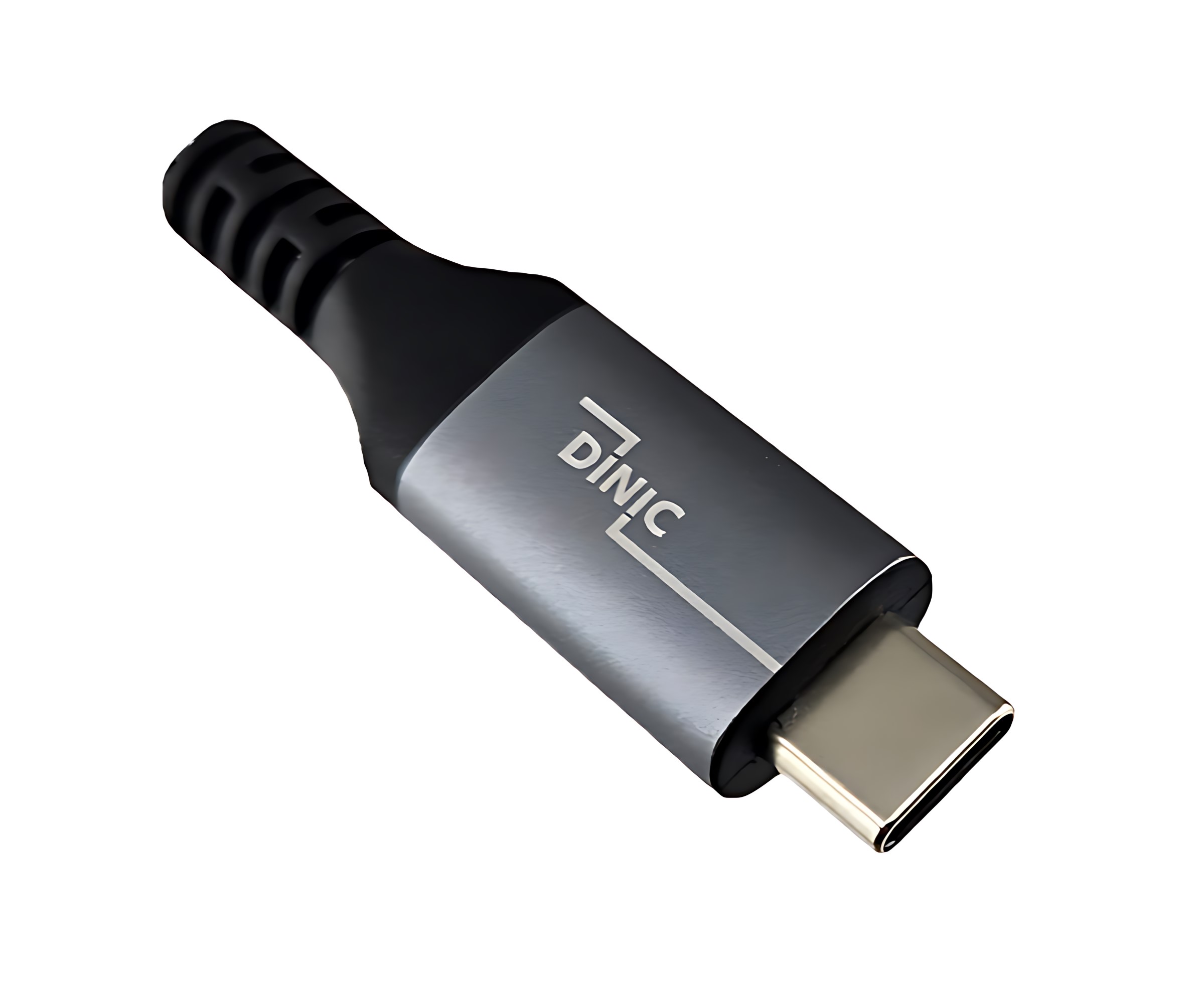

• Aluminium connector housing with gold-plated contacts
• Triple shielding for stable high-speed signal transmission
• Construction: highly conductive copper conductor, twisted structure; PVC sheath with nylon/cotton braiding (abrasion-resistant)
• Temperature range: operation -10 °C to +50 °C; storage -20 °C to +60 °C

The DINIC USB4 Type-C cable in a 0.50 m version combines high data bandwidth, video signal transmission and powerful power supply in a pre-assembled connection cable. The construction with highly conductive copper conductor and twisted structure supports stable transmission values; the triple shielding reduces interference in typical IT and system environments.

For mechanical robustness, the cable is designed with a PVC sheath and additional nylon/cotton braiding. Aluminium connector housings and gold-plated contacts are designed for long-lasting mating cycles and reliable contact in professional installations.

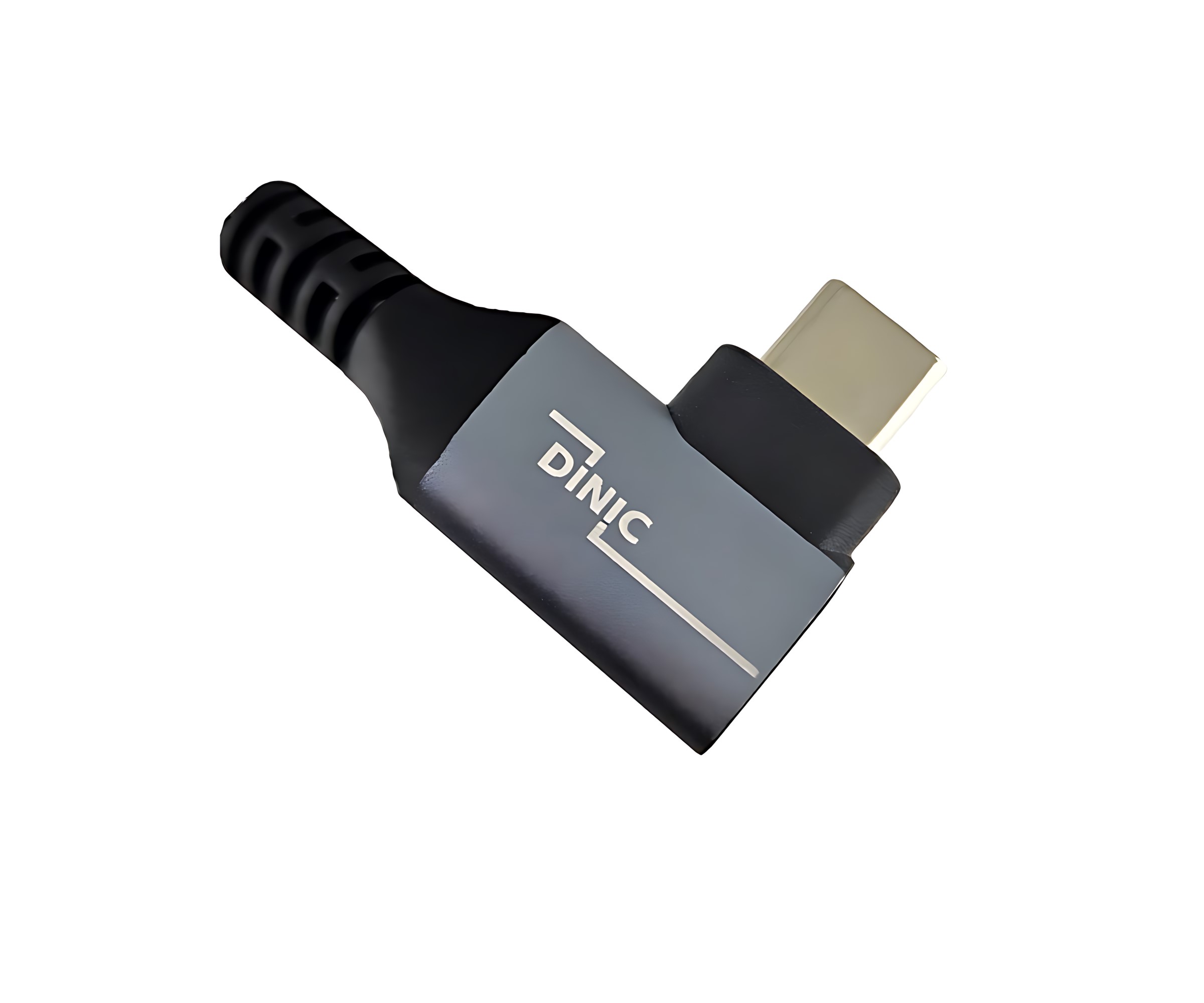

The 90° angled plug is designed for tight installation situations (e.g. behind monitors, docks, industrial PCs or in media and rack installations). The angled design reduces the bending radius directly at the port, relieves strain on the plug connection and reduces the risk of cable breakage due to tensile and bending stress.

The illustration of the connector is decisive, as the designation left/right/top/bottom angled depends on the respective viewing angle.

• System integration and workplace cabling (docking station, monitor, peripherals)
• Server cabinet/rack and patch panel connections with limited installation space
• Media technology, conference rooms, digital signage and KVM environments
• Industrial PCs, embedded systems and industrial automation
• Service/technology (test setups, imaging, fast data transfers)

• For devices with USB-C interface (notebook, dock, monitor, storage, industrial PC)
• USB4/Thunderbolt-enabled systems for maximum bandwidth; backward compatible with USB 3.x/2.0 (port dependent)
• PD 3.0 up to 240 W requires EPR-enabled power supplies/end devices and appropriate power profiles
• Video up to 8K/60 Hz requires DisplayPort Alt Mode/corresponding implementation on the end device

1× DINIC USB4 / USB-C 4.0 cable, 0.50 m (USB-C straight ↔ USB-C 90° angle), packaged in DINIC retail box (KB box).
