FO outdoor cable OM4, 50µ, LC/LC connector 4G, U-DQ(ZN)BH, 4 fibres, black, 200m

Preview: FO outdoor cable OM4, 50µ, LC/LC connector 4G, U-DQ(ZN)BH, 4 fibres, black, 200m

FO outdoor cable OM4, 50µ, LC/LC connector 4G, U-DQ(ZN)BH, 4 fibres, black, 200m

Mobile Preview: FO outdoor cable OM4, 50µ, LC/LC connector 4G, U-DQ(ZN)BH, 4 fibres, black, 200m

More on the way

SOLD OUT

Description

Description

FO outdoor cable OM4 (50/125 µm) LC/LC, 4G (4 fibres), U-DQ(ZN)BH, black, 200 m

Assembled multimode breakout outdoor cable with E-glass yarn rodent protection for robust outdoor and transition installations.

Technical highlights

Multimode fibre OM4, 50/125 µm - suitable for high-bandwidth backbone and patch applications

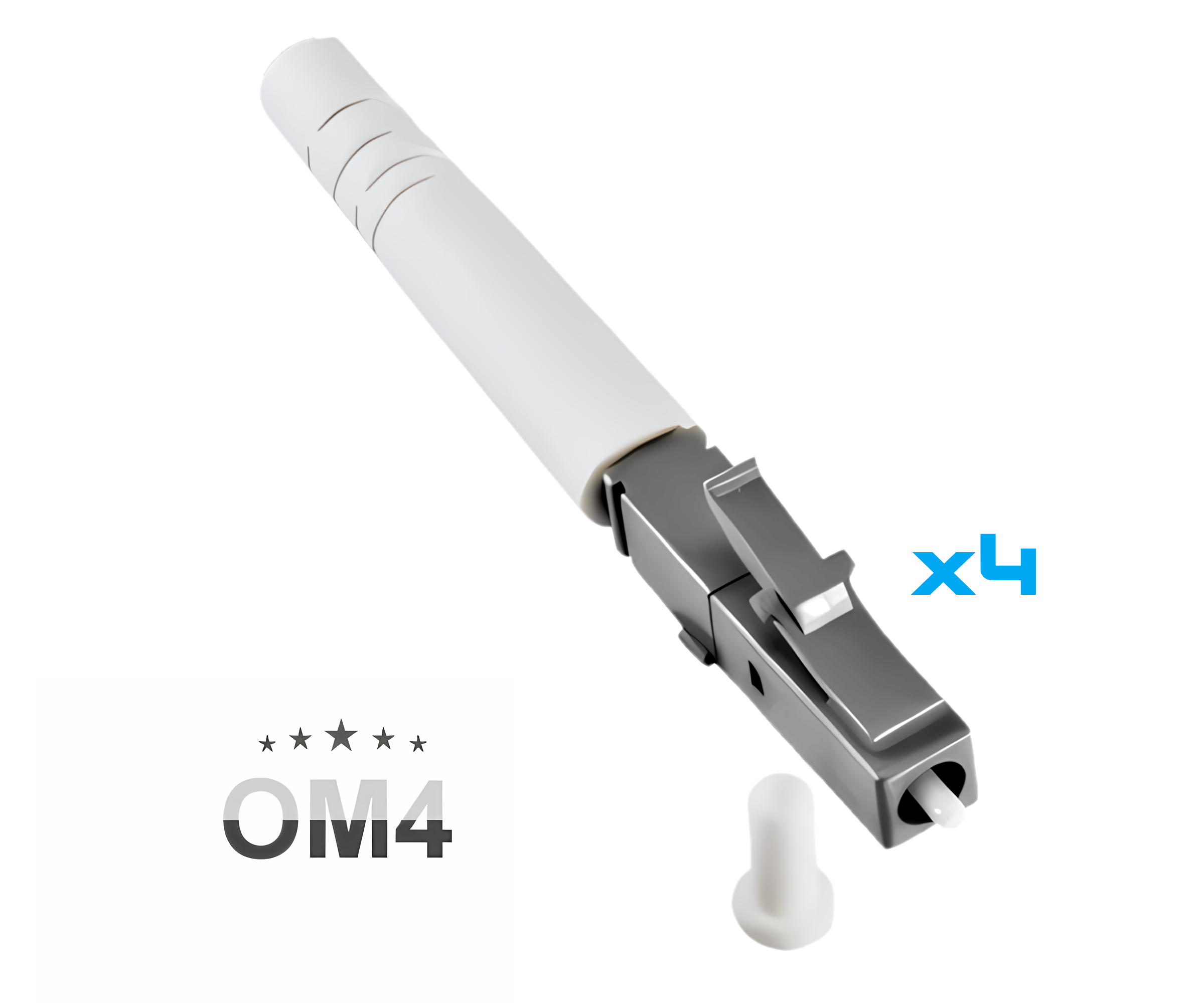

Connector: LC to LC - compact design for high port density on panels and active components

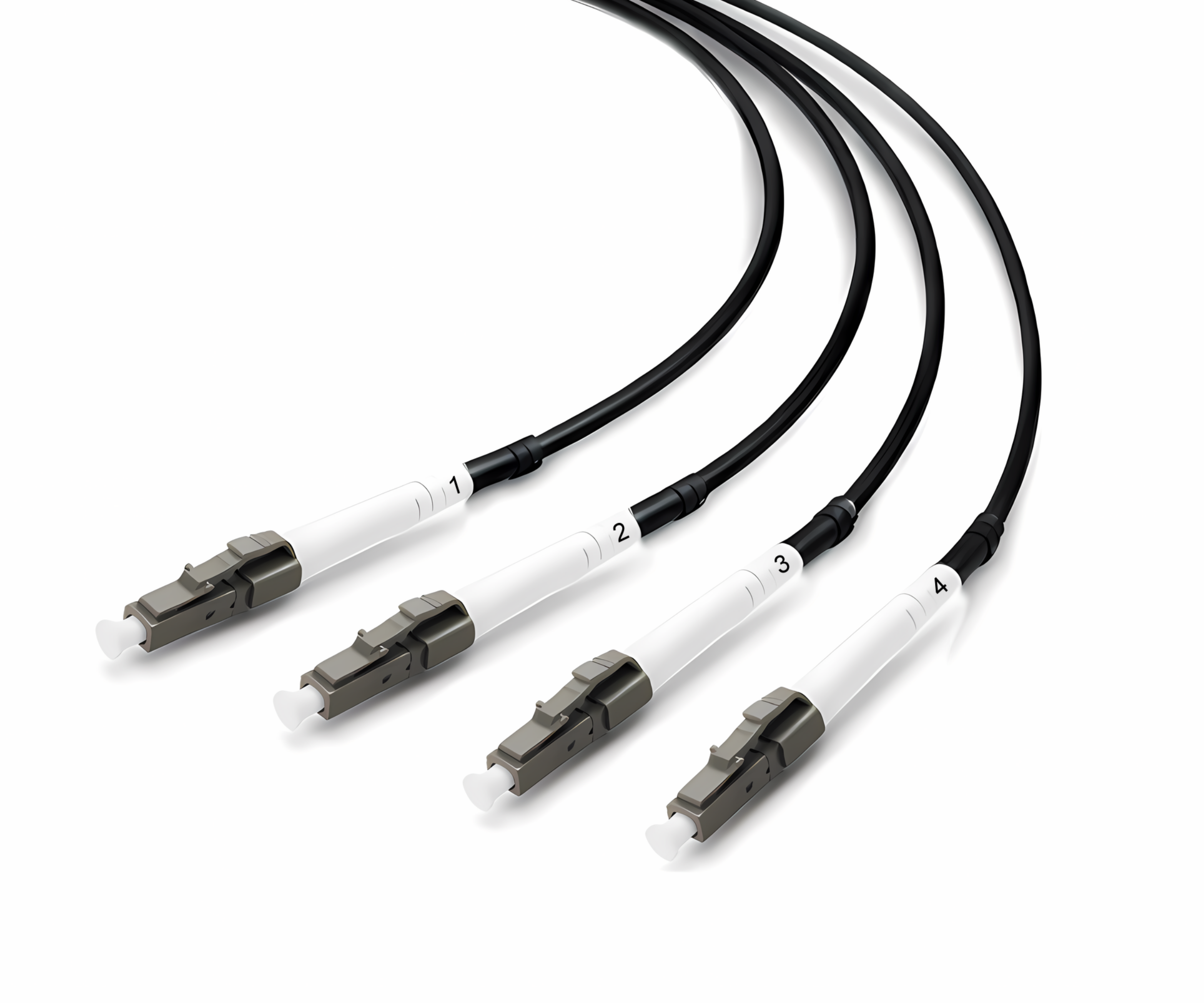

4G / 4 fibres in breakout design - installation-friendly routing and robust assembly
Outdoor cable type U-DQ(ZN)BH - designed for outdoor installation or outdoor sections
Rodent protection: barrier made of E-glass yarns to prevent rodents from entering
Halogen-free and flame-retardant - suitable for projects in demanding installation environments
Mechanics: 7 mm outer diameter, 140 mm bending radius
Temperature: operation -10 to 50 °C; transport/storage -30 to 70 °C; installation -5 to 50 °C

Description

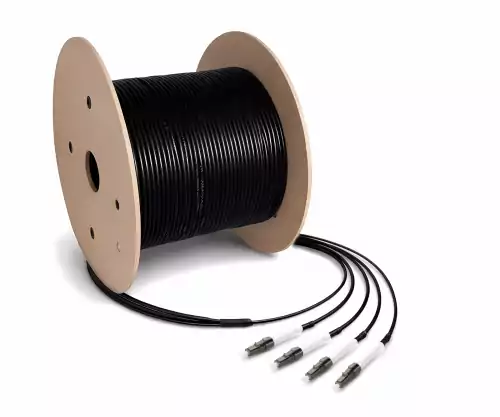

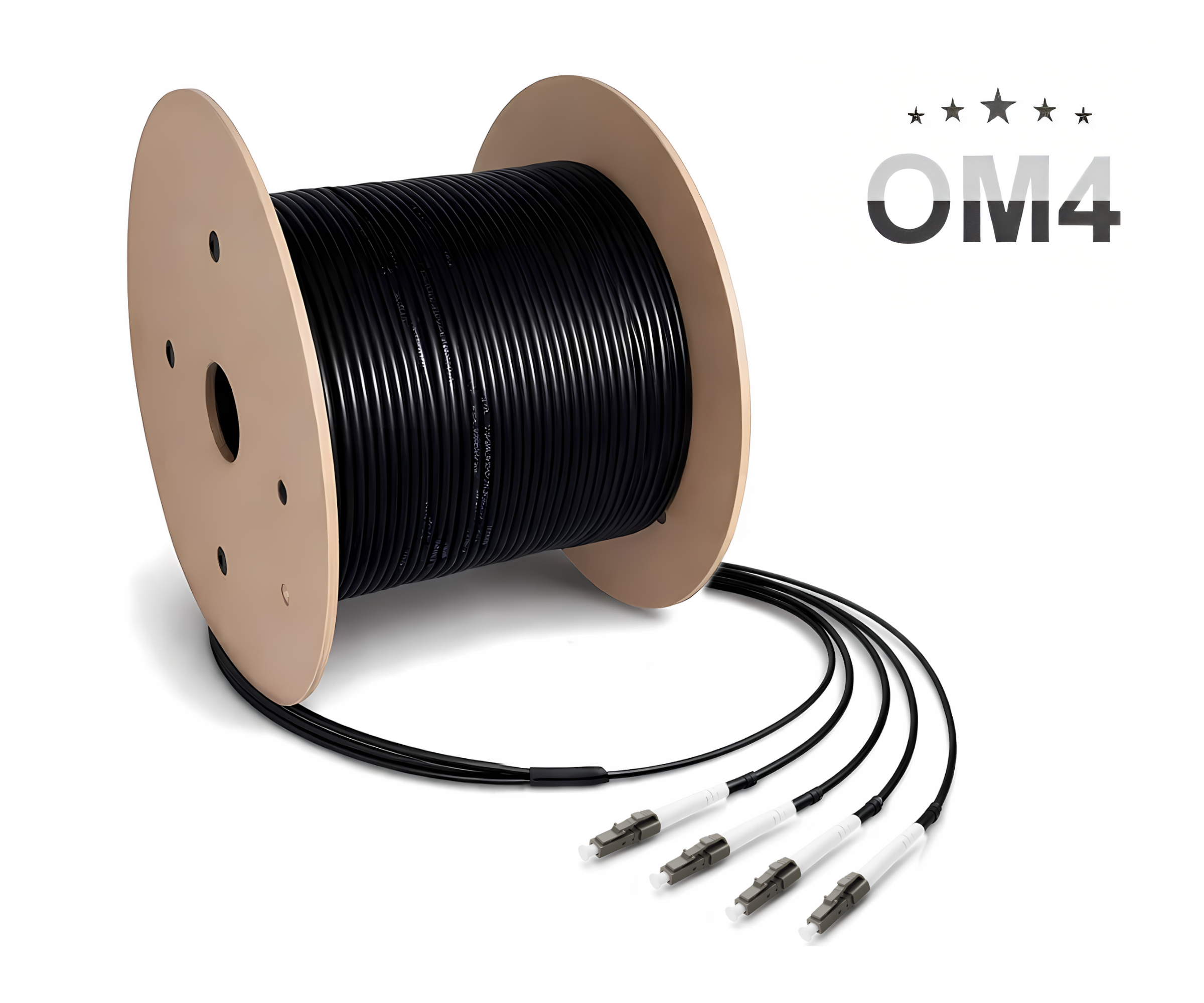

The pre-assembled FO outdoor breakout cable with OM4 fibres (50/125 µm) is designed for professional multimode connections in structured fibre optic cabling. The LC/LC assembly supports a compact connection to fibre optic patch panels, distributors and active components with LC interfaces.

The U-DQ(ZN)BH outdoor assembly is designed for demanding outdoor and transitional installations. The integrated rodent protection made of E-glass yarns serves as an additional barrier and increases operational safety in exposed installation areas.

Typical guide values for maximum transmission distances (depending on transceivers, attenuation budget and installation conditions): 1 Gbit/s up to 1100 m, 10 Gbit/s up to 550 m, 40/100 Gbit/s up to 150 m.

Areas of application

Campus and building backbone (building-to-building, outdoor connection)
Industrial and plant cabling with outdoor sections
Network and system integration (distributors, patch panels, transfer points)
Technical containers, external distributors, extensions
Communication and security infrastructure on factory premises

Technical data

Design	Fibre optic outdoor breakout cable, pre-assembled
Fibre type	Multimode OM4 (50/125 µm)
Number of fibres	4 fibres (4G)
Connector A	LC
Connector B	LC
Cable type / designation	U-DQ(ZN)BH
Rodent protection	E-glass yarn layer as barrier
Outer diameter	7 mm
Bending radius	140 mm
length	200 m
colour	Black colour
Operating temperature range	-10 to 50 °C
Temperature range transport/storage	-30 to 70 °C
Temperature range installation	-5 to 50 °C
Max. Range (guide values)	1G: up to 1100 m - 10G: up to 550 m - 40G: up to 150 m - 100G: up to 150 m
Weight	approx. 12.9 kg per unit
Packaging unit	1 piece
Item number	L4-50U-LCLC200A
EAN	4032528033662

Compatibility

For multimode OM4 lines with LC interfaces, e.g. fibre optic patch panels (LC), LC couplers/adapters and active network components with multimode transceivers (SFP/SFP+; LC port version). Port/polarisation concept according to patch planning.

Scope of delivery

1× FO outdoor cable OM4, 200 m, LC/LC, 4G (4 fibres), black

Notes

Note on pulling aid!
Due to the reusability of our pull-in aid, we only supply it as a separate accessory product (see accessories).

Safety information:
Use only under the direct supervision of adults
