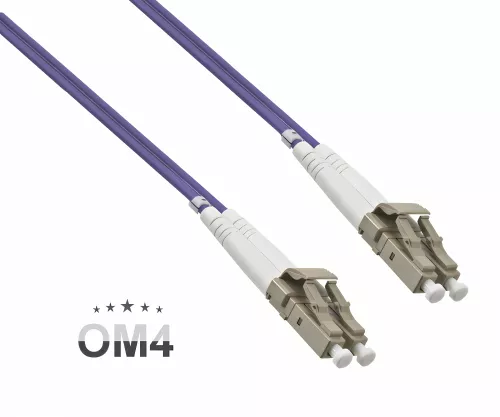

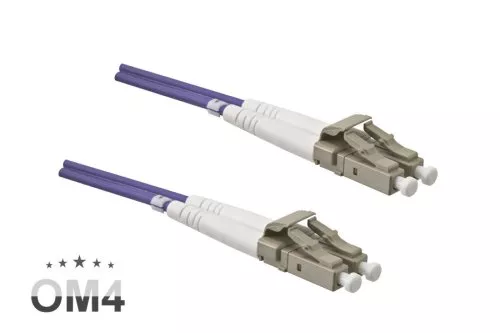

OM4 fibre optic patch cable LC/LC, duplex, 2 m - 50/125 µ, LSZH, eric violet
Article no.: LW-50-LCLC-2A | EAN: 4032528020938
Technical highlights
- OM4 multimode fibre optic cable, 50/125 µ fibre

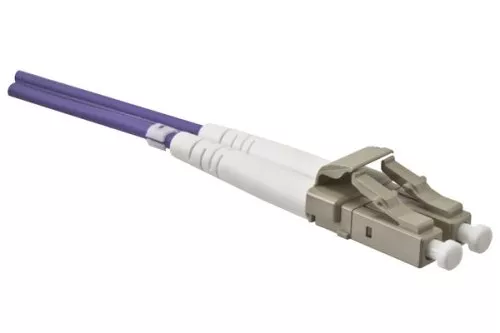

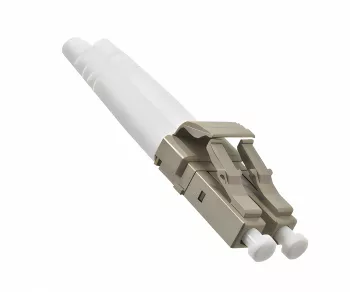

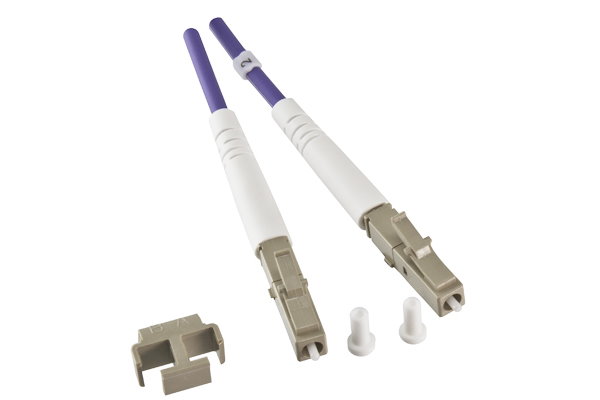

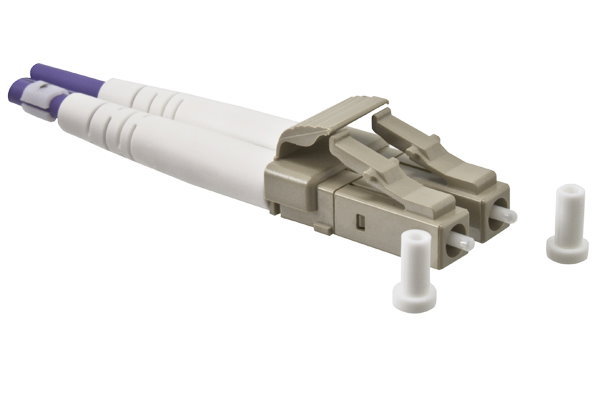

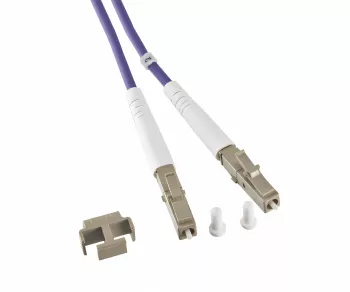

- LC duplex plug to LC duplex plug
- Duplex version (two cables) with 3.0 mm outer jacket
- Sheath material LSZH: halogen-free, flame-retardant and low-smoke
- Operating temperature range: -20 °C to +70 °C
- Colour: eric violet (RAL 4003) for clear OM4 identification
- Optimised for data rates up to 100 Gbit/s on short to medium distances
Description
The OM4 fibre optic cable with LC/LC duplex connectors is designed for structured multimode fibre optic cabling in professional IT and telecommunications environments. The OM4 fibre in the 50/125 µ version enables higher bandwidths and greater ranges at high data rates compared to OM3.
The LSZH outer jacket with a diameter of 3.0 mm combines halogen-free, flame-retardant and low-smoke properties in accordance with the relevant IEC standards and is therefore suitable for areas of application with increased requirements for fire and personal safety. The ericaviolet colouring (RAL 4003) makes it easier to visually identify OM4 routes in the patch panel and rack.
Areas of application
- Data centres and server rooms
- Core, distribution and access cabling in company networks
- Patch cables between active components with LC duplex ports
- Cabling in technical rooms, floor distributors and fibre optic cabinets
- Upgrade of existing multimode routes to higher data rates (e.g. 10G, 40G, 100G) in the OM4 range
Technical data
| Product type |
Fibre optic patch cable, multimode OM4 |
| Fibre type |
50/125 µm, multimode, OM4 |
| Connector type |
LC duplex to LC duplex |
| Construction type |
Duplex (two lines) |
| Cable length |
2,0 m |
| Outer diameter |
3.0 mm |
| Sheath material |
LSZH (Low Smoke Zero Halogen) |
| Colour |
Erikaviolet, RAL 4003 |
| Operating temperature |
-20 °C to +70 °C |
| Fire and smoke behaviour |
Halogen-free in accordance with IEC 60754-2
Flame retardant in accordance with IEC 60332-1
Low smoke according to IEC 61034 |
| Article number |
LW-50-LCLC-2A |
| EAN CODE |
4032528020938 |
| Packaging |
DINIC Polybag |
Maximum typical ranges*
| Data rate |
Range |
| 1 Gbit/s |
up to approx. 1100 m |
| 10 Gbit/s |
up to approx. 550 m |
| 40 Gbit/s |
up to approx. 150 m |
| 100 Gbit/s |
up to approx. 150 m |
*Guideline values, depending on active components, link budget and overall link structure.
Compatibility
The cable is designed for use in multimode fibre optic systems with OM4 specification and can be used in existing OM3 installations, provided the route parameters meet the respective system requirements.

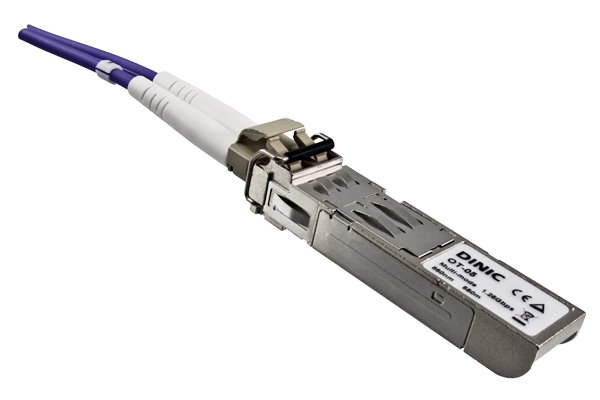

- LC duplex ports on switches, routers, media converters and transceivers
- Multimode patch panels and splice boxes with LC duplex couplers
- Transceiver modules in accordance with common multimode standards (e.g. 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR4, if supported by the system)
Scope of delivery
- 1× OM4 fibre optic patch cable LC/LC, duplex, 2.0 m, eric violet, LSZH, in DINIC polybag
DINIC is a MAG GmbH brand for professional cables, adapters and accessories in the IT and network environment.
