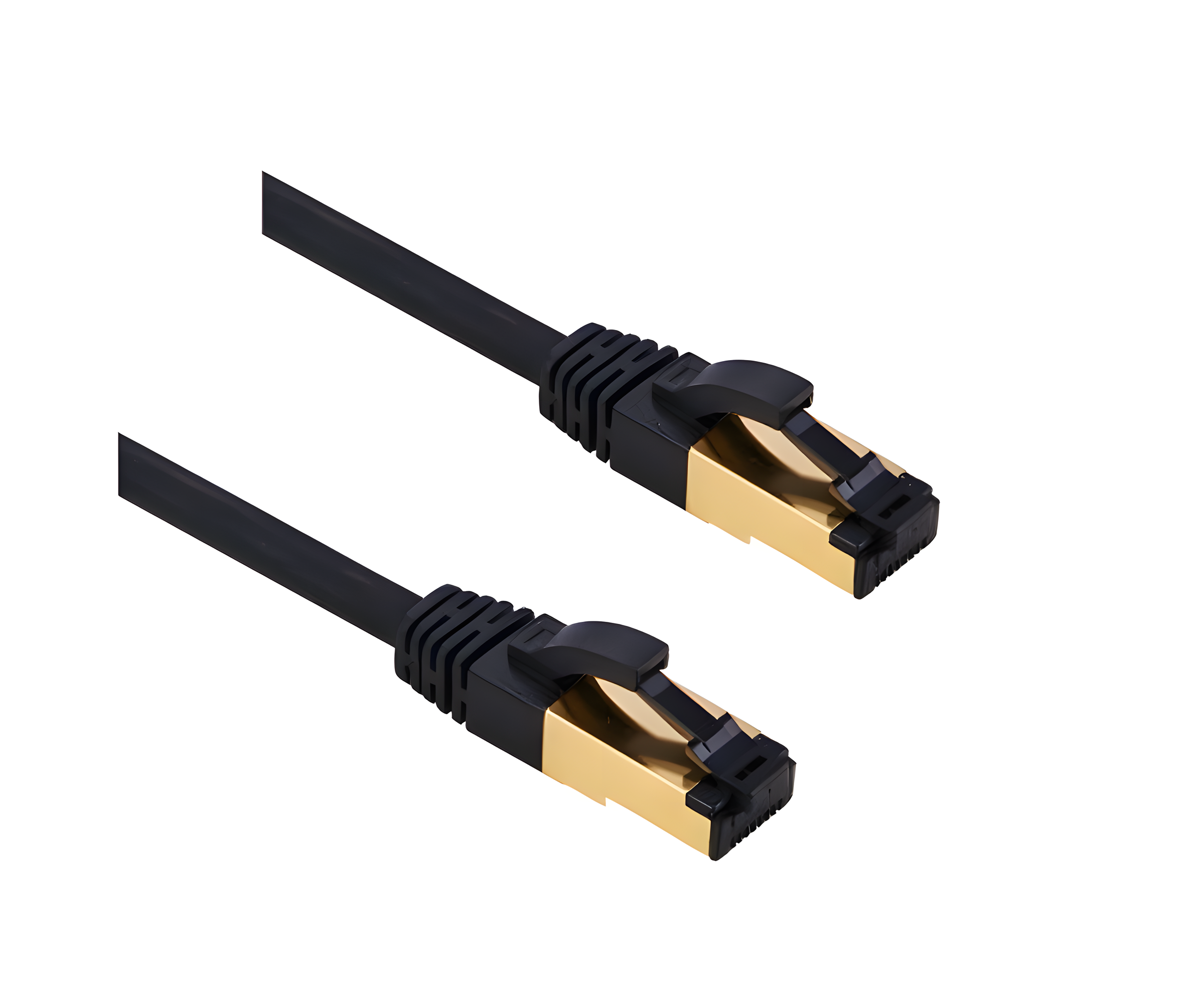

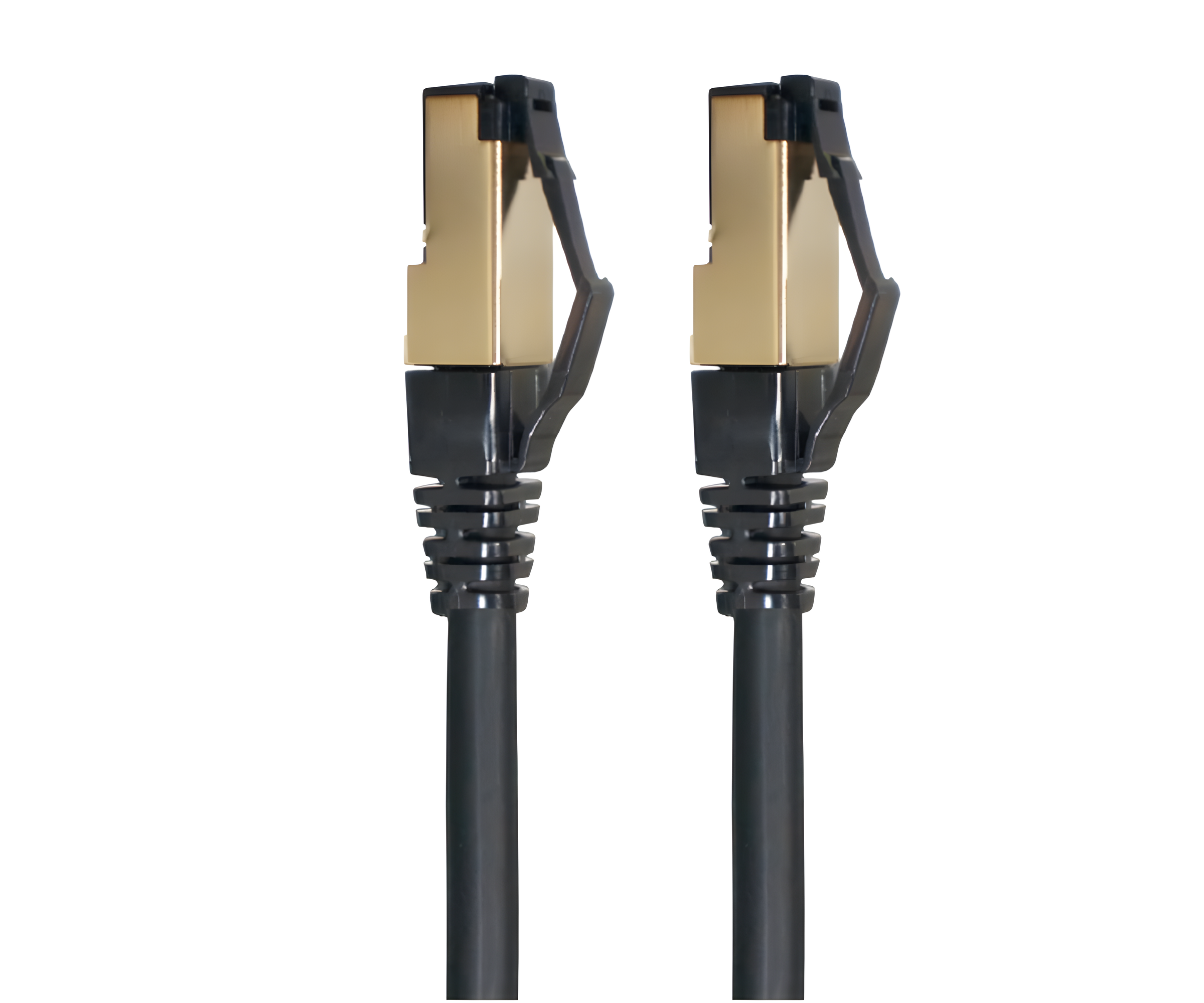

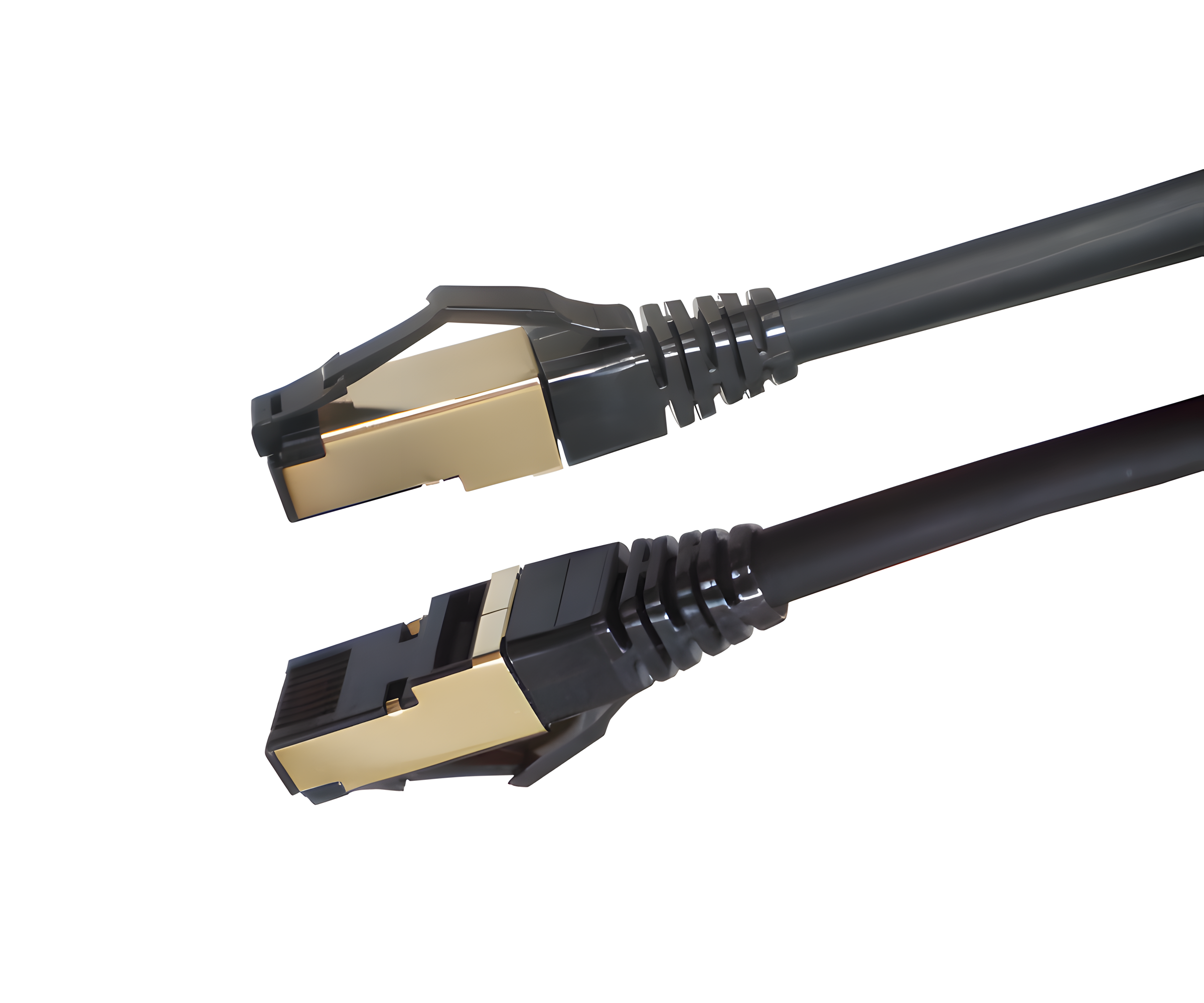

Cat. 8.1 patch cable 2000Mhz, 40G, copper, LSZH, black, DINIC polybag, length 3m

• Cat. 8.1, tested up to 2000 MHz; data rate up to 40 Gbit/s
• Double shielding S/FTP: PIMF (pair foil) + overall shielding as braiding to reduce interference
• Conductor: 100% copper (CU), AWG 26
• Connectors: 2× RJ45; contact surfaces 50 µ gold-plated
• PoE+ support in accordance with IEEE 802.3at
• LSZH jacket (halogen-free) for environments close to installations
• Latching lug protection & slimline kink protection for mechanically protected patch connections
• Pair sequence according to EIA/TIA 568B; downwards compatible with 10/100/1000BASE-T

The DINIC Cat. 8.1 patch cable is designed for high-performance, structured copper cabling with RJ45 connection technology. The S/FTP construction (PIMF per wire pair plus braided shield) minimises near and far-end crosstalk as well as external interference and supports high-frequency patch panels in technical rooms and data centre environments.

Solid copper conductors (AWG 26) and 50 µ gold-plated contact surfaces ensure long-lasting contact quality. The LSZH jacket (halogen-free) and the slimline kink protection with latching nose protection support robust handling for patch panel, switch and terminal device connections.

• Racks, switch uplinks, server and storage connections
• Patch panels in data centres, technical rooms and building distribution boards
• Structured cabling in control cabinet construction and system integration
• PoE/PoE+ routes for access points, IP telephony and network peripherals
• Expansion/maintenance of existing 10/100/1000BASE-T infrastructures (downwards compatible)

Category / Frequency	Cat. 8.1, tested up to 2000 MHz
Data rate	up to 40 Gbit/s (40,000 Mbit/s)
Structure / shielding	S/FTP - PIMF (wire pairs in metal foil) + braided shielding
Conductor / cross-section	100% copper (CU), AWG 26
Plug connector	2× RJ45, contact surfaces 50 µ gold-plated, latching nose protection
Pair sequence	EIA/TIA 568B
PoE support	PoE+ according to IEEE 802.3at
Jacket material	LSZH, halogen-free
colour	Black colour
Cable length	3 m (length specified on slimline cable bend relief)
Downward compatibility	10/100/1000BASE-T
Packaging	DINIC polybag with Euro hole
Article number / EAN	C8-3 / 4032528035987

For active and passive network components with RJ45 connection (e.g. patch panel, switch, router, server NIC, media converter with RJ45, network sockets). Can be used in existing 10/100/1000BASE-T installations; RJ45 mating faces enable consistent patch compatibility.

• 1× DINIC Cat. 8.1 patch cable S/FTP, 3 m, LSZH, 2× RJ45
• Packaging: DINIC polybag with Euro hole

DINIC is MAG GmbH's trade brand for professional cables, adapters and accessories - material and standard-compliant for trade, specialised trade and system integration.

Keywords: Cat.8.1 patch cable, RJ45, 2000 MHz, 40 Gbit/s, S/FTP, PIMF, AWG 26 copper, LSZH, PoE+, gold-plated contacts, DINIC, 3 m, black
