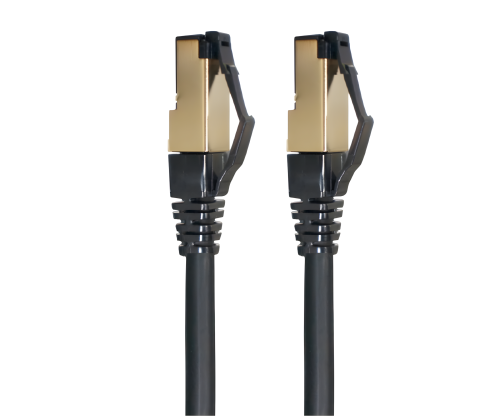

Cat. 8.1 patch cable 2000Mhz, 40G, copper, LSZH, black, DINIC polybag, length 1m

• Cat. 8.1, tested up to 2000 MHz, designed for up to 40 Gbit/s (40,000 Mbit/s)
• S/FTP construction: PIMF (wire pairs in metal foil) plus overall shielding as a braid to minimise interference
• Inner conductor: 100% copper (CU), AWG 26
• 2× RJ45 connectors, contact surfaces 50 µ gold-plated
• PoE+ support in accordance with IEEE 802.3at
• LSZH jacket (halogen-free) for reduced fume emission in installation environments
• Latching lug protection and slimline kink protection for increased mechanical robustness in patch operation
• Pair sequence according to EIA/TIA 568B; downward compatible with 10/100/1000BASE-T

The DINIC Cat. 8.1 patch cable is designed for high-performance RJ45 copper links in professional network environments. The double shielding (S/FTP) with paired foil shielding (PIMF) and additional braided shielding reduces near and far-end crosstalk as well as external interference - suitable for high-frequency patch and uplink connections.

Solid copper conductors (AWG 26) support stable transmission properties and are suitable for PoE+ applications in accordance with IEEE 802.3at. Gold-plated contact surfaces (50 µ) improve contact reliability, while latching lug protection and slimline kink protection mechanically relieve the mating point in daily patch operation.

The LSZH sheath (halogen-free) supports use in installation areas where material and safety-orientated cable selection is required - particularly in technical rooms, racks and structured cabling.

• Rack and patch panel cabling, switch uplinks, server and storage connections
• Data centres, technical rooms, high-frequency patch lines with RJ45 connection technology
• Control cabinet and system cabling in IT/OT-related environments
• PoE/PoE+ supply of end devices (e.g. access points, cameras, VoIP)
• Migration/continued operation of existing 10/100/1000BASE-T installations

Suitable for active and passive network components with RJ45 connection, e.g. patch panels, switches, routers, server NICs, media converters (RJ45-side) and structured copper cabling. Can be used in existing 10/100/1000BASE-T installations.

• 1× DINIC Cat. 8.1 patch cable S/FTP, LSZH, black, 1 m, 2× RJ45
• Individual packaging: DINIC polybag with Euro hole

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de

Note on custom-made products

Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.

View details about custom-made products
