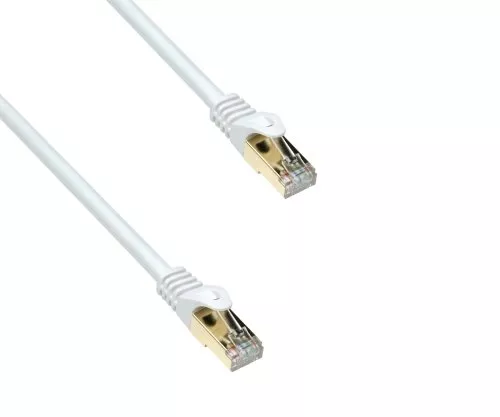

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 50.00m
.png "Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 50.00m")
DINIC Premium Cat.7 patch cable LSZH - 50.00 m - white
S/FTP (PiMF + braiding), copper conductor AWG26, 2× RJ45 (Cat.6A) - tested up to 600 MHz / 10 Gigabit Ethernet
Technical highlights
- Patch cable Cat.7, tested up to 600 MHz; suitable for 10GBASE-T (10 Gigabit Ethernet), downwards compatible with 10/100/1000 BASE-T
- Plug: 2× RJ45 (8P8C), Cat.6A version with latching nose protection
- Inner conductor: high-quality copper conductor (CU), AWG 26
- Shielding: PiMF (Pairs in Metal Foil) + additional overall shielding (braiding) - S/FTP construction
- Contact surfaces: 50 µ gold-plated pins for stable mating cycles and low contact resistance
- Wire assignment: Pair sequence according to EIA/TIA-568B
- PoE-compatible: suitable for PoE+ in accordance with IEEE 802.3at
- Jacket: LSZH (halogen-free) for reduced smoke gas development; colour white; length 50.00 m (length specified on the bend protection sleeve)
Cable description
The DINIC Premium Cat.7 patch cable is designed for high-performance Ethernet connections up to 10 Gigabit and tested up to 600 MHz. The S/FTP construction with individually shielded wire pairs (PiMF) plus additional overall shielding (braiding) reduces EMC influences and supports low-interference transmission in dense installations.
Gold-plated contacts (50 µ) and copper inner conductors (AWG 26) ensure defined transmission values and robust contacting in the professional patch panel/switch environment. The bend protection sleeve with printed length specification and the latching lug protection facilitate handling, labelling and operation in patch and service rooms.
Areas of application
- Network cabling in server rooms and data centres (switch ↔ patch panel ↔ server)
- System integration and structured building cabling (floor distributors, technical rooms)
- Industrial networks and EMC-critical environments thanks to S/FTP shielding
- PoE infrastructures (access points, IP cameras, VoIP telephones) with PoE+
- Service/measurement and temporary connections during commissioning and maintenance
Technical data
| Product type | Premium patch cable (assembly) |
| Category / test | Cat.7, tested up to 600 MHz |
| Data rate / Ethernet | up to 10GBASE-T; downward compatible to 10/100/1000 BASE-T |
| Connector | 2× RJ45 (8P8C), Cat.6A version, latching nose protection |
| Conductor | Copper (CU), AWG 26 |
| Shielding | S/FTP: PiMF (wire pairs in metal foil) + overall shielding (braiding) |
| Contact surfaces | Pins 50 µ gold-plated |
| Wire assignment | EIA/TIA-568B |
| PoE suitability | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH (halogen-free) |
| Colour | White colour |
| Cable length | 50,00 m |
| Packaging | DINIC Polybag with Euro hole |
| Item number | C7-50 |
| EAN CODE | 4032528032399 |
Compatibility
For RJ45 Ethernet interfaces (8P8C) on switches, patch panels, routers, firewalls, servers, NAS systems, IP telephony/PoE end devices and network sockets in structured cabling.
Scope of delivery
1× DINIC Premium Cat.7 patch cable LSZH, 50.00 m, white (2× RJ45), packed in DINIC polybag.
DINIC is a brand of MAG GmbH - professional connection technology for IT and infrastructure applications.
SEO: Cat.7 patch cable LSZH 50m white S/FTP PiMF RJ45 Cat.6A AWG26 copper 600MHz 10GBASE-T DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
