Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 3.00m
.png "Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 3.00m")
More on the way
DINIC Cat.7 Premium patch cable LSZH 3.0 m - RJ45/RJ45, S/FTP, white
10 Gigabit patch cable with copper conductors, tested up to 600 MHz, halogen-free LSZH jacket
Technical highlights
- Cat.7 cable construction, tested up to 600 MHz (for high-performance copper cabling)
- 2× RJ45 plugs (8P8C), downwards compatible with 10/100/1000 BASE-T
- Shielding: PiMF (pairs in metal foil) + overall shielding (braiding) - S/FTP for low-interference transmission
- Conductors: high-quality copper inner conductors, AWG 26
- Gold-plated contact surfaces (50 µ) for reliable mating cycles and low contact resistances
- Pair sequence according to EIA/TIA 568B
- LSZH sheath (halogen-free) - reduced smoke gas and corrosion development in the event of fire

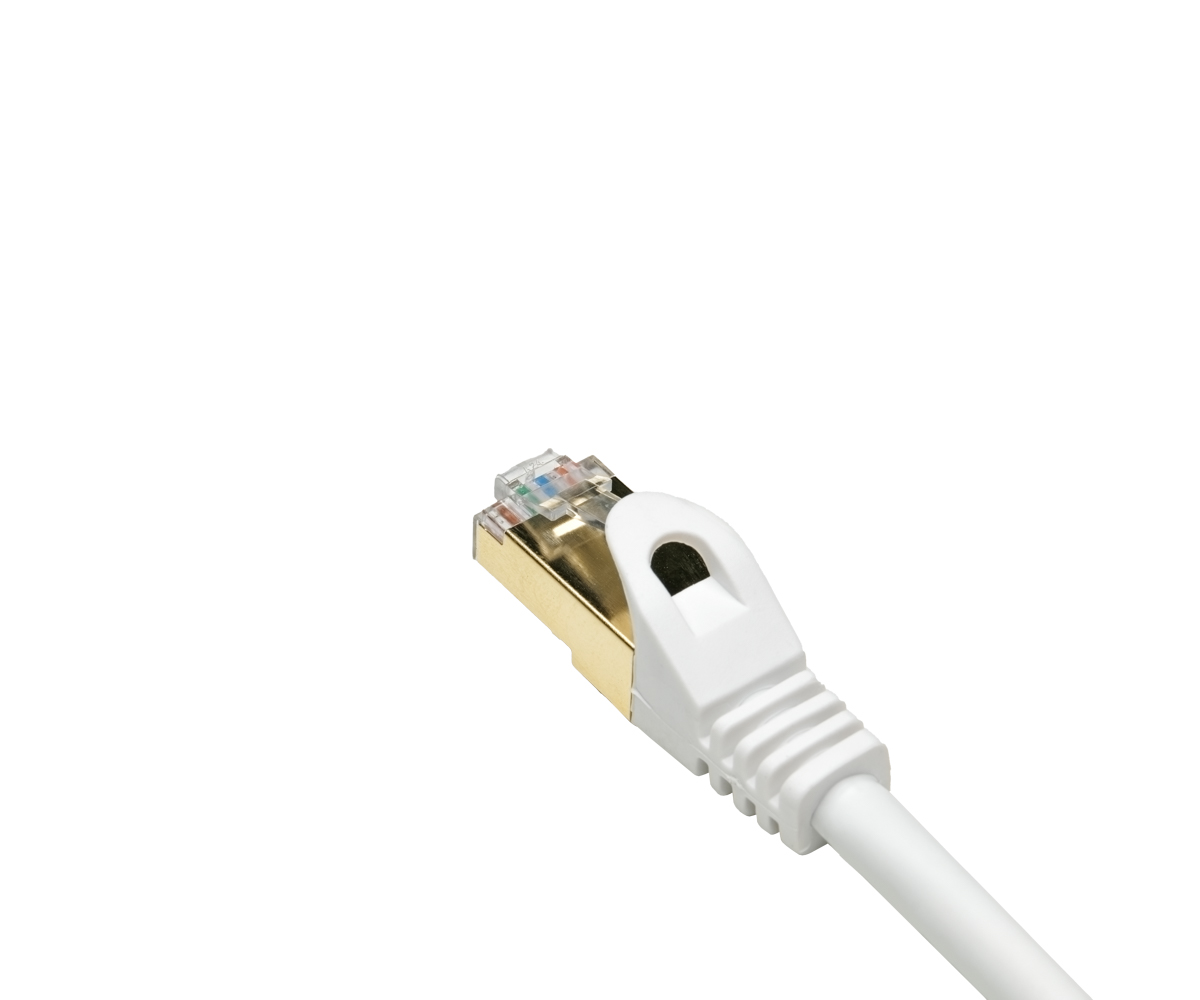

- Practical details: Slimline anti-kink sleeve with length specification + latching nose protection
Description of the
The DINIC Cat.7 Premium patch cable is designed for structured network cabling where stable data transmission and good EMC properties are required. The S/FTP construction (PiMF per wire pair plus overall shield) reduces interference and crosstalk, especially in densely occupied cable paths, patch panels and server racks.
Copper inner conductors (AWG 26) and gold-plated contact surfaces support permanently reliable contacting. The slimline anti-kink sleeve improves handling in tight installation situations, while the locking lug protection protects the locking tab during installation and servicing.
The halogen-free LSZH sheath is suitable for environments with increased fire behaviour requirements, e.g. building infrastructure and data centre environments.
Areas of application
- Patch panel and switch connection in the server rack / data centre
- Building technology and floor cabling (structured copper cabling)
- Office IT, VoIP/PoE infrastructure and access point connections
- System integration, technical rooms, distribution and patch panels
- Industrial IT cabling in EMC-loaded environments (through S/FTP structure)
Technical data
| Product type | Premium patch cable (assembled) |
| Category / Bandwidth | Cat.7, tested up to 600 MHz |
| Connector | 2× RJ45 (8P8C) |
| Transmission rates | up to 10 Gigabit Ethernet; downward compatible 10/100/1000 BASE-T |
| Conductor material | Copper (CU) |
| Conductor size | AWG 26 |
| Shielding | PiMF per wire pair + overall shield (braiding), S/FTP |
| Contact surface | 50 µ gold-plated contact surfaces (PINs) |
| Assignment | Pair sequence according to EIA/TIA 568B |
| PoE suitability | suitable for PoE+ (IEEE 802.3at) |
| Jacket | LSZH (halogen-free) |
| Colour | white colour |
| Cable length | 3.00 m (length specified on slimline cable grommet) |
| Item number | C7-3 |
| EAN CODE | 4032528029238 |
| Packaging | DINIC Polybag (with Euro hole) |
Compatibility
- For active and passive network components with RJ45 socket (switch, router, patch panel, keystone, end device)
- Suitable for Ethernet links in 10/100/1000 BASE-T and 10 Gigabit Ethernet (depending on device and installation)
- Supports PoE+ (IEEE 802.3at) for compatible PoE infrastructure
Scope of delivery
1× DINIC Cat.7 Premium patch cable, RJ45/RJ45, 3.00 m, white (individually in DINIC polybag)
DINIC is a brand of MAG GmbH - range for professional cable and connection technology.
Keywords: Cat.7 patch cable LSZH 3m white, RJ45/RJ45, S/FTP PiMF, AWG26 copper, 600 MHz, 10 Gigabit Ethernet, DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
