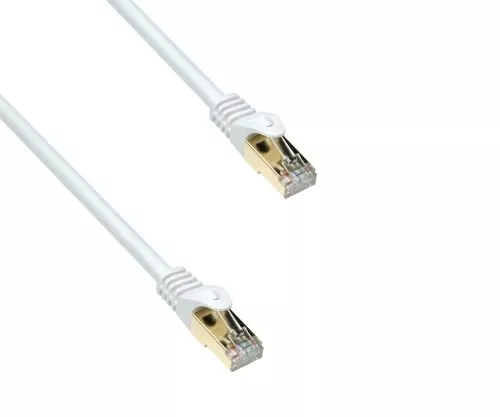

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 2.00m
More on the way
DINIC Premium Cat.7 patch cable - LSZH, S/FTP, 2× RJ45 (Cat.6A), 2.00 m, white
Pre-assembled copper patch cable for 10 Gigabit Ethernet, tested up to 600 MHz - halogen-free jacket and high shielding reserves for professional networks.
Technical highlights
- Cat.7 patch cable, tested up to 600 MHz, data rate up to 10 Gbit Ethernet (backwards compatible with 10/100/1000BASE-T)
- Shielding: S/FTP - foil shielding in pairs (PIMF) plus overall shielding (braiding) for high interference immunity
- Conductor: 100 % copper (CU), AWG 26, 4 paired pairs (8 cores)
- 2× RJ45 plug (Cat.6A-compliant) with 50 µ gold-plated contact surfaces (PINs)
- PoE+ suitable in accordance with IEEE 802.3at
- Slimline anti-kink sleeve with printed length information for quick identification
- Latching lug protection to reduce damage during installation/service
- Sheath material: LSZH (halogen-free, Low Smoke Zero Halogen), colour white, length 2.00 m
Cable description
The DINIC Premium Cat.7 patch cable is designed for structured copper cabling in professional IT and industrial environments. The combination of paired foil shielding (PIMF) and additional braided shielding (S/FTP) reduces interference and supports stable transmission rates of up to 10 Gbps.
100 % copper conductors (AWG 26) ensure reliable signal quality, even for PoE+ applications. Gold-plated contact surfaces (50 µ) increase contact reliability and support long-lasting mating cycles in daily operation.
The LSZH sheath (halogen-free) is suitable for environments with increased requirements for smoke gas development and material properties. Slimline bend protection with length imprint facilitates port and route labelling in the rack, patch panel or control cabinet.
Areas of application
- Network cabling in server rooms, data centres and floor distributors
- Patch panel and switch connection in 19" racks
- Building technology and structured cabling (copper)
- Industrial automation/OT networks (shielded twisted pair connections)
- System integration, service and maintenance environments
Technical data
| Article number | C7-2 |
| Category / Test | Cat.7, tested up to 600 MHz |
| Data rate | up to 10 Gbit Ethernet; downward compatible to 10/100/1000BASE-T |
| Structure / shielding | S/FTP - PIMF (pairs in metal foil) + overall shielding (braiding) |
| Conductor / AWG | 100 % copper (CU), AWG 26 |
| Number of cores | 4 paired pairs (8 cores) |
| Connectors | 2× RJ45 (Cat.6A-compliant), 50 µ gold-plated contact surfaces, latching nose protection, slimline kink protection |
| Pair sequence | EIA/TIA 568B |
| PoE support | PoE+ suitable (IEEE 802.3at) |
| Sheath material | LSZH, halogen-free (Low Smoke Zero Halogen) |
| Colour | White colour |
| Cable length | 2,00 m |
| Packaging | DINIC polybag with Euro hole |
| EAN CODE | 4032528029214 |
Compatibility
- For active and passive network components with RJ45 connection (e.g. switches, routers, patch fields, patch panels, IP controllers)
- Suitable for 10/100/1000BASE-T and 10 Gigabit Ethernet connections within copper cabling
Scope of delivery
1× DINIC Premium Cat.7 patch cable, LSZH, S/FTP, 2× RJ45, 2.00 m, white - packed in DINIC polybag with Euro hole.
DINIC is a trademark of MAG GmbH.
DINIC Cat.7 patch cable 2.00m - S/FTP, LSZH halogen-free, 2× RJ45 (Cat.6A), copper, 600 MHz, 10 Gbit, white.
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
