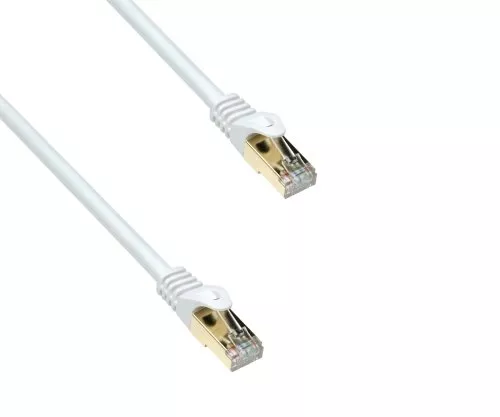

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 0.50m
DINIC Premium patch cable Cat.7 - LSZH, 0.50 m, white (2× RJ45, Cat.6A plug)
S/FTP (PIMF + braiding), copper conductor, up to 10 Gigabit Ethernet, tested up to 600 MHz
Technical highlights
- Cable category: Cat.7, tested up to 600 MHz; suitable for 10GBase-T
- Connectors: 2× RJ45 (8P8C) plugs, Cat.6A version
- Conductor: high-quality copper inner conductor (CU), conductor size AWG 26
- Shielding: wire pairs individually foil-shielded (PIMF) + overall braided shielding (S/FTP)
- Contact surfaces: gold-plated pins (50 µ)
- Jacket: LSZH (halogen-free) for reduced smoke/corrosion gas development
- Assembly: Latching lug protection; length specification on bend protection sleeve; pair sequence according to EIA/TIA-568B
- Supports PoE+ (IEEE 802.3at); downward compatible with 10/100/1000BASE-T
Cable description
The DINIC Premium Category 7 patch cable is designed for high-performance Ethernet links in professional environments. The combination of paired foil shielding (PIMF) and additional overall shielding (S/FTP) reduces interference and supports stable transmission even in dense patch fields and in installation environments subject to EMC.
Gold-plated contact surfaces (50 µ) improve contact reliability with frequent reconnection. The LSZH jacket (halogen-free) is suitable for installations with increased requirements for fire load and smoke gas behaviour, e.g. in building technology, public areas or near data centres.
The cable assembly with latching nose protection and the length labelling on the bend protection sleeve facilitate handling and documentation during operation (patch panel/floor distributor/terminal device connection).
Areas of application
- Structured network cabling (patch panel ↔ switch, switch ↔ server/storage)
- Data centre, server room, floor distributor
- Industrial IT/OT networks (EMC-critical environments)
- System integration, building technology, PoE/PoE+ supply of end devices
- Specialist trade/project business: standardised patch lines with defined components
Technical data
| Article number | C7-05 |
| EAN CODE | 4032528029115 |
| Cable length | 0,50 m |
| colour | White colour |
| Cable category | Cat.7 (tested up to 600 MHz) |
| Data rate / protocols | up to 10 Gigabit Ethernet; downward compatible to 10/100/1000BASE-T |
| Connectors | 2× RJ45 (8P8C) plug, Cat.6A |
| Conductor material | Copper (CU) |
| Conductor size | AWG 26 |
| Shielding | S/FTP: PIMF (pairs in metal foil) + overall braided shielding |
| Contact surface | Pins gold-plated (50 µ) |
| Wire assignment | Pair sequence according to EIA/TIA-568B |
| PoE suitability | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH (halogen-free) |
| Packaging | DINIC polybag (with Euro hole) |
Compatibility
For active/passive network components with RJ45 ports (8P8C), e.g. switches, routers, patch panels, network sockets, server NICs, IP telephones, access points and PoE+ end devices (IEEE 802.3at).
Scope of delivery
- 1× DINIC Cat.7 Premium patch cable, 0.50 m, white (2× RJ45 plugs)
DINIC is a brand of MAG GmbH - cable and connection technology for professional applications.
Keywords: DINIC Cat.7 patch cable 0.5m, S/FTP, LSZH halogen-free, RJ45 Cat.6A, 10 Gigabit, 600 MHz, AWG26, white
