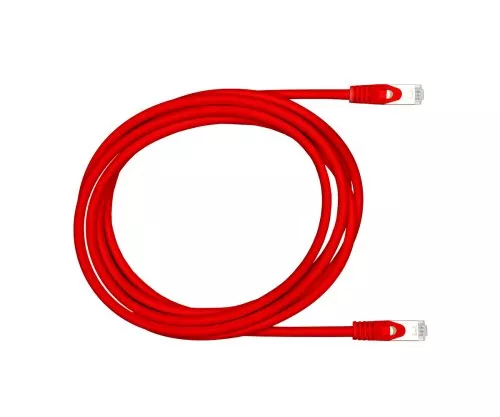

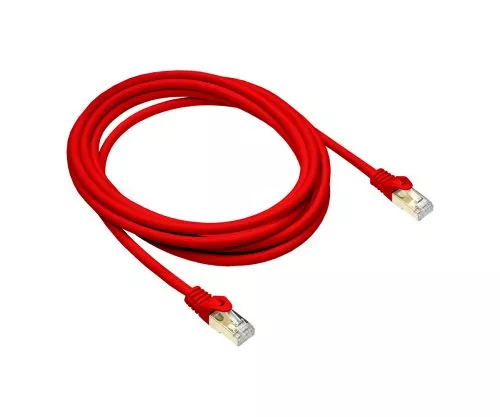

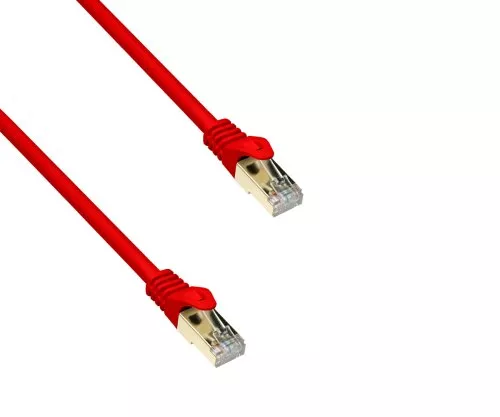

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, red, 3.00m
.png "Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, red, 3.00m")
DINIC Cat.7 Premium patch cable - 3.00 m - red
S/FTP (PIMF) raw cable, 2x RJ45 (Cat.6A), CU, LSZH - tested up to 600 MHz, suitable for 10GBASE-T
Technical highlights
- Patch cable based on Cat.7 raw cable, tested up to 600 MHz (for demanding 10G routes in the patch area)
- 2x RJ45 plugs (Cat.6A), 50 µ gold-plated contact surfaces (PINs) for stable contacting
- Shield structure: Wire pairs individually shielded (PIMF) plus overall shielding (braiding) - S/FTP
- Inner conductor: high-quality copper (CU), conductor cross-section AWG 26
- Backwards compatible with 10/100/1000BASE-T
- Pair sequence according to EIA/TIA-568B
- Suitable for PoE+ (IEEE 802.3at)
- LSZH (halogen-free) - reduced smoke emission, ideal for building technology and IT infrastructure
Product description
The DINIC Cat.7 Premium patch cable in red (3.00 m) is designed for high-performance Ethernet connections up to 10 Gigabit. The S/FTP shield construction with paired foil shielding (PIMF) and additional overall shielding reduces interference in electrically stressed environments and supports stable signal quality.

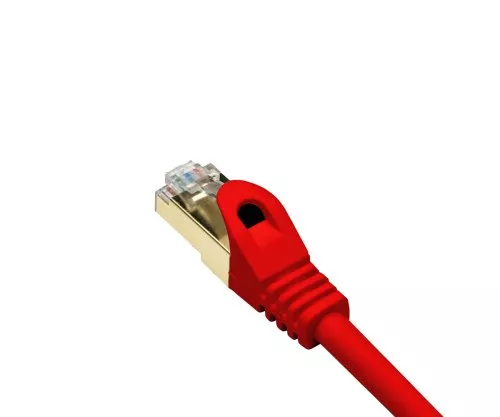

The RJ45 plugs (Cat.6A) with gold-plated contact surfaces (50 µ) are designed for reliable contacting in professional patch operation. The anti-kink sleeve is designed as a slimline version and has a length indication - helpful for quick identification in patch panels, racks and cable management.
The LSZH sheath material (halogen-free) is particularly suitable for structured cabling in buildings, technical centres and data centre environments where reduced smoke emission is required.
Areas of application
- Patch panel and switch connections in server cabinets / racks
- Data centre, server room, network distribution rooms
- Building technology and structured LAN cabling (secondary/tertiary area)
- System integration, IT rollouts, service and maintenance replacement
- Industry-related network segments with increased EMC influence
Technical data
| Article number | C7-3-RO |
| Category / Version | Cat.7 patch cable (raw cable base), Premium |
| Plug connector | 2x RJ45 plug (Cat.6A) |
| Transmission | up to 10 Gigabit Ethernet; downwards compatible 10/100/1000BASE-T |
| Bandwidth (tested) | up to 600 MHz |
| Shielding | S/FTP - PIMF (pairs in metal foil) + overall shield (braiding) |
| Conductor | Copper (CU), AWG 26 |
| Contact surfaces | gold-plated, 50 µ (PINs) |
| Assignment | Pair sequence according to EIA/TIA-568B |
| PoE suitability | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH (halogen-free) |
| Colour | Red colour |
| Cable length | 3,00 m |
| Packaging | DINIC polybag with Euro hole |
| EAN CODE | 4032528034638 |
Compatibility
- For all network devices with RJ45 socket (8P8C), e.g. switches, routers, patch panels, structured cabling, network sockets
- Suitable for 10/100/1000BASE-T and 10GBASE-T in the patch/connection area (depending on total distance/installation)
Scope of delivery
1x DINIC Cat.7 Premium patch cable, 3.00 m, red, 2x RJ45 (Cat.6A), individually in polybag.
DINIC is a brand of MAG GmbH - developed for professional connection and cabling solutions.
SEO: Cat.7 patch cable 3m red, S/FTP PIMF, LSZH halogen-free, RJ45 Cat.6A, 600MHz, 10GBASE-T, DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
