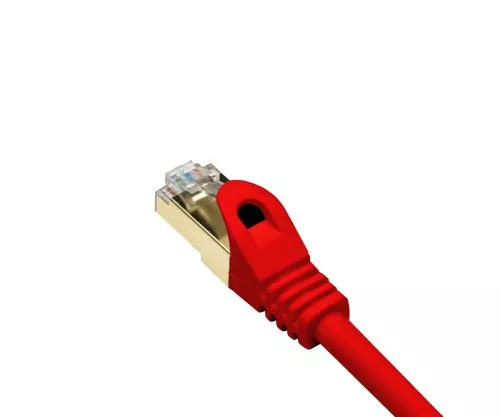

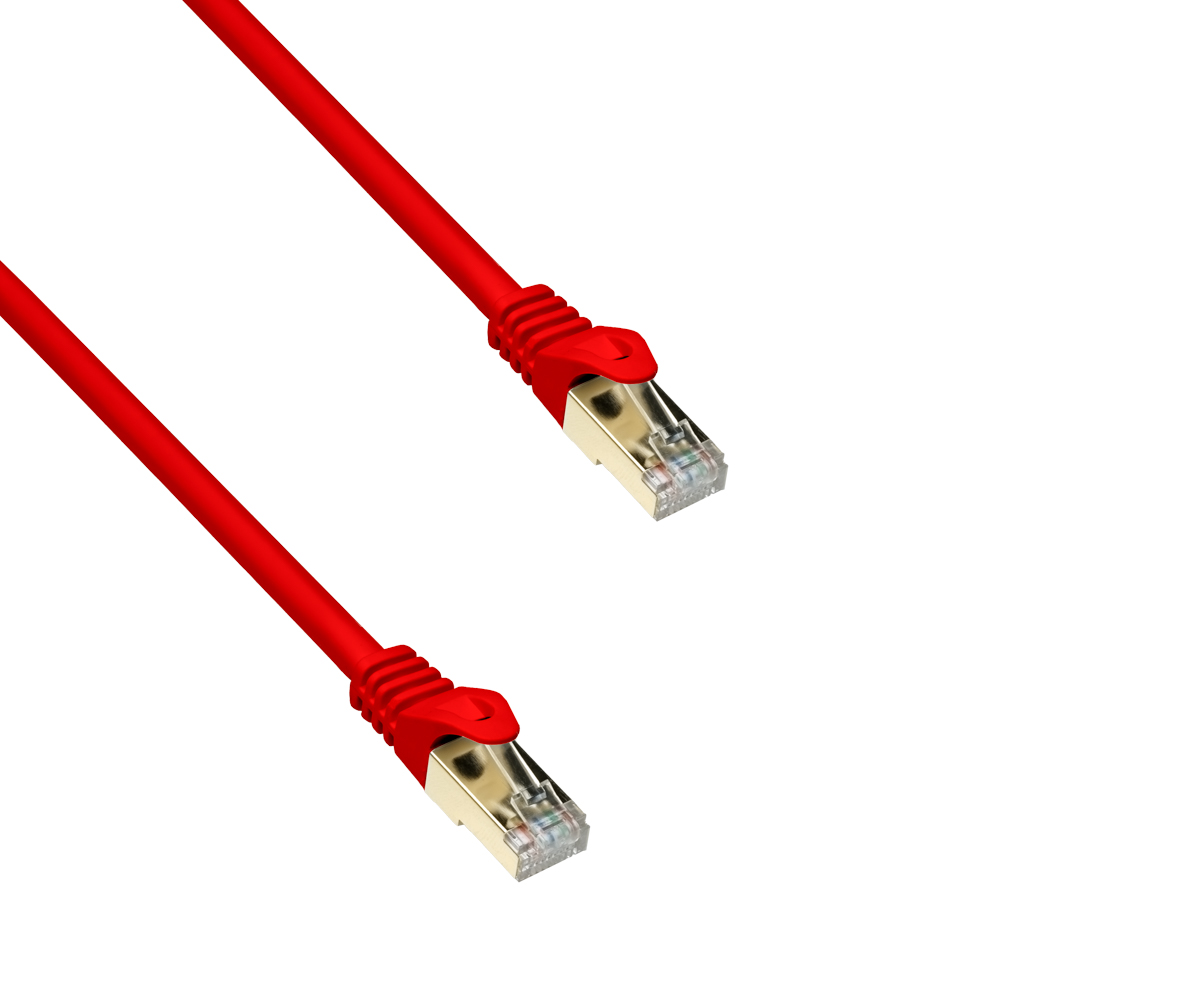

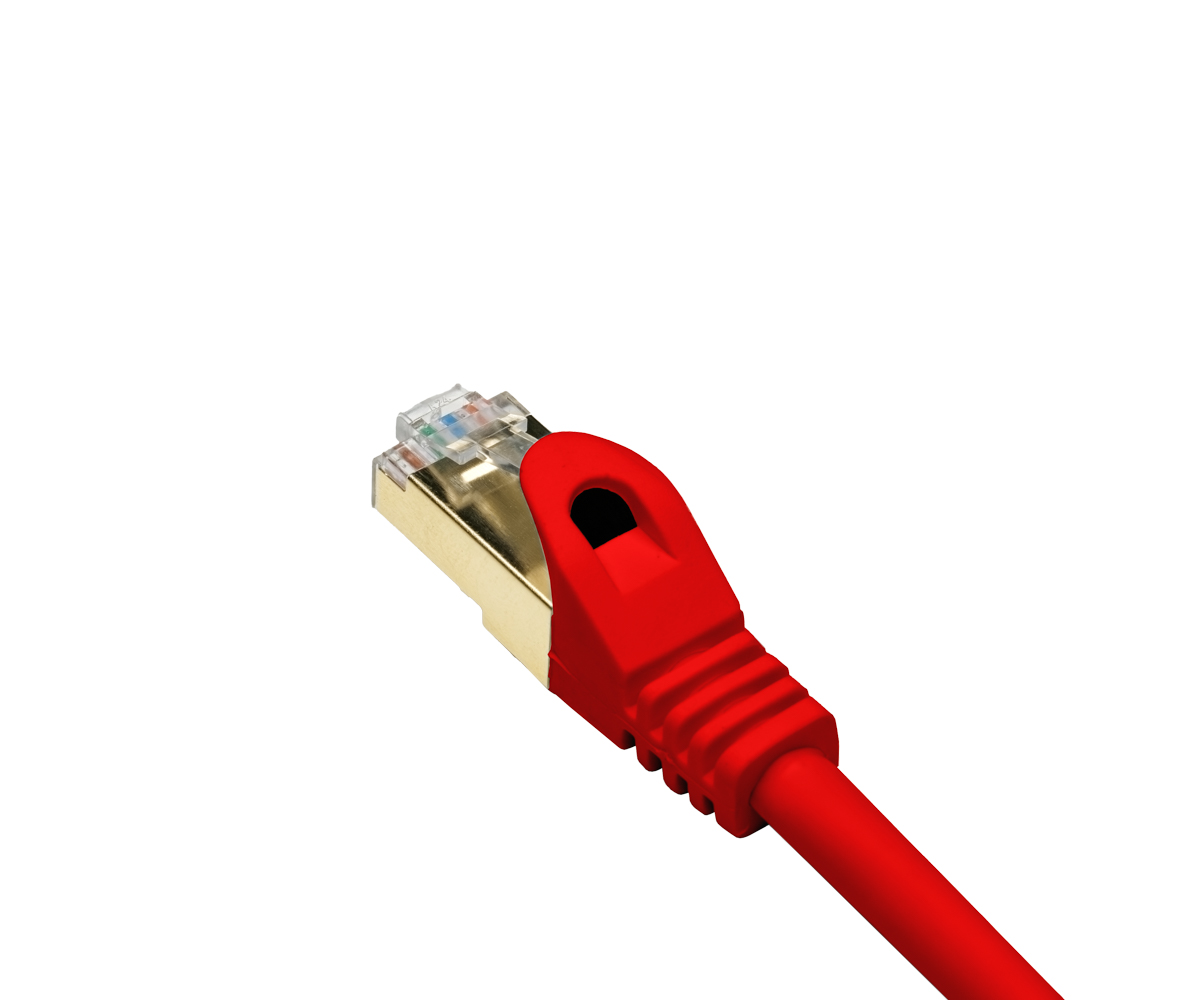

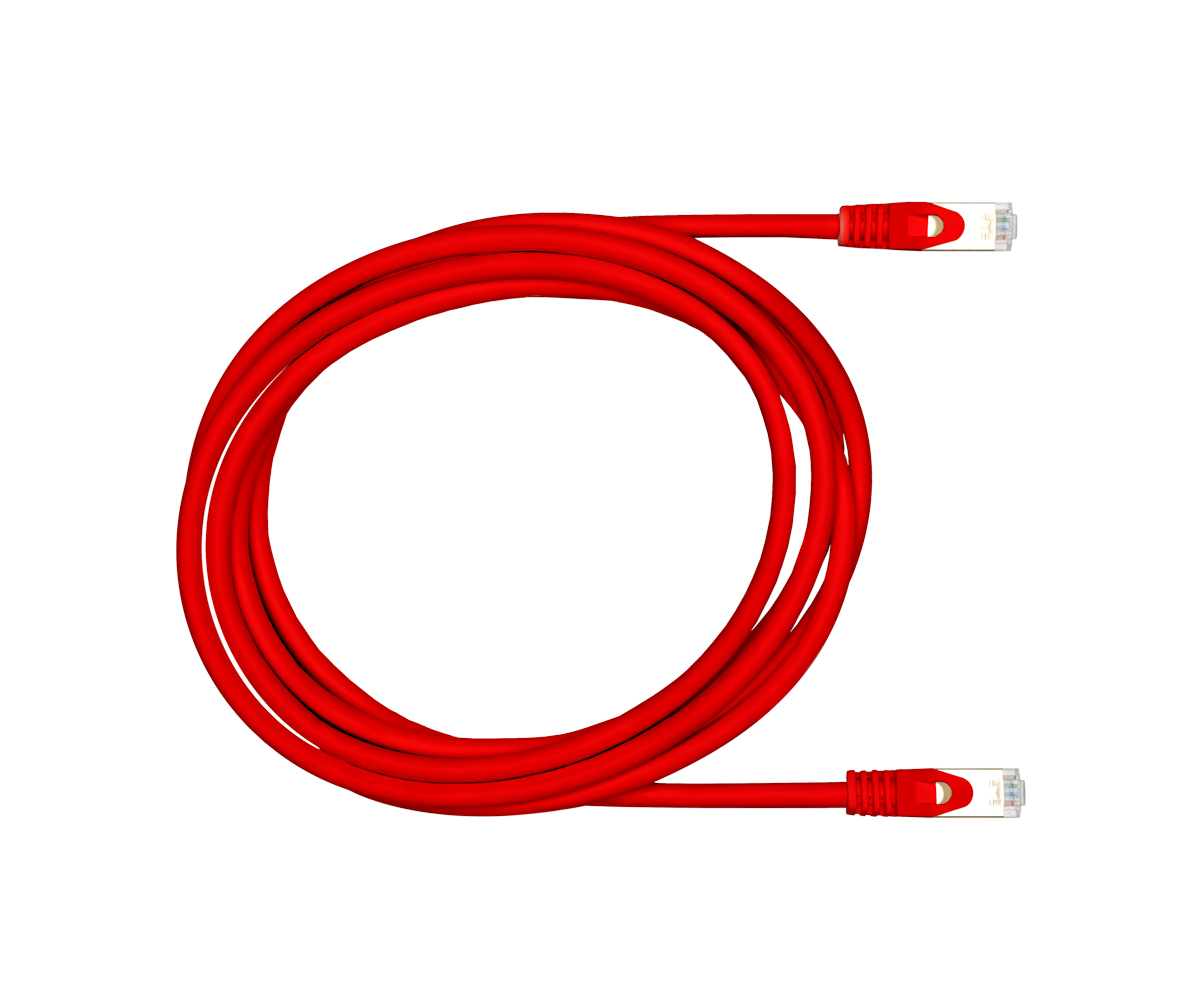

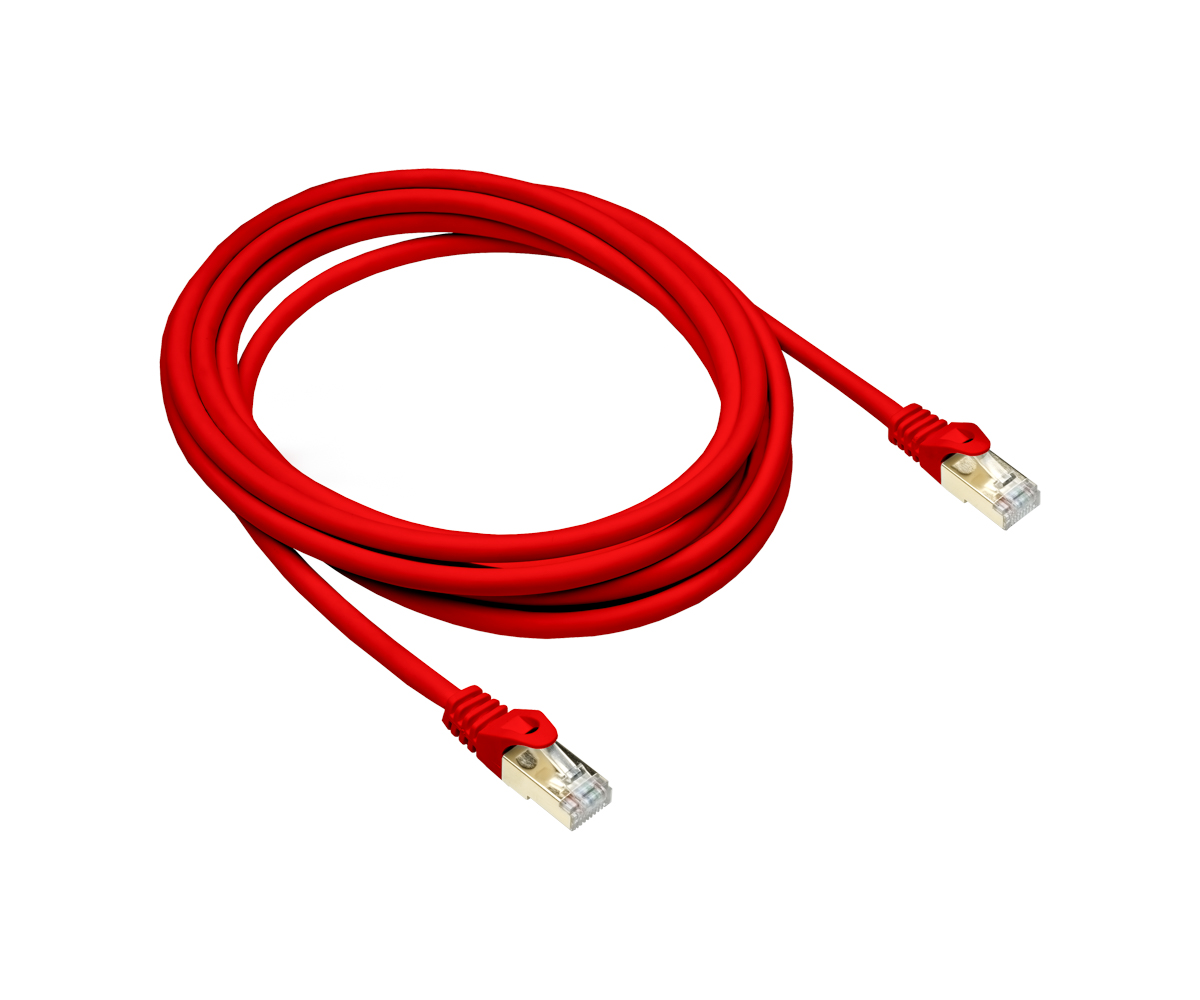

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, red, 2.00m
.png "Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, red, 2.00m")
DINIC Premium Cat.7 patch cable - 2.00 m - red - LSZH - 2x RJ45 (Cat.6A)
10 Gigabit Ethernet patch cable with S/FTP shielding (PiMF) and gold-plated contact surfaces - for structured cabling and professional network installations.
Technical highlights
- Cat.7 cable construction, tested up to 600 MHz - suitable for 10GBASE-T (10 Gigabit Ethernet)
- 2x RJ45 plugs (Cat.6A) with 50 µ gold-plated contact surfaces (PINs)
- Shielding: PiMF (wire pairs in metal foil) + overall shielding (braiding) - S/FTP for high interference immunity
- Conductor: high-quality copper inner conductor (CU), AWG 26
- LSZH sheath (halogen-free) - reduced fume emission for installation environments
- Latching nose protection + slimline anti-kink sleeve with length labelling
- Pair sequence according to EIA/TIA-568B - standard-compliant assignment for patch and connection lines
- PoE+ suitable (IEEE 802.3at) - power supply via data cable in building technology/IT
Description
The DINIC Premium Cat.7 patch cable is designed for high-performance network connections in professional installations. The Cat.7 cable, tested up to 600 MHz, supports 10 Gigabit Ethernet and is backwards compatible with 10/100/1000 BASE-T.
The S/FTP construction combines paired foil shielding (PiMF) with additional overall shielding (braiding). This achieves a high level of immunity to electromagnetic interference - an advantage in densely occupied patch panels, server cabinets and in the vicinity of power or control lines.
Gold-plated contact surfaces (50 µ) and latching lug protection support permanently stable mating cycles. The LSZH jacket (halogen-free) is designed for installation environments in which reduced fume emission is required on the material side. The slimline anti-kink sleeve with length labelling facilitates documentation and assignment in the field.
Areas of application
- Data centre & server room: patch panels, switch uplinks, structured cabling
- Office IT & system integration: workstation connections, floor distributors, rack cabling
- Industry-related IT/automation: interference-free Ethernet routes in EMC-critical environments
- Building technology: PoE+ supply for access points, IP telephones, cameras (device-dependent)
Technical data
| The product | Premium Cat.7 patch cable |
| Connectors | 2x RJ45 plug (Cat.6A) |
| Transmission | 10 Gigabit Ethernet, downward compatible to 10/100/1000 BASE-T |
| Bandwidth (test) | up to 600 MHz |
| Conductor material | CU (copper) |
| Conductor cross-section | AWG 26 |
| Shielding | PiMF + overall shield (braiding), S/FTP |
| Contact surface | 50 µ gold-plated PINs |
| Assignment | EIA/TIA-568B |
| PoE | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH, halogen-free |
| colour | red colour |
| Cable length | 2,00 m |
| Packaging | DINIC Polybag (with Euro hole) |
| Item number | C7-2-RO |
| EAN CODE | 4032528034621 |
Compatibility
- For active network components and passive infrastructure with RJ45 port (e.g. switch, router, patch panel, junction box)
- Suitable for 10/100/1000 BASE-T and 10GBASE-T (depending on device and installation)
- PoE+ scenarios in accordance with IEEE 802.3at (device-dependent)
Scope of delivery
1x patch cable Cat.7, 2.00 m, red, LSZH, 2x RJ45 plugs (Cat.6A), packed in DINIC polybag.
DINIC is a brand of MAG GmbH - developed for professional cabling and infrastructure applications.
Keywords: Cat.7 patch cable LSZH halogen-free 2m red RJ45 Cat.6A S/FTP PiMF 600MHz 10GBASE-T DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
