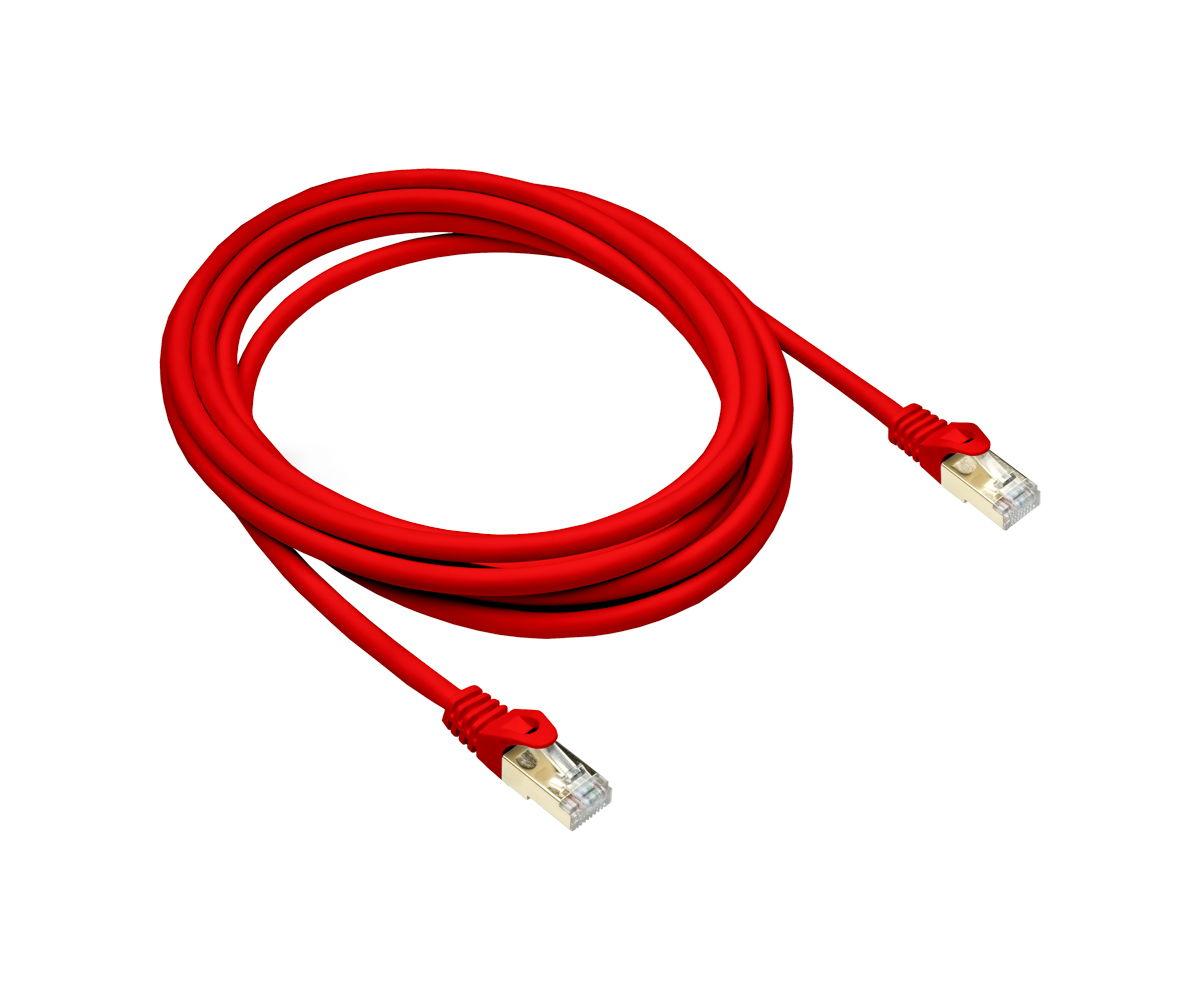

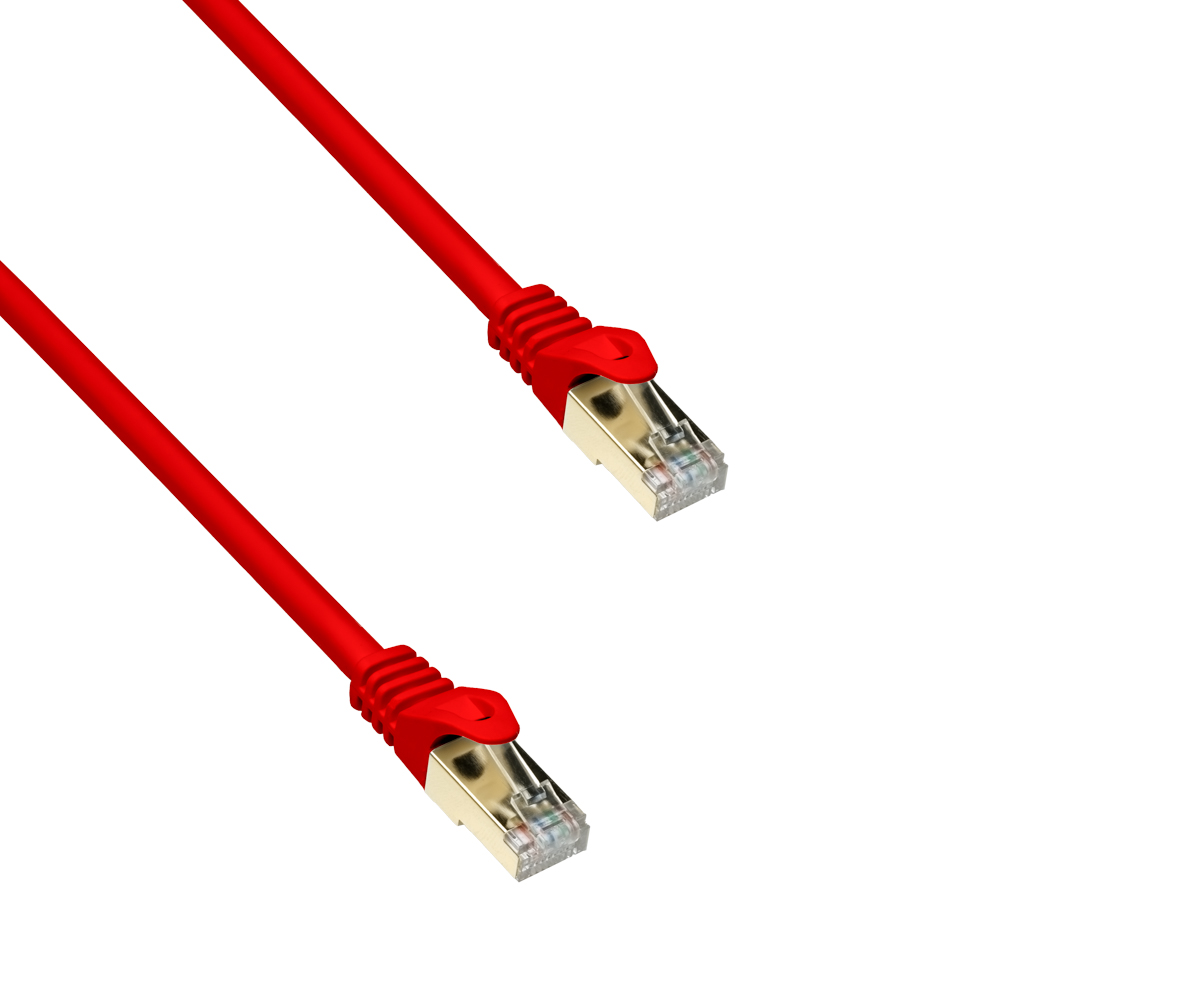

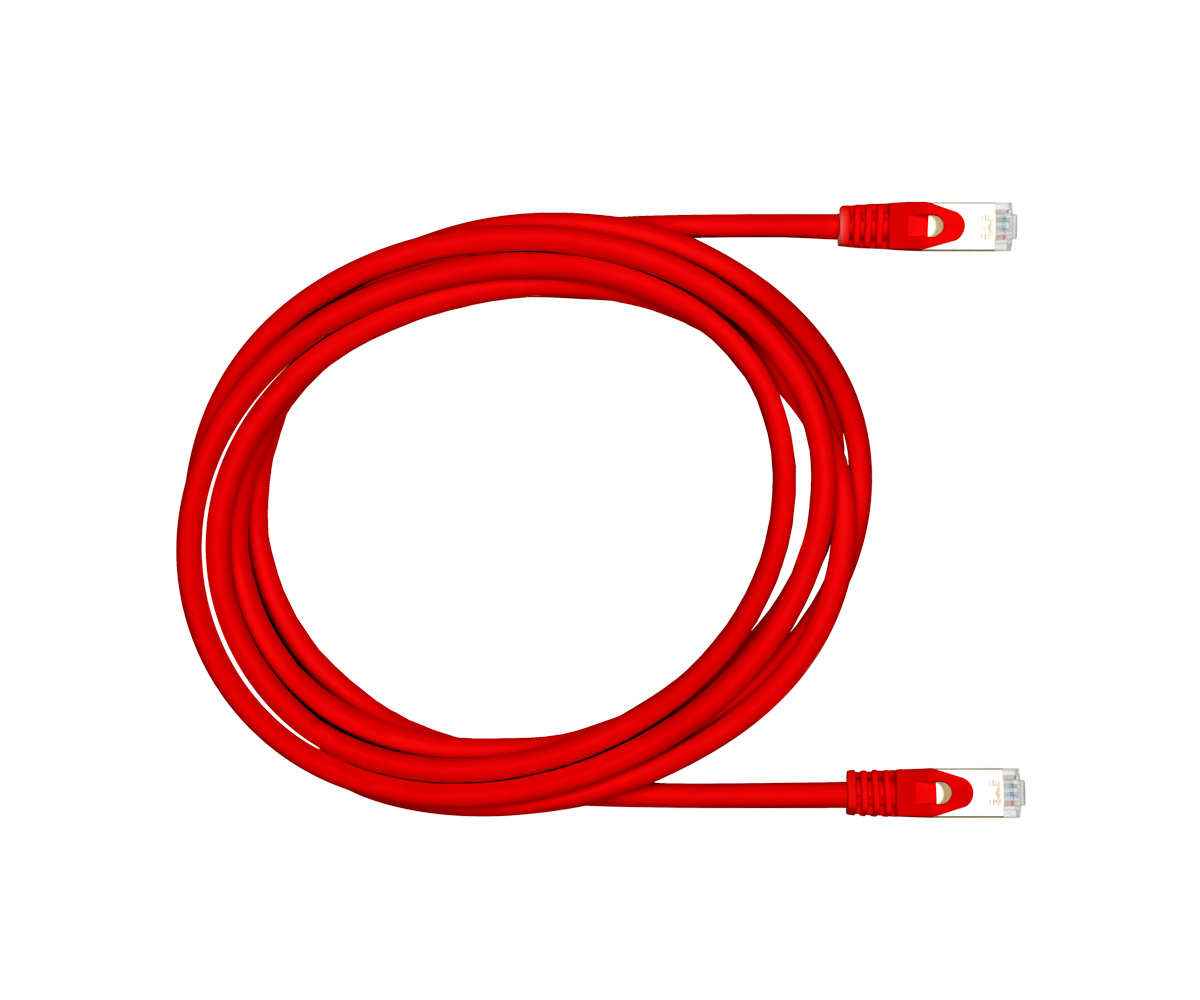

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, red, 0.30m
SOLD OUT
DINIC Premium Cat.7 patch cable LSZH - 0.30 m, red, 2× RJ45 (Cat.6a)
S/FTP (PIMF + braiding), tested up to 600 MHz, 10 Gigabit Ethernet, halogen-free LSZH jacket
Technical highlights
- Cat.7 patch cable (raw cable) with 2× RJ45 plugs (Cat.6a), pair sequence according to EIA/TIA 568B
- Tested up to 600 MHz, suitable for 10 Gigabit Ethernet; downwards compatible with 10/100/1000 BASE-T
- Shielding: PIMF wire pair shielding (pairs in metal foil) + overall braided shielding, S/FTP
- Inner conductor: high-quality copper (CU), conductor size AWG 26
- Contact surfaces: 50 µ gold-plated PINs for stable contacting with frequent mating
- LSZH sheath (halogen-free) for reduced smoke gas development in building cabling systems

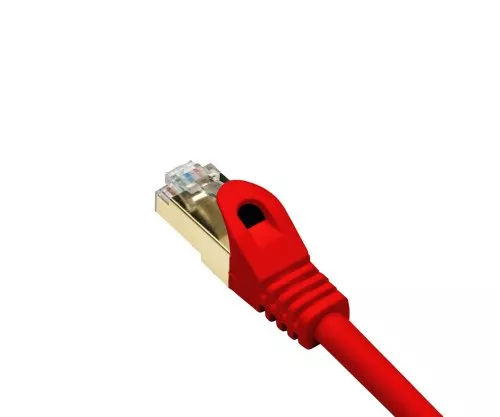

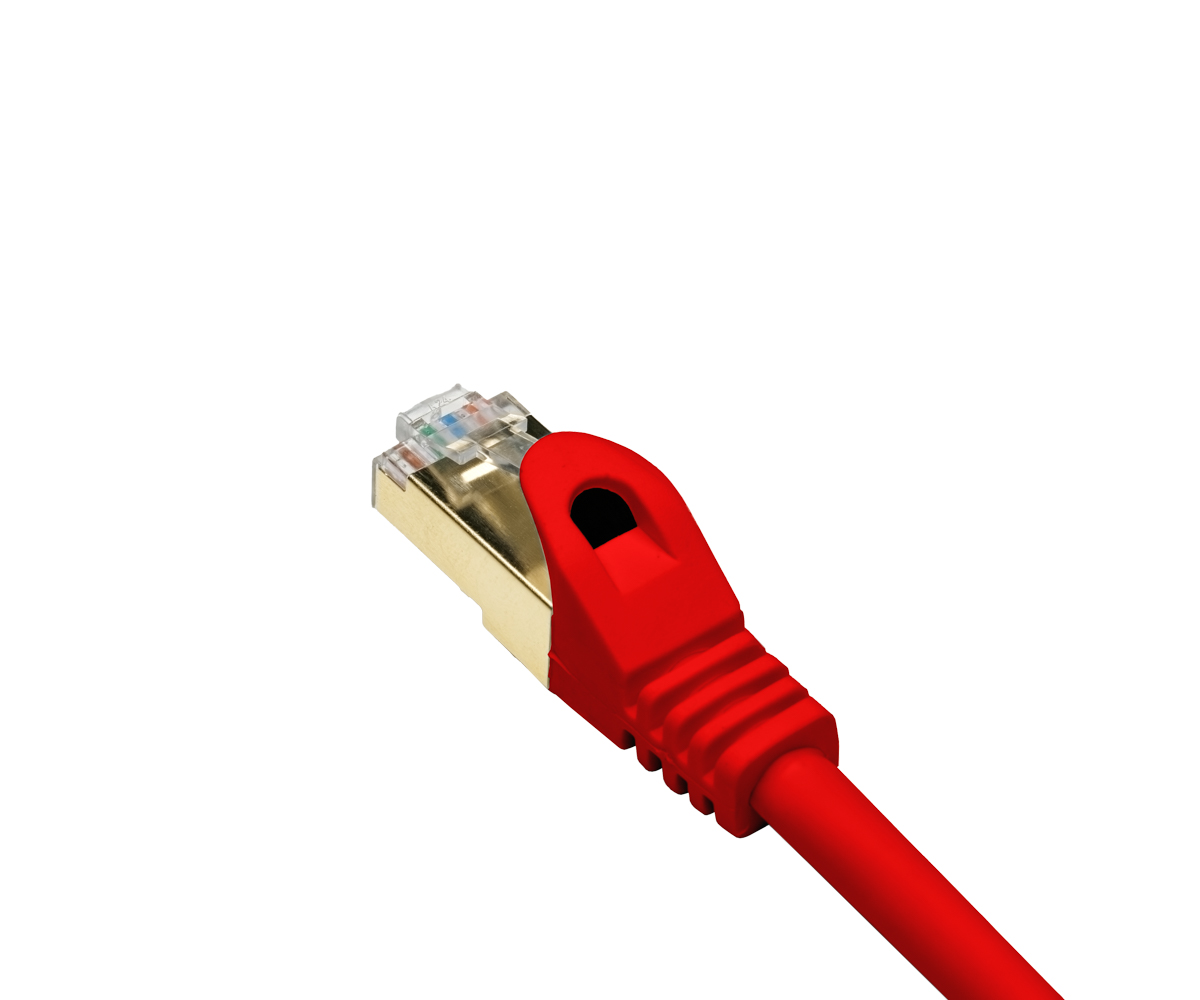

- Slimline anti-kink sleeve with length specification; snagless protection to protect the locking mechanism
- Suitable for PoE+ (IEEE 802.3at) in professional network segments
Cable description
The DINIC Premium Cat.7 patch cable is designed for high-performance RJ45 connections in a 10 Gigabit environment. The combination of paired foil shielding (PIMF) and additional overall shielding as a braid (S/FTP) supports low-interference data transmission even in installation environments with increased EMC requirements.
The halogen-free LSZH outer jacket is designed for use in professional building installations and technical areas. Gold-plated contact surfaces (50 µ) and integrated latching lug protection increase the operational reliability of patch panels, switch ports and end devices with frequent mating cycles.
The short length of 0.30 m is particularly suitable for clean routing in the rack, for switch-to-patch panel connections and for space-optimised patch panel and device couplings.
Areas of application
- 19" control cabinet and server cabinet cabling (top-of-rack / end-of-row)
- Patch panel-to-switch routing in data centres and server rooms
- Building technology and structured cabling in office and industrial environments
- System integration, IT infrastructure rollouts, maintenance and rewiring
- PoE/PoE+ connections for access points, VoIP, cameras and IoT gateways
Technical data
| The product | Premium Cat.7 patch cable (raw cable), pre-assembled |
| Plug type | 2× RJ45 plug (Cat.6a) |
| Transmission | 10 Gigabit Ethernet, downwards compatible to 10/100/1000 BASE-T |
| Test/bandwidth | Tested up to 600 MHz |
| Shielding | S/FTP: PIMF (wire pairs in metal foil) + overall braided shielding |
| Conductor material | CU (copper) |
| Conductor size | AWG 26 |
| Contact surfaces | Gold-plated PINs, 50 µ |
| PoE | suitable for PoE+ (IEEE 802.3at) |
| Jacket | LSZH, halogen-free |
| colour | red colour |
| Cable length | 0,30 m |
| Kink protection / design | Slimline anti-kink sleeve with length specification, snap-in lug protection |
| article number | C7-03-RO |
| EAN | 4032528042947 |
| Packaging | DINIC polybag with Euro hole |
Compatibility
- For active network components and end devices with RJ45 socket (Ethernet)
- Patch panels, switches, routers, firewall appliances, servers, NAS, VoIP, PoE/PoE+ infrastructures
- Suitable for 10/100/1000 BASE-T and 10GBASE-T installations (device-dependent)
Scope of delivery
1× DINIC Premium Cat.7 patch cable LSZH, red, 0.30 m (2× RJ45)
