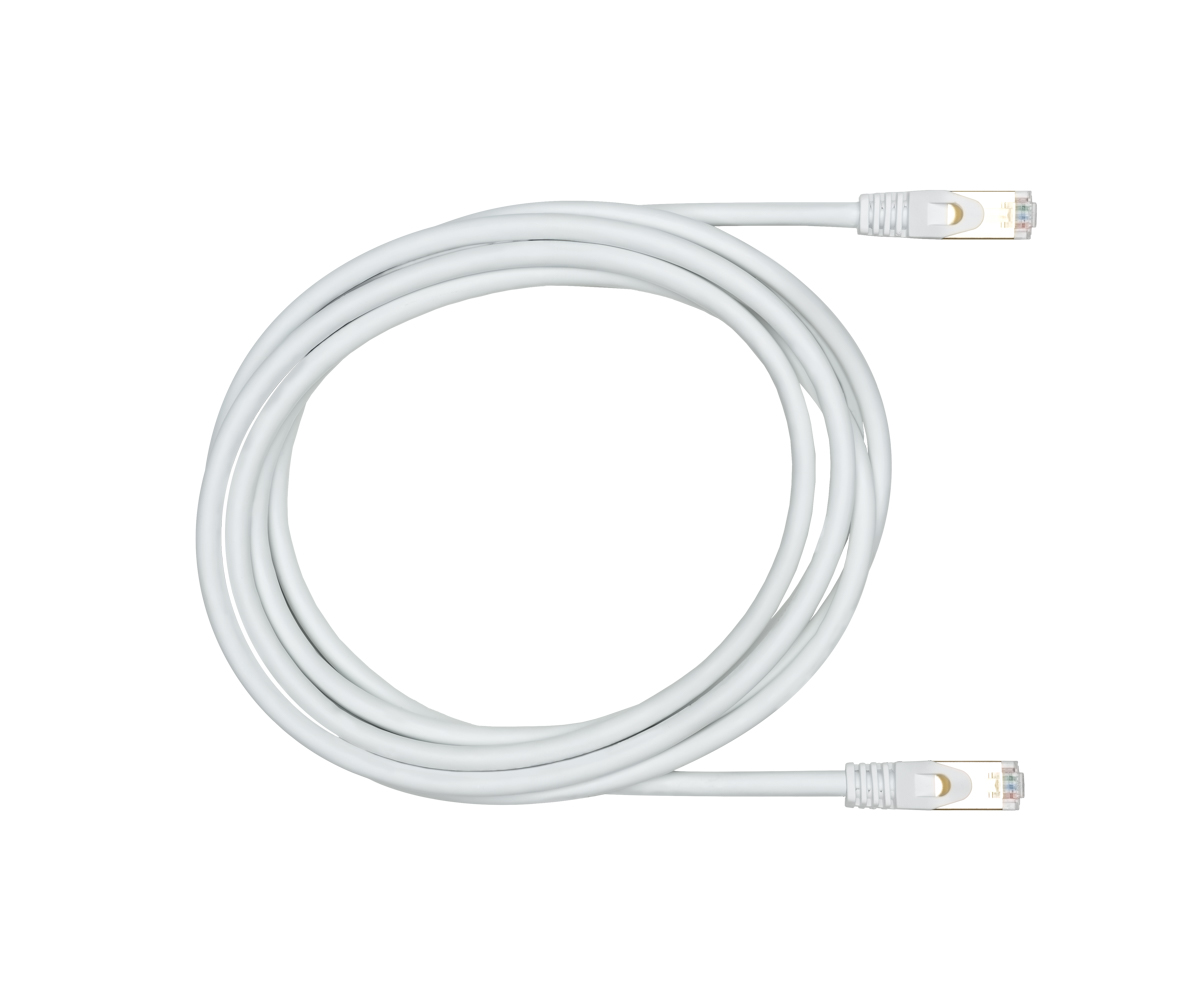

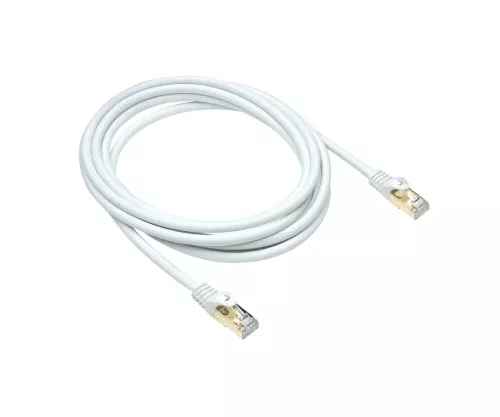

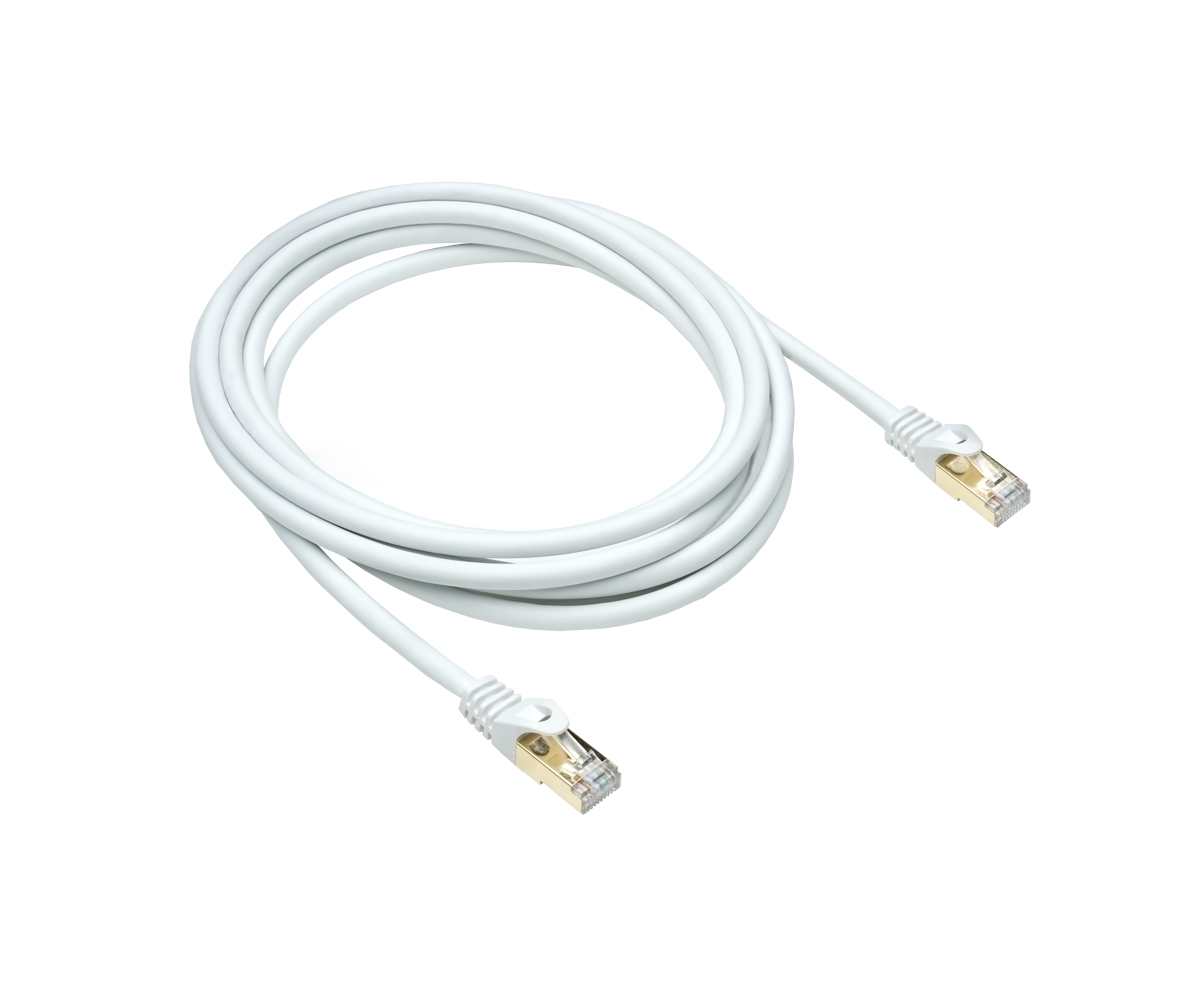

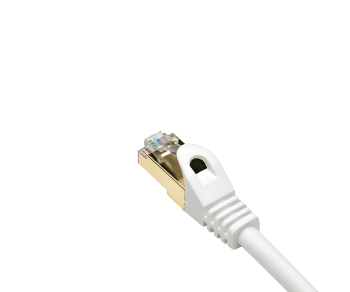

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, white, 5.00m

• Cat.7 patch cable, tested up to 600 MHz, suitable for 10 Gbit Ethernet (downwards compatible with 10/100/1000BASE-T)
• S/FTP construction: paired metal foil shielding (PIMF) plus overall shielding (braiding) for high interference immunity

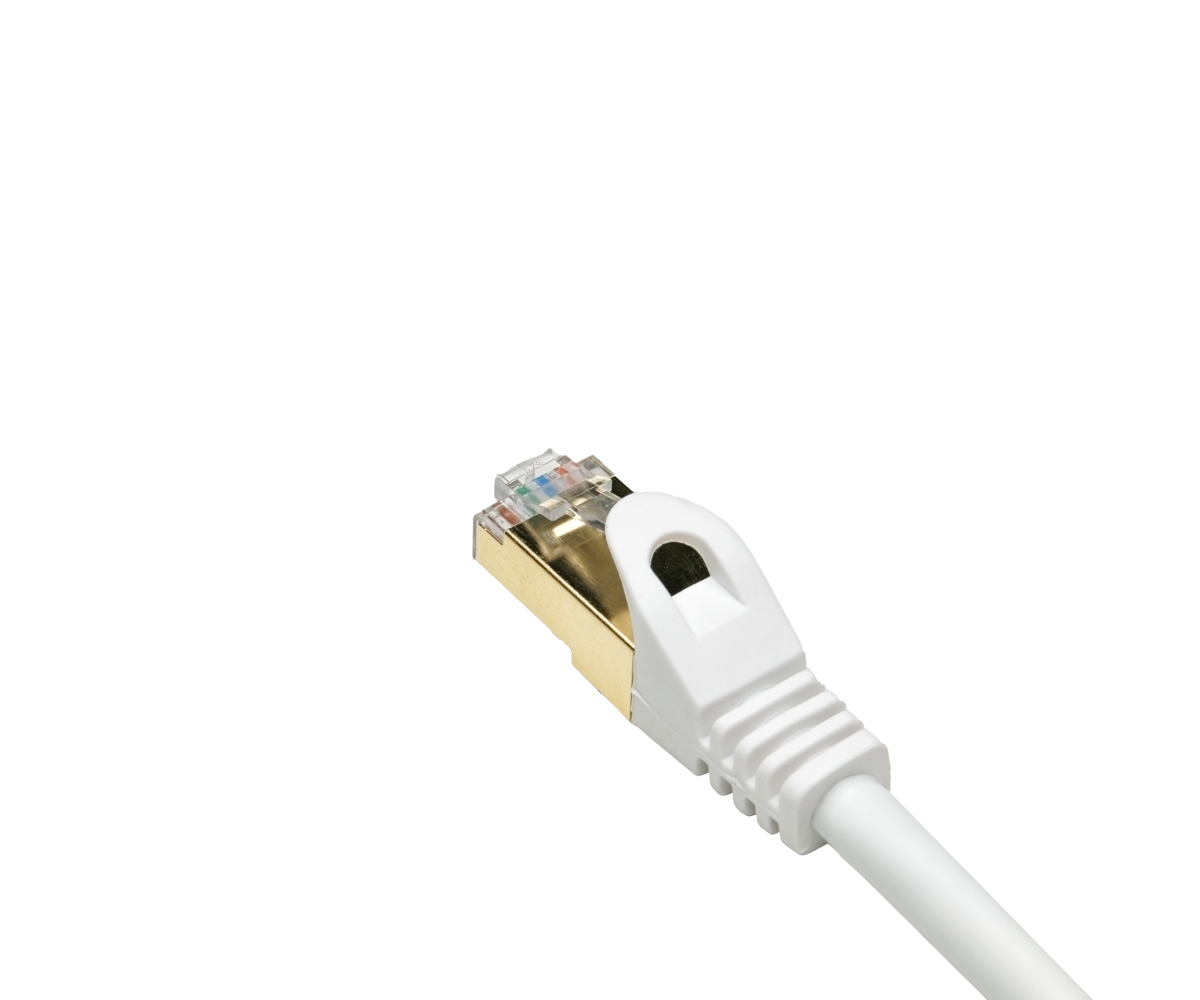

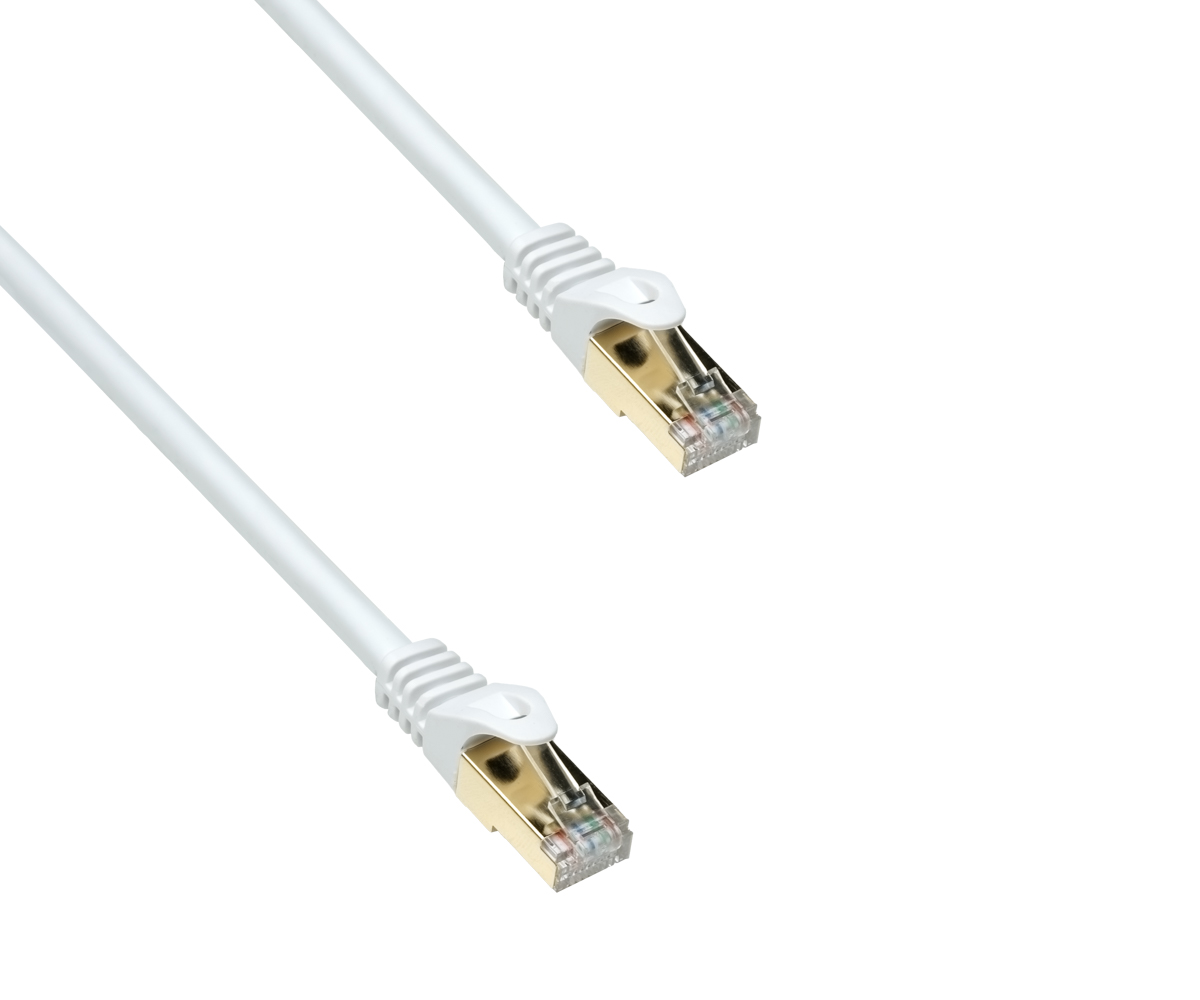

• 2× RJ45 plugs (Cat.6A) with 50 µ gold-plated contact surfaces (PINs) and latching nose protection
• Inner conductor: 100% copper (CU), AWG 26 (no CCA) for low attenuation and stable transmission values
• PoE+ suitable in accordance with IEEE 802.3at for supplying compatible end devices via the network cable
• Slimline anti-kink sleeve with printed length specification for quick identification in the rack/switch cabinet
• LSZH jacket (halogen-free, low-smoke) for installations with increased fire load/emission requirements
• Pair sequence in accordance with EIA/TIA 568B for standard-compliant patch and building cabling

The DINIC Premium Cat.7 patch cable in 5.00 m is designed for professional network environments where stable data rates and high shielding reserves are required. The S/FTP construction with PIMF (paired foil shielding) and additional braided shielding effectively reduces electromagnetic influences and crosstalk - especially with dense port assignments in patch panels and distributors.

The 100% copper conductors (AWG 26) support low attenuation values and reliable power transmission for PoE+ scenarios (IEEE 802.3at). Cat.6A class RJ45 plugs with 50 µ gold-plated contacts are designed for long-term mating cycles; latching nose protection and slimline kink protection improve handling and reduce mechanical stress at the plug transition.

The LSZH jacket (halogen-free) is suitable for installations in sensitive areas where low-smoke and halogen-free materials are required (e.g. public buildings, data centre environments, industry).

• Patch panel and rack cabling in server rooms and data centres
• Building and floor cabling (structured cabling)
• Control cabinet construction and industrial automation (EMC-loaded environments)
• System integration, specialised trade, service and rollout projects
• PoE+ routes for access points, IP telephones, cameras and IoT endpoints

• For network components with RJ45 Ethernet interface (e.g. switch, router, patch panel, media converter, network socket)
• Suitable for 10/100/1000BASE-T and 10GBASE-T within the installed link route
• Supports PoE+ supply of compatible end devices in accordance with IEEE 802.3at (e.g. access points, IP cameras, IP telephones)
