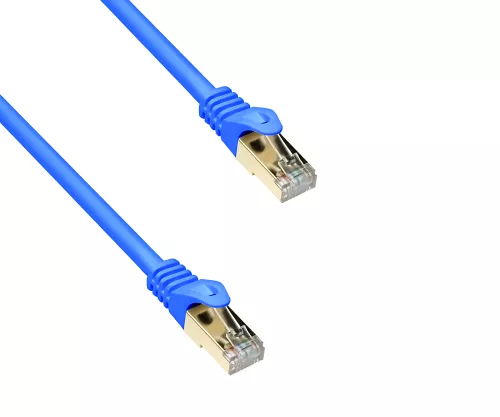

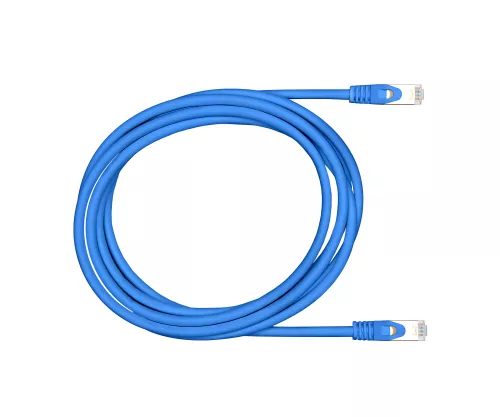

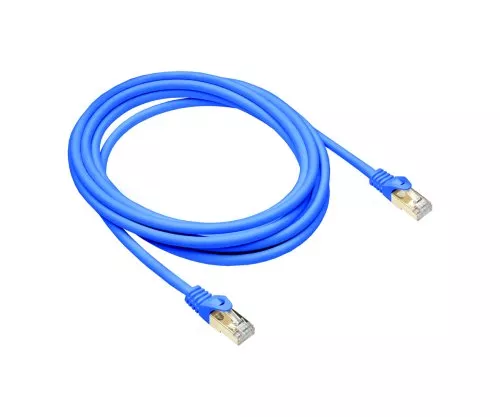

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 5.00m

• Cat.7 cable construction, tested up to 600 MHz; suitable for 10 Gigabit Ethernet (10GBASE-T)
• 2× RJ45 plugs (Cat.6A), pair sequence according to EIA/TIA-568B
• Shielding: PiMF (wire pair foil shield) + overall shield (braiding) - S/FTP for low-interference transmission
• Copper inner conductor, conductor size AWG 26
• 50 µ gold-plated contact surfaces (pins) for stable contacting with frequent plugging
• LSZH sheath (halogen-free) for installation environments with increased fire protection requirements

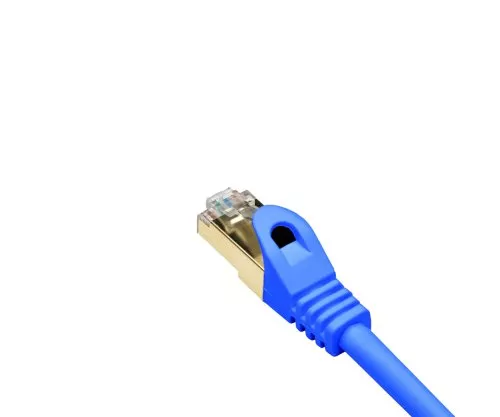

• Latching nose protection and slimline anti-kink sleeve; length specification directly on the anti-kink sleeve
• PoE+ suitable (IEEE 802.3at); downwards compatible with 10/100/1000BASE-T

The DINIC Premium Cat.7 patch cable is designed for high-performance copper network links and supports 10GBASE-T applications with a tested bandwidth of up to 600 MHz. The S/FTP construction combines paired foil shielding (PiMF) with additional overall shielding to reduce interference in dense cabling environments.

Copper inner conductors in AWG 26 and 50 µ gold-plated RJ45 contact surfaces ensure robust, repeatable contacting in the patch panel and device connection. The LSZH jacket (halogen-free) supports use in professional building structures and technical areas where reduced exposure to fumes/corrosion is required.

Slimline anti-kink sleeves with printed length labelling and latching nose protection make installation easier, increase the bending reserve on the connector and improve handling with high port density.

• Structured cabling in office and administration buildings
• Patch panel/switch connections in server cabinets and technical rooms
• Data centre/IT infrastructure with high port density and EMC requirements
• Industrial networks and automation (EMC-critical environments)
• PoE+/IP end devices (e.g. access points, IP cameras, VoIP telephones)

For all active and passive network components with RJ45 interface (e.g. switches, routers, patch panels, IP end devices) in 10/100/1000BASE-T and 10GBASE-T networks.

• 1× DINIC Premium Cat.7 patch cable, LSZH, blue, 5.00 m (2× RJ45)
• Individual packaging: DINIC polybag with Euro hole
