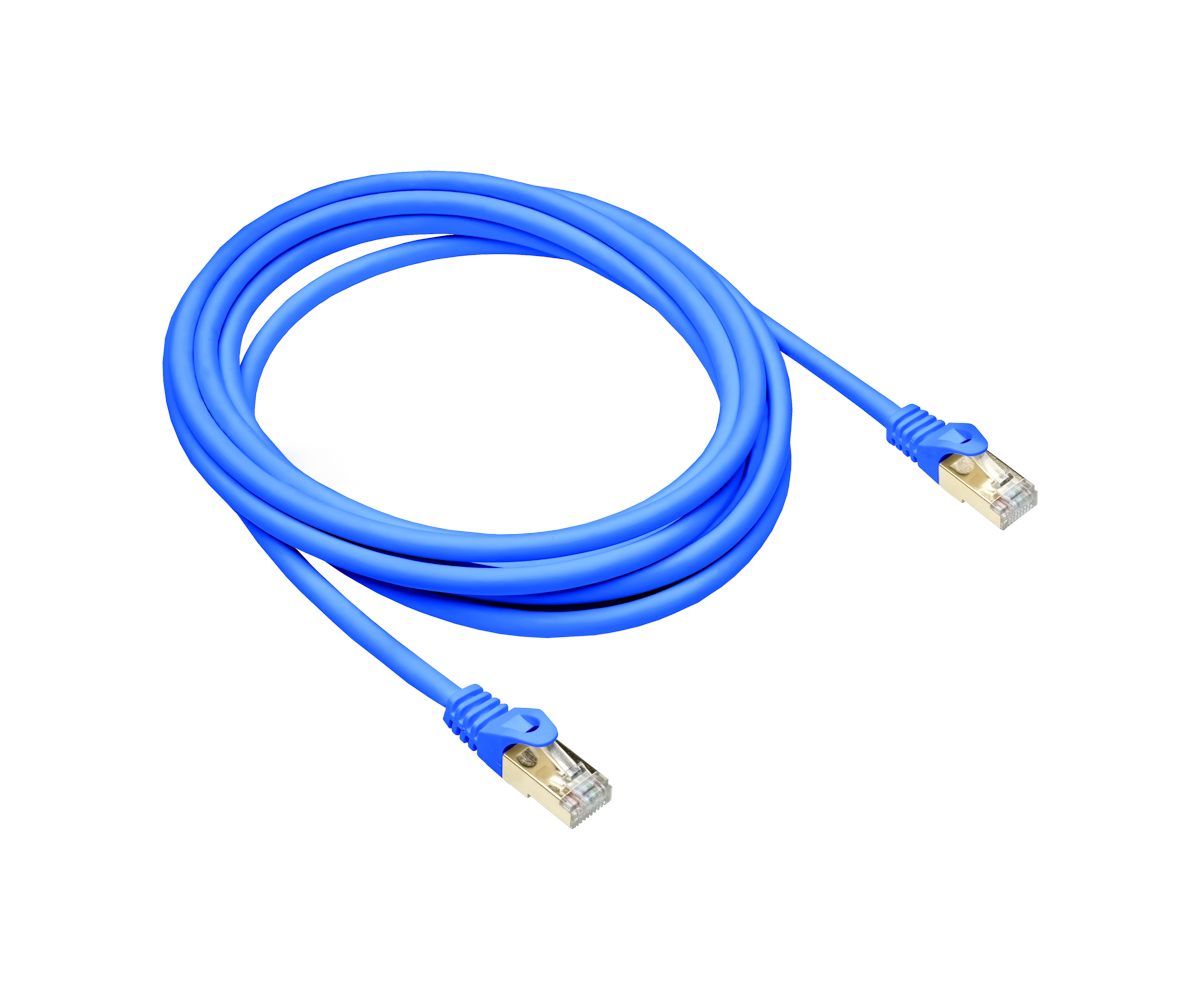

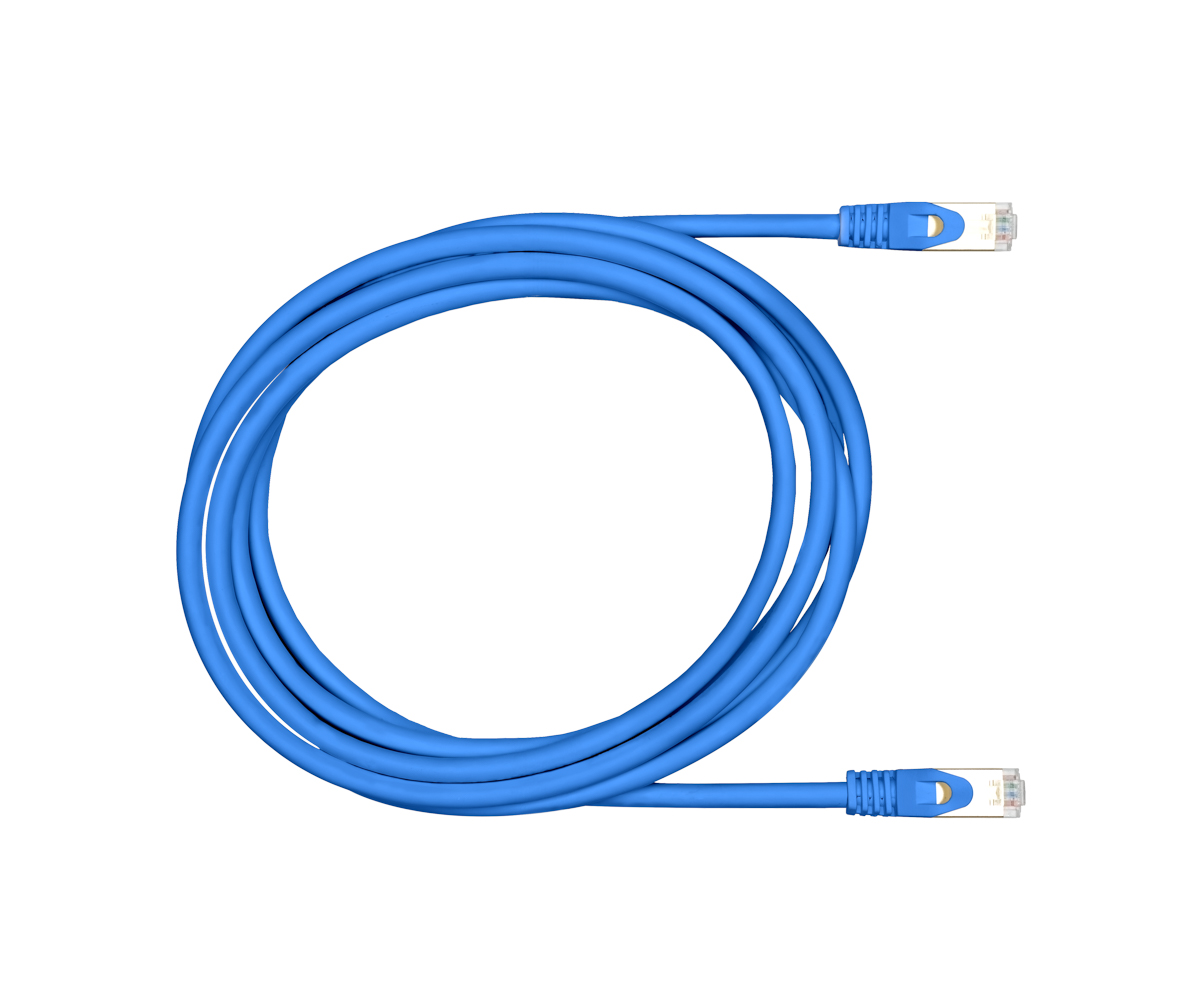

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 10.00m

• Cat.7 cable construction, tested up to 600 MHz - suitable for 10 Gbit Ethernet (10GBASE-T) and downwards compatible with 10/100/1000BASE-T

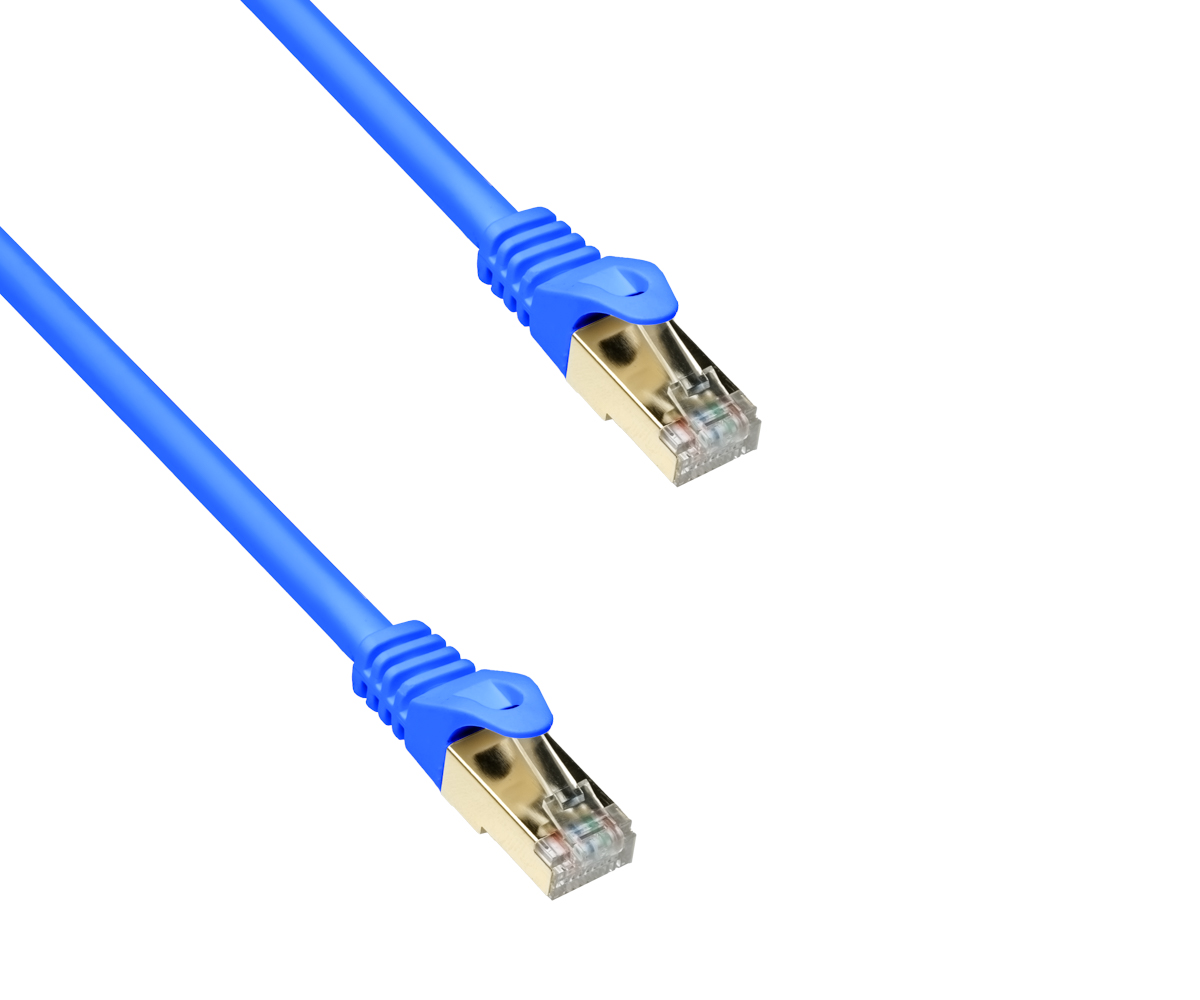

• 2× RJ45 plugs (Cat.6A-compliant) - universal for structured copper cabling with RJ45 port
• S/FTP shielding: PiMF (wire pairs in metal foil) + overall shielding (braiding) - high interference immunity in dense routes and rack environments
• 100% copper conductor (CU), conductor cross-section AWG 26 - stable link performance and low attenuation
• Contact surfaces: 50 µ gold-plated pins - low-corrosion, long-lasting mating cycles
• PoE+ suitable (IEEE 802.3at) - supply of compatible end devices via the data network possible
• LSZH sheath (halogen-free) - reduced fume emission, suitable for sensitive building and IT installations

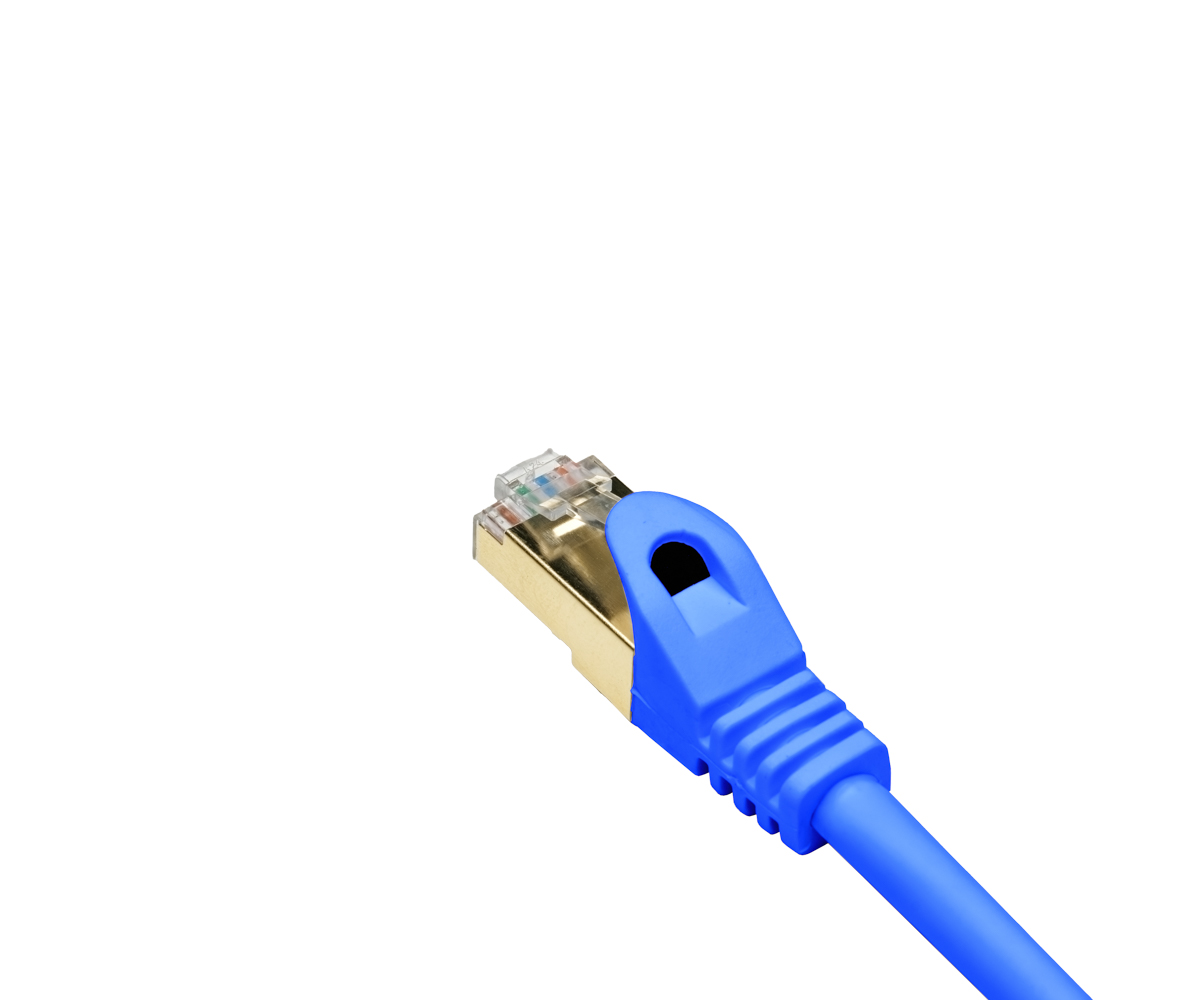

• Slimline anti-kink sleeve with length specification + latching lug protection - clean port routing, quick identification, mechanical protection of the latching lug

The DINIC Premium Cat.7 patch cable (10.00 m) is designed for professional network cabling with high bandwidth and EMC reserve requirements. The 600 MHz tested Cat.7 construction supports 10 Gigabit Ethernet (10GBASE-T) and at the same time remains compatible with existing 1G/100M/10M infrastructures.

The double shielding as S/FTP (PiMF + braiding) reduces crosstalk and external interference - advantageous when routed parallel to power lines, in cable bundles and in densely populated 19" racks. Gold-plated contact surfaces (50 µ) and robust anti-kink sleeves increase operational reliability in daily use.

The slimline anti-kink sleeve with printed length information facilitates clear assignment in patch panels and distributors; the locking lug protection minimises the risk of failure due to damaged locking mechanisms.

• Patch panel/switch cabling in 19" racks (data centres, server rooms, network cabinets)
• Structured building cabling (floor distributors, data outlets, consolidation points)
• System integration, office IT and campus networks with clear colour/length coding
• Industrial IT/OT environments with increased EMC load (S/FTP advantage)
• PoE+ routes for IP telephony, access points, cameras, IoT end devices

For active and passive network components with RJ45 Ethernet socket, e.g. switches, routers, firewalls, servers, patch panels, data outlets, IP telephones, access points, media converters and PoE+-capable end devices.

1× DINIC Premium Cat.7 patch cable, S/FTP, LSZH, 2× RJ45 (Cat.6A-compliant), 10.00 m, blue, in DINIC polybag with Euro hole.
