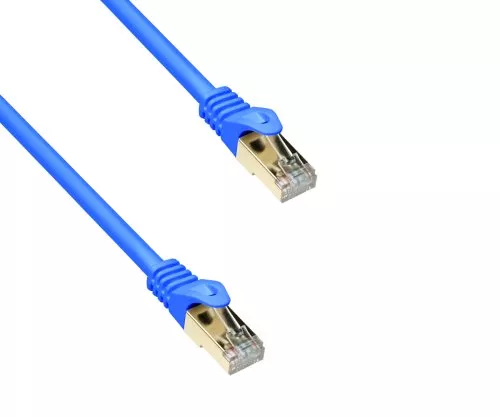

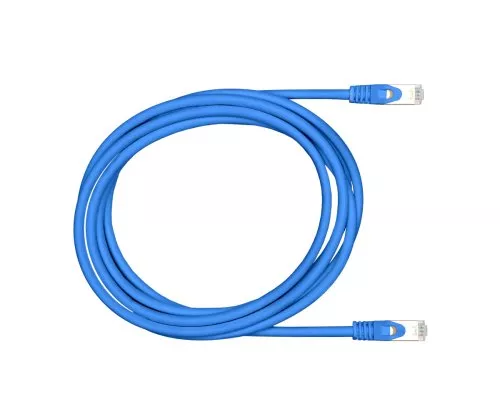

Premium Cat.7 patch cable, LSZH, 2x RJ45 plug, copper, blue, 0.50m
DINIC Premium Cat.7 patch cable LSZH - 0.50 m, blue
S/FTP (PiMF + braiding), 2× RJ45 (Cat.6A-compliant) - for 10GBase-T in professional network infrastructures
Technical highlights
- Cat.7 cable construction, tested up to 600 MHz; suitable for 10 Gigabit Ethernet (10GBase-T), downwards compatible with 10/100/1000 BASE-T
- S/FTP shielding: wire pairs in metal foil (PiMF) plus overall shielding (braiding) for high interference immunity
- 2× RJ45 plugs (Cat.6A-compliant, 8P8C) with 50 µ gold-plated contact surfaces
- 100 % copper conductor (CU), AWG 26 - stable attenuation/link values in dense patch fields
- PoE+ suitable (IEEE 802.3at) for supplying compatible end devices via the data network
- LSZH jacket (halogen-free) for reduced smoke development and corrosive gases in the event of fire
- Latching lug protection and slimline anti-kink grommet with length specification for quick identification in the rack
- Pair sequence according to EIA/TIA 568B
Cable description
The DINIC Premium Cat.7 patch cable (0.50 m) is designed for professional network cabling where high shielding reserves and stable 10GBase-T connections are required. The Cat.7 cable construction, tested up to 600 MHz, supports 10 Gigabit Ethernet and can also be used in existing 10/100/1000 BASE-T environments.
The S/FTP construction (PiMF per wire pair + braiding as overall shield) reduces crosstalk and electromagnetic interference - especially in densely occupied 19" racks, cable trays and patch panels. 50 µ gold-plated contact surfaces ensure permanently reliable contacting, while the latching lug protection supports handling during operation.
The LSZH outer jacket (halogen-free) is suitable for installations in safety-relevant areas. The slimline anti-kink sleeve with printed length information facilitates structured port and route labelling.
Areas of application
- Data centre, 19" racks, patch panels and switch-to-patch panel cabling
- Office IT and building cabling (floor distributors, data outlets, patch panels)
- System integration, server/storage connections, network peripherals
- PoE/PoE+ applications (e.g. access points, VoIP, IP cameras) in suitable infrastructure
- Industrial environments with increased EMC requirements (e.g. close to switch cabinets)
Technical data
| Product type | Premium patch cable (pre-assembled) |
| Category / Test | Cat.7 cable construction, tested up to 600 MHz; suitable for 10GBase-T |
| Connectors | 2× RJ45 (Cat.6A-compliant), 50 µ gold-plated contact surfaces, latching nose protection |
| Conductor | Copper (CU), AWG 26 |
| Cores / structure | 4 paired pairs (8 cores) |
| Shielding | PiMF (pairs in metal foil) + overall shield (braiding), S/FTP |
| PoE suitability | PoE+ suitable (IEEE 802.3at) |
| Jacket | LSZH (halogen-free) |
| Pair sequence | EIA/TIA 568B |
| Colour | Blue colour |
| Cable length | 0,50 m |
| Packaging | DINIC polybag with Euro hole |
| Item number | C7-05-BL |
| EAN CODE | 4032528034782 |
Compatibility
- For active and passive network components with RJ45 Ethernet port (8P8C), e.g. switches, routers, firewalls, servers, patch panels, network outlets, media converters
- Supports 10/100/1000 BASE-T and 10GBase-T in suitable infrastructure
- Can be used for PoE/PoE+ end devices (e.g. access points, VoIP, IP cameras) in accordance with IEEE 802.3at
Scope of delivery
1× DINIC Premium Cat.7 patch cable, LSZH (halogen-free), blue, 0.50 m, 2× RJ45 (Cat.6A-compliant), packed in DINIC polybag with Euro hole.
