DINIC IEC 60320-C8 Socket for screwing R-201

Two-pole IEC 60320-C8 small appliance box (Euro-8) for screw connection for device installation

Technical highlights

• IEC 60320-C8 installation box (Euro-8) for two-pole device supply cables
• Screw mounting, suitable for front panels and housing installation
• 2-pole, without protective earth conductor, suitable for IEC 60320-C7 appliance plugs
• Screw terminals for mechanically safe and maintenance-friendly wiring
• Compact design for tight installation spaces in devices and modules
• Suitable for low-power devices in accordance with IEC 60320-C8 up to 2.5 A / 250 V AC
• Black plastic housing with protective insulation
• For series production, OEM device construction and repair in professional environments

Product description

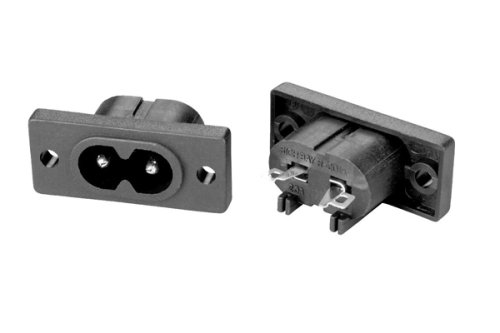

The DINIC IEC 60320-C8 R-201 screw-type socket is a compact small appliance box for securely accommodating IEC 60320-C7 appliance plugs (Euro-8). It is suitable for installation in housing fronts and rear panels of small and IT devices as well as audio and entertainment electronics where a two-pole mains voltage supply without protective earth conductor is required.

The screw mounting enables defined and mechanically stable fastening in the housing, making the socket suitable for use in series production, small series and professional device construction. The integrated screw terminals allow the internal cables to be securely fixed and, if necessary, tightened or loosened in a service-friendly manner.

The insulated plastic design and the standardised C8 interface enable a compatible, clear and standard-compliant power supply for small consumers in the low-voltage network. This supports a clear separation of mains and low-voltage levels in the device and facilitates standardised service and replacement processes.

Areas of application

• Device construction and OEM production of small and IT devices with IEC 60320-C8 connection
• Audio, measuring and control devices with two-pole mains connection (Euro-8)
• Retrofitting or replacement of small device sockets in service and repair
• System integration in racks, modules and small enclosures
• Electronic assemblies with detachable mains cable via C7 connection

Technical data

Product designation	DINIC IEC 60320-C8 Socket for screwing R-201
Part number	CB-I-C8
Connector system	IEC 60320-C8 (Euro-8 small appliance box)
Number of poles	2-pole, without protective conductor
Mounting type	Receptacle for screwing (panel/enclosure mounting)
Connection	Screw terminals for internal wiring
Rated voltage	up to 250 V AC (IEC 60320-C8)
Rated current	up to 2.5 A (IEC 60320-C8)
Housing material	Plastic, insulated version
Colour	black colour
Weight approx.	approx. 0.004 kg per piece
EAN CODE	4032528030821
Brand name	DINIC
Packaging unit	1 piece, loose

Compatibility

The IEC 60320-C8 socket is compatible with all standardised IEC 60320-C7 appliance plugs. It is therefore suitable for use with two-pole mains cables (C7 to mains plug) from the IT, audio and consumer appliance sectors, provided that the appliance connection and design of the system are matched to the electrical data (current, voltage).

• For device supply cables with IEC 60320-C7 plug
• Integration into power supply units, small and end devices with C8 socket
• Combination with existing DINIC C7/C17 mains cables from the MAG range

Scope of delivery

1 × DINIC IEC 60320-C8 socket for screwing R-201 (without connecting cable and other installation material).

DINIC is a trademark of MAG GmbH, Lengede.

IEC 60320 C8 screw-in socket R-201, Euro-8 small appliance socket, 2-pin, black, DINIC, for C7 mains cable and device installation.
