IEC 60320-C6 Receptacle for screwing R-307

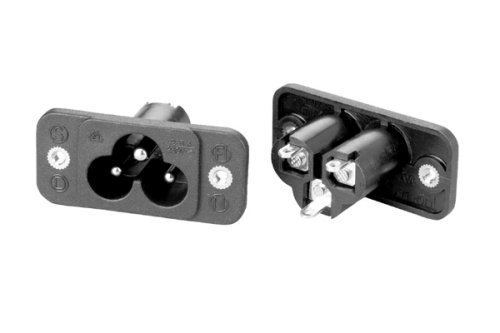

Panel mounting device inlet IEC 60320-C6 with screw fastening and 2.8 mm flat plug connections.
Technical highlights
- IEC 60320-C6 device inlet (panel box) for panel/front panel mounting
- Screw fastening via integrated M2.5 threaded inserts, flange width approx. 39 mm
- Panel aperture approx. 30.0 × 17.6 mm with radius corners as per drawing
- Rated current/rated voltage: 2.5 A / 250 V~
- Insulation resistance > 100 MΩ at 500 V DC, test voltage 2000 V~ for 1 minute
- Housing made of thermoplastic with flammability class UL94 V-2
- Installation depth approx. 23 mm behind the front panel
- Contact connections as 2.8 mm blade terminals for standard blade receptacles
Description
The IEC 60320-C6 panel box R-307 is a compact device inlet for front panel mounting in power supply units and electronic devices. The three-pole C6 connection is designed for operation with suitable IEC 60320-C5 plug IEC 60320-C5 cables and is particularly suitable for compact switching power supplies and small devices in the IT and AV environment.
It is attached via two screw points on the front with integrated M2.5 threaded inserts. This allows the panel box to be integrated into the front of the device quickly, reproducibly and without additional nuts. The defined panel cut-out of approx. 30.0 × 17.6 mm enables secure, backlash-free installation and simplifies the design of sheet metal and plastic housings.
The connection side is designed with 2.8 mm flat plug contacts. These are suitable for connecting pre-assembled cables with blade receptacles and support rationalised wiring in the switch cabinet or device interior. The insulating thermoplastic housing with flammability class UL94 V-2 contributes to operational safety in professional use.
Areas of application
- Power supply units and power supplies with IEC 60320-C6 device inlet
- Notebook and IT power supplies, media technology, presentation and projection technology
- Electronic measurement, control and regulation technology
- System integration in 19" technology, switch cabinet and device construction
- Service, repair and retrofits of devices with C6 connection
Technical data
| Characteristic |
Value |
| Connector system |
IEC 60320-C6 Device inlet (panel box) |
| Number of poles |
3-pole (L, N, PE) |
| Rated voltage |
250 V~ |
| Rated current |
2,5 A |
| Insulation resistance |
> 100 MΩ at 500 V DC (test condition) |
| Test voltage |
2000 V~ for 1 minute |
| Mounting type |
Front panel/panel mounting, screw fastening with M2.5 threaded inserts |
| Panel cut-out |
approx. 30.0 × 17.6 mm, corner radius approx. 3 mm |
| Front dimensions |
Width approx. 39 mm, height approx. 18 mm (incl. mounting flange) |
| Installation depth |
approx. 23 mm behind the front panel |
| Connection |
2.8 mm flat plug contacts for blade receptacles |
| Housing material |
Thermoplastic, flammability class UL94 V-2 |
| Colour: Black |
Black colour |
| Type / Designation |
R-307, item no. CB-I-C6 |
| Weight |
approx. 0.01 kg per piece |
| packaging |
bulk |
Compatibility
Designed for operation with mains cables and device supply cables with IEC 60320 C5 plugs ("Mickey Mouse"/cloverleaf plugs). Suitable as an installation box for power supply units and devices with C6 connection in accordance with IEC 60320.
Scope of delivery
1 x IEC 60320-C6 flush-mounting box for screwing R-307 (art. no. CB-I-C6), bulk.
