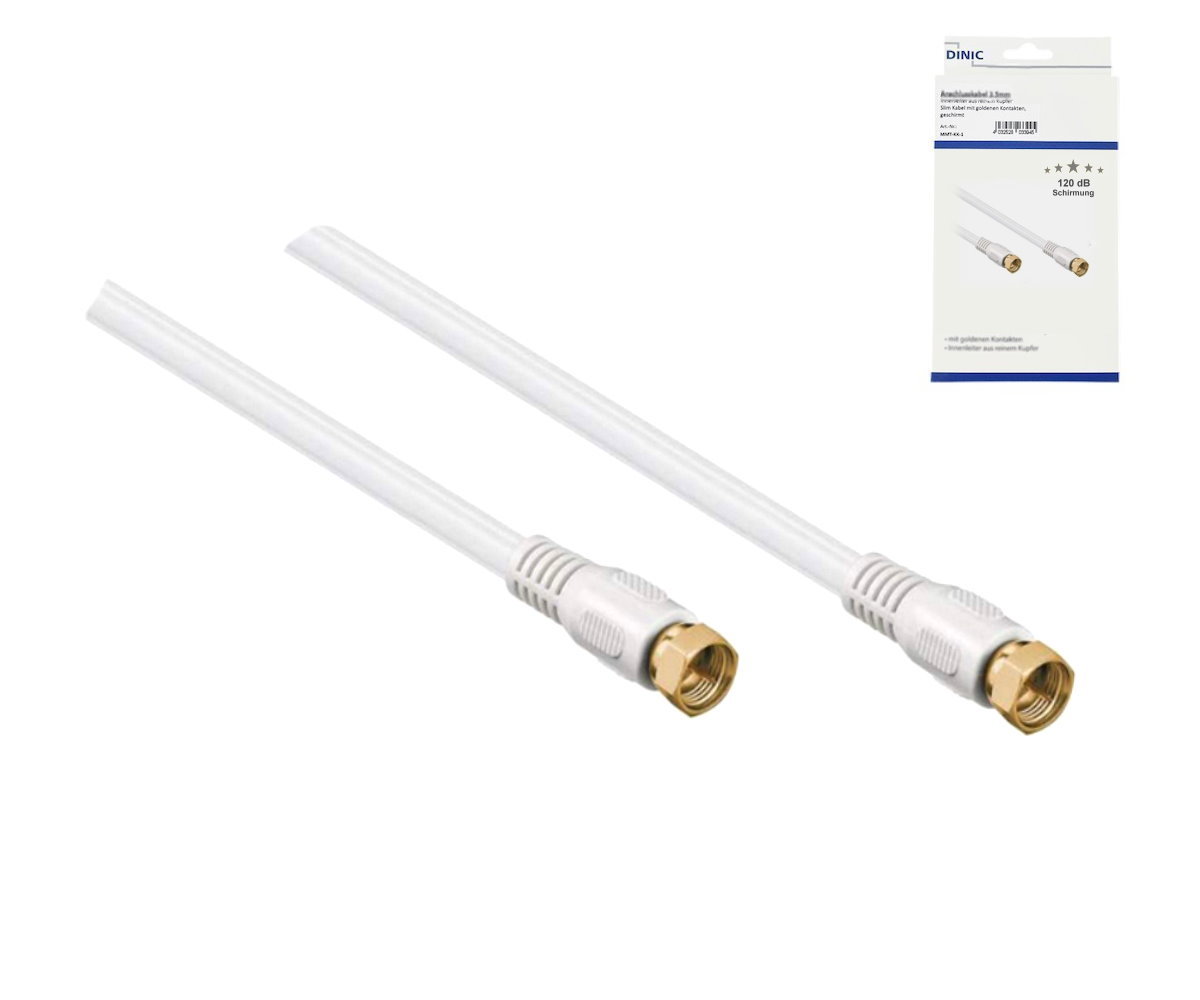

SAT coaxial cable 2x F-connector, 120 dB, 3.5 m - quadruple shielded, gold-plated connectors, white (DINIC)
Pre-assembled SAT/BK connection cable with high shielding attenuation for low-interference signal paths.
Technical highlights
- Connection: F-connector (male) to F-connector (male)
- Shielding attenuation: 120 dB, quadruple shielded (aluminium foil + aluminium-Mg braiding, 2-ply)
- Inner conductor: 0.5 mm CCS (copper clad steel) - mechanically stable for pre-assembled SAT links
- Insulation: 2.9 mm foam PE - defined geometry in HF structure
- Outer diameter: 6.0 mm; type: 3C2V
- Gold-plated F connectors: low-corrosion contact surface, permanently low contact resistance
- Length/colour/packaging: 3.5 m, white, DINIC box with Euro hole
Cable description
This pre-assembled SAT coaxial cable is designed for HF connections in TV/SAT and BK environments. The quadruple shielding reduces coupled interference (e.g. from DECT/LTE/industrial EMC environments) and supports stable signal transmission in distributions and spur lines.
Gold-plated F connectors improve contact reliability with frequent mating and in environments with an increased risk of corrosion. The 3C2V design with an outer diameter of 6.0 mm is practical for assembly, patch panels and connection fields in installation operations.
Areas of application
- Satellite systems: LNB ↔ multiswitch ↔ receiver (intermediate and connection links)
- BK/TV distributions in building technology and property cabling
- Signal routing in technical rooms, racks and media distributors
- Service/maintenance operations (replacement of pre-assembled coaxial stub lines)
Technical data
| Item number |
SAT-FF3-5W-KB |
| EAN CODE |
4032528038865 |
| Plug connector |
F-connector ↔ F-connector |
| Length |
3,5 m |
| colour |
White colour |
| Shielding attenuation |
120 dB |
| Shielding structure |
1) Aluminium foil
2) 128/0.12 Al-Mg braid
3) Aluminium foil
4) 96/0.12 Al-Mg braid |
| Inner conductor |
0.5 mm CCS |
| Dielectric |
2.9 mm foam PE |
| Outer diameter |
6.0 mm |
| Type |
3C2V |
| Contact surface |
gold-plated connections |
| Packaging |
DINIC box (with Euro hole) |
Compatibility
- For devices/components with an F socket (e.g. LNB, multiswitch, SAT receiver, BK/TV distribution technology)
- Suitable for pre-assembled coaxial stub and connection lines in TV/SAT installations
Scope of delivery
1x SAT coaxial cable, 3.5 m, white, F-connectors on both sides (gold-plated connections), packed in DINIC box.
DINIC is a brand of MAG GmbH - ready-made cable and connection technology for professional applications.
SEO: SAT coaxial cable 3.5 m, 2x F-connectors, 120 dB, quadruple shielded, gold-plated connectors, 3C2V, DINIC, white
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
