Technical highlights

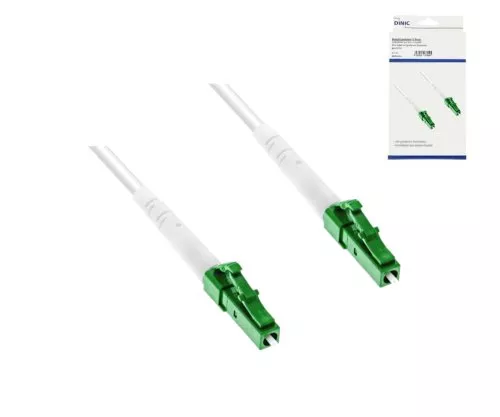

• Simplex OS2 singlemode connection cable, 1m length
• LC/APC 8° (LCA) connector on both ends, green coded
• For fibre optic routers, ONT and FTTH termination boxes with LC/APC socket
• LSZH sheath (Low Smoke Zero Halogen) for increased safety in buildings
• Cable outer diameter approx. 2.0 mm, flexible for narrow installation paths
• White colour for neutral, unobtrusive installation
• Pre-assembled, ready to plug in, individually packed in DINIC box with Euro hole

Cable description

This fibre optic connection cable is used for the direct connection of fibre optic routers, ONTs or modems to FTTH termination boxes or transfer points with LC/APC interface. The simplex OS2 single-mode cable version with a length of 1 m is particularly suitable for short connections in the access area, e.g. between the fibre optic socket and the end device.

LC/APC 8° connectors (LCA) are assembled on both ends. The APC cut geometry with an 8° angle ensures low back reflections and stable transmission quality in typical single-mode applications. The standardised LCA-LCA assembly makes the cable particularly suitable for routers and network termination devices with LC/APC WAN ports as well as LC/APC-equipped patch panels and termination boxes.

The halogen-free LSZH sheath (Low Smoke Zero Halogen) reduces smoke and gas development in the event of fire and is therefore designed for installations in commercial and public buildings. The compact outer diameter of approx. 2.0 mm facilitates installation in small radii, cable ducts and equipment cabinets without taking up unnecessary space.

The white jacket colour ensures visually discreet integration in router environments, office environments and residential distribution zones. Delivery in the DINIC box enables clean storage, labelling and distribution in specialist shops or during service calls.

Areas of application

• FTTH/FTTB connections (fibre optic to the building or home)
• Direct connection of fibre optic routers and ONTs to LC/APC termination boxes
• Telecommunications and broadband networks in the access and subscriber area
• Patching in small distributors, wall-mounted housings and network cabinets
• System integration, provider CPE installations and on-site service calls

Technical data

Compatibility

• Fibre optic routers, modems and ONT with LC/APC (LCA) single-mode socket
• FTTH/FTTB termination boxes with LC/APC coupling
• Patch panels and wall distributors with LC/APC equipment
• Singlemode OS2 links in the access and subscriber network

Scope of delivery

• 1× LCA-LCA connection cable, simplex OS2, LC/APC 8° to LC/APC 8°, 1m, LSZH, in DINIC box

DINIC is a MAG GmbH brand for professional connection technology in IT, telecommunications and building networks.
